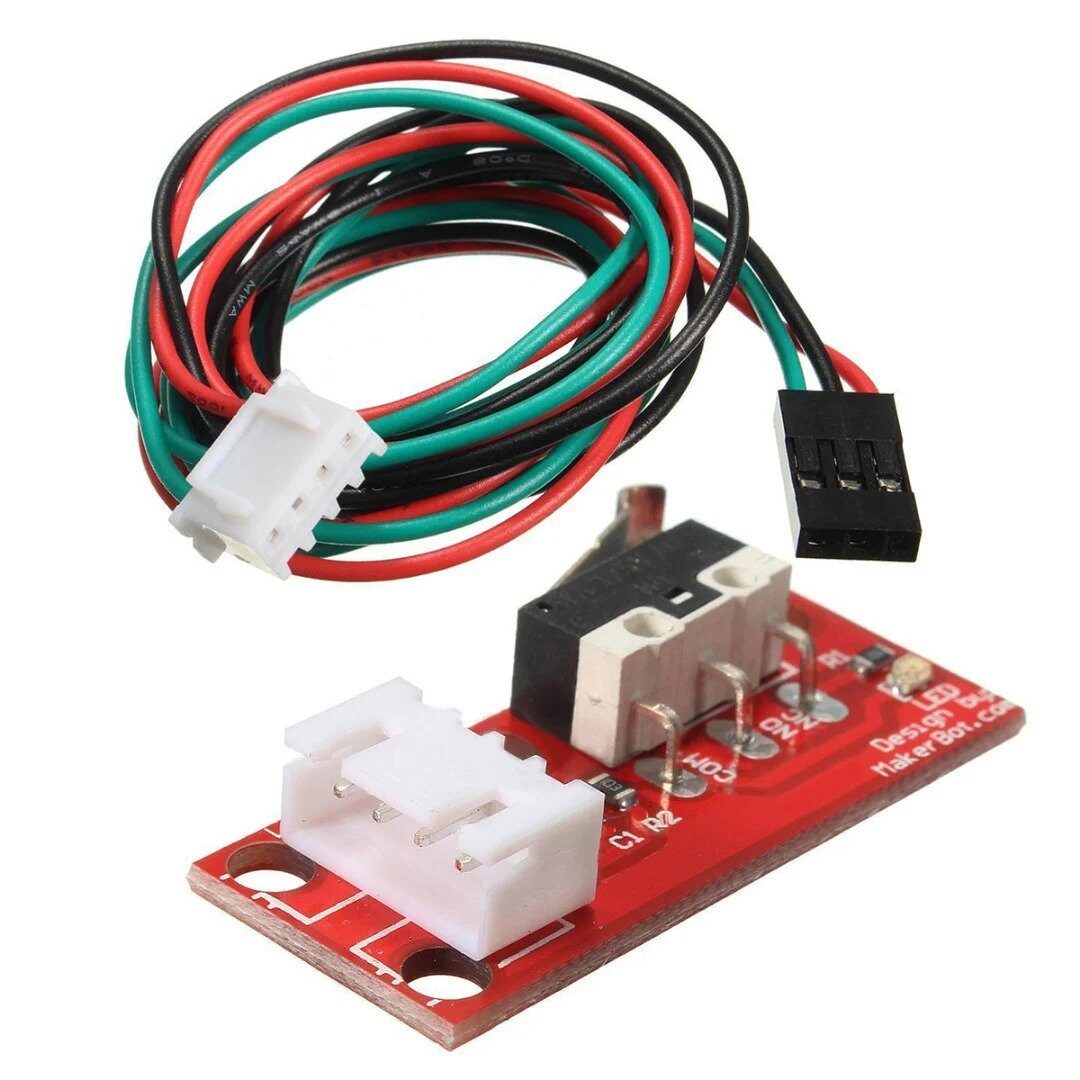

Mechanical Endstop Switch with Cable for 3D Printers

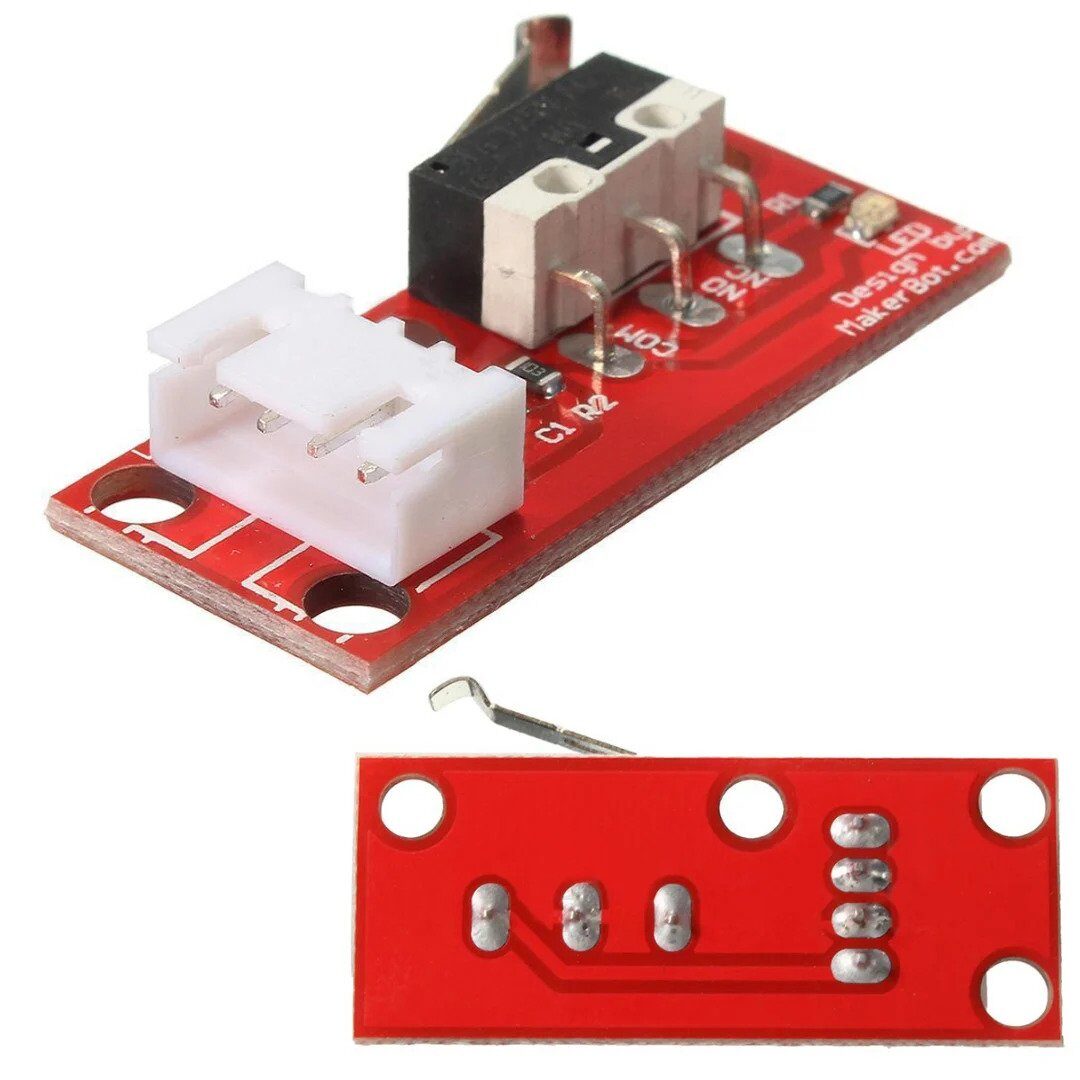

CNC 3D Printer Mech Endstop Switch uses a lever switch to detect when it is activated. The switch is wired up so that when activated, it pulls the signal to LOW. There is also an LED on the board that will light up when the switch is activated. It uses a standard 4 pin 100″ pitch header and accepts a standard, old-style CD-ROM audio connector cable.
The mechanical endstop is a simple solution to a simple problem. We want to be able to detect when an X/Y/Z stage has reached its minimum or maximum. Instead of messing with flags or complicated light beam interruption, we use a mechanical switch.
If we place the switch in the path of the stage, then the stage itself will simply close the switch when it moves against it. Other than properly positioning the switch, we do not need to modify the stage at all. If you’re worried about reliability, you can sleep well at night. The switches we use are rated for 1 million operations before failure. Since we only use the switches once per print, that means you’ll be able to do one million prints before having to replace the switch
Connection description:
- Redline: connecting VCC (ramps of +)
- Black line: connecting GND (ramps of -)
- Green Line: connecting SIGNAL (ramps in s)
Features
- Not easy to pull off, plug it convenient, for ease of use, plug the other side to do the one, you can use the direct plug.
- Quality switching elements.
- Customized high-quality connection wires using 22AWG copper wire with ratings of current 2A, 300V voltage.
- An insulating layer over a wide range of temperatures, up to 80 degrees.
Specifications:
| Item Type: | General Limit Switch |
|---|---|
| Voltage Rating (V): | 300V (operating) |
| Current Rating (A): | 2A |
| With Cable (Y/N): | Yes |
| Cable Length (m): | 0.7 |
| Operating Voltage (V) | 300 |
| Operating Current (A): | 2 |
Package Includes
- 1 x CNC 3D Printer Mech End stop Switch.
- 1 x 3 Pins cable.
Multi-Material 3D Printing: Bambu AMS vs Prusa MMU3 Guide
Multi-Material 3D Printing: Bambu AMS vs Prusa MMU3 Guide Multi-material 3D printing has moved from an exotic luxury...
Read More →
G-Code Basics for 3D Printing: Understand Your Slicer Output
Table of Contents What Is G-Code? G-Code File Structure Essential G-Code Commands for 3D Printing Start and End...
Read More →
Acetone Smoothing for ABS: Get a Perfect Finish on Your 3D Prints
Acetone Smoothing for ABS: Get a Perfect Finish on Your 3D Prints One of the most impressive capabilities...
Read More →Technical Specifications
| Interface / Protocol | BLE |
|---|---|
| SKU | AI0576 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The Mechanical Endstop Switch with Cable for 3D Printers is a versatile limit switch used across a wide range of applications including 3D printer maintenance, printer upgrades, custom printer builds, and replacement parts.
Common use cases:
- Replacing a worn-out nozzle or extruder gear
- Upgrading to a direct drive extruder
- Building a custom CoreXY printer
This product is ideal for 3D printer owners and custom printer builders.
Technical Tip: Keep spare nozzles, PTFE tubes, and belts on hand. Regular maintenance significantly extends printer life and print quality.
