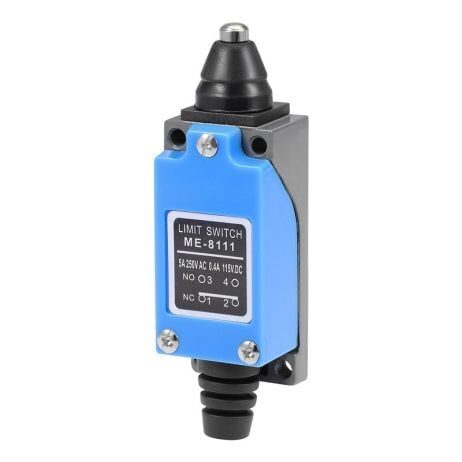

PRODUCT DESCRIPTION
The ME-8111 Rotary Adjustable Roller Mini Limit Switch, also known as a POSITION SWITCH, is a popular small-current primary electrical device. It operates through the interaction of moving parts in production machinery or within a segmented control circuit, enabling specific control functions.
This limit switch is widely used in mechanical and industrial applications to monitor the position of moving components in machines and equipment. To ensure proper functionality, it’s important to verify the voltage rating for compatibility with the local voltage supply.
Features:
- Actuator action: momentary.
- Actuator-type rotary adjustable lever arm with a roller.
- Contact configuration 2 NC 2 NO.
- IP Rating: IP66
Specifications:
- Model: ME-8111
- Voltage Rating: AC 250V,5A / DC 115V. 0.4A
- Actuator Type: Standard Pin Plunger, Automatic Reset
- IP Rating: IP66
- Mounting Hole Diameter:4.5mm
- Hole Center Point Distance: 56mm x 21mm
- Material: Resin, Plastic, Metal
- Overall Size: 99 x 28 x 25mm
- Weight (gm): 60
| Model | ME-8111 |
|---|---|
| Voltage Rating | AC 250V,5A / DC 115V. 0.4A |
| Actuator Type | Standard Pin Plunger, Automatic Reset |
| IP Rating | IP66 |
| Mounting Hole Diameter (mm) | 4.5mm |
| Hole Center Point Distance | 56mm x 21mm |
| Weight (gm) | 60 |
| Size(mm) | 99 x 28 x 25mm |
| Material | Resin, Plastic, Metal |
| Shipping Weight | 0.07 kg |
| Shipping Dimensions | 10 × 3 × 3 cm |
Package Includes:
1 x ME-8111 Rotary Adjustable Roller Mini Limit Switch
Technical Specifications
| Model | ME-8111 |
|---|---|
| Interface / Protocol | BLE |
| SKU | AI3410 |
| Weight | 0.07 kg |
| Availability | Out of Stock |
Applications & Use Cases
The ME-8111 Rotary Adjustable Roller Mini Limit Switch is a versatile limit switch used across a wide range of applications including 3D printer maintenance, printer upgrades, custom printer builds, and replacement parts.
Common use cases:
- Replacing a worn-out nozzle or extruder gear
- Upgrading to a direct drive extruder
- Building a custom CoreXY printer
This product is ideal for 3D printer owners and custom printer builders.
Technical Tip: Keep spare nozzles, PTFE tubes, and belts on hand. Regular maintenance significantly extends printer life and print quality.
