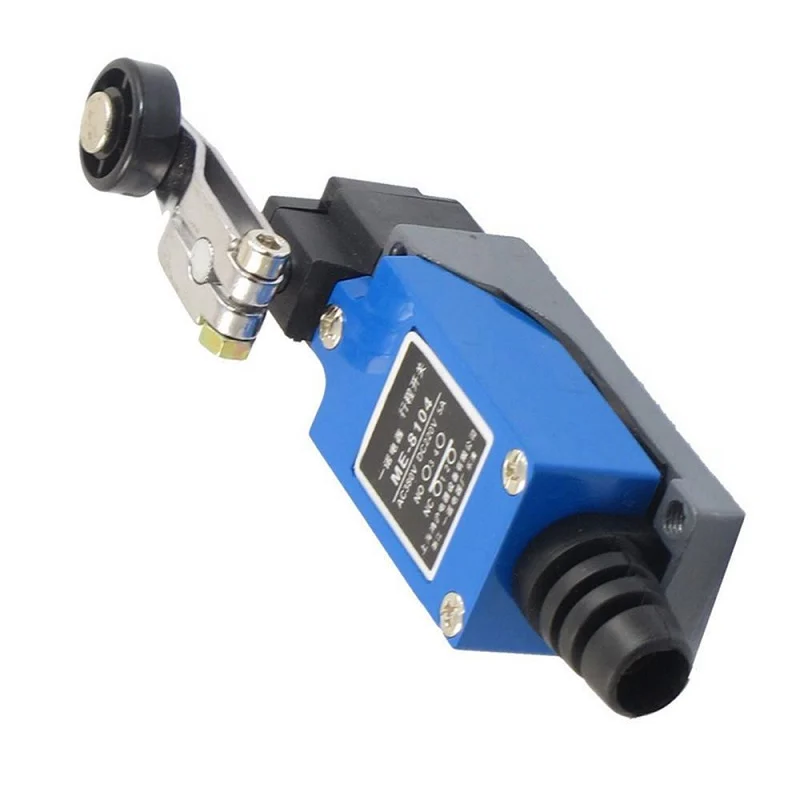

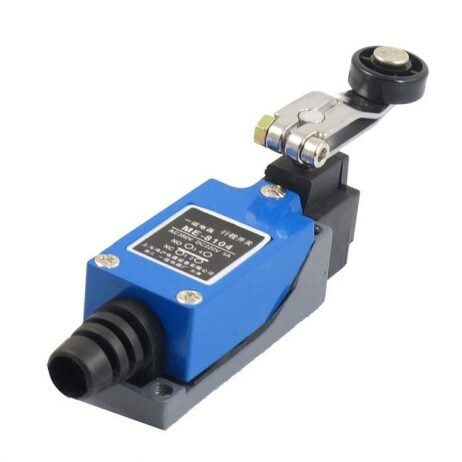

ME-8104 Rotary Adjustable Roller Mini Limit Switch
The ME-8104 Rotary Adjustable Roller Mini Limit Switch, also known as the POSITION SWITCH, serves as a commonly employed small current electrical component. Its contact action is triggered by the collision of moving parts within production machinery or segmented control circuits, thereby achieving specific control objectives.
Primarily utilized as electrical control switches in mechanical and other industrial sectors, this Limit Switch proves versatile in monitoring the positions of moving parts within machinery and plants. It is perfect for ensuring precise control and safety in various machines.
When considering its usage, it’s essential to pay attention to the Voltage Rating and verify compatibility with the voltage standards in your location to ensure optimal performance of the Limit Switch.
Features:
- Actuator action: momentary.
- Actuator-type rotary adjustable lever arm with a roller.
Specifications:
- Model: ME-8104
- Type: Rotary Lever Arm with Roller
- Power: DC 250V, 5A
- Fixing Thread Diameter: 4mm
- Roller Dimension: 1.8 x 0.7cm
- Lever Arm Length: 4.6cm
- Overall Size: 12.3 x 2.8 x 3.9cm
- Color: Black & Blue
- Material: Plastic, Metal & Rubber
- Weight: 80g
Package Includes:
1 x ME-8104 Rotary Adjustable Roller Mini Limit Switch
