MAX31855 K type thermocouple module
Thermocouples are very sensitive, requiring a good amplifier with a cold-compensation reference. The MAX31855K does everything for you and can be easily interfaced with any microcontroller, even one without an analog input. This breakout board has the chip itself, a 3.3V regulator with 10uF bypass capacitors, and level shifting circuitry, all assembled and tested. Comes with a 2 pin terminal block (for connecting to the thermocouple) and pin header (to plug into any breadboard or perfboard).
Features:
- Works with any K type thermocouple
- Will not work with any other kind of thermocouple other than K type
- -200°C to +1350°C output in 0.25-degree increments – note that K thermocouples have about ±2°C to ±6°C accuracy
- Internal temperature reading
- 3.3 to 5v power supply and logic level compliance!
- SPI data output requires any 3 digital I/O pins.
Specification:
Power Supply: 3.3 to 5v
Interface: 3 wire SPI
Accuracy: 0.25 degree temperature
Compatible Thermocouple: K type
Measurement Temperature Range: -200 °C to 1350 °C
Resolution: 14 bit
Package Includes:

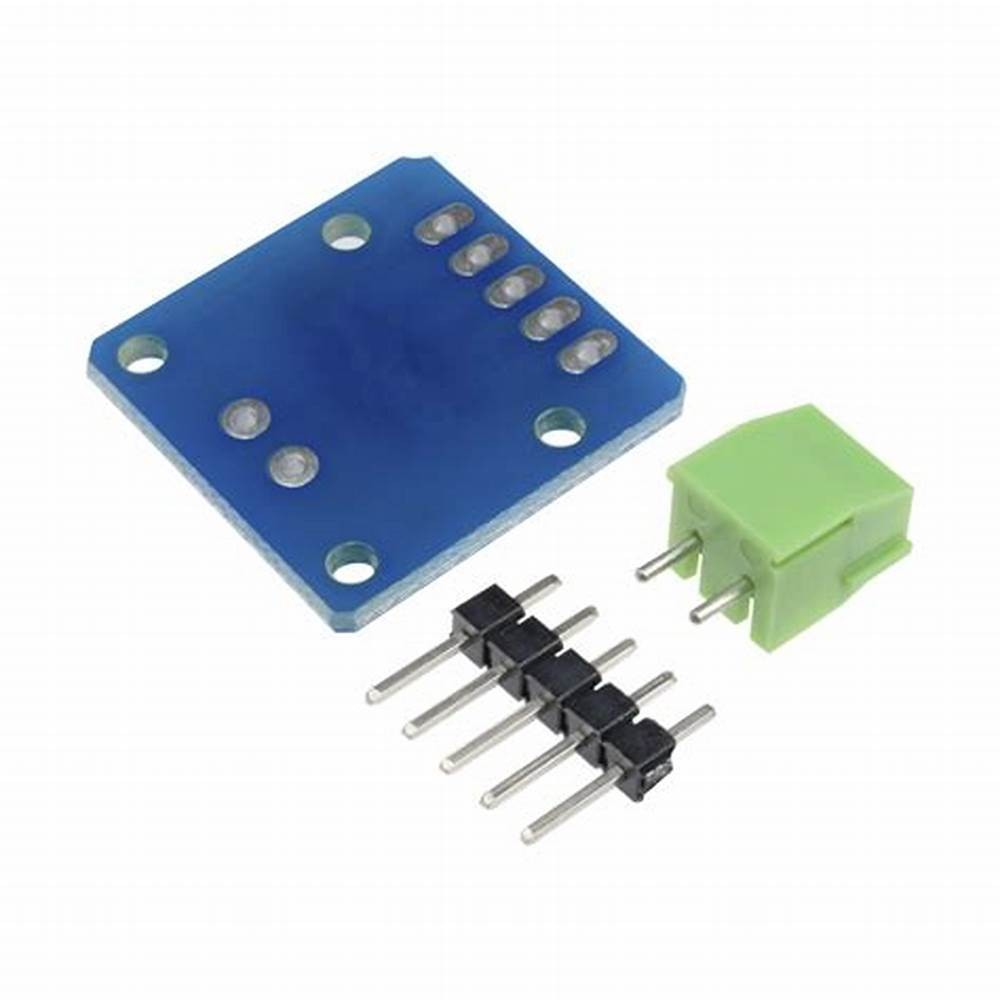

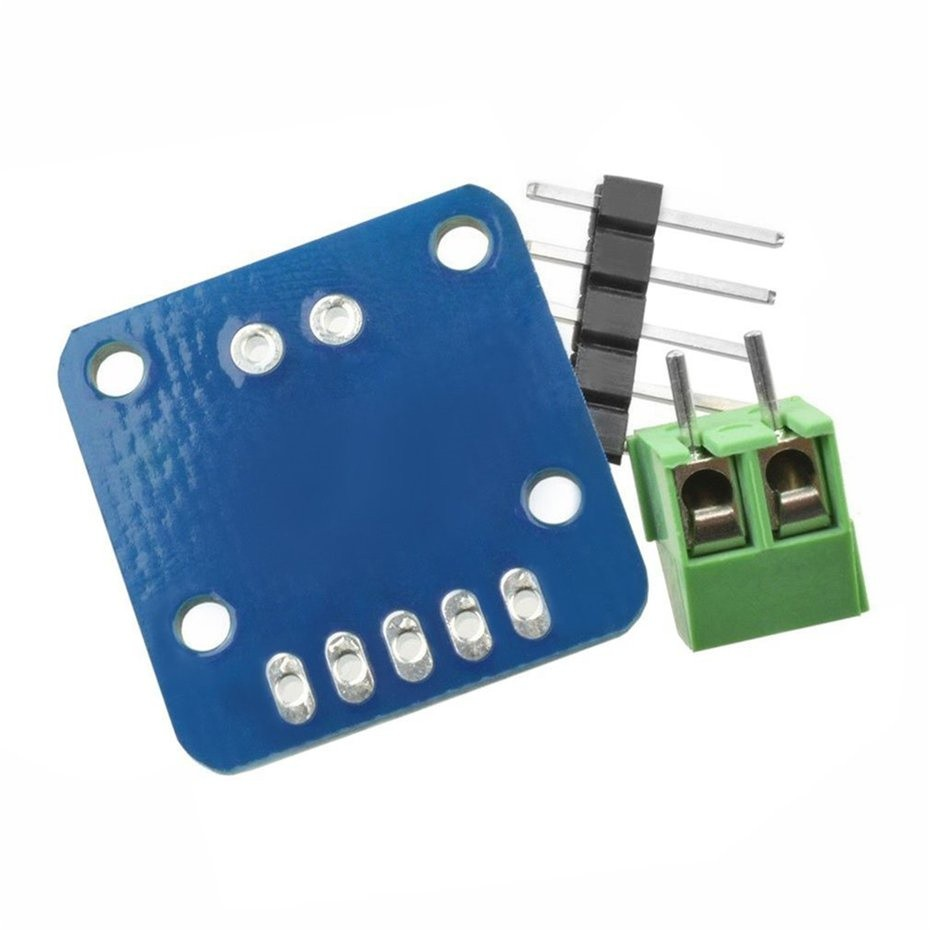

1 x MAX31855 K-type thermocouple module
MAX31855 K type thermocouple module Overview

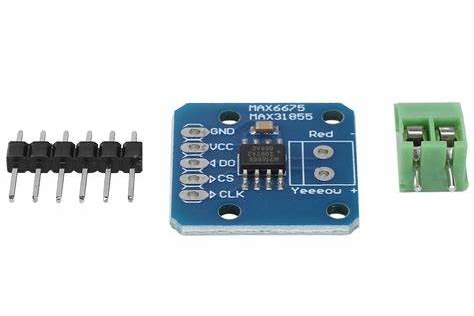

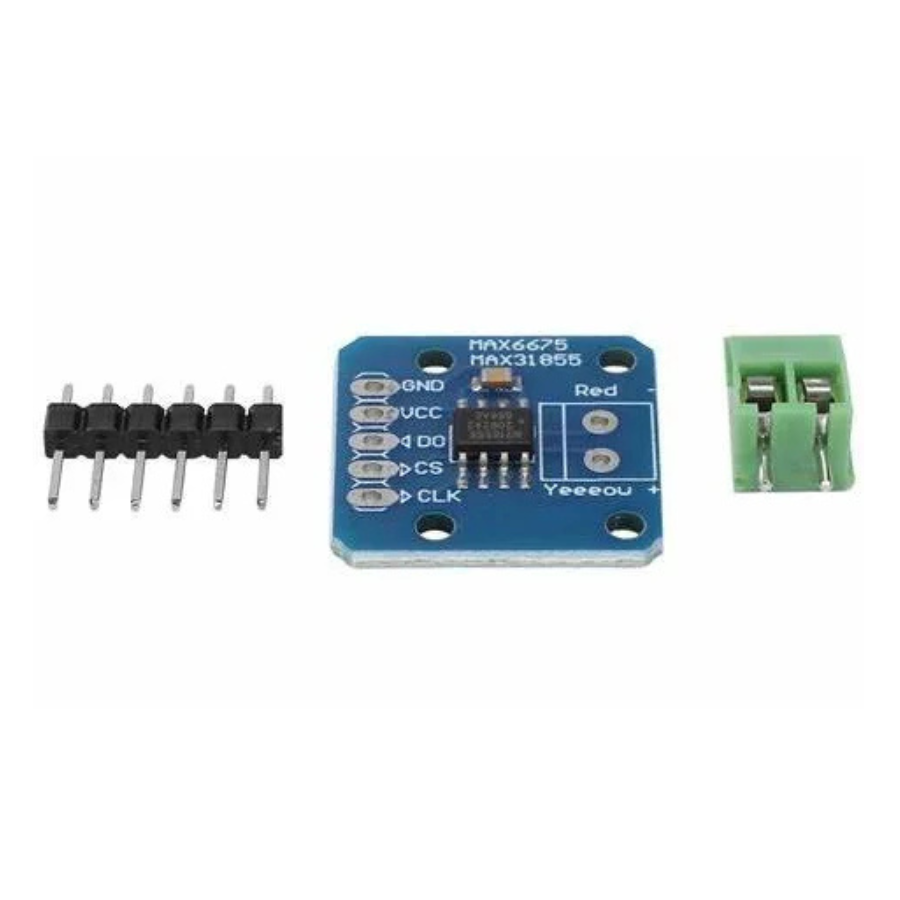

The MAX31855 K type thermocouple module is a ready-to-use breakout board that converts K-type thermocouple signals into digital temperature readings. Featuring the MAX31855 cold-junction compensated amplifier, it outputs 14-bit temperature data over a 3-wire SPI interface, making it ideal for microcontrollers without analog inputs.
Key Features of MAX31855 K type thermocouple module
- Designed exclusively for K-type thermocouples for high-temperature measurements
- Wide measurement range from –200 °C to 1350 °C with 0.25 °C resolution
- 3-wire SPI interface (CS, SCLK, SO) for direct digital output
- On-board 3.3 V regulator and level shifting for 3.3 V or 5 V logic compatibility
- Includes terminal block and pin header for easy breadboarding or perf-board mounting
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- Industrial furnace and kiln temperature monitoring
- 3D printer extruder and hot-end temperature control
- Laboratory and R&D thermal profiling
- HVAC system diagnostics and calibration
- Engine exhaust and turbine temperature measurement
- Food processing and pasteurization equipment
How to Use MAX31855 K type thermocouple module
Power the module with 3.3 V–5 V on VCC and GND, attach your K-type thermocouple to the screw terminal, and connect CS, SCLK and SO pins to your microcontroller’s SPI interface. Use a MAX31855 library or plain SPI routines to read the 32-bit data register; the board provides cold-junction compensation and outputs temperature in 0.25 °C increments for straightforward integration.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I use this module with a 5 V microcontroller?
Yes. The on-board 3.3 V regulator and level-shifting circuitry let you power the module from 5 V and interface directly with 5 V logic pins.
How do I decode the SPI output?
The MAX31855 returns a 32-bit data word. Bits [31:18] contain the signed 14-bit thermocouple temperature in two’s complement format, which you can convert to °C at 0.25 °C resolution using a compatible library or simple bit-shifting code.
Does it handle cold-junction compensation?
Yes. The integrated MAX31855 chip automatically compensates for ambient junction temperature, delivering accurate thermocouple readings without external reference sensors.
