This is the Green variant of the MAD CO – FS 2306 Thruster FPV Drone motor (Green) 1750KV-6S in Drone Motor. Available at ₹2,089.99 (₹1,771.18 + GST) with free shipping across India.

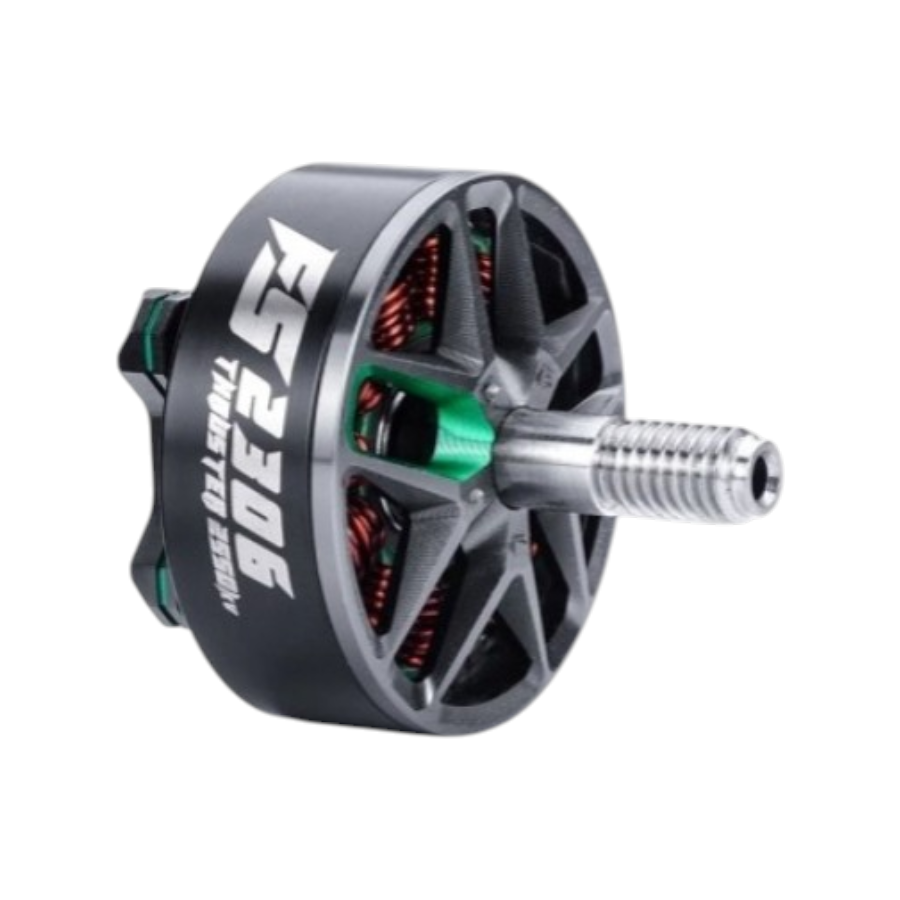

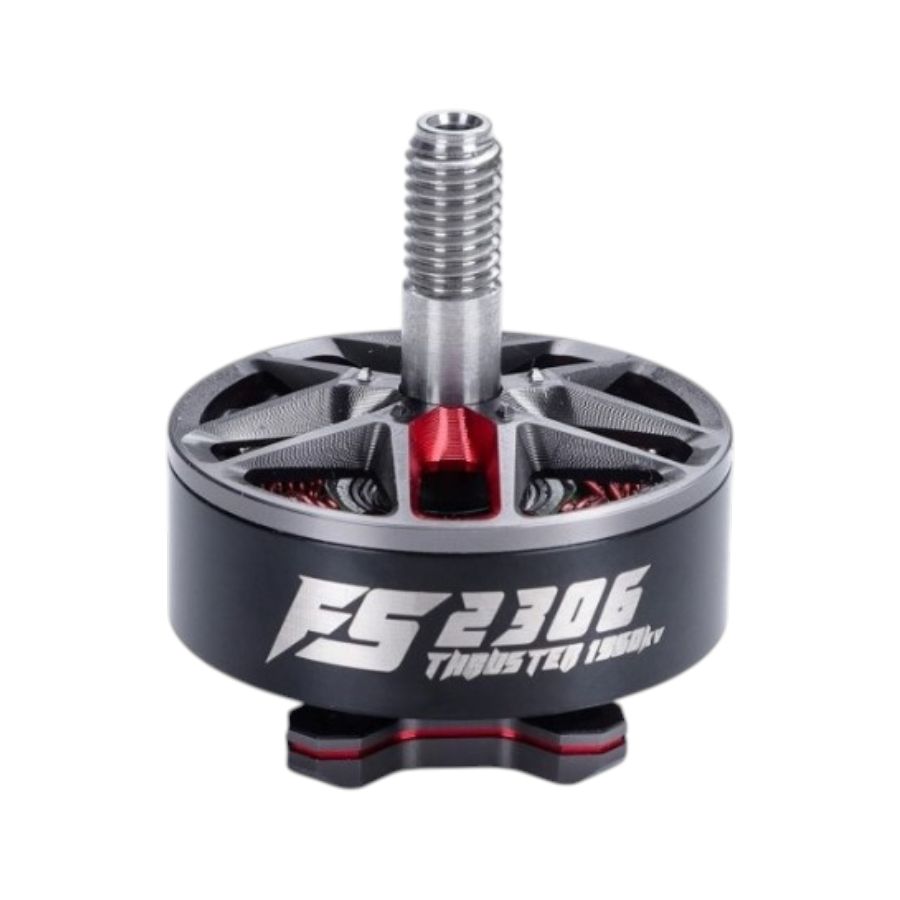

MAD CO – FS 2306 Thruster FPV Drone motor (Green) 1750KV-6S
Description:
The MAD CO FS 2306 Thruster FPV Drone motor is engineered for FPV drone enthusiasts seeking reliable performance and precision. Designed for use with 6S LiPo batteries, this motor features a robust construction, making it ideal for both racing and freestyle flying. Thruster FPV Drone motor careful attention to rotor balance and a high-quality build, the FS 2306 ensures smooth operation and enhanced responsiveness in the air.
Features:
- Motor Model: MAD Thruster FS2306 V1.0
- Configuration: 12N14P (12 slots, 14 poles) for improved efficiency.
- Dimensions: 28.2 × 32.2 mm, compact design for optimal weight distribution.
- Rotor Balance: ≤ 5 mg for stable flight performance.
- Mounting: M5 nut for secure propeller attachment.
- Shaft Diameter: 4 mm, compatible with standard propeller mounts.
- Cable Length: 150 mm, 20# AWG silicone for flexibility and durability
Specifications:
| Motor KV (RPM/V): | 1750 |
|---|---|
| Motor Type: | FPV Motor |
| Shaft Diameter (mm): | 4 |
| Max. Efficiency Current (A) | 35.2 |
| Max. Power (W) | 873 |
| Maximum Thrust (gm) | 1.62 |
| No-load current (A) | 1.37 |

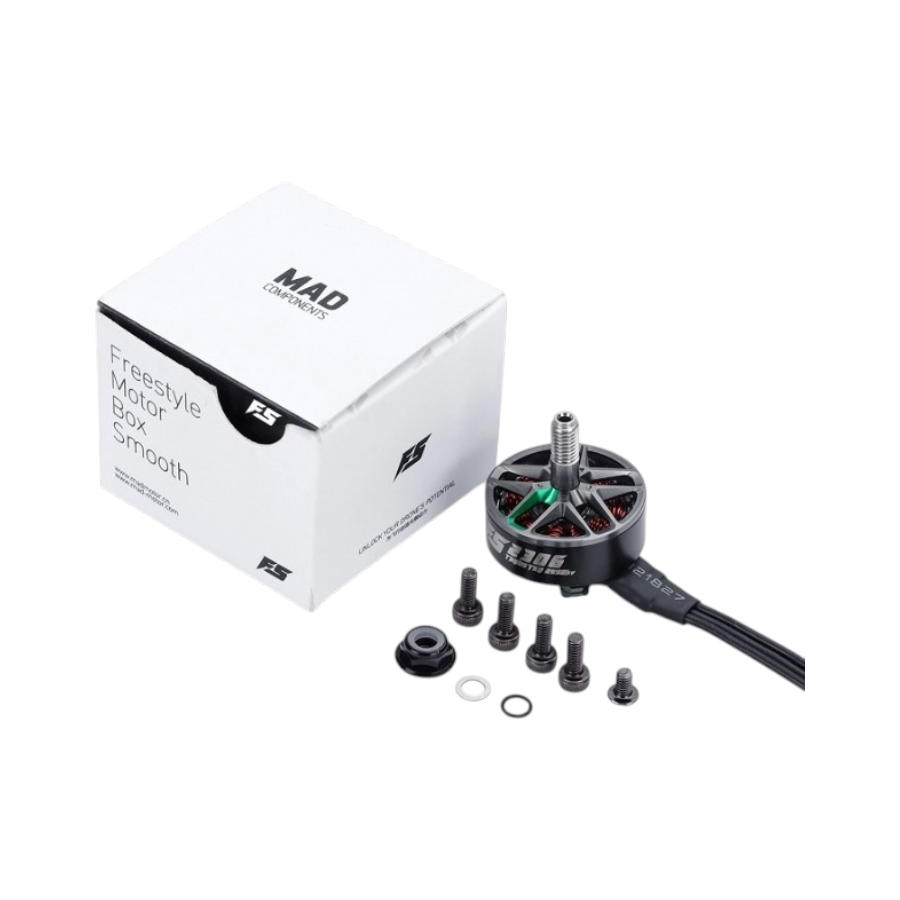

Package include:
1 x MAD CO – FS 2306 Thruster FPV Drone motor (Green) 1750KV-6S
FPV Motor Rewind: Repair Burnt Motors Instead of Replacing
FPV Motor Rewind: Repair Burnt Motors Instead of Replacing You are mid-session at your favourite flying field, the...
Read More →
Troubleshooting L298N: Motor Not Running, Overheating & Fixes
The L298N dual H-bridge motor driver module is one of the most widely used motor control boards in...
Read More →
Drone Photogrammetry: 3D Model from Aerial Photos
Table of Contents Understanding Drone Photogrammetry Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical Tips...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| Cell Configuration | 6S |
| KV Rating | 1750KV |
| Color | Green |
| SKU | AI8124 |
| Weight | 0.055 kg |
| Availability | Out of Stock |
Applications & Use Cases
The MAD CO – FS 2306 Thruster FPV Drone motor (Green) 1750KV-6S is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
