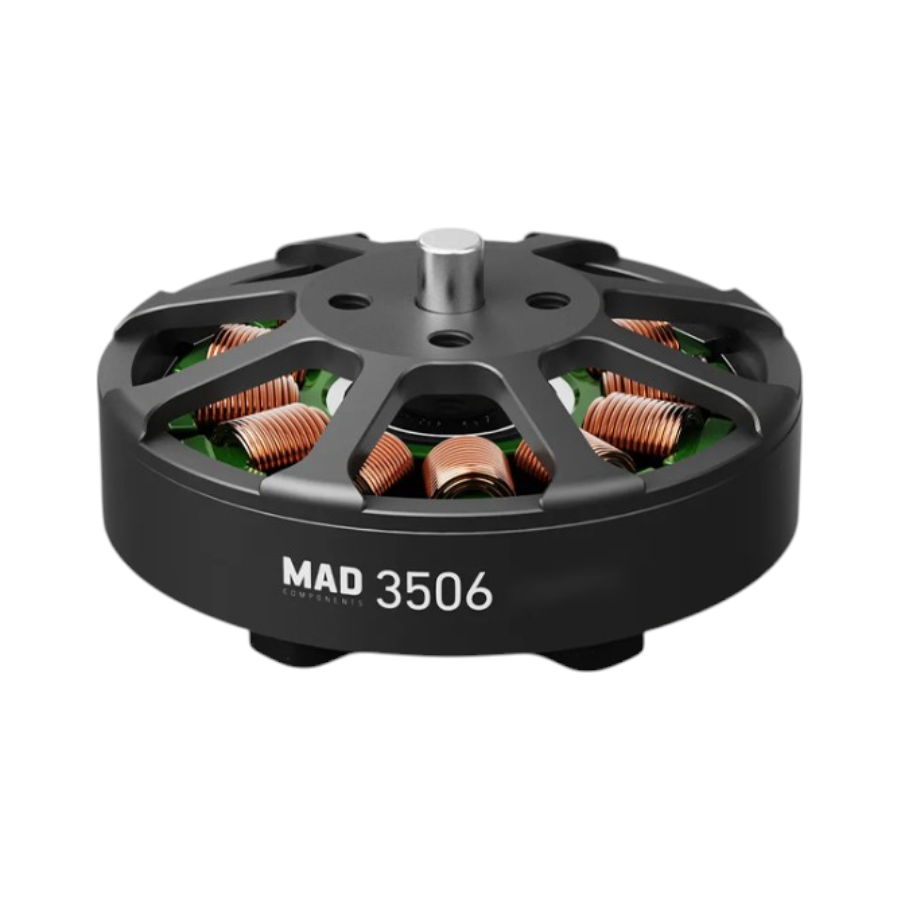

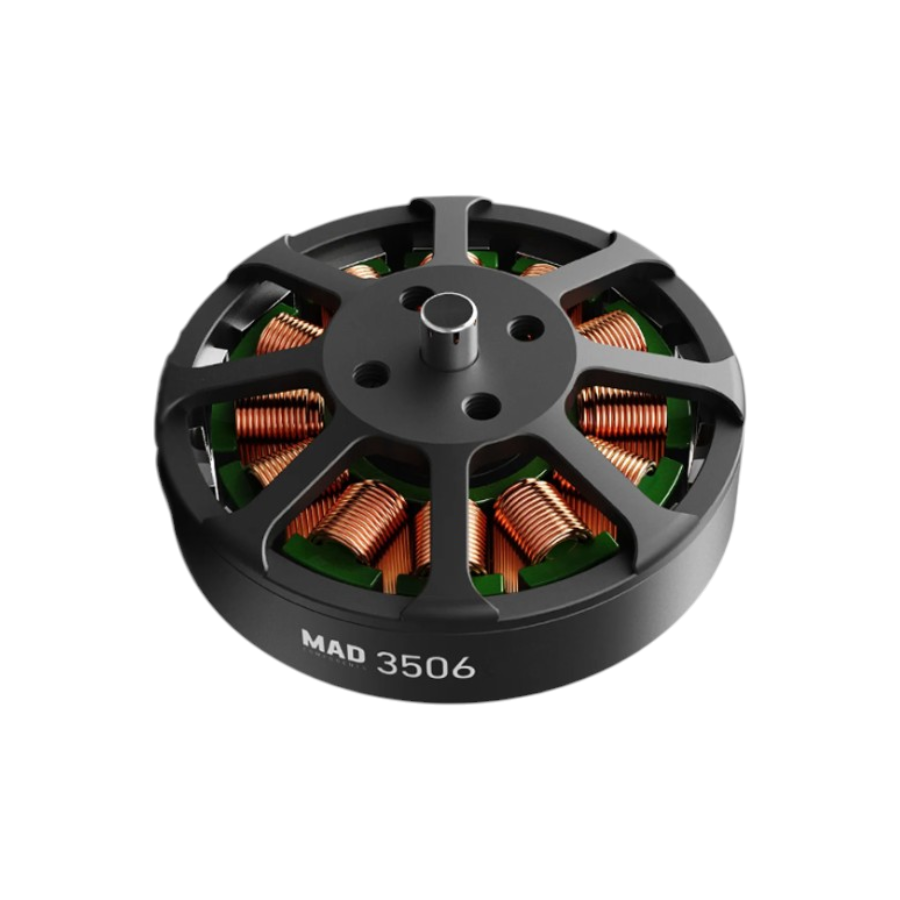

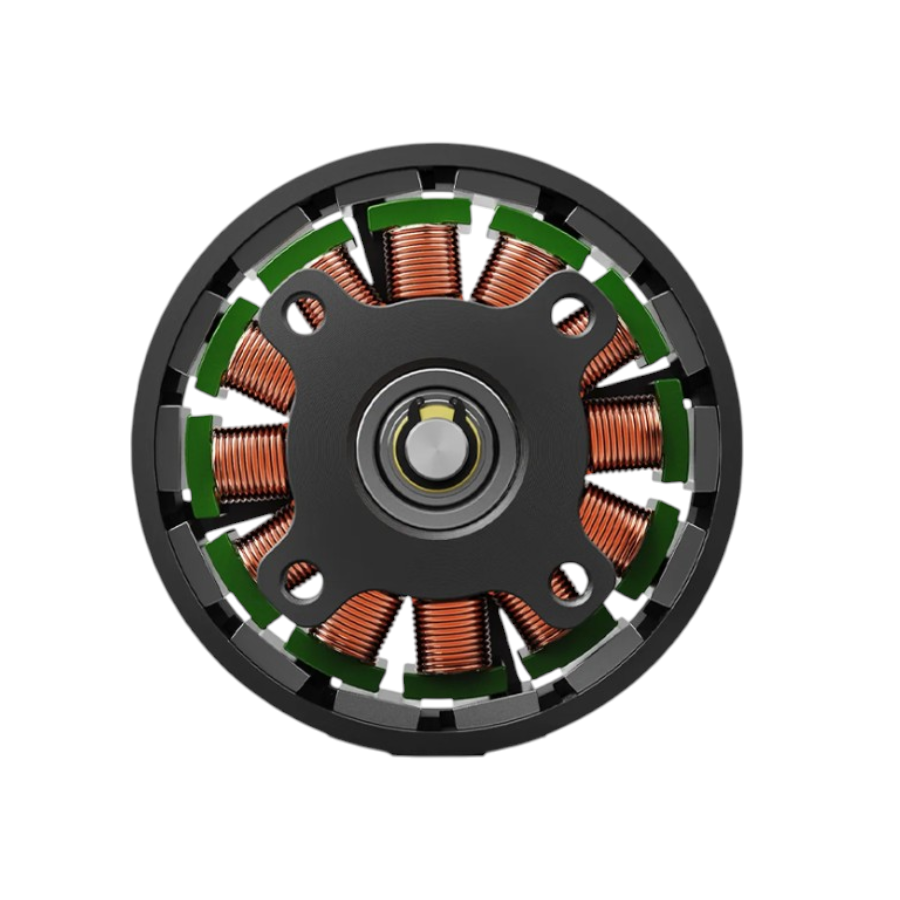

MAD CO 3506 EEE brushless drone motor 650KV (Pack Of 2)
Description:
The MAD CO 3506 EEE brushless drone motor 650KV is expertly engineered for single-axis payloads ranging from 320 to 720 grams, making it ideal for heavy-lift drones and industrial UAV platforms. Designed to operate optimally with 11–14″ carbon fiber propellers, it delivers a powerful maximum thrust of 1500g per motor. Despite its robust performance, it remains ultra-lightweight at just 72.3 grams per motor. Featuring precision balancing and anticorrosive stators, this motor ensures smooth, efficient operation and excellent heat dissipation. Its high thrust-to-weight ratio supports agile drone performance, making it perfect for professional aerial photography, payload delivery, and demanding industrial applications.
Features:
- High thrust-to-weight ratio for enhanced agility
- Optimized for 11–14″ carbon fiber propellers
- Maximum thrust of 1500g per motor
- Ultra-lightweight at 72.3g per motor
- Precision-balanced for smooth, vibration-free operation
- Corrosion-resistant stator and heat-resistant magnet for durability
- Rain-protected design suitable for outdoor use
- Ideal for cinematography, industrial UAVs, and heavy payloads
Application:
- Aerial cinematography drones
- Heavy-lift quad/hex/octocopters
- Payload delivery UAVs
- Industrial inspection drones
- Agricultural spraying/mapping drones
- Custom UAV and VTOL projects
Specifications:
| Item Type: | Drone motor |
|---|---|
| Model No: | 3506 |
| Motor KV (RPM/V): | 650 |
| Motor Type: | EEE brushless drone motor |
| Compatible LiPO Batteries: | 4S LiPo |
| No-load current (A) | 0.5A @ 16V |
| Max Current (A) | 17.4 |
| Max Power Output (W) | 270 |
| Torque: | 0.24 Nm |
| Max Thrust | 1.5 kg |
| Shaft Diameter (mm): | 4 |
| Bearing | 694ZZ*2 |
| Mounting Hole(mm) | D:12 M3×4 |
| Motor Size (mm): | D:42.5 × 23.8 |
| Motor Outer Diameter(mm) | 42.5 |
| Weight (g): | 72.3(Each) |

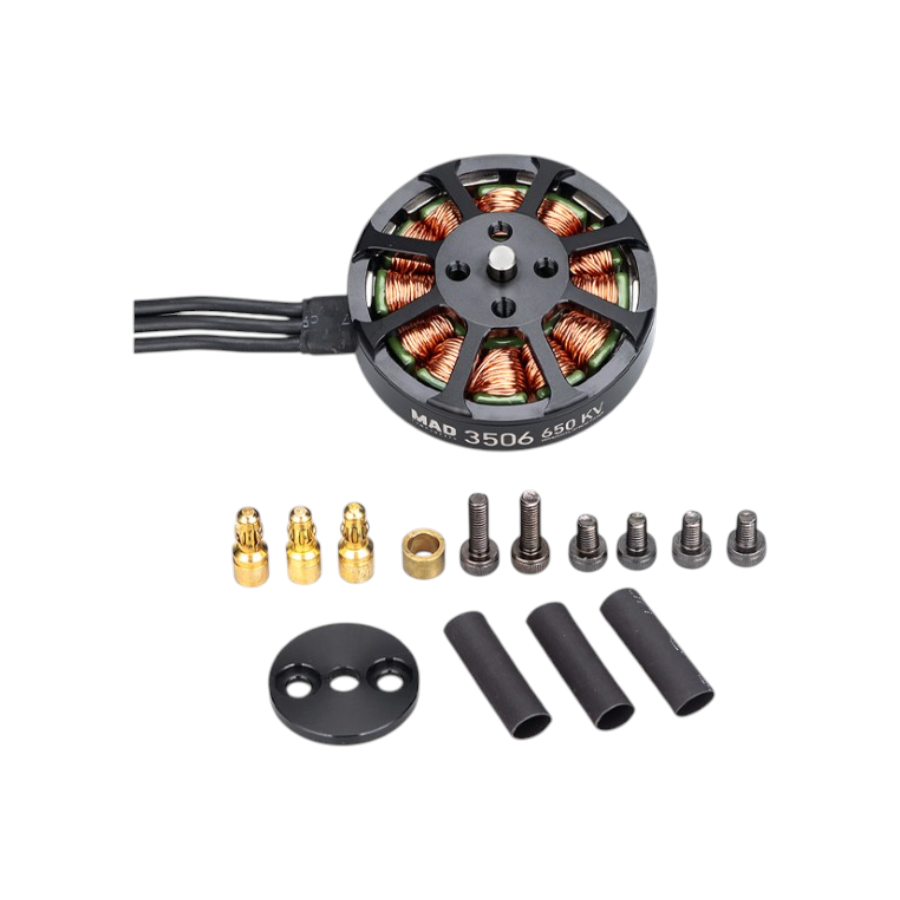

Package Includes:
1 x MAD CO 3506 EEE brushless drone motor 650KV (Pack Of 2)
2 x Propeller Plate
6 x 3.5mm Bullet Connector
2 x 04-6 Adapter Ring
6 x Heat Shrinkable Tube
8 x M3*6 Motor Screws
4 x M3*10 Propeller Screws
2 x Sticker
Agriculture Sprayer Drone: Complete Guide to Tank, Pump and Nozzle Selection
Table of ContentsWhy Agriculture Sprayer Drones Are Transforming Indian FarmingSprayer System Components OverviewTank Selection: Capacity, Material, and MountingPump...
Read More →
Drone RTK GPS: Centimeter-Accurate Navigation Explained
Table of Contents What Is RTK GPS and How Does It Work? RTK vs Standard GPS: The Numbers...
Read More →
DigiSky Drone Registration Walkthrough: Step-by-Step India
Every drone owner in India must complete DigiSky registration before flying. The DGCA's DigiSky platform is the official...
Read More →Technical Specifications
| Brand | MAD COMPONENTS |
|---|---|
| KV Rating | 650KV |
| Package Quantity | 2 pcs |
| SKU | AI8104 |
| Weight | 0.303 kg |
| Availability | Out of Stock |
Applications & Use Cases
The MAD CO 3506 EEE brushless drone motor 650KV (Pack Of 2) is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
