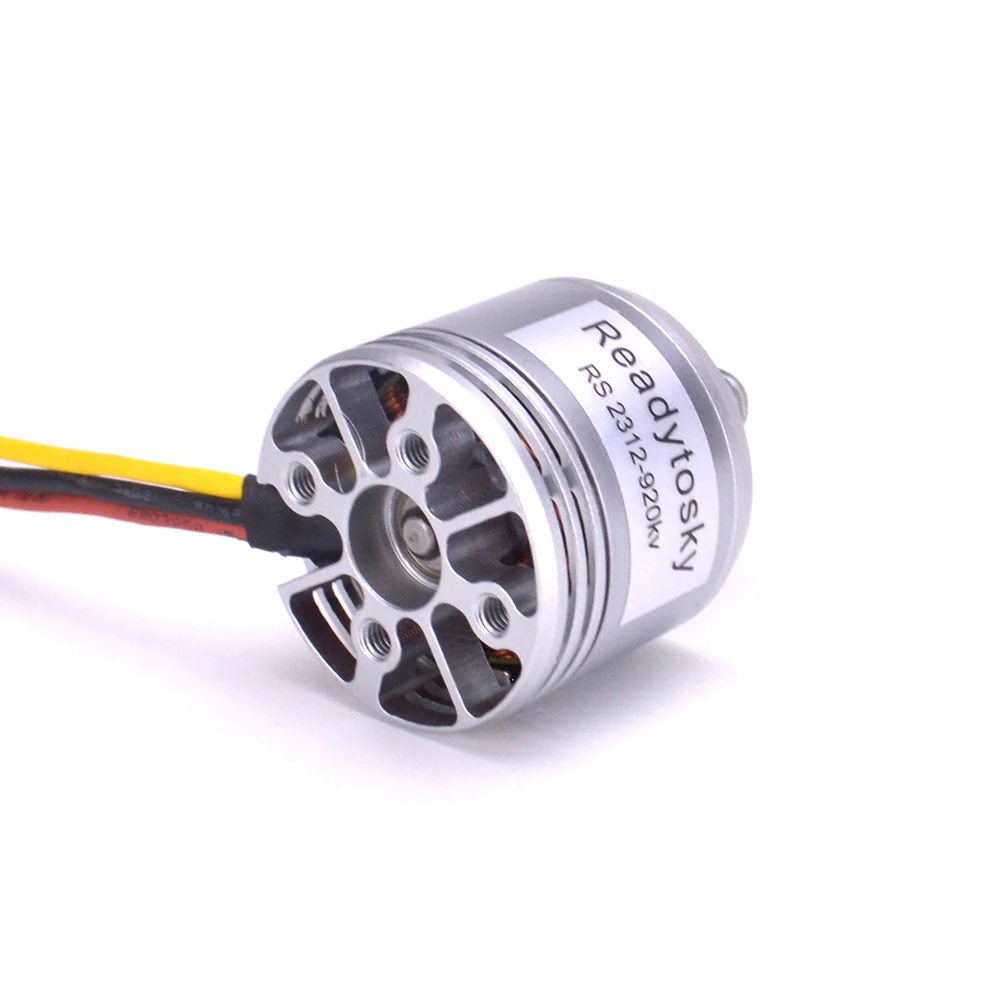

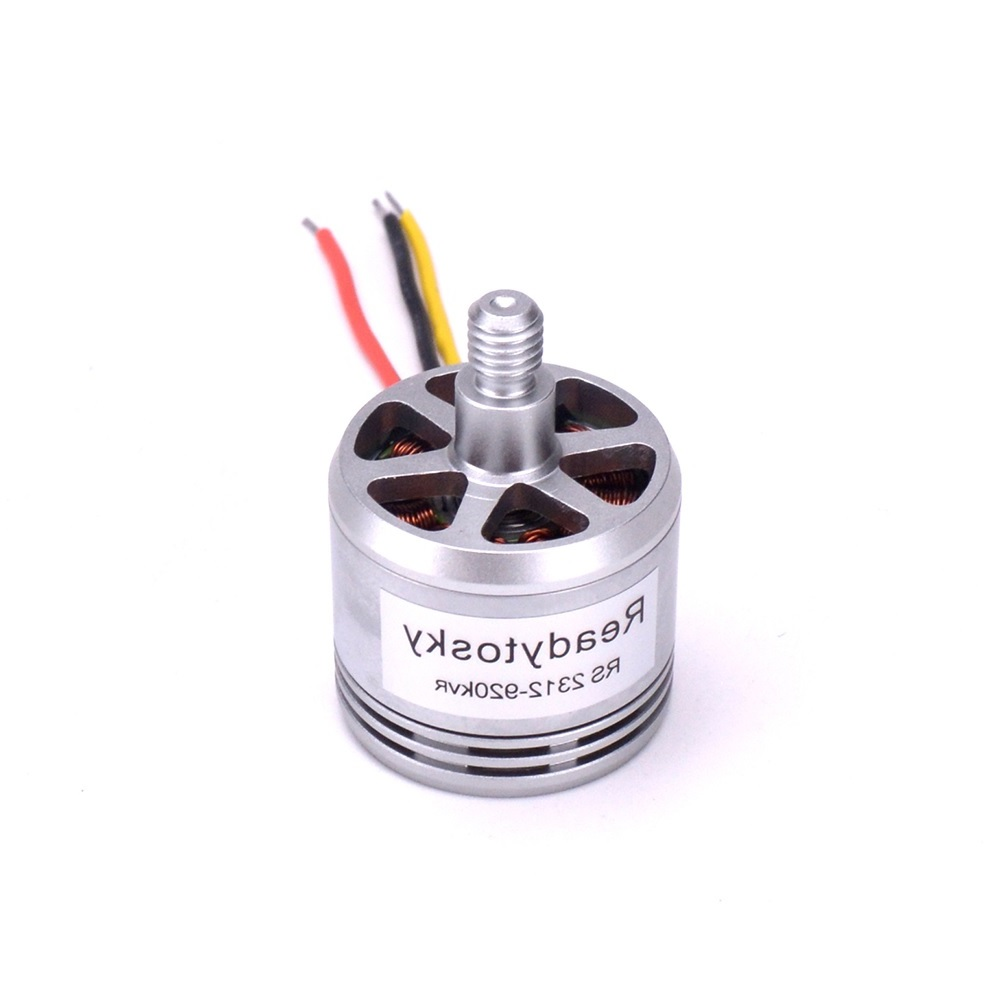

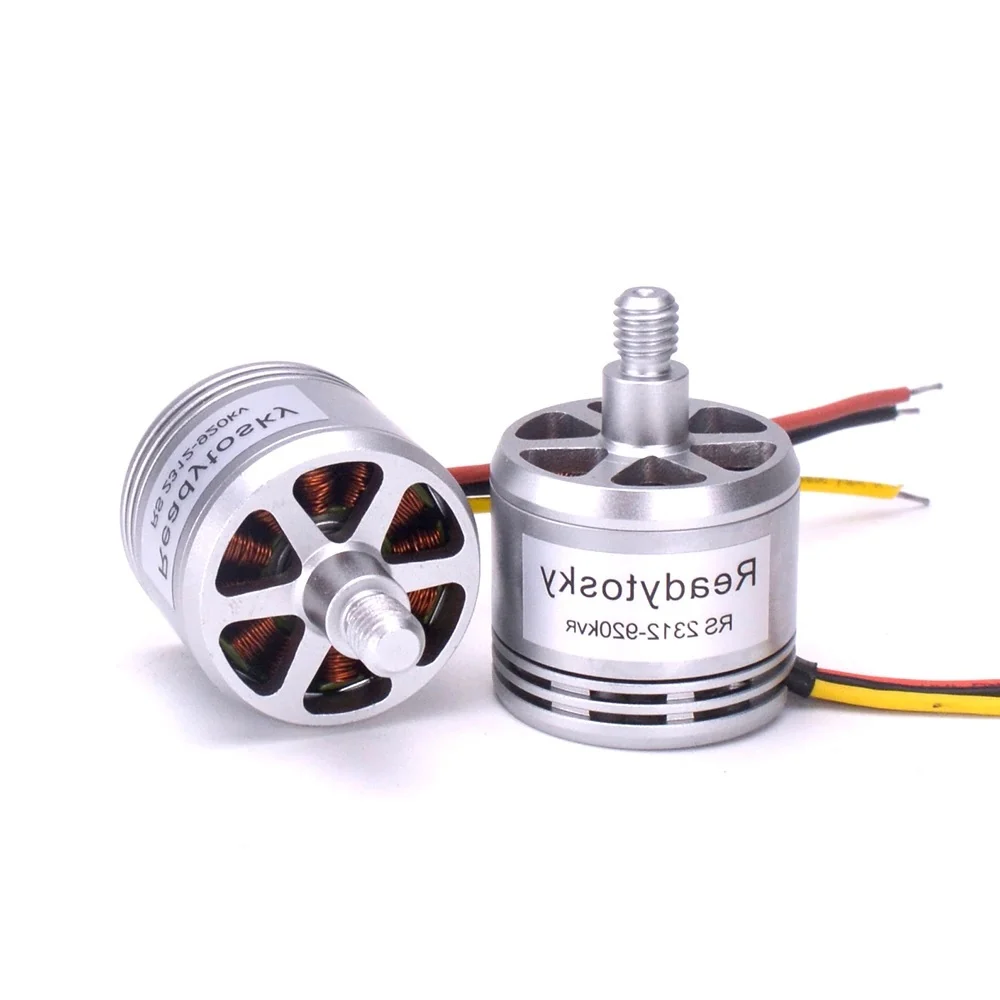

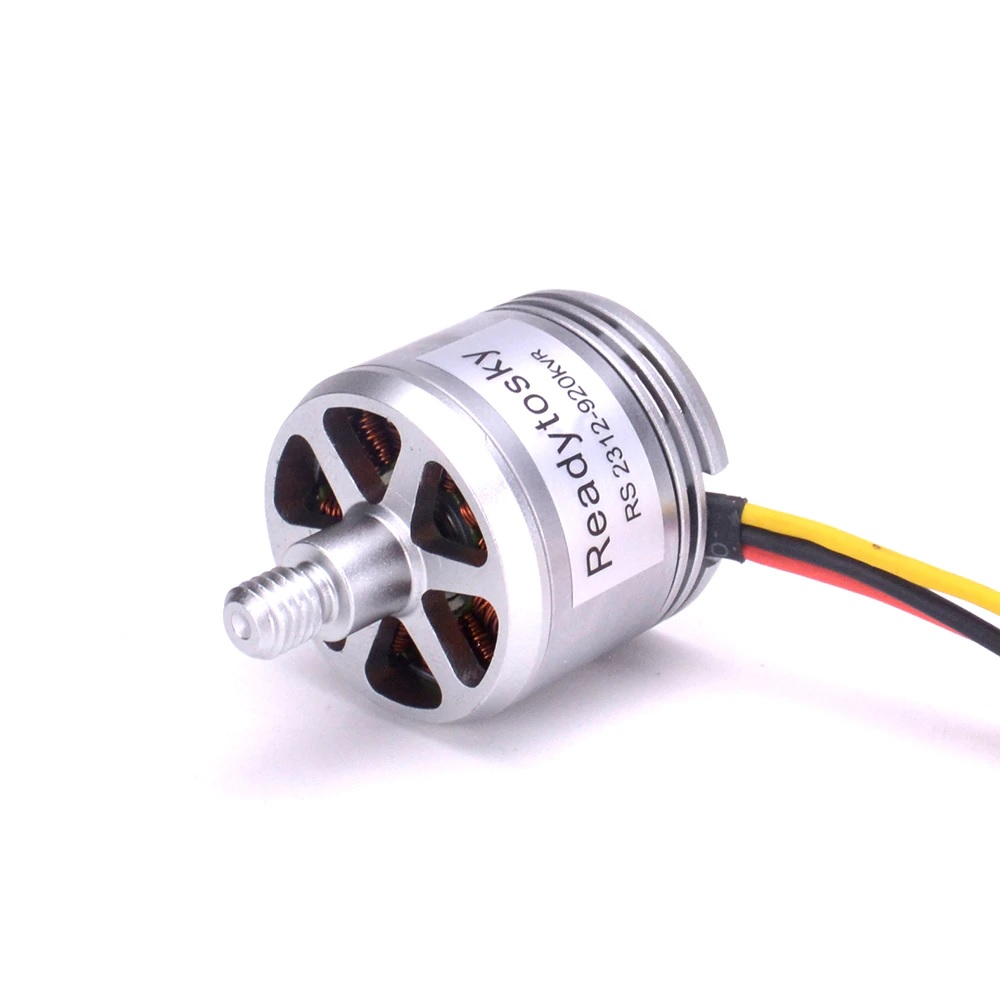

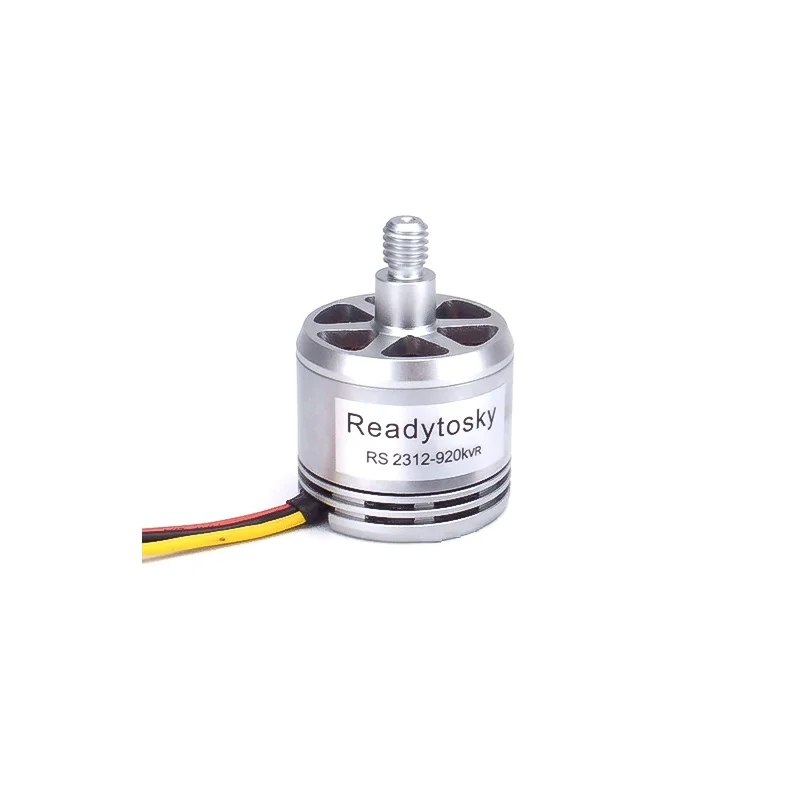

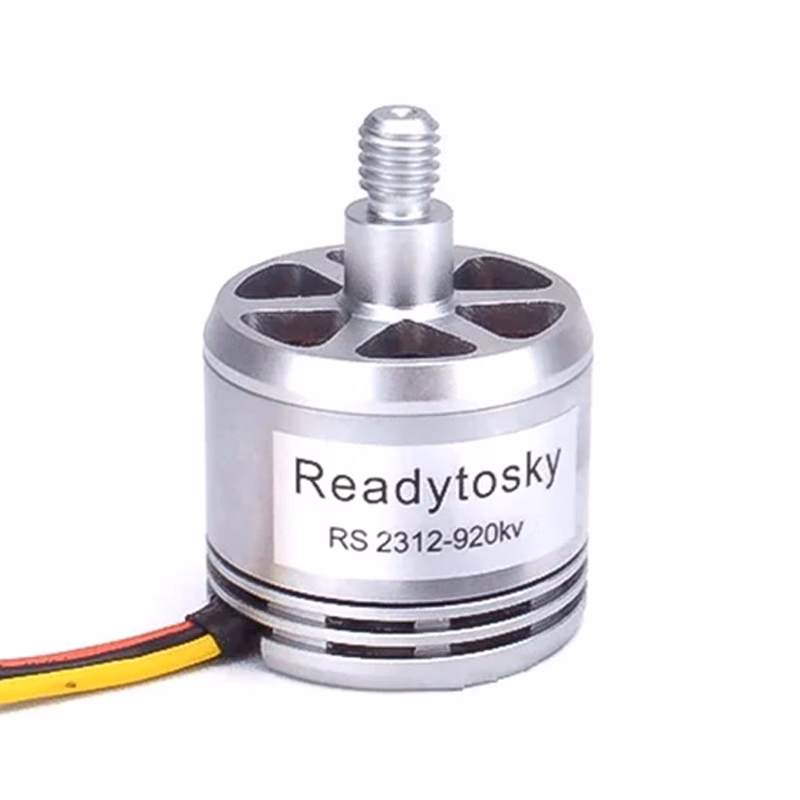

This is a 2312 920KV Brushless DC Motor for drones (CCW Motor Rotation).
If you’re looking to build a drone and are unsure about the best motor, worry no more. At Robu, we have everything you need to get started with your drone project.
This is our medium-priced, high-quality Brushless DC Motor for drones or quadcopters.
The CNC machined aluminum case makes them more attractive than traditional black-colored Brushless Motors for drones.
This motor is compatible with 2-4s Li-ion batteries and 30A ESC. It also features well-balanced, high-quality magnets for a smooth running experience. This premium quality 2312 920KV Brushless DC Motor for drones is ideal for many UAV pilots.
Features :
- Equips Japanese EZO bearing to ensure smooth operation.
- The outer covering is designed using CNC Machined Aluminium.
- The use of aluminum in design makes it lightweight.
- 180-degree magnets
Specification:
| Model | 2312 |
|---|---|
| Motor KV (RPM/V) | 920 |
| Compatible LiPO Batteries | 2S ~ 4S |
| Maximum Power (W) | 220 |
| Required ESC (A) | 30 |
| Poles | 14 |
| Framework | 12N14P |
| No-Load Current (mA) | 450 |
| Rated Current(A) | 14 |
| Length (mm) | 27.7 |
| Width (mm) | 27.7 |
| Height (mm) | 26 |
| Weight (gm) | 50 |
| Shipping Weight | 0.055 kg |
| Shipping Dimensions | 3 × 3 × 3 cm |
