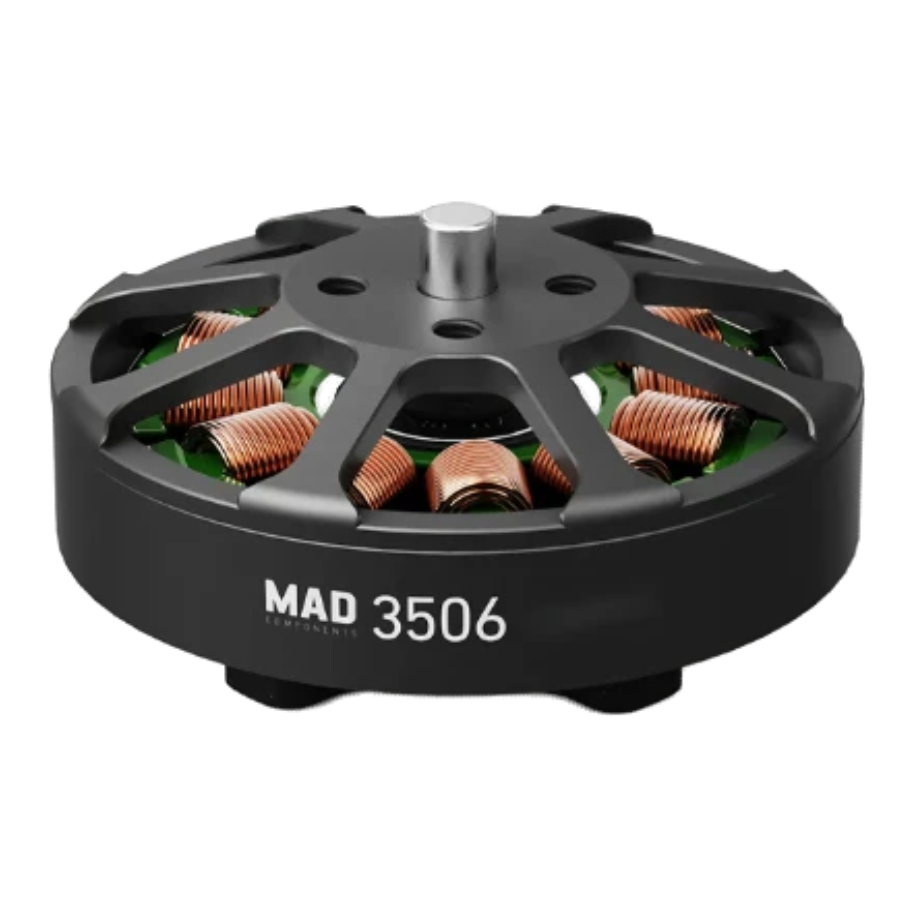

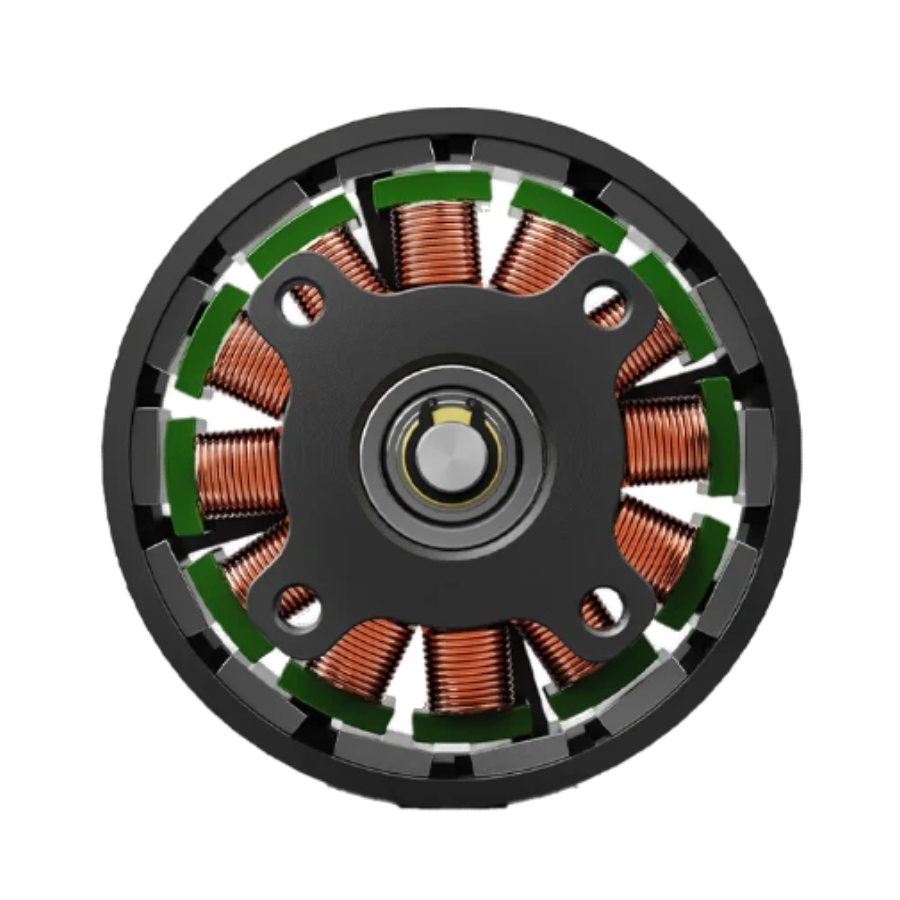

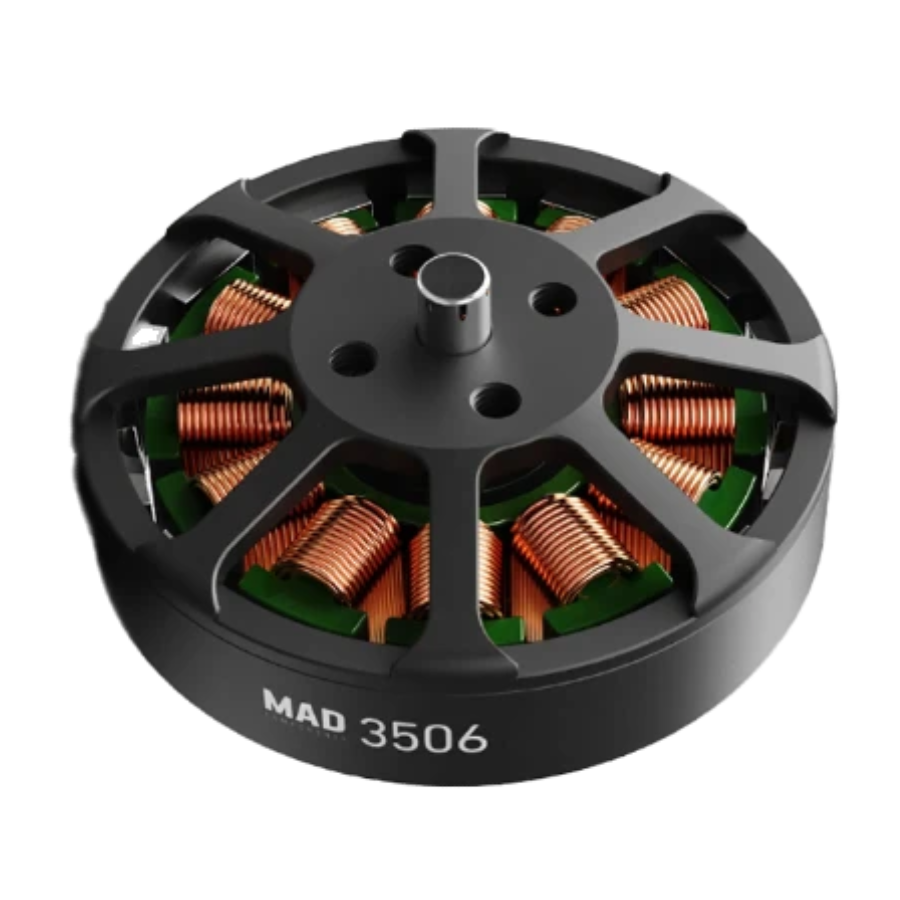

MAD CO 3506 EEE brushless drone motor 400KV (Pack Of 2)
Description:
The MAD 3506 EEE 400KV Brushless Motor is engineered for high-efficiency, professional-grade UAV applications. Weighing just 72.3g, this motor is optimized for 11–14” carbon fiber propellers and delivers up to 1600g of thrust per motor, making it ideal for heavy-lift drones and aerial cinematography. With rain protection, anti-corrosive stator, and centrifugal heat dissipation, it offers outstanding reliability in demanding environments. Precision-balanced with minimal vibration and high torque efficiency, it ensures smooth and stable flight. Whether you’re capturing cinematic footage or handling industrial payloads, this motor delivers performance, durability, and power—exactly where it’s needed most.
Features:
- High thrust-to-weight ratio for agile performance
- Designed for single-axis payloads (320–720g)
- Delivers up to 1.6 kg thrust per motor
- Optimized for 11–14” carbon fiber propellers
- Ultra-lightweight at 72.3g per motor
- Rain and corrosion-resistant design
Application:
- Aerial cinematography drones
- Heavy-lift quad/hex/octocopters
- Payload delivery UAVs
- Industrial inspection drones
- Agricultural spraying/mapping drones
- Custom UAV and VTOL projects
Specification:
| Item Type: | Drone motor |
|---|---|
| Model No: | 3506 |
| Motor KV (RPM/V): | 400 |
| Motor Type: | EEE brushless drone motor |
| Compatible LiPO Batteries: | 6S LiPo |
| No-load current (A) | 0.3A @ 20V |
| Max Current (A) | 14 |
| Max Power Output (W) | 330 |
| Torque: | 0.283 Nm |
| Max Thrust | 1.6 kg |
| Shaft Diameter (mm): | 4 |
| Bearing | 694ZZ*2 |
| Mounting Hole(mm) | D:12 M3×4 |
| Motor Size (mm): | D:42.5 × 23.8 |
| Motor Outer Diameter(mm) | 42.5 |

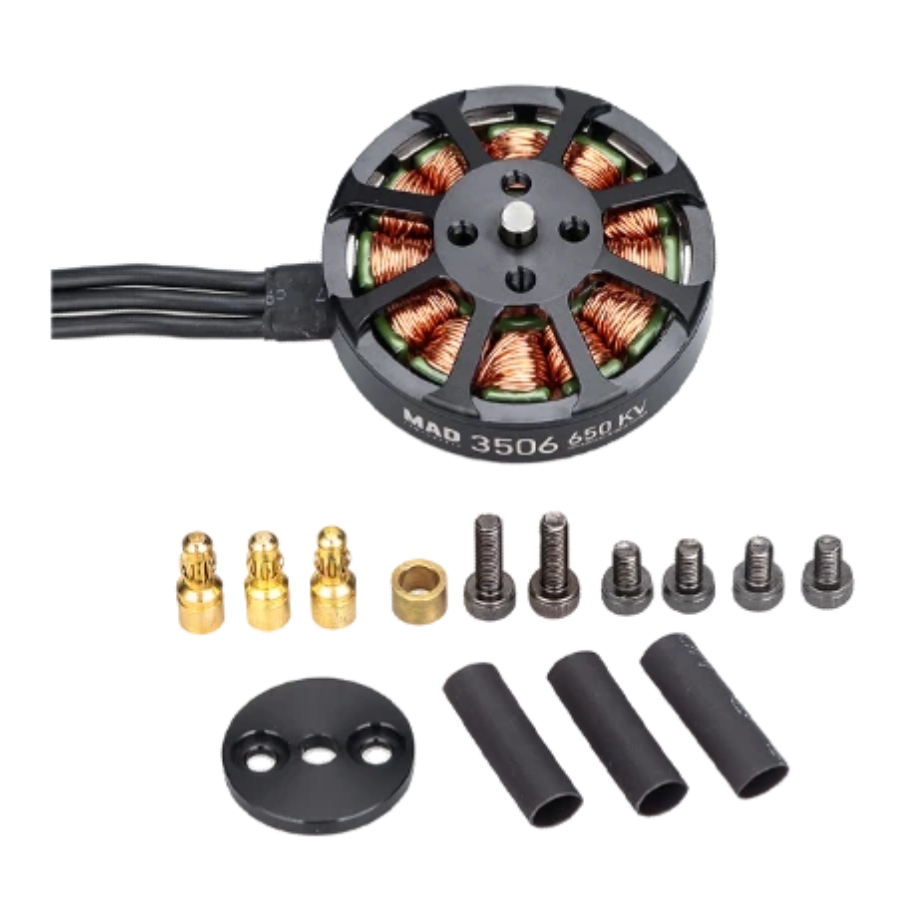

Package Includes:
1 x MAD CO 3506 EEE brushless drone motor 400KV (Pack Of 2)
2 x Propeller Plate
6 x 3.5mm Bullet Connector
2 x 04-6 Adapter Ring
6 x Heat Shrinkable Tube
8 x M3*6 Motor Screws
4 x M3*10 Propeller Screws
2 x Sticker
