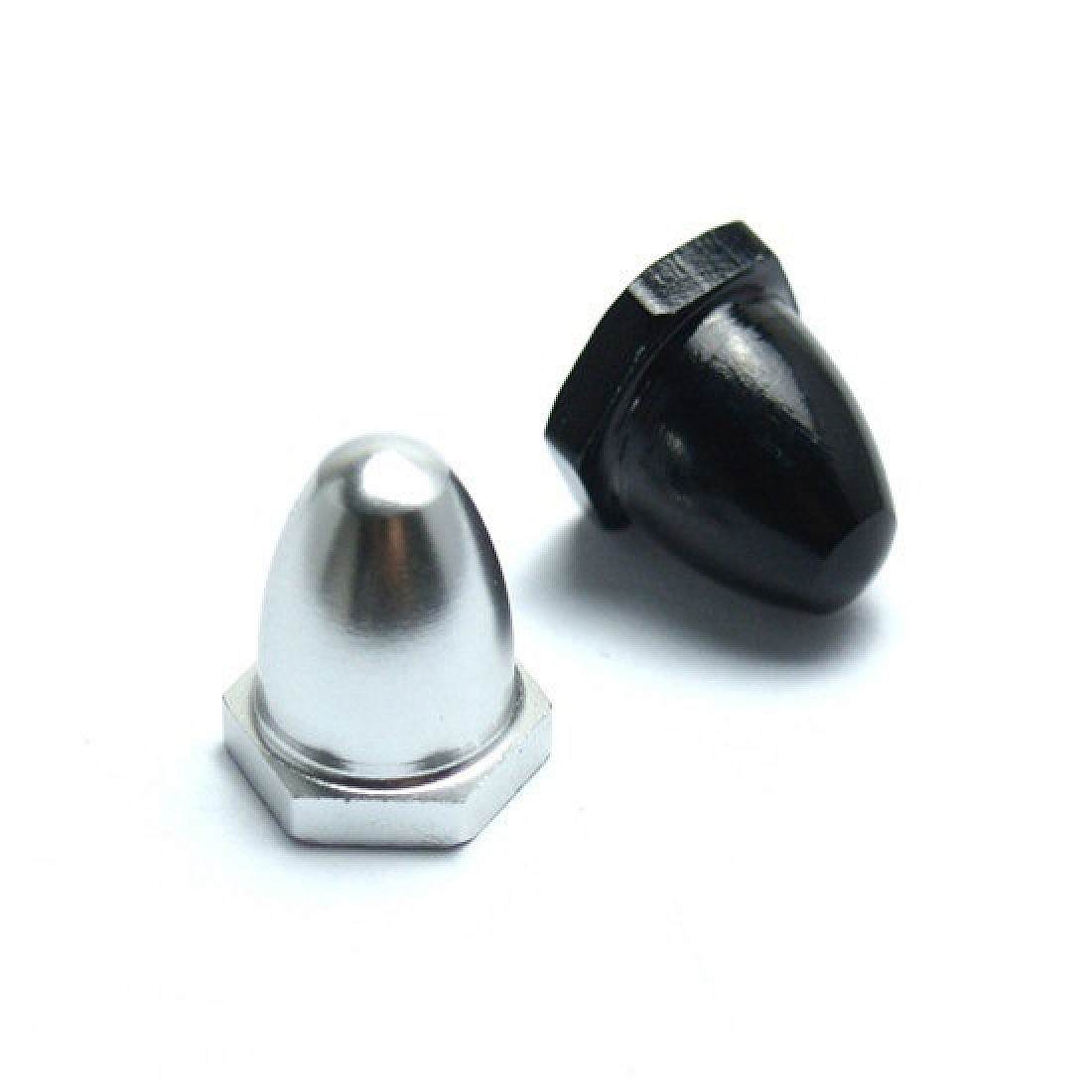

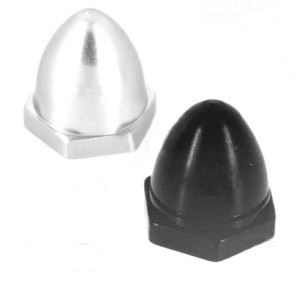

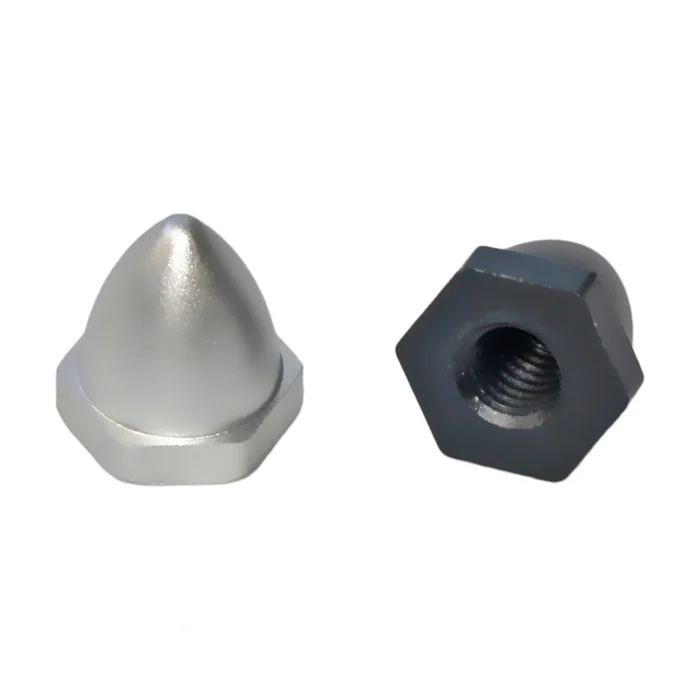

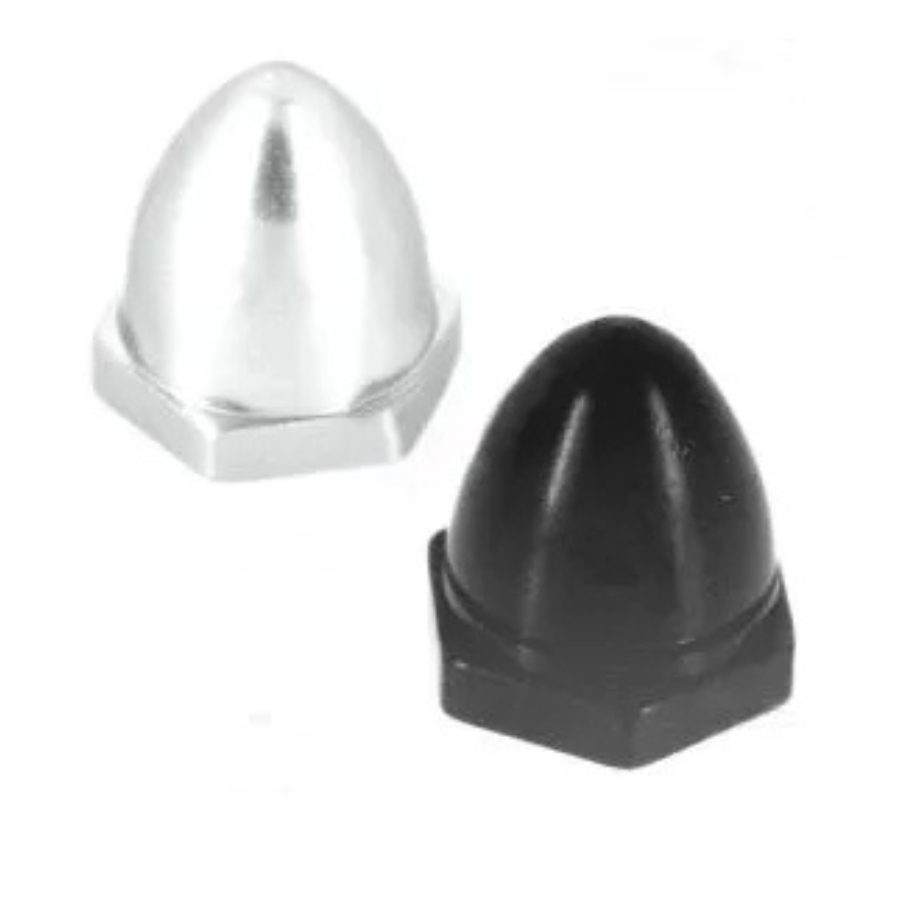

This M6 Propeller Prop Nut Cap CW CCW for 2212 920KV Brushless DC Motor is the set of two different i.e CW and CCW Nut Cap for 2212 and 920KV brushless motor to be fitted above the propeller.
Prop nuts of different directions usually come in different colors, such as black and silver for better user-friendliness.
Some mini quad motors are labeled CW and CCW, and it can cause a hell of confusion for a lot of people in this hobby including experienced quadcopter builders.
Basically, CW (clockwise) and CCW (counterclockwise) motors are still the same motors, apart from the prop shaft threads which have opposite direction. That means for a CCW motor, the prop nut is secured by turning clockwise. And for CW motors, the prop nuts need to be rotated anti-clockwise in order to fasten.
Advantages of having different CW and CCW threads
So why have 2 different shaft threads and making it so confusing?
They call this ‘Self-locking’ because on a quadcopter we have 2 motors spinning clockwise direction and the other two spinning counter clockwise. By using threads that are the opposite to motor spin direction, the prop nuts automatically lock themselves down and won’t come loose.
However, it becomes difficult to source spare prop nuts for both threads. And it also makes it confusing to which way we should turn to remove the prop nuts when changing propellers.
Prop nuts are basically M6 nylon nuts. In hardware stores, they are referred to as right handed and left handed thread as opposed to CW and CCW.
Identify CW and CCW Threads
So basically if you can fasten the prop nut clockwise, then you have a CCW motor, for which you should get the Right handed thread nut (standard thread).
For CW motors, go for the Left-hand thread nuts (reverse thread)
Note: Package does not contain any Motor.
Specification :
| Thread Size | M6 |
|---|---|
| Material | High-Quality Plastic |
| Cap Height(mm) | 14.6 |
| Nut Type | CW and CCW |
| Color | Black(CW), Silver(CCW) |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 3 × 3 × 3 cm |
Package Includes :
1 x M6 Propeller Prop Nut Cap CCW (Silver).
1 x M6 Propeller Prop Nut Cap CW (Black).
DJI O3 Air Unit Review: Best FPV Video Transmission for India Builders
DJI O3 Air Unit Review: Best FPV Video Transmission for India Builders When DJI launched the O3 Air...
Read More →
GPS Return to Home: Setup on Betaflight and iNav
Table of Contents Understanding GPS Return to Home Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation...
Read More →
Best Drone Motors: T-Motor vs Hobbywing vs Readytosky
Choosing the right drone motor is one of the most critical decisions in any quadcopter or multirotor build....
Read More →Technical Specifications
| SKU | AI4418 |
|---|---|
| Weight | 0.01 kg |
| Availability | Out of Stock |
Applications & Use Cases
The M6 CW&CCW Propeller Nut Cap is a versatile propeller nuts and accessories used across a wide range of applications including quadcopter thrust generation, FPV racing, aerial photography, and agricultural drones.
Common use cases:
- Replacing broken propellers after a crash
- Testing different pitch angles for performance tuning
- Matching props to a new motor for optimal efficiency
This product is ideal for FPV pilots and drone operators.
Technical Tip: Propellers are sized as diameter x pitch (e.g., 5x4.3). Higher pitch = more speed; lower pitch = more efficiency. Always carry spares.
