PRODUCT DESCRIPTION

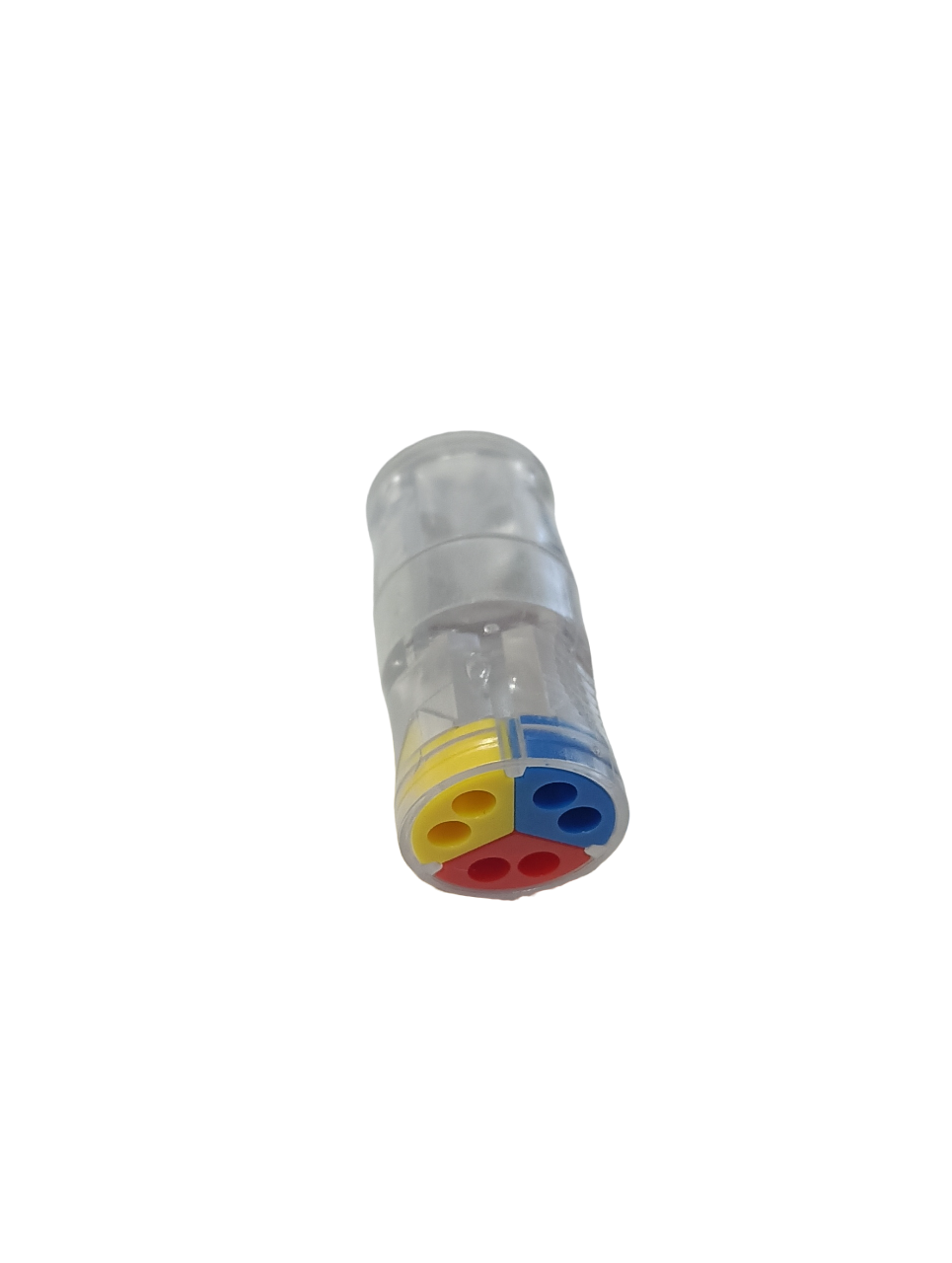

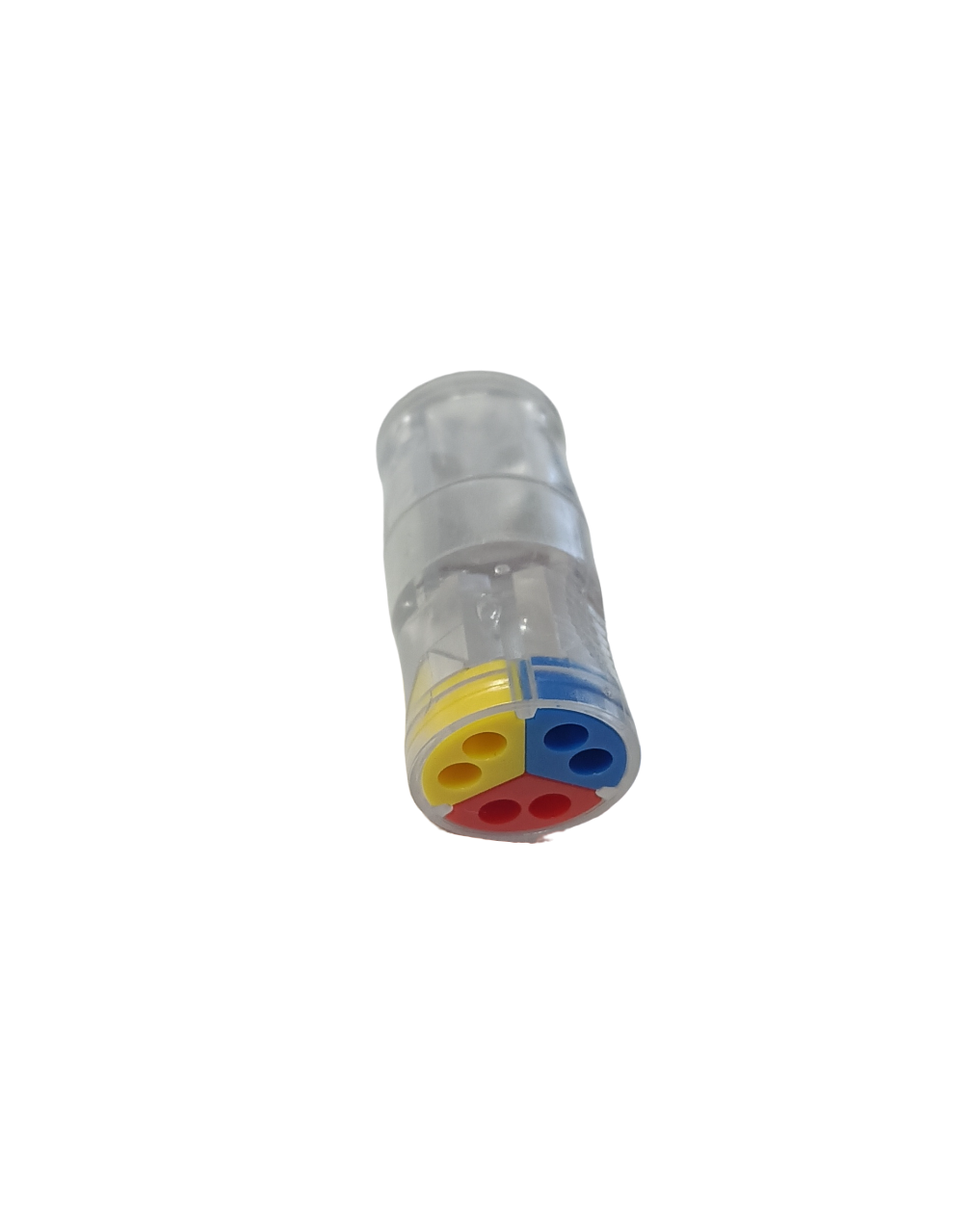

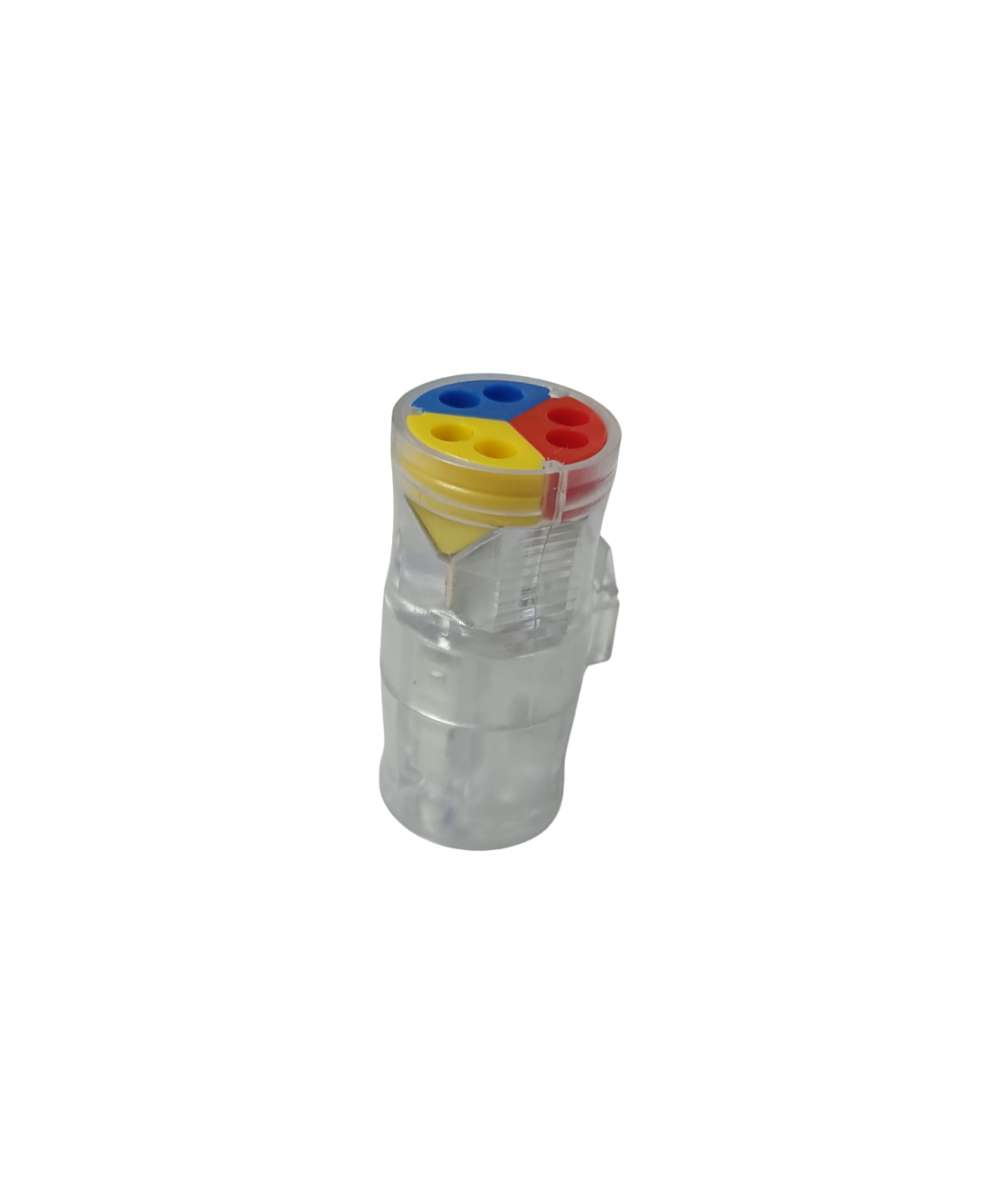

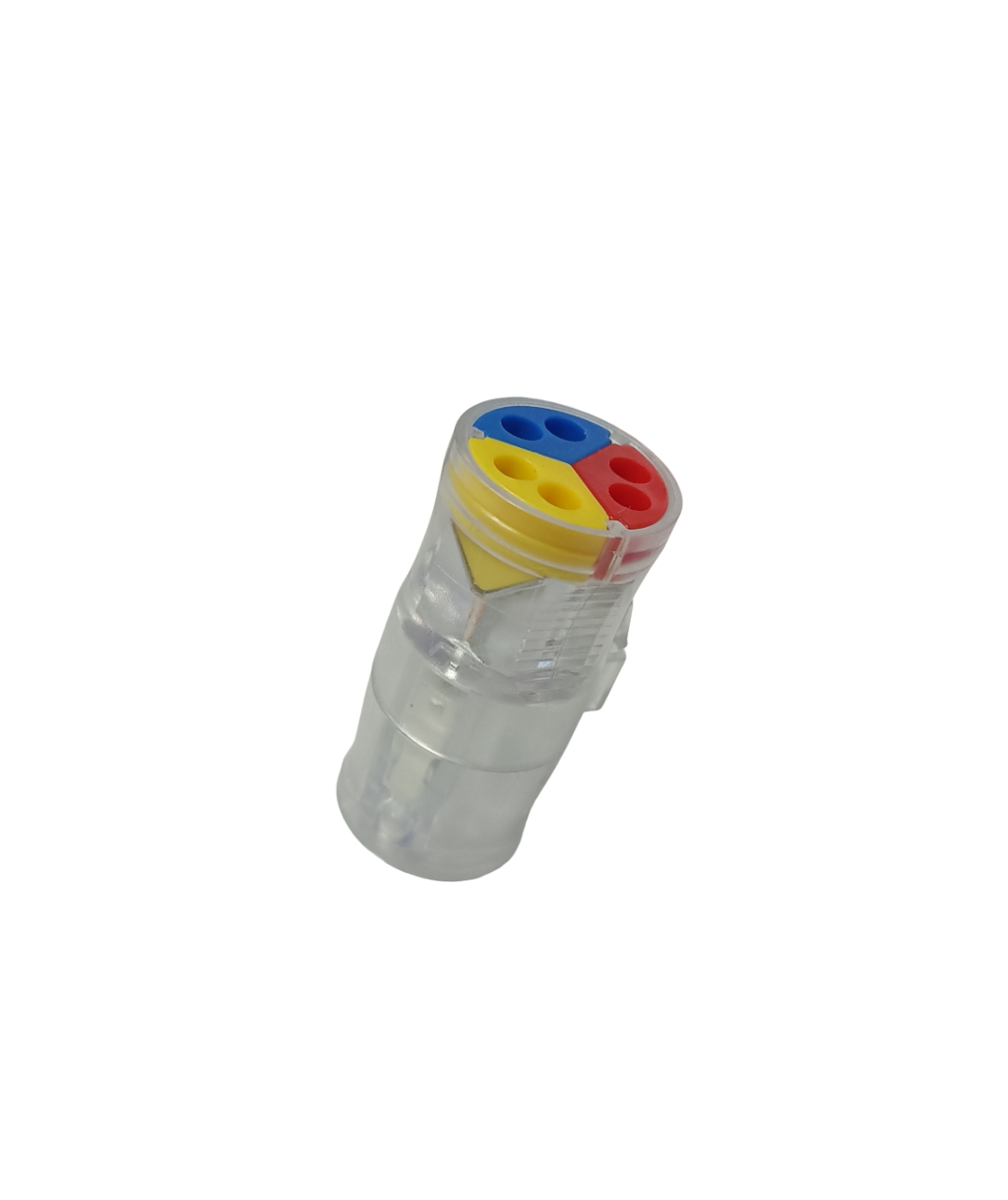

LT-736 Quick Connection Terminal:
The LT Connector provides an easy solution for establishing a 3-wire connection from three pairs of terminals. This compact locking wire connector features a spring lever mechanism, making it suitable for both single-strand hard wire (ranging from 0.75mm² to 4mm²) and soft wire (from 1.5mm² to 2.5mm²). Rated for voltages up to 400V and capable of handling current peaks of 6A, it supports a maximum power of 4kW. With a recommended stripping length of 11-13 mm, the connector ensures secure and dependable connections.
Available in a range of models, sizes, and configurations, the LT Connector is designed to meet various application needs. Explore the available options to find the perfect model for your requirements.
Features:
- High-grade Insulative Nylon Material
- Strong Spring Locking Lever
- Nickel Plated Metal Point Inside
- Good Temperature Resistance
- Compact Splicing Connector
- 3:6 -Conductor Terminal Block
- With Operating Levers
- Max. Continuous Service Temperature 85°C
Specification:
| Model | LT-736 |
|---|---|
| Rated Voltage (V) | 400 |
| Rated Current(A) | 6 |
| Contact Material | Stainless Steel |
| No. of Contact Points | 3:6 |
| Rated Power (W) | 4 KW |
| Allowed Wire Size (AWG) | 28 ~ 12 |
| Color | Red+Blue+Yellow |
| Operating Temperature Range (°C) | -20 to 80 |
| Shipping Weight | 0.009 kg |
| Shipping Dimensions | 5 × 4 × 2 cm |
Package Includes:
1 x LT-736 Quick Connection Terminal
LT-736 Quick Connection,Terminal Overview
The LT-736 Quick Connection Terminal is a compact 3-conductor splicing connector designed for fast, secure wire connections in electrical installations. Featuring a strong spring-lock lever mechanism and high-grade nylon insulation, it delivers reliable performance for voltages up to 400V and currents up to 6A.
Key Features of LT-736 Quick Connection,Terminal
- High-grade insulative nylon body for excellent electrical safety
- Strong spring locking lever ensures vibration-resistant connections
- Nickel-plated metal contact for corrosion resistance and improved conductivity
- Supports single-strand hard wire (0.75–4 mm²) and soft multi-strand wire (1.5–2.5 mm²)
- Rated up to 400 V, 6 A and 4 kW power capacity
- Genuine product from Zbotic with fast shipping across India
Applications and Use Cases
- Quick splicing of power cables in distribution boxes and panels
- Connecting LED lighting strips and fixtures in residential or commercial spaces
- Temporary wiring setups for events, exhibitions, and maintenance
- Solar panel junction box connections for small PV installations
- Control cabinet wiring and prototyping in automation projects
How to Use LT-736 Quick Connection,Terminal
Strip each conductor to a length of 11–13 mm, lift the spring lever, insert the wire fully into the terminal entry, then close the lever to lock. Repeat for all three conductors; the compact design and lever action ensure a secure, tool-free connection.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What wire sizes can I use with the LT-736 terminal?
This connector accepts single-strand hard wire from 0.75 mm² to 4 mm² and soft multi-strand wire from 1.5 mm² to 2.5 mm², making it versatile for most building and control wiring needs.
What are the voltage and current ratings?
The LT-736 is rated for up to 400 V AC/DC and can handle continuous currents up to 6 A (with peaks up to its 4 kW power capacity), suitable for lighting and small power circuits.
How do I ensure a long-lasting connection?
Always strip wires to the recommended 11–13 mm, ensure levers are fully closed, and avoid overloading beyond rated current. Periodically inspect for corrosion or loose contacts, especially in humid environments.
Technical Specifications
| Model | LT-736 |
|---|---|
| SKU | AI3568 |
| Weight | 0.0117 kg |
| Availability | In Stock |
Applications & Use Cases
The LT-736 Quick Connection,Terminal is a versatile pct and dc power connectors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
