This is the 6mm variant of the LM6LUU 6mm Bushing Longer Linear Ball Bearing in Bearings. Available at ₹105.02 (₹89.00 + GST) with free shipping across India.

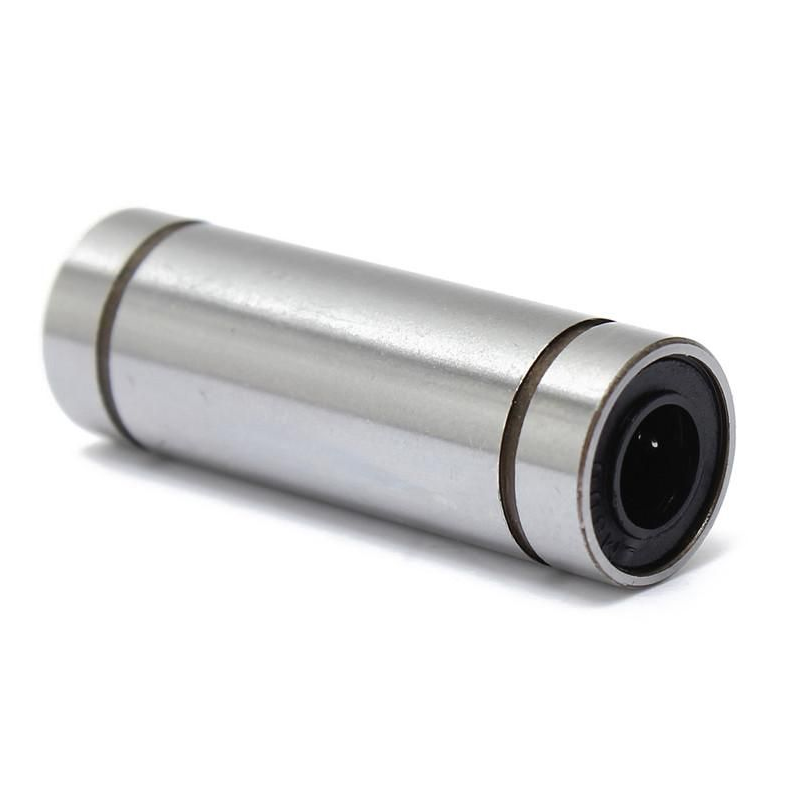

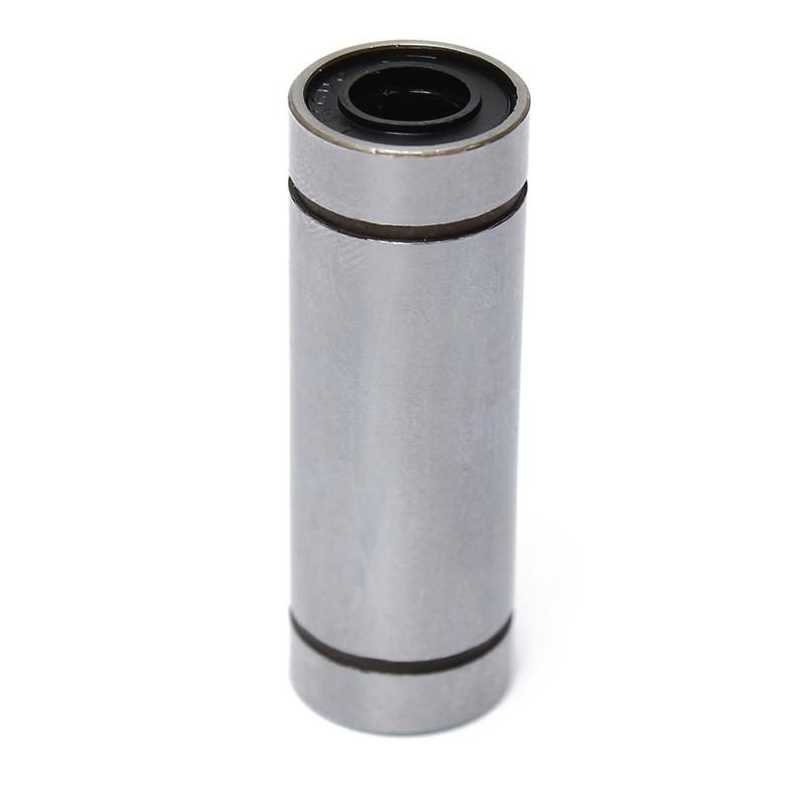

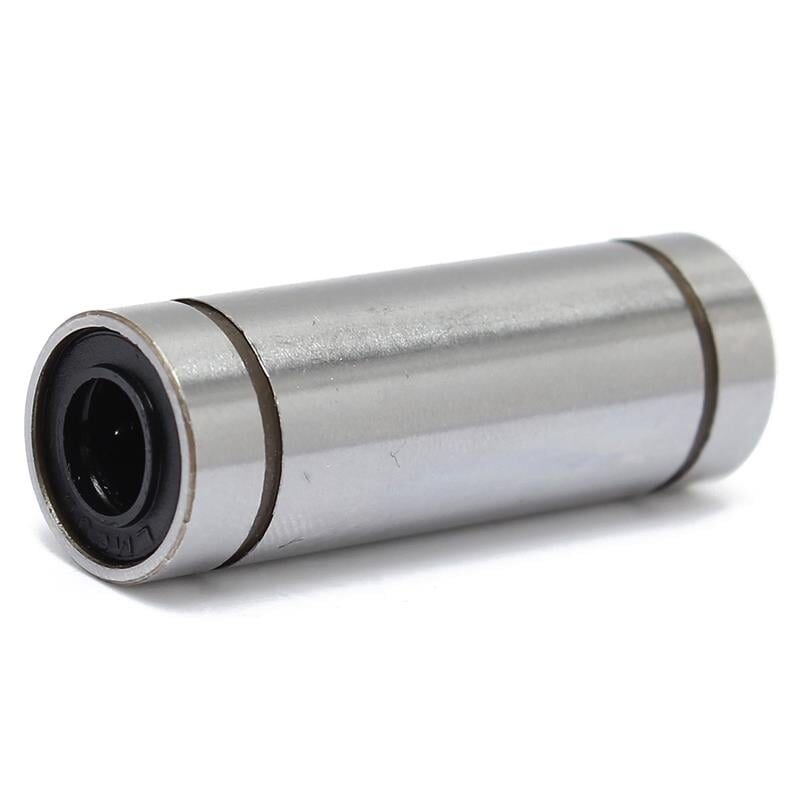

LM6LUU 6mm Bushing Longer Linear Ball Bearing
This LM6LUU 6mm Bushing Longer Linear Ball Bearing is an extended version of our standard LM6LUU linear slide bush that fits 6mm hardened steel shafts.
The Bearings provide a precise, safe and reliable linear motion system. They are commonly used in 3D printers and CNC (Computer Numerical Control) machines. This Linear Ball Bearing offers low friction motion along a single axis and has a wide range of applications in DIY and robotics prototyping.

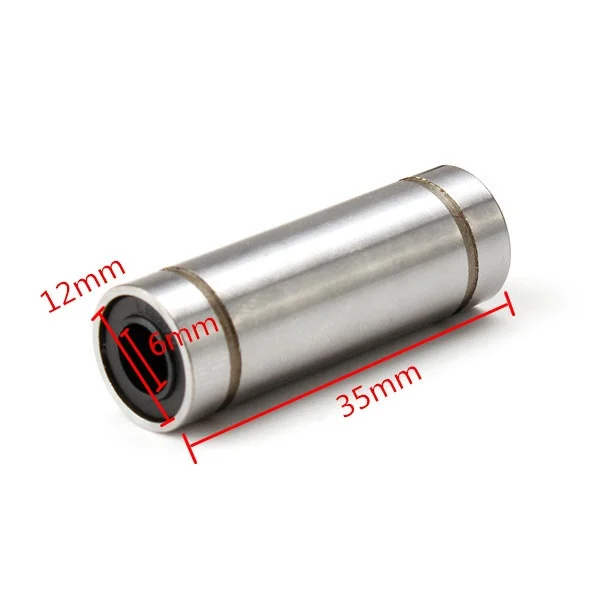

This LM6LUU 6mm Bushing Longer Linear Ball Bearing is a closed type ball bushing with a 6mm bore and a 12mm outer diameter. It can be used in a mounted slide unit to carry components.
The balls in the cage loop run along a smooth ball guide surface to ensure low noise even at high speeds.
Since Linear Motion bearings slide along the round shaft, the shaft must be lubricated for reliable and smooth motion. The quality of the linear motion depends on the quality of the shaft. Therefore, using a chrome plated and hardened shaft may be beneficial.
The linear motion bearings is available in more varieties as below
LM8LUU
LM10LUU
LM12LUU
LM16LUU
Features:
- Linear bearing ball cage, hardened coat of both ends ring.
- Made of carbon chromium bearing steel, safe and reliable.
- Ball in the cage loop to run a smooth ball guide surface to ensure stability even if high-speed.
Package Includes:
1 x LM6LUU 6mm Bushing Longer Linear Ball Bearing
Technical Specifications
| Model | LM6LUU |
|---|---|
| Size | 6mm |
| SKU | AI2924 |
| Weight | 0.020001 kg |
| Availability | Out of Stock |
Applications & Use Cases
The LM6LUU 6mm Bushing Longer Linear Ball Bearing is a versatile bearings used across a wide range of applications including 3D printer motion systems, CNC machines, conveyor belts, robotic joints, and motor shafts.
Common use cases:
- Replacing worn bearings in a 3D printer
- Building a CNC linear motion system
- Adding smooth rotation to a robotic arm joint
This product is ideal for mechanical engineers, 3D printer owners, and CNC builders.
Technical Tip: Linear bearings (LM8UU) for smooth rail motion; ball bearings for rotational applications. Keep bearings lubricated for long life.
