The PC4-M6 Pneumatic Push in Bowden Extruder for 3mm J-Head fitting is a component that attaches the PTFE tubing to the extruder assemblies that use 1.75mm filament on 3D printers. It works with the standard PTFE tubing with up to 3mm inner diameter and has a universal M6 thread for extruder fittings.
This PC4-M6 Bowden Connector is designed for 3D printers with 1.75mm Bowden-style extruders, which offer a cool, safe and tidy way for the filament to travel. This helps it reach the hotend assembly without any issues, resulting in better print quality and consistency.
The connector uses a John Guest fitting that tightens with tension, ensuring a strong grip on the tubing. This connector is a popular choice for Bowden-style extruders because of its compatibility and high corrosion resistance, making it a worthwhile investment for 3D printing.
Note: Each bearing has HIGH load carrying capacity, which is around 250 kg to 500 kg.Â
Features:
- Smooth moving
- Low friction
- High rigid
- Long life
- Economical and easy to maintain.
Specification:
| Ball Circuits | 4 |
|---|---|
| Color: | silver |
| Length (mm): | 57 |
| Model | LMK12LUU |
| Outer Casing | Chromium Steel |
| Outer Diameter(mm) | 21 |
| Shaft ID(mm) | 12 |
| Square Size (mm) | 32 |
| Weight (g): | 75 |
| Shipping Weight | 0.078 kg |
| Shipping Dimensions | 7 × 4 × 4 cm |
Package Includes:

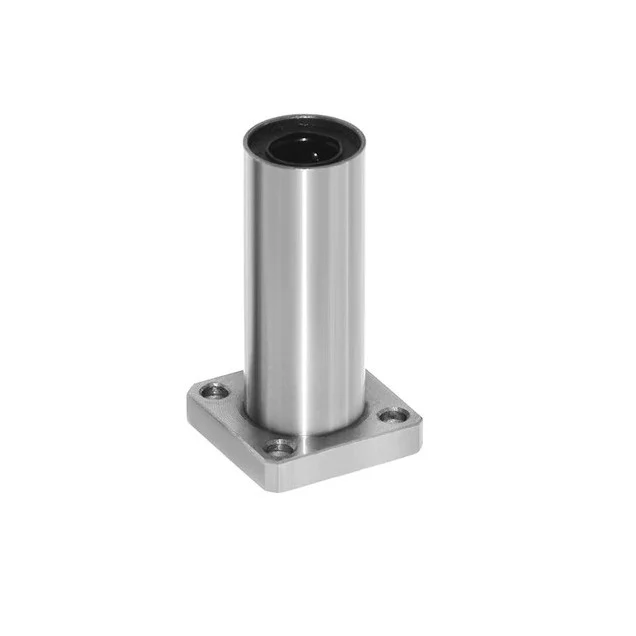

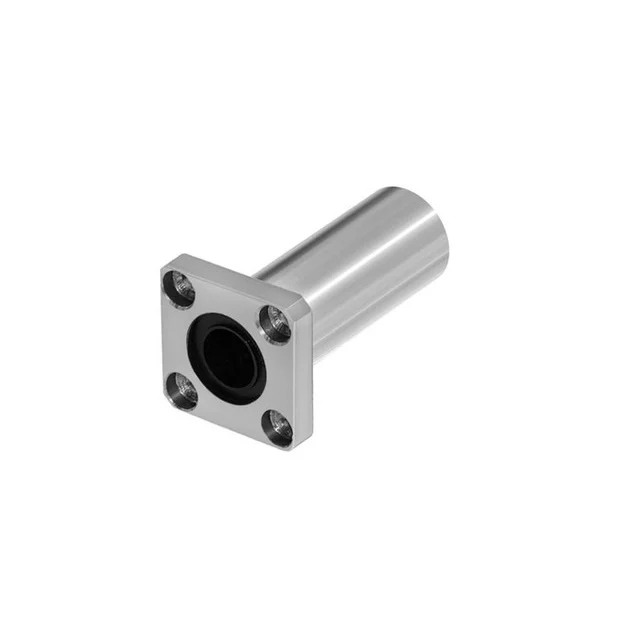

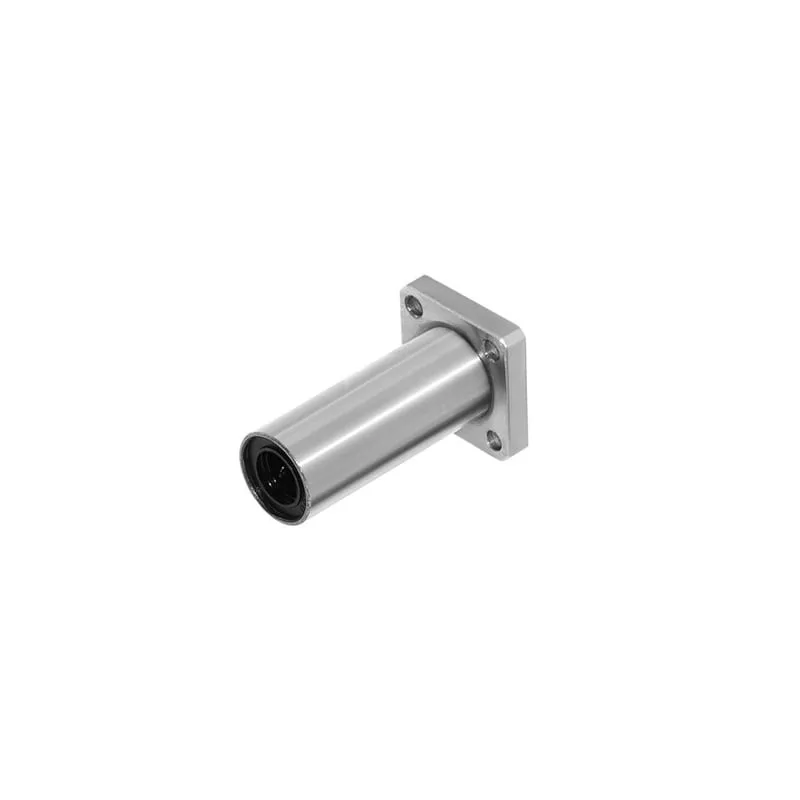

1 x Linear Bearing LMK12LUU 12mm Square Flange Bushing
