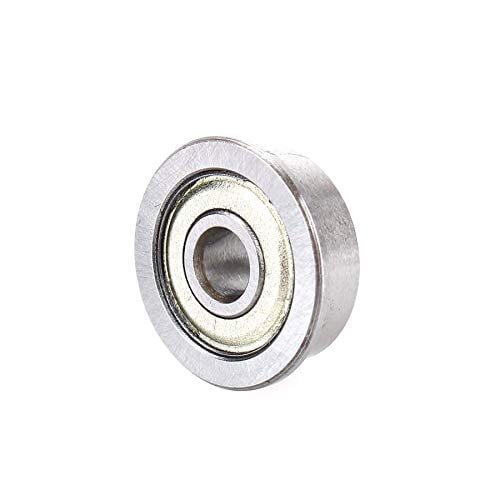

F624ZZ Flanged Ball Bearing

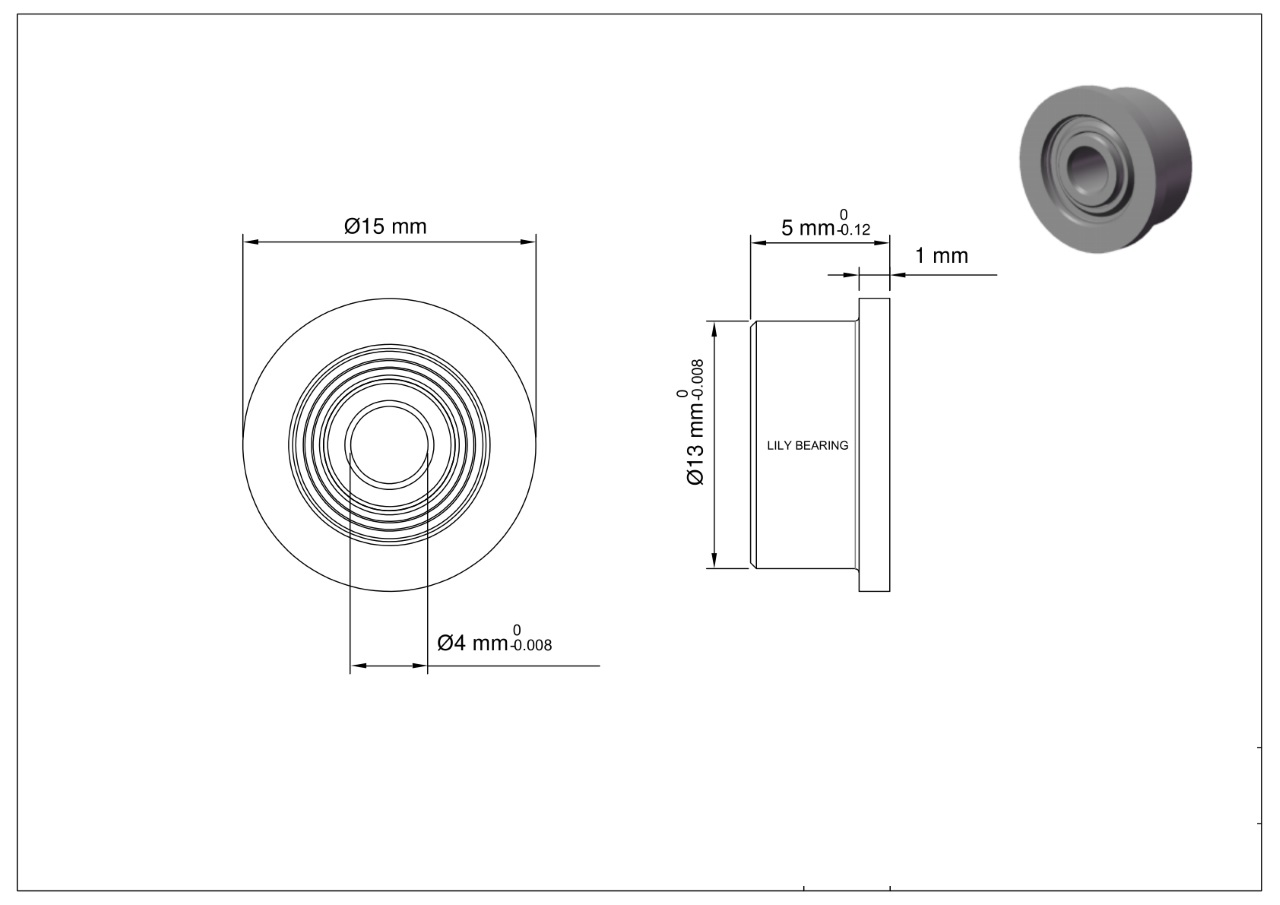

the F624ZZ Flanged Ball Bearing, which is made of chrome steel and has metal shields on both sides. The inner diameter of the bearing is 4mm, the outer diameter is 13mm, the thickness is 5mm, and the flange is 15mm. This size of ball bearing is suitable for precision work and applications that need many functional mechanical parts, such as mechanical equipment, electrical instruments, toys, doors, and windows.
Roller bearings, like this one, use balls as rolling elements to reduce rotational friction and support both rotational and axial loads. The balls transmit the load from an outer race to an inner race, both of which are rings with grooves. Because the balls are rolling, they have a lower friction coefficient than two surfaces sliding against each other. Usually, one of the races is fixed, while the other is attached to a rotating part.

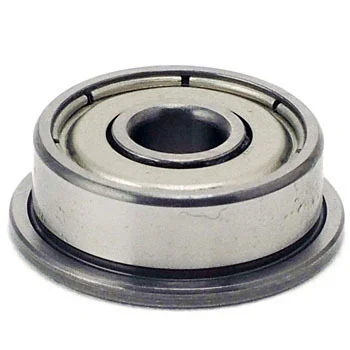

The metal shields on both sides of this F624ZZ bearing protect it from dirt and keep the lubricant inside, which increases its durability and lifespan. A common use of this bearing is to support and guide the motion of timing belt systems, where the flange helps to keep the belt in place. Normally, two of these F624ZZ bearings are used facing each other.
Features:
- Item: F624 ZZ Flanged Ball Bearing
- Type: Deep Groove Ball Bearing
- Closures: Metal Shields
Specification:
| Material | Chrome Steel |
|---|---|
| Bearing Inner Diameter (mm) | 4 |
| Outer Diameter(mm) | 13 |
| Width (mm) | 5 |
| Flange Diameter (mm) | 5 |
| Shipping Weight | 0.095 kg |
| Shipping Dimensions | 8 × 5 × 2 cm |
Package Includes:

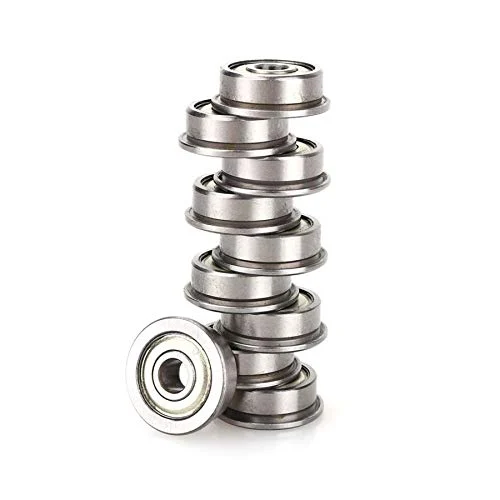

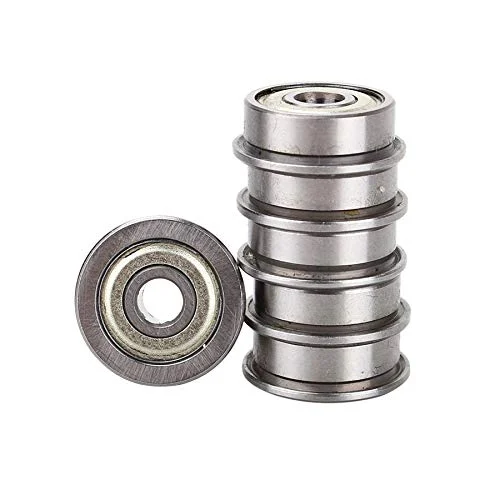

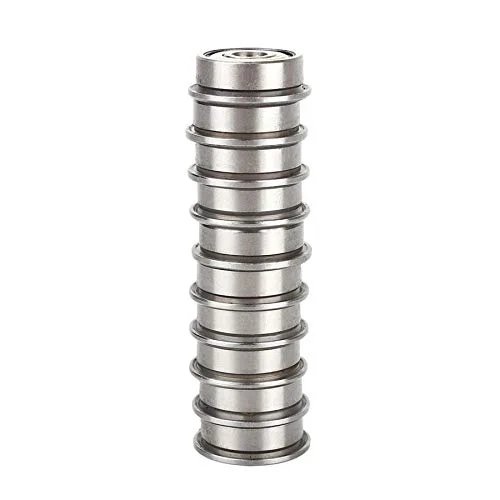

1 x F624ZZ Flanged Ball Bearing-2pcs.
Technical Specifications
| Model | F624ZZ |
|---|---|
| Package Quantity | 2 pcs |
| SKU | AI2865 |
| Weight | 0.0 kg |
| Availability | In Stock |
Applications & Use Cases
The F624ZZ Flanged Ball Bearing-(Pack of 2) is a versatile bearings used across a wide range of applications including 3D printer motion systems, CNC machines, conveyor belts, robotic joints, and motor shafts.
Common use cases:
- Replacing worn bearings in a 3D printer
- Building a CNC linear motion system
- Adding smooth rotation to a robotic arm joint
This product is ideal for mechanical engineers, 3D printer owners, and CNC builders.
Technical Tip: Linear bearings (LM8UU) for smooth rail motion; ball bearings for rotational applications. Keep bearings lubricated for long life.
