This is the 12mm variant of the 12mm Bore Inner Ball Mounted Pillow Block Insert Bearing KP001 in Bearings. Available at Original price was: ₹107.38.₹90.86Current price is: ₹90.86. (₹77.00 + GST) with free shipping across India.

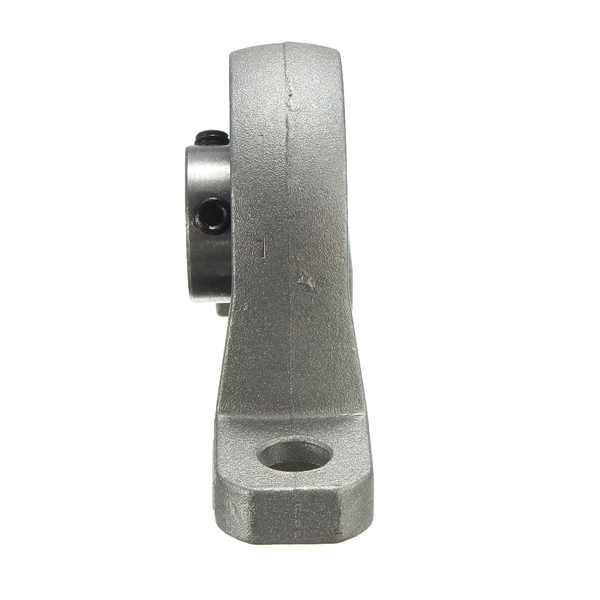

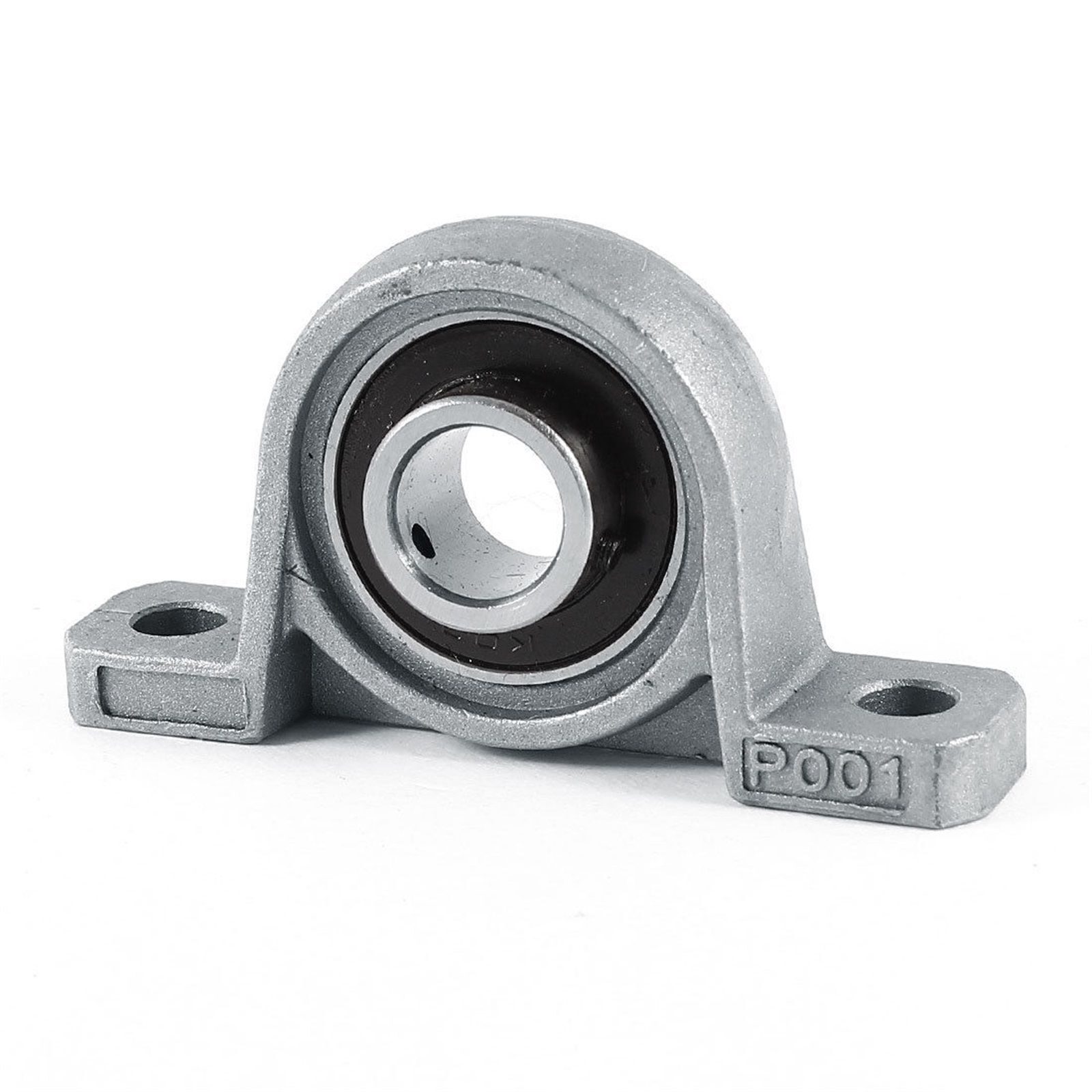

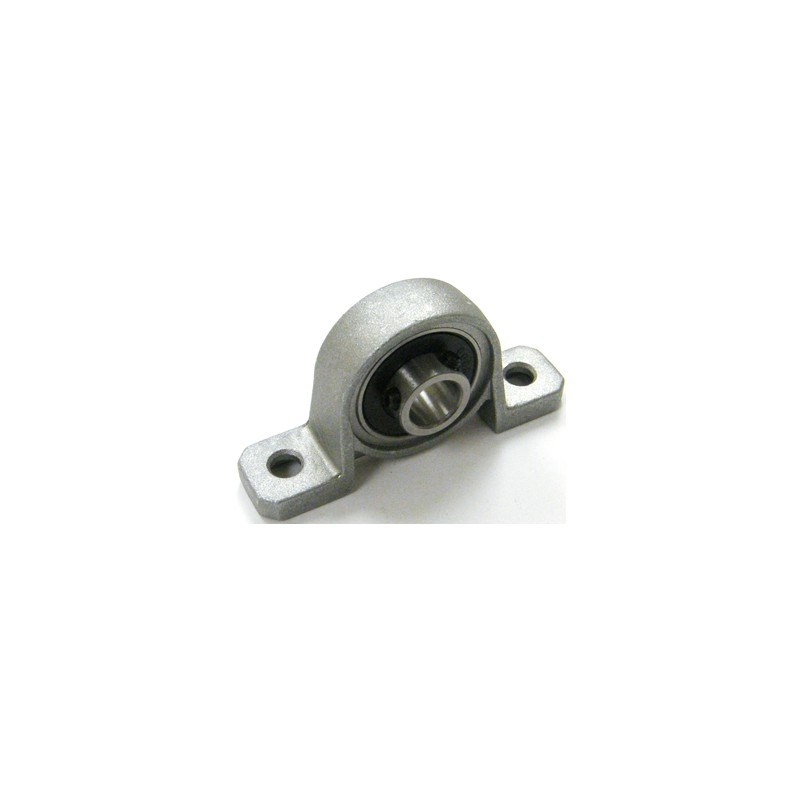

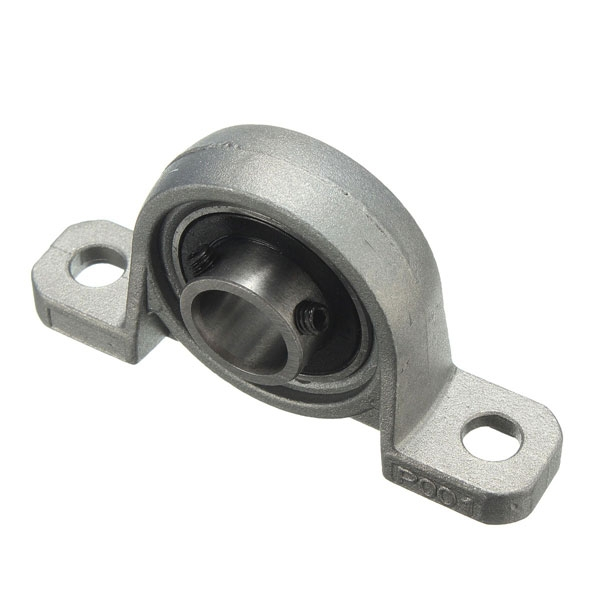

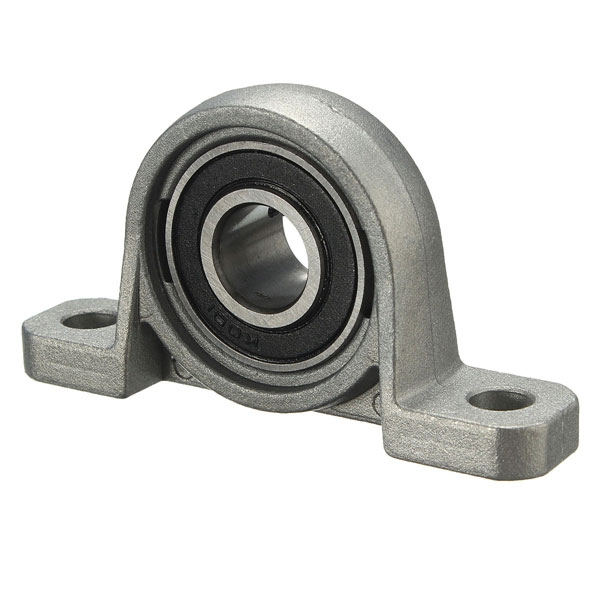

12mm Bore Inner Ball Mounted Pillow Block Insert Bearing KP001
The KP001 is a 12mm Bore Inner Ball Mounted Pillow Block Insert Bearing with top set screws. These screws allow the bearing’s inner ring to attach firmly to the shaft and make installation easy. The bearing has some self-aligning ability, so it can fit on a rack with general accuracy. It is versatile and widely used.
This bearing comes with a two-bolt housing and a ball bearing insert that are ready to mount. It also has a setscrew locking collar that ensures a secure connection to the guided shaft. The angle between the inner bearing and the outer fixing ring can be adjusted finely.
Features:
- Durable with high precision
- Can withstand great weight.
- The angle between the inner bearing and the outer fixing ring is adjustable.
- Easy to install.
Specification:
| Bearing Inner Diameter (mm) | 12 |
|---|---|
| Bearing Outer Diameter (mm) | 30 |
| Length (mm): | 71 |
| Width (mm) | 16 |
| Height (mm) | 38 |
| Weight (gm) | 50 |
| Shipping Weight | 0.055 kg |
| Shipping Dimensions | 8 × 6 × 4 cm |
Package Includes:
1 x 12mm Bore Inner Ball Mounted Pillow Block Insert Bearing KP001
Technical Specifications
| Model | KP001 |
|---|---|
| Size | 12mm |
| SKU | AI2878 |
| Weight | 0.06 kg |
| Availability | In Stock |
Applications & Use Cases
The 12mm Bore Inner Ball Mounted Pillow Block Insert Bearing KP001 is a versatile bearings used across a wide range of applications including 3D printer motion systems, CNC machines, conveyor belts, robotic joints, and motor shafts.
Common use cases:
- Replacing worn bearings in a 3D printer
- Building a CNC linear motion system
- Adding smooth rotation to a robotic arm joint
This product is ideal for mechanical engineers, 3D printer owners, and CNC builders.
Technical Tip: Linear bearings (LM8UU) for smooth rail motion; ball bearings for rotational applications. Keep bearings lubricated for long life.
