Lithium Battery Level Indicator, Five-Level LIPO Voltage LED Indicator

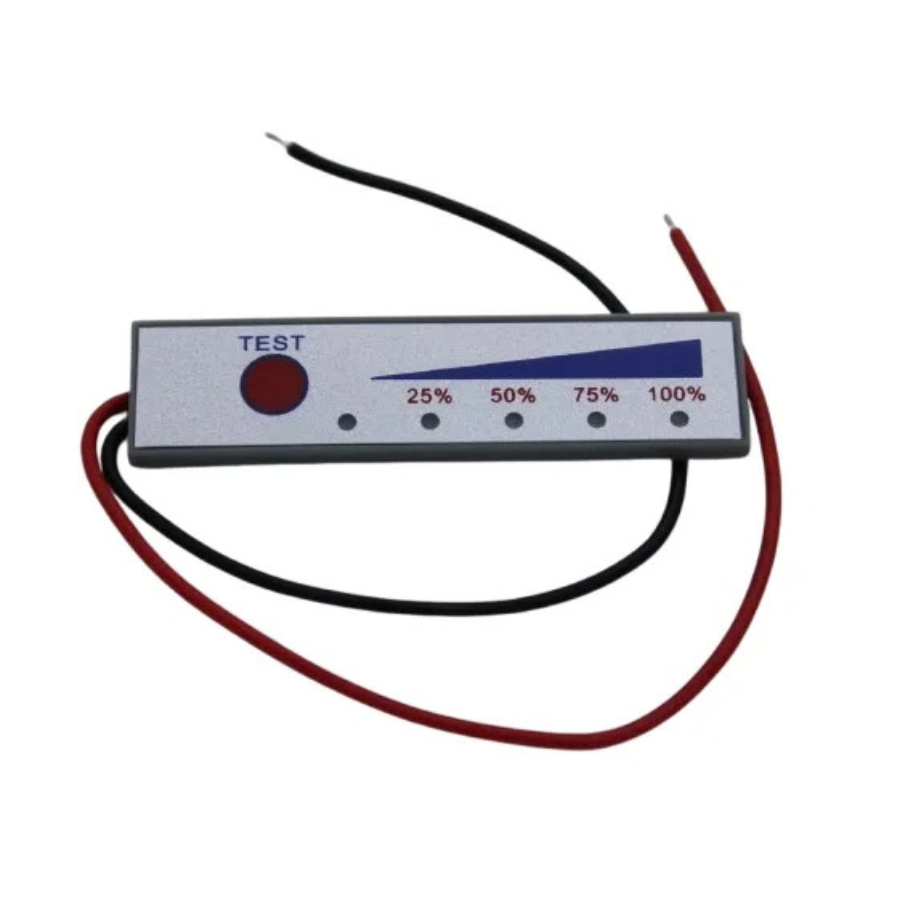

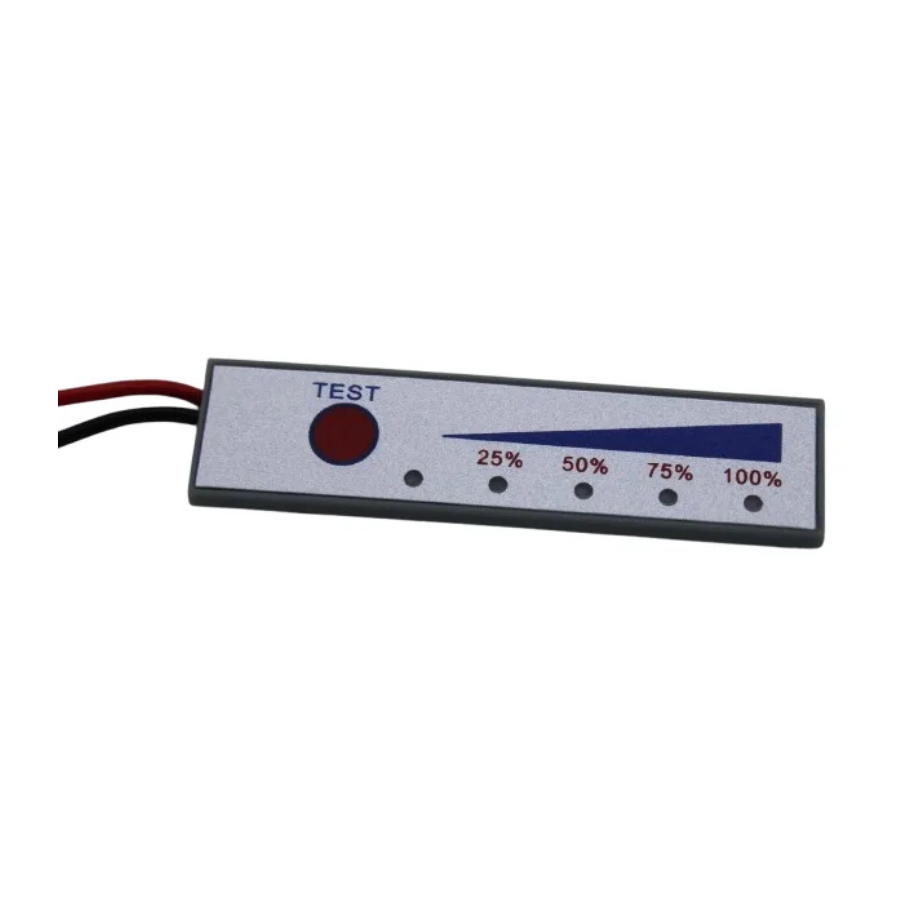

This compact lithium battery level indicator features a five-level LED display that shows the battery’s charge status. It functions as a level tester to monitor the battery’s charging and discharging cycles. The LED indicators light up according to the battery’s specific voltage levels, providing a clear visual representation of its remaining charge.
Power Level：
- L1: 9.6 V
- L2: 10.2 V
- L3: 10.8 V
- L4: 12.6 V
How it Work:
- Connect the module to the battery output with proper polarity.
- Press and hold the red push button on the module
- It will show the voltage level of the battery in terms of five Level (module consume 300mA)
- Releasing button power-offs the module.
Features:
- Size: 2.7 X 62 X 16 mm
- Level LED: Five
- Operating Current: 300mA
- Cable Length: 140 mm
- Reverse connection protection
Specification:
| Level LED | Five |
|---|---|
| Max. Operating Current (mA) | 300mA |
| Cable Length(mm) | 140 |
| Size(mm) | 2.7 X 62 X 16 mm |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 5 × 2 × 1 cm |
Package Includes:
1 x Lithium Battery Level Indicator, Indicator Board Five-Level LED Indicator
