The Battery Capacity Indicator Module is designed to be both intuitive and visually appealing, offering a versatile solution for monitoring a variety of battery types. It is compatible with nickel-metal hydride (NiMH) batteries, 18650 and lithium polymer (LiPo) battery packs, lead-acid batteries, and batteries used in electric vehicles and other equipment.
Featuring built-in reverse connection protection, this display ensures safe operation by preventing damage in case the connections are reversed. To use, simply connect the module’s positive and negative terminals to the corresponding terminals of the battery being tested. The digital display will then show the battery’s real-time power level, providing an accurate and easy-to-read indication of its charge status.
Features:
- Battery type of electricity quantity display.
- Wide application fields: lithium battery.
- Using Method: connect display board positive and negative port with tested battery positive.

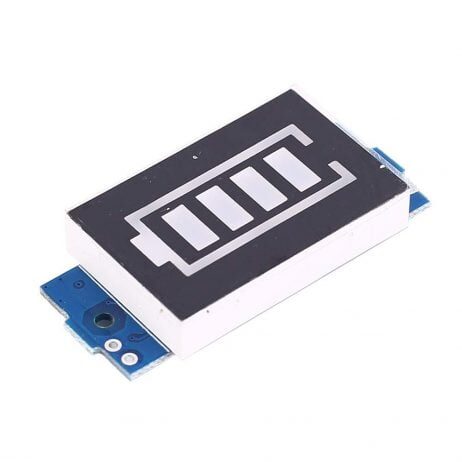

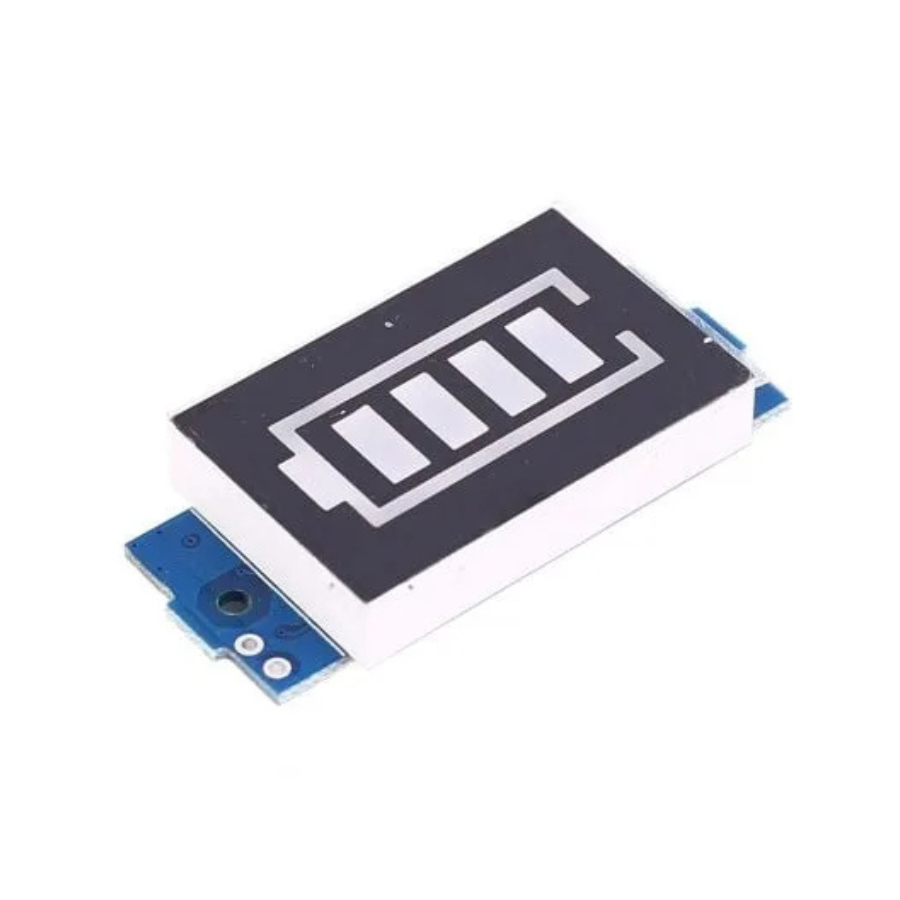

and negative port, the digital tube will display real-time battery electricity quantity. - Digital Color: outline red, display block blue (when the battery electricity quantity is full, it will be all on).
Package Includes:
1 x Li-po Lithium Battery Capacity Indicator Module
Power Supply for Arduino: Best Options Compared (USB, 9V, DC)
Choosing the right power supply for Arduino options is one of the most fundamental decisions you will make...
Read More →
Capacitor as Energy Storage: Supercap UPS for MCU Projects
Table of Contents What is a Supercapacitor? Why Use a Supercapacitor UPS for MCU Projects? Supercapacitor vs Battery:...
Read More →
Battery Internal Resistance: Testing and Understanding It
Table of Contents What is Battery Internal Resistance? Why Internal Resistance Matters for Your Projects How to Measure...
Read More →Technical Specifications
| Cell Configuration | 1S |
|---|---|
| SKU | AI3453 |
| Weight | 0.01 kg |
| Availability | In Stock |
Applications & Use Cases
The 1S 18650 Li-po Lithium Battery Capacity Indicator Module is a versatile lipo voltage checker used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
