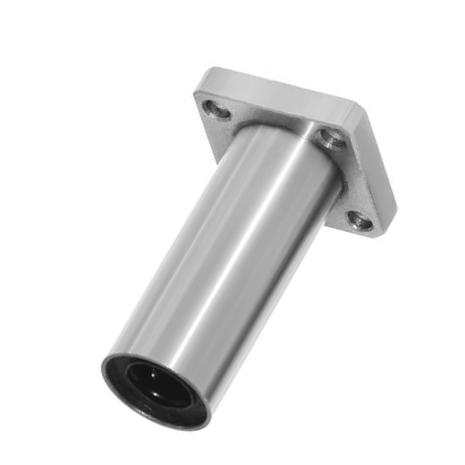

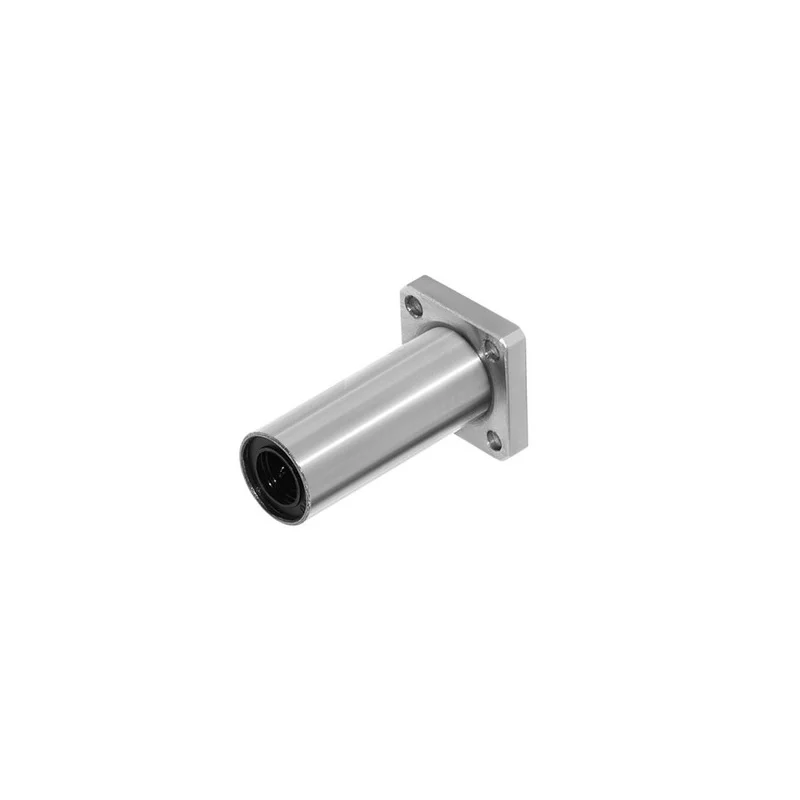

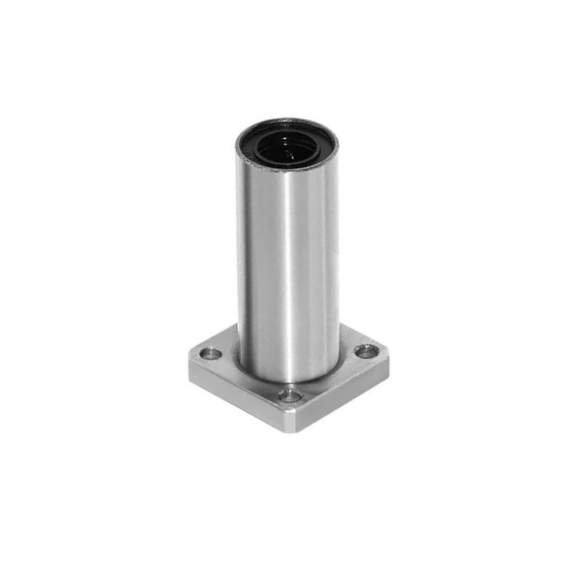

This is the 8mm variant of the Linear Bearing LMK8LUU 8mm Square Flange Bushing in Bearings. Available at ₹179.36 (₹152.00 + GST) with free shipping across India.
Product Description:
The Linear Bearing LMK8LUU 8mm Square Flange Bushing is an economical linear motion system that uses a cylindrical shaft.
The balls and the shaft have point contact, so the working load of these bearings is low. The balls can rotate with minimal friction, resulting in high-precision and smooth movement.
The Bearings provide a precise, safe and reliable linear motion system. They are commonly used in 3D printers and CNC (Computer Numerical Control) machines.
They are also widely used in home appliances, industrial, low-noise and high-speed electric motors, construction machinery, automotive components, pumps and machinery.
Features:
- Smooth moving
- Low friction
- High rigid
- Long life
- Economical and easy to maintain.
Specification:
| Ball Circuits | 4 |
|---|---|
| Color: | silver |
| Length (mm): | 45 |
| Model | LMK8LUU |
| Outer Casing | Chromium Steel |
| Outer Diameter(mm) | 15 |
| Shaft ID(mm) | 8 |
| Square Size (mm) | 25 |
| Weight (g): | 40 |
| Shipping Weight | 0.043 kg |
| Shipping Dimensions | 6 × 4 × 4 cm |
Package Includes:
1 x Linear Bearing LMK8LUU 8mm Square Flange Bushing
Technical Specifications
| Model | LMK8LUU |
|---|---|
| Size | 8mm |
| SKU | AI2853 |
| Weight | 0.05 kg |
| Availability | In Stock |
Applications & Use Cases
The Linear Bearing LMK8LUU 8mm Square Flange Bushing is a versatile bearings used across a wide range of applications including 3D printer motion systems, CNC machines, conveyor belts, robotic joints, and motor shafts.
Common use cases:
- Replacing worn bearings in a 3D printer
- Building a CNC linear motion system
- Adding smooth rotation to a robotic arm joint
This product is ideal for mechanical engineers, 3D printer owners, and CNC builders.
Technical Tip: Linear bearings (LM8UU) for smooth rail motion; ball bearings for rotational applications. Keep bearings lubricated for long life.
