This is the 10mm variant of the 10mm Bore Inner Ball Mounted Pillow Block Insert Bearing KP000 in Bearings. Available at ₹104.90 (₹88.90 + GST) with free shipping across India.
Product Description

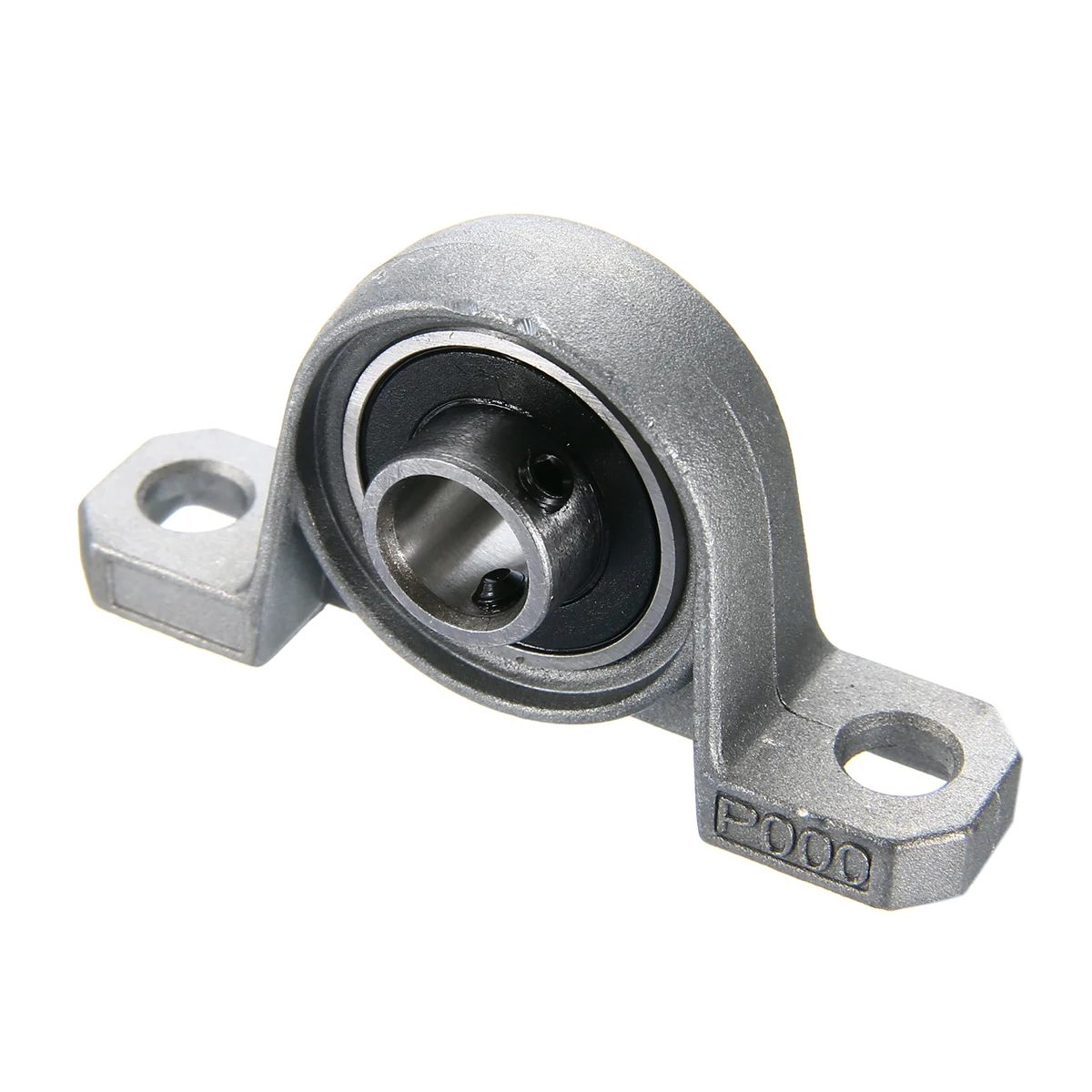

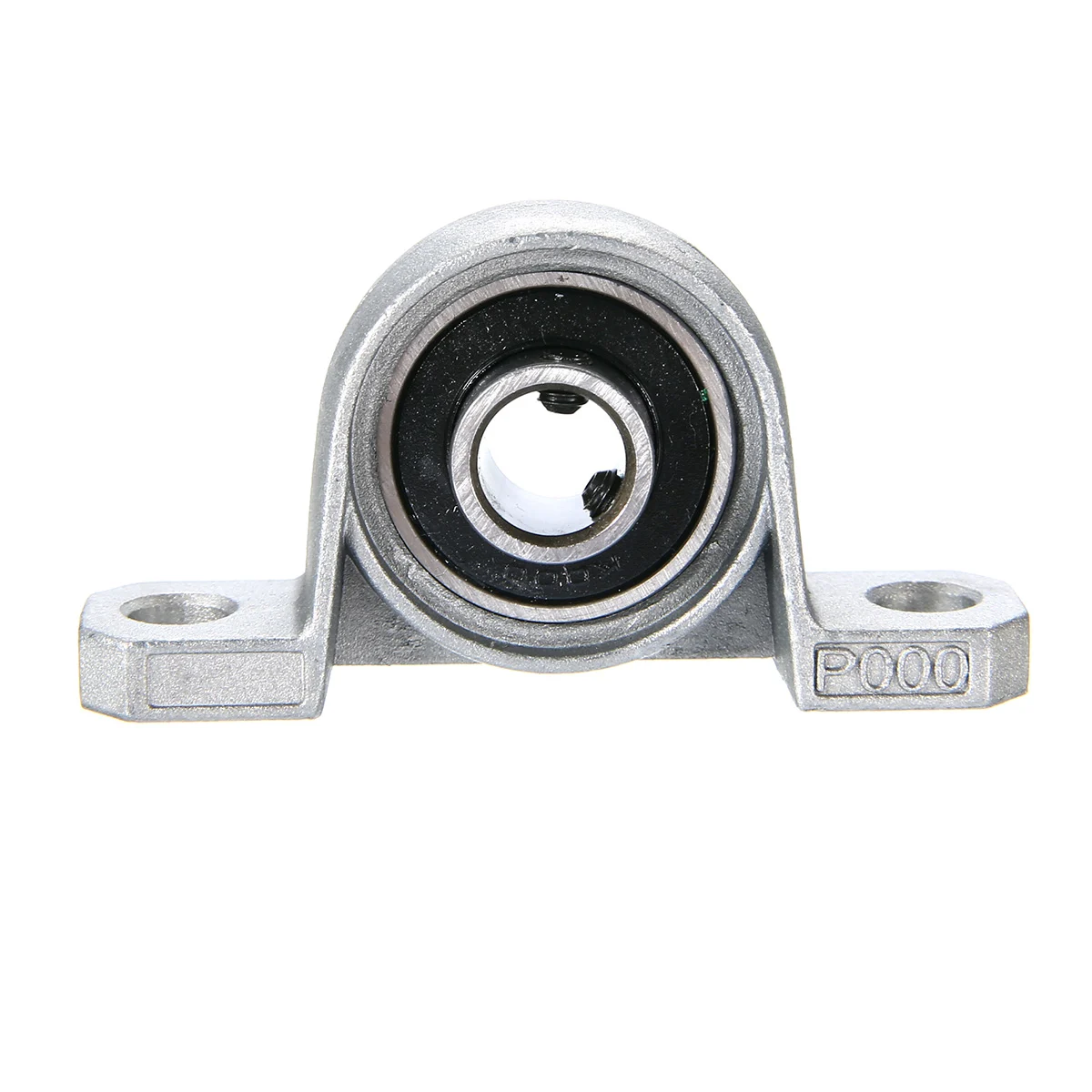

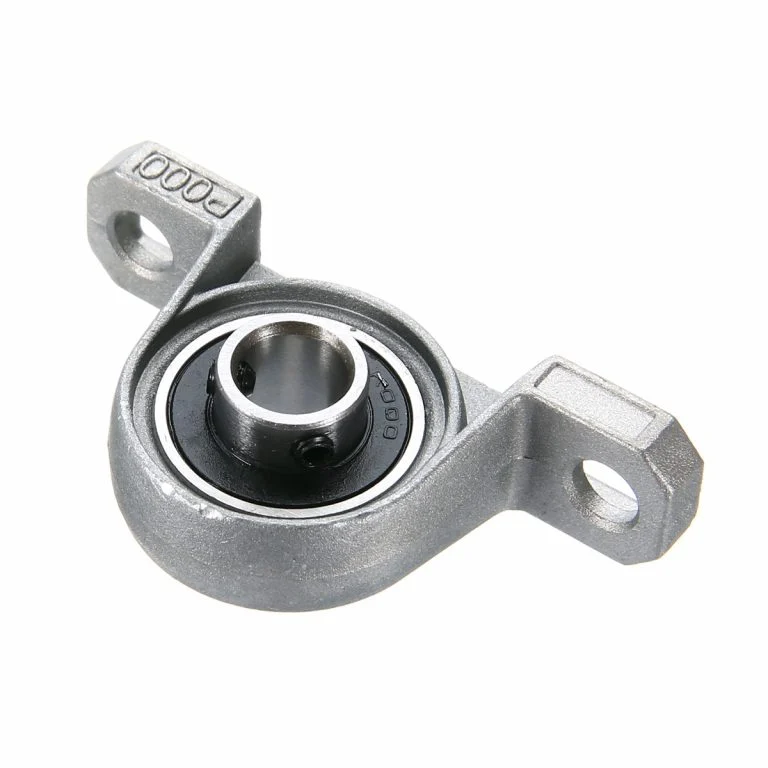

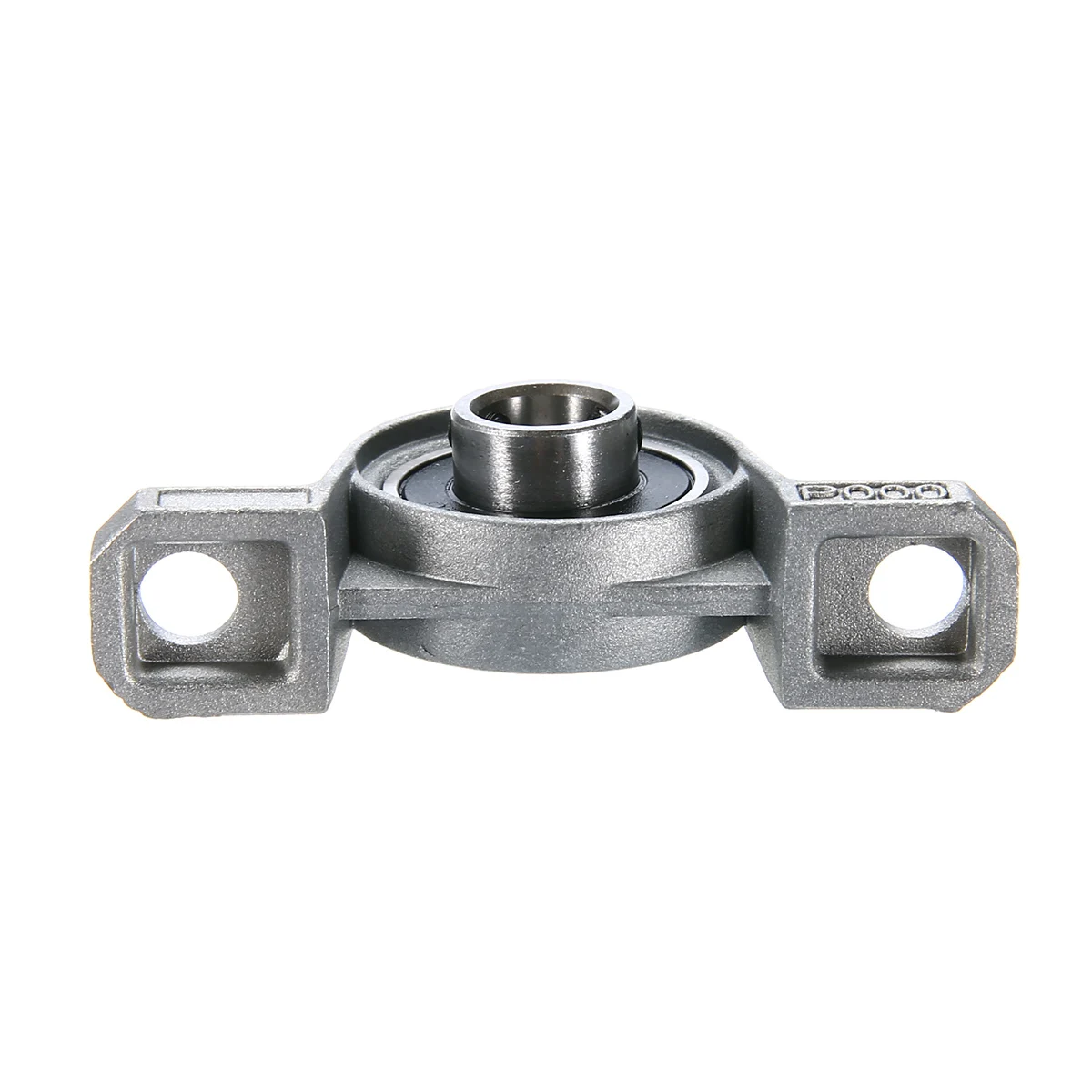

The 10mm Bore Inner Ball Mounted Pillow Block Insert Bearing KP000 comes with top set screws which makes the inner ring of the bearing fix on the shaft. It is very convenient to install. There is a certain self-aligning ability for the bearing, so it can be mounted on a general accuracy rack.
Well-adapted and widely used. Two-bolt housing with ball bearing insert for ready-to-mount installation. Setscrew locking collar for secure attachment to the guided shaft. Between the inner bearing and outer fixing ring angle can fine tune.
Features:
- Durable with high precision
- Can withstand great weight
- The angle between the inner bearing and the outer fixing ring is adjustable
- Easy to install
Specification:
| Bore Diameter [B] (mm) | 10 |
|---|---|
| Length (mm): | 67 |
| Width (mm) | 16.5 |
| Height (mm) | 36 |
| Weight (gm) | 43 |
| Shipping Weight | 0.047 kg |
| Shipping Dimensions | 8 × 6 × 4 cm |
Package Includes:
1 x 10mm Bore Inner Ball Mounted Pillow Block Insert Bearing KP000
Technical Specifications
| Model | KP000 |
|---|---|
| Size | 10mm |
| SKU | AI2868 |
| Weight | 0.06 kg |
| Availability | Out of Stock |
Applications & Use Cases
The 10mm Bore Inner Ball Mounted Pillow Block Insert Bearing KP000 is a versatile bearings used across a wide range of applications including 3D printer motion systems, CNC machines, conveyor belts, robotic joints, and motor shafts.
Common use cases:
- Replacing worn bearings in a 3D printer
- Building a CNC linear motion system
- Adding smooth rotation to a robotic arm joint
This product is ideal for mechanical engineers, 3D printer owners, and CNC builders.
Technical Tip: Linear bearings (LM8UU) for smooth rail motion; ball bearings for rotational applications. Keep bearings lubricated for long life.
