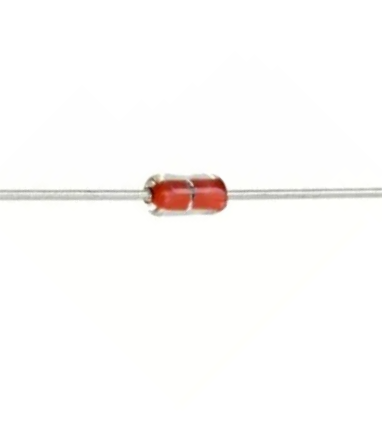

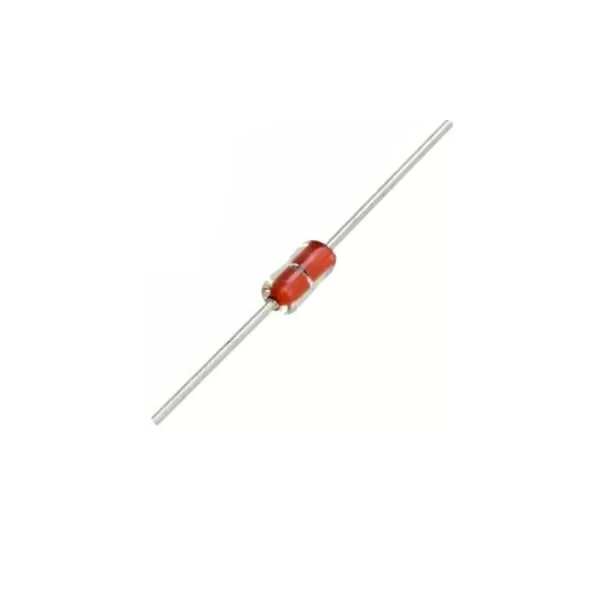

Linear 100K ohm NTC N3950 thermistor 1% (Pack of 5)
These thermistors are small, high-quality, and precision devices with an NTC (Negative Temperature Coefficient) that changes their resistance according to the temperature. They have a consistent R-T (Resistance-Temperature) curve over a wide temperature range, which allows the circuit designer to use the same circuit for different thermistors. They also have an epoxy coating that makes them interchangeable and easy to replace without affecting the calibration of the circuit.
Features:
- Temperature Coefficient Type: NTC
- Thermal Time Constant: 10s
- Resistance 100kΩ
- Tolerance: ±1%
- Maximum Power Rating: 75mW
- Maximum Operating Temperature: 150°C
- Minimum Operating Temperature: -80°C
- Dimensions(dia.): 2 mm
- Length: 30mm
- Application: Compensation, Control, Measurement, etc.
Specification:
| Model | N3950 |
|---|---|
| Temperature Coefficient Type | NTC |
| Thermal Time Constant | 10s |
| Resistance | 100kΩ |
| Tolerance | ±1% |
| Maximum Power Rating | 75mW |
| Maximum Operating Temperature | +150°C |
| Minimum Operating Temperature | -80°C |
| Dimensions(dia.) | 2 mm |
| Length | 30mm |
| Application | Compensation, Control, Measurement, etc. |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 9 × 2 × 1 cm |
Packages Includes:
1 x Linear 100K ohm NTC N3950 1% (Pack of 5)
Linear 100K ohm NTC N3950 thermistor 1% Overview
The Linear 100K ohm NTC N3950 thermistor 1% is a precision temperature sensor whose resistance decreases with rising temperature. With a tight ±1% tolerance on its 100 kΩ resistance, it delivers consistent R-T response over –80 °C to 150 °C for reliable thermal measurement and control.
Key Features of Linear 100K ohm NTC N3950 thermistor 1%
- NTC Temperature Coefficient: Negative Temperature Coefficient chip for predictable resistance drop as temperature rises.
- High Accuracy: ±1% tolerance ensures precise readings and minimal calibration drift.
- Wide Temperature Range: Operates from –80 °C up to 150 °C, suitable for harsh environments.
- Fast Response: Thermal time constant of 10 s offers timely reaction to temperature changes.
- Compact Size: 2 mm diameter encapsulated bead with epoxy coating for easy insertion and durability.
- Reliable Power Handling: Maximum power rating of 75 mW prevents self-heating in low-power circuits.
- Fast Shipping from Zbotic: Genuine stock ready to ship within 24 hours.
Applications and Use Cases
- 3D printer hot-end and bed temperature monitoring
- Digital thermostats and HVAC control loops
- Battery pack temperature compensation
- Environmental sensors for weather stations
- Industrial oven and incubator feedback
- Embedded microcontroller temperature measurement
How to Use Linear 100K ohm NTC N3950 thermistor 1%
Mount the thermistor bead close to the measurement point and solder its leads into a voltage-divider network with a fixed reference resistor. Connect the divider output to an ADC input on your controller, then apply the N3950 R-T curve from the datasheet in your code to convert voltage readings into temperature. Secure the epoxy-coated bead against vibration and avoid exceeding its 75 mW power limit to prevent self-heating errors.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the accurate temperature range for this thermistor?
The Linear N3950 thermistor reliably measures from –80 °C up to 150 °C, maintaining its ±1% resistance tolerance across that span.
How do I wire the 100 kΩ NTC into my microcontroller circuit?
Use it in a voltage-divider configuration with a matching reference resistor (e.g., 100 kΩ) and feed the midpoint voltage into your ADC pin. Then apply the N3950 resistance-to-temperature conversion curve in your firmware.
Can I use this thermistor in high-power heating applications?
This device is rated for a maximum dissipation of 75 mW. It’s ideal for low-power sensing and control—avoid driving excessive current to prevent self-heating and measurement errors.
