This is the Yellow variant of the LCD2004 Parallel LCD Display with Yellow Backlight in TFT LCD Displays. Available at ₹279.66 (₹237.00 + GST) with free shipping across India.
Looking for Lcd2004 Display Yellow? LCD2004 Parallel LCD Display with Yellow Backlight is available at Zbotic with fast shipping across India.

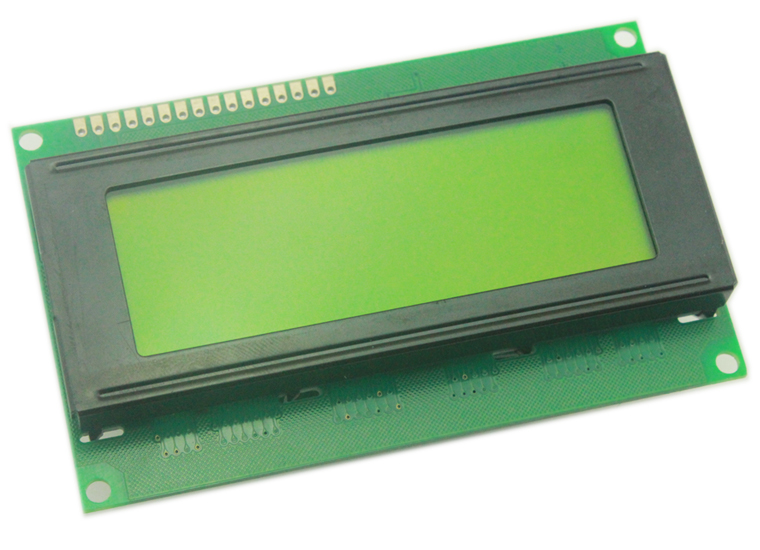

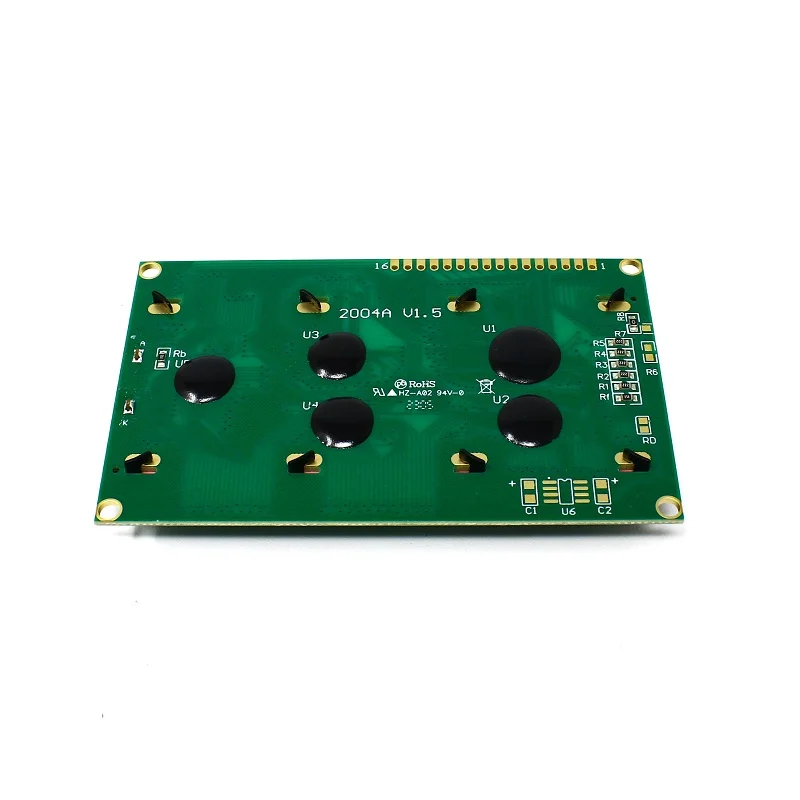

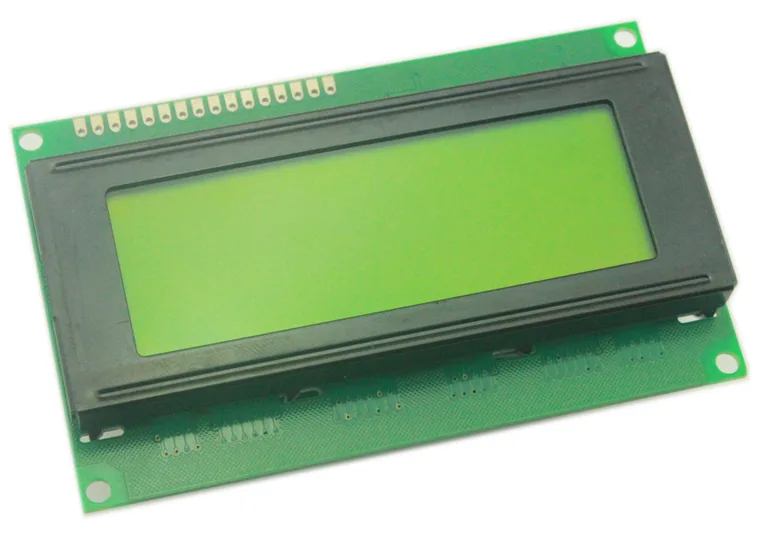

LCD2004 Parallel LCD Display with Yellow Backlight
If you’re looking to incorporate visual output into your Arduino projects, a display is essential. For projects requiring moderate data display, the LCD2004 Parallel LCD Display offers an excellent solution.
The LCD2004 Parallel LCD Display provides a simple and cost-effective means of integrating a 20×4 Black on RGB Liquid Crystal Display into your project setup. With a display size of 20 characters by 4 lines, it offers ample space for displaying information.
Featuring high-contrast black text on a yellow background with backlighting, this display ensures clear and legible text for enhanced visibility. Its yellow backlight adds to its visual appeal, making it suitable for various Arduino-based projects.
The LCD2004 Parallel LCD Display with Yellow Backlight is straightforward to interface with Arduino or other microcontrollers, making it suitable for a wide range of applications. Whether you’re monitoring sensor readings, displaying system status, or presenting informative messages, this display is versatile and reliable.
One advantage of this display is its compatibility with an I2C adapter, which simplifies the wiring process and reduces the number of pins required on the Arduino. By soldering the I2C adapter directly onto the display pins, only the I2C pins need to be connected, streamlining the setup process and minimizing the amount of coding required.
Overall, the LCD2004 Parallel LCD Display with Yellow Backlight offers an efficient and convenient solution for adding visual output to your Arduino projects, making it an ideal choice for applications requiring moderate data display capabilities.
Features:
- 20 characters wide, 4 rows
- Black text on the yellow background
- The module can easily interface with an MCU
- The module is a low-power consumption character LCD Module with a built-in controller
- Single LED backlight included can be dimmed easily with a resistor or PWM.
- Can be fully controlled with only 6 digital lines! (Any analog/digital pins can be used)
Specification:
Package Includes:
1 x LCD2004 Parallel LCD Display Yellow Backlight
LCD2004 Parallel LCD Display with Yellow Backlight Overview
The LCD2004 Parallel LCD Display with Yellow Backlight is a 20-character by 4-line display module featuring high-contrast black text on a yellow backlight. Designed for easy integration with microcontrollers, it delivers clear visual output for data, status messages, menus and more.
Key Features of LCD2004 Parallel LCD Display with Yellow Backlight
- 20×4 character arrangement for moderate data or text display
- High-contrast black text against a yellow LED backlight for excellent readability
- Standard parallel interface (RS, RW, E, D0–D7) for straightforward microcontroller connection
- 5 V operating voltage compatible with Arduino, Raspberry Pi (with level shifting), and other 5 V boards
- Compact footprint (98 × 60 × 12 mm) fits neatly into custom enclosures and panels
- Fast shipping from Zbotic across India—get genuine stock delivered quickly
Applications and Use Cases
- Displaying sensor readings (temperature, humidity, voltage) in Arduino weather stations
- Showing menu options and user prompts in DIY control panels or home automation projects
- Real-time clock or timestamp output for desk clocks and data loggers
- Status and debug messages during prototype development or firmware testing
- Interactive interfaces for robotics—battery level, mode selection, error codes
How to Use LCD2004 Parallel LCD Display with Yellow Backlight
To set up, wire the module’s VCC and GND pins to your 5 V supply, connect the RS, RW and E control pins plus eight data lines (D0–D7) to your microcontroller, and adjust the onboard contrast potentiometer. In Arduino, include LiquidCrystal.h, instantiate the display in 4-bit or 8-bit mode, call begin(20,4) in setup(), then use print() or setCursor() to send text to the screen.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can I use LCD2004 with Arduino boards?
Yes, the LCD2004 uses a standard parallel interface fully compatible with the Arduino LiquidCrystal library. Connect the control and data pins to your Arduino, include LiquidCrystal.h, and initialize it in your sketch for quick prototyping.
What voltage is required to power the display?
The module and its yellow LED backlight operate on a 5 V DC supply. Ensure you provide a stable 5 V source and common ground when wiring to microcontrollers or development boards.
How do I adjust the text contrast on the LCD2004?
An onboard potentiometer (or an external 10 kΩ trim pot on the V0 pin) lets you fine-tune the contrast. Rotate the pot until characters appear sharp and clear against the yellow backlight.
Arduino Serial Plotter: Visualize Sensor Data in Real-Time
Table of Contents What Is the Arduino Serial Plotter? Basic Usage: Plotting Your First Graph Plotting Multiple Channels...
Read More →
Arduino Multiplexer 74HC4051: Read 8 Analog Sensors on 3 Pins
The 74HC4051 multiplexer (or MUX) solves one of the most frustrating limitations of the Arduino Uno — only...
Read More →
Arduino Bidirectional Visitor Counter with IR Sensors
Table of ContentsIntroductionComponents and Hardware SetupWiring Diagram and ConnectionsComplete Code with ExplanationCustomization and ImprovementsTroubleshooting Common IssuesAdvanced Features and...
Read More →Technical Specifications
| Model | LCD2004 |
|---|---|
| Color | Yellow |
| SKU | AI2519 |
| Weight | 0.09 kg |
| Availability | In Stock |
Applications & Use Cases
The LCD2004 Parallel LCD Display with Yellow Backlight is a versatile tft lcd displays used across a wide range of applications including embedded HMI interfaces, Raspberry Pi touchscreen projects, Arduino display projects, industrial control panels, and information kiosks.
Common use cases:
- Adding a touch display to a Raspberry Pi project
- Building a portable game console
- Creating a dashboard for sensor data
This product is ideal for embedded developers, IoT makers, and industrial engineers.
Technical Tip: Check interface type (SPI, I2C, HDMI, RGB) and driver IC compatibility with your development board. IPS panels offer better viewing angles than TN.
