3.2-inch TFT LCD Screen Module
Introducing our 3.2-inch TFT LCD Screen Module – a fully assembled, tested, and ready-to-use display solution for your Arduino projects. With its plug-and-play design, there’s no need for wiring or soldering. Simply plug it in, load up a library, and you’ll have it up and running in under 10 minutes!
Enhance your Arduino UNO projects with this beautiful large touchscreen display shield, complete with a built-in microSD card connection. Featuring a 3.2 inch diagonal LCD TFT display, this screen boasts bright 4 white-LED backlights and vibrant 18-bit color with 262,000 different shades.
Features:
- 3.2″ diagonal LCD TFT display with bright 4 white-LED backlights (default state: on)
- Backlight control via digital pin connection to a transistor.
- High resolution of 240×320 pixels for detailed images and graphics
- Resistive touchscreen for intuitive interaction
- 8-bit digital interface with 4 control lines for seamless integration
- Individual pixel control for precise rendering
- Compatible with classic Arduino ATMEGA328 boards
Specifications:
| Specification | Details |
|---|---|
| Display Size | 3.2 inches diagonal |
| Backlights | 4 white LED backlights |
| Resolution | 240×320 pixels |
| Color Depth | 18-bit, supporting 262,000 different shades |
| Touchscreen | 4-wire resistive touchscreen |
| Interface | 8-bit digital interface with 4 control lines |
| Compatibility | Works best with classic Arduino ATMEGA328 boards |
Package Includes:

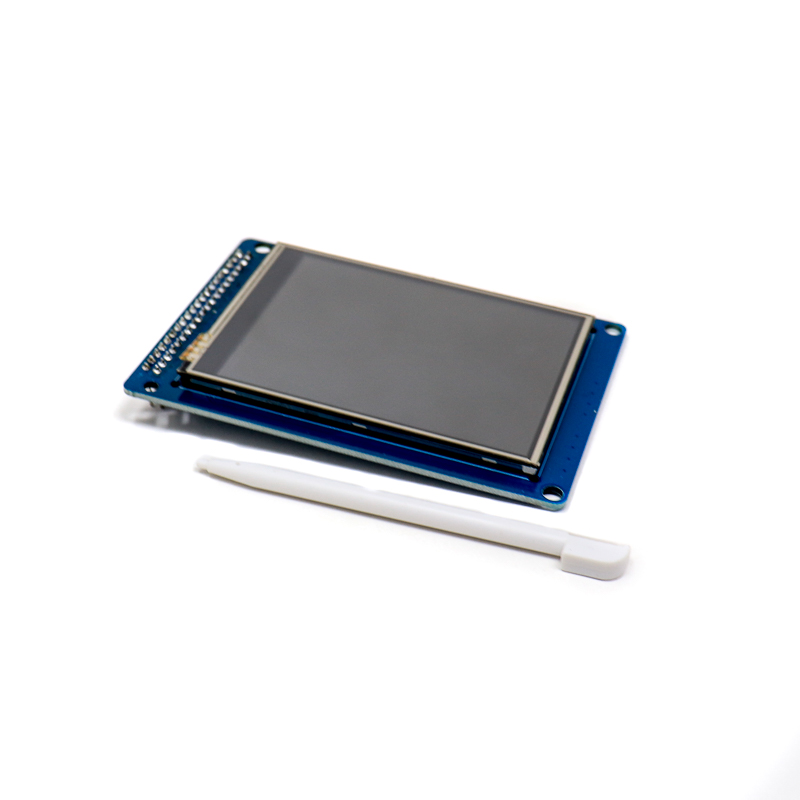

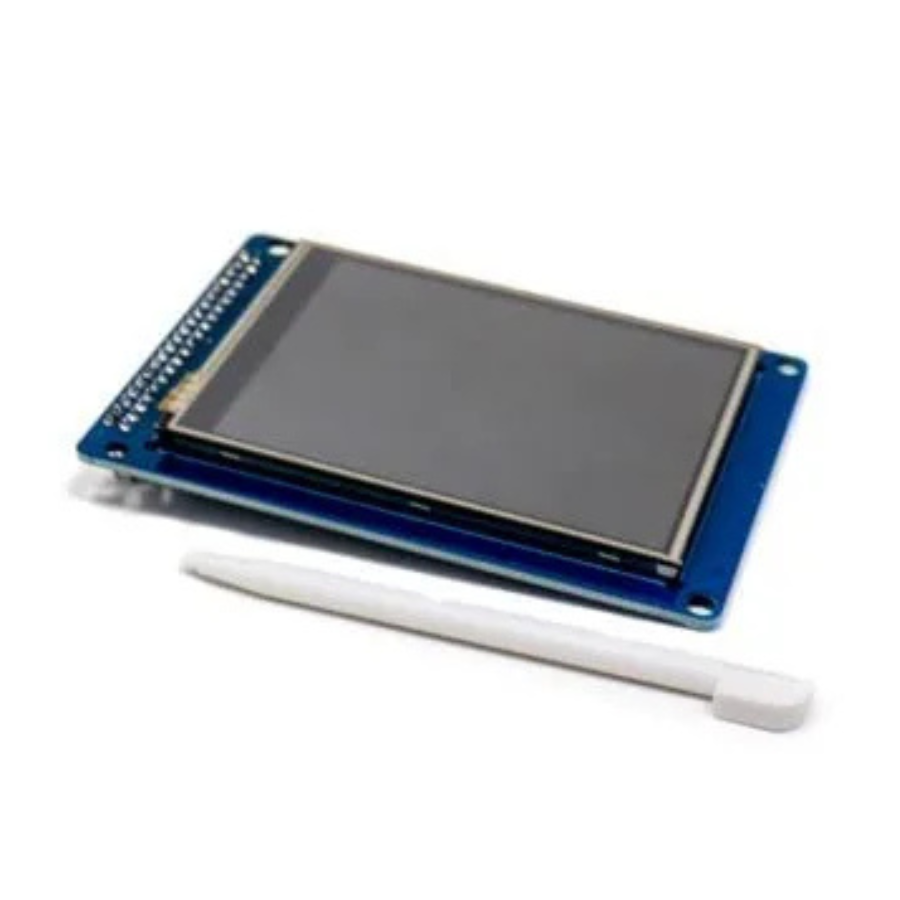

1 x 3.2 inch TFT LCD Screen Module
1 x Stylus
3.2 inch TFT LCD Screen Module Overview
The 3.2 inch TFT LCD Screen Module is a ready-to-use display shield designed for Arduino ATMEGA328 boards. It delivers a bright 240×320 pixel touchscreen interface with built-in microSD support for projects requiring vivid color graphics and user input.
Key Features of 3.2 inch TFT LCD Screen Module
- 3.2″ diagonal TFT display with 240×320 pixel resolution
- 4 white-LED backlights for bright, uniform illumination
- 18-bit color depth supporting 262,000 vibrant shades
- 4-wire resistive touchscreen for intuitive user interaction
- Plug-and-play shield form factor with built-in microSD card slot
- Genuine Zbotic product with fast shipping across India
Applications and Use Cases
- DIY Arduino TFT user interfaces for home automation
- Portable sensor dashboards displaying real-time data
- Custom handheld gaming consoles with touch controls
- Digital photo frame projects reading images from microSD
- Prototyping robotic control panels and status displays
How to Use 3.2 inch TFT LCD Screen Module
Simply mount the module onto your Arduino UNO or compatible ATMEGA328 board headers—no wiring or soldering required. Install a compatible TFT library in the Arduino IDE, include the library in your sketch, initialize the 240×320 display and touchscreen in setup(), and begin drawing graphics or handling touch events. Use the built-in microSD slot by adding standard SD library calls in your code.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Is this module compatible with Arduino UNO?
Yes, the 3.2 inch TFT shield is designed for classic Arduino ATMEGA328 boards like the UNO. It plugs directly onto the header pins and uses an 8-bit digital interface with four control lines.
Do I need to solder any connections before use?
No soldering or additional wiring is required. The display module comes fully assembled as a plug-and-play shield that simply mounts onto your Arduino headers.
How do I read files from the built-in microSD card slot?
Insert a microSD card into the onboard slot, include the Arduino SD library in your sketch, call SD.begin() with the proper chip select pin, and then use SD.open() and file read functions to access your data.
Debugging Arduino Code: Serial Monitor, Logic Analyzer and Advanced Tips
Every Arduino developer — from first-year students to seasoned embedded engineers — eventually stares at a sketch that...
Read More →
Arduino Real Time Clock DS3231: Accurate Timekeeping Projects
Table of ContentsWhat Is the DS3231 RTC Module?Wiring the DS3231 to ArduinoSetting the Time: First-Time ConfigurationReading Time and...
Read More →
Arduino Soil NPK Sensor: Measure Fertilizer Levels in Soil
Knowing the exact levels of nitrogen (N), phosphorus (P), and potassium (K) in your soil is the foundation...
Read More →Technical Specifications
| Display Size | 3.2" |
|---|---|
| SKU | AI2372 |
| Weight | 0.07 kg |
| Availability | In Stock |
Applications & Use Cases
The 3.2 inch TFT LCD Screen Module is a versatile tft lcd displays used across a wide range of applications including embedded HMI interfaces, Raspberry Pi touchscreen projects, Arduino display projects, industrial control panels, and information kiosks.
Common use cases:
- Adding a touch display to a Raspberry Pi project
- Building a portable game console
- Creating a dashboard for sensor data
This product is ideal for embedded developers, IoT makers, and industrial engineers.
Technical Tip: Check interface type (SPI, I2C, HDMI, RGB) and driver IC compatibility with your development board. IPS panels offer better viewing angles than TN.
