This is the Gray variant of the LCD1602 Parallel LCD Display with Gray Backlight in TFT LCD Displays. Available at Original price was: ₹147.50.₹118.00Current price is: ₹118.00. (₹100.00 + GST) with free shipping across India.

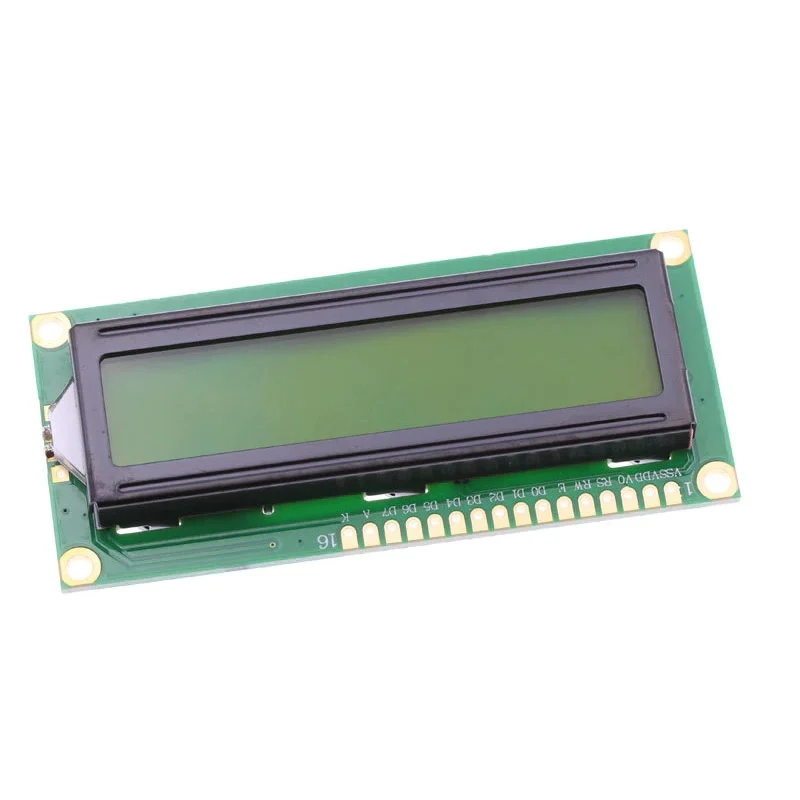

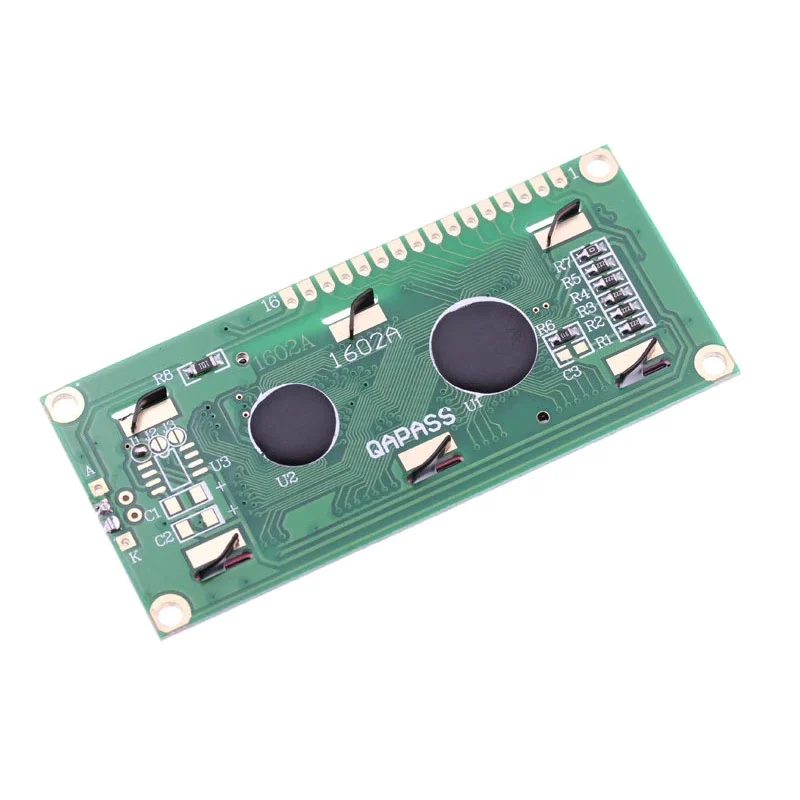

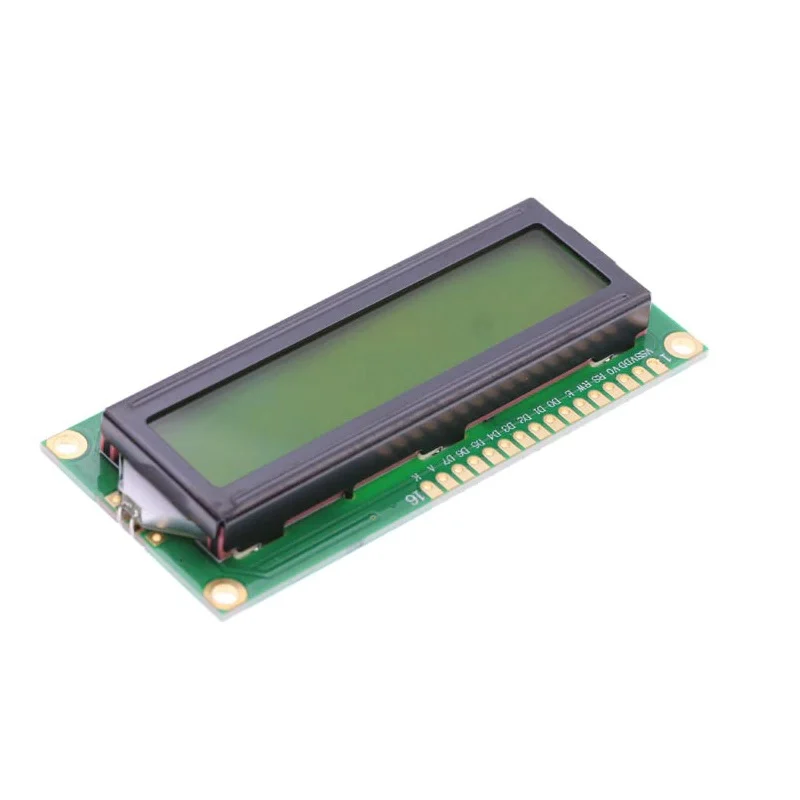

LCD1602 Parallel LCD Display with Gray Backlight
If you’re seeking to incorporate visual output into your Arduino projects, the LCD1602 Parallel LCD Display serves as an excellent solution. This display module offers a simple and cost-effective means of integrating a 16×2 Black on RGB Liquid Crystal Display into your project setup.
Featuring a 16-character by 2-line display, this LCD1602 display provides clear and high-contrast black text against a gray background with backlighting. Its gray backlight adds to its visual appeal and makes it particularly suitable for Arduino-based projects.
This display module is effortless to interface with Arduino or other microcontrollers, making it an ideal choice for various applications. Whether you need to display simple text, numerical values from sensors such as temperature or pressure, or monitor the Arduino’s operational cycles, this display can accommodate your requirements.
One consideration to bear in mind is that using this display typically requires the dedication of approximately 8 pins on your Arduino. However, an I2C adapter is available, which can be soldered directly onto the display pins. This adapter simplifies the connection process, requiring only the I2C pins to be connected. With the appropriate library and minimal coding, you can easily set up and utilize the display module. If you prefer the convenience of a pre-assembled I2C adapter, we offer the same LCD module with this option available. Click on the name below to check it out.
Features:
- 16 characters wide, 2 rows
- Black text on the gray background
- Single LED backlight included can be dimmed easily with a resistor or PWM.
- Can be fully controlled with only 6 digital lines! (Any analog/digital pins can be used)
Specification:
- Model: LCD1602
- Character Color: Black
- Backlight: Gray
- Supply voltage: 5V
- Dimensions (LxWxH) mm.: 80 x 36 x 10
Package Includes:
1 x LCD1602 Parallel LCD Display with Gray Backlight
Arduino Serial Communication: UART, SoftwareSerial & Debugging
Serial communication is the foundation of how your Arduino talks to the world. Whether you are reading data...
Read More →
Arduino Robot Car Kit: Assembly and Programming Guide
The Arduino robot car kit is one of the most popular beginner projects that teaches motor control, sensor...
Read More →
ESP32 WS2812B: Addressable LED Strip Animation Library
Esp32 Ws2812B Led Animation — this detailed tutorial covers everything from hardware selection to complete working code, designed...
Read More →Technical Specifications
| Model | LCD1602 |
|---|---|
| Color | Gray |
| SKU | AI2514 |
| Weight | 0.03 kg |
| Availability | In Stock |
Applications & Use Cases
The LCD1602 Parallel LCD Display with Gray Backlight is a versatile tft lcd displays used across a wide range of applications including embedded HMI interfaces, Raspberry Pi touchscreen projects, Arduino display projects, industrial control panels, and information kiosks.
Common use cases:
- Adding a touch display to a Raspberry Pi project
- Building a portable game console
- Creating a dashboard for sensor data
This product is ideal for embedded developers, IoT makers, and industrial engineers.
Technical Tip: Check interface type (SPI, I2C, HDMI, RGB) and driver IC compatibility with your development board. IPS panels offer better viewing angles than TN.
