Waveshare 5 Inch Resistive HDMI LCD Display (G) 800×480
Features:
- 800×480 hardware resolution, configurable by software (up to 1920×1080).
- Resistive touch control.
- Supports popular mini PCs such as Raspberry Pi, Jetson Nano, BB Black, Banana Pi, as well as general desktop computers.
- When works with Raspberry Pi, supports Raspbian/Ubuntu/Kali/Retropie/WIN10 IOT, driver free.
- When working as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free.
- Supports popular game consoles like Microsoft XBOX360, Sony PS4, and Nintendo Switch, etc.
- Multi-languages OSD menu, for power management, brightness/contrast adjustment, etc.

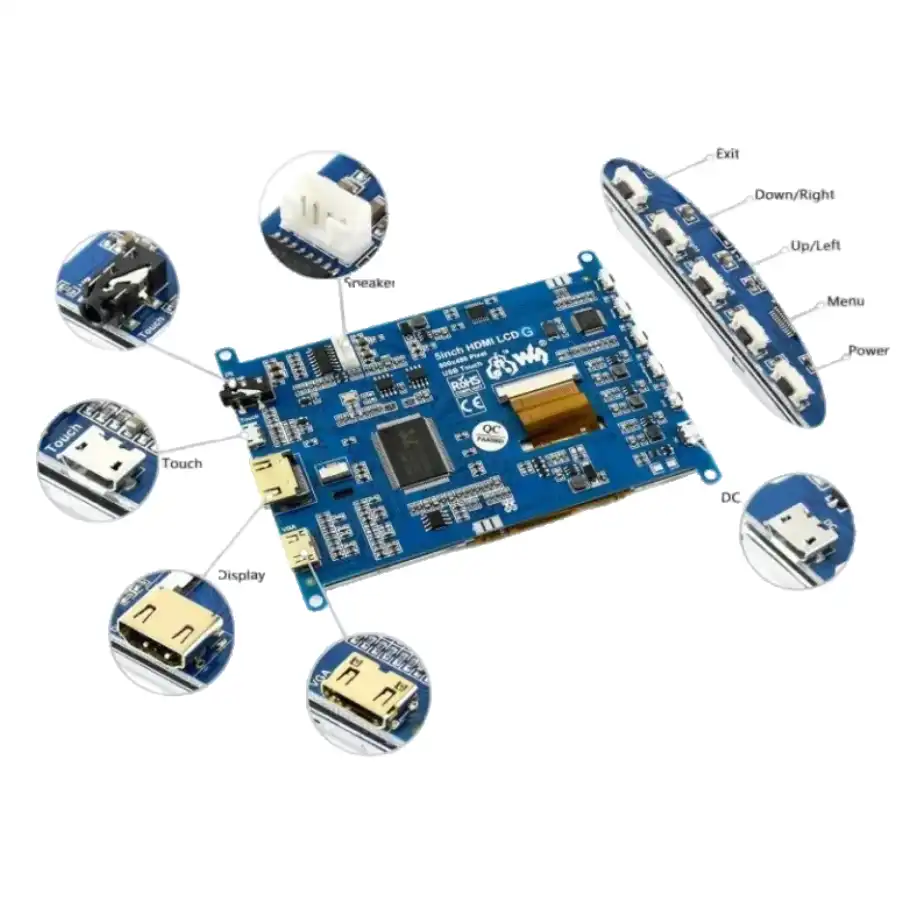

- 3.5mm audio jack, speaker connector, supports HDMI audio output.
- Also supports VGA input.
Specification:
| HDMI Port | Yes |
|---|---|
| View Angle | 170º |
| Touch type | Resistive |
| Length (mm): | 121 |
| Width (mm): | 89.5 |
| Weight (g): | 170 |
Package Includes:
1 x 5inch HDMI LCD (G)
1 x HDMI cable
1 x HDMI to Micro HDMI Adapter
1 x USB type A plug to micro B plug cable
1 x RPi screws pack (4pcs)
1 x Quick start sheet
Waveshare 5 Inch Resistive HDMI LCD Display (G) 800×480 Overview
The Waveshare 5 Inch Resistive HDMI LCD Display (G) 800×480 is a compact touchscreen monitor designed for HDMI-enabled devices. With its resistive touch panel and 800×480 resolution, it serves as both a portable display for Raspberry Pi, Jetson Nano and similar SBCs, and as a secondary monitor for Windows or game consoles.
Key Features of Waveshare 5 Inch Resistive HDMI LCD Display (G) 800×480
- 5-inch resistive touchscreen panel with 800×480 native resolution
- HDMI interface supporting up to 1920×1080 via software configuration
- 170° viewing angle for clear visibility from multiple directions
- Compatible with Raspberry Pi, Jetson Nano, BB Black, Banana Pi, Windows 7/8/10 and more
- Plug-and-play support for popular game consoles such as Xbox 360, PS4 and Nintendo Switch
- Genuine product with fast shipping from Zbotic—dispatch within 24 hours
Applications and Use Cases
- Portable touchscreen display for Raspberry Pi home automation dashboards
- Retro gaming screen when paired with RetroPie on Raspberry Pi
- Secondary monitor for laptops or mini PCs running Windows 10/8/7
- AI vision output display on Jetson Nano development boards
- Prototype interface for digital signage or kiosk systems
- On-the-go monitor for HDMI-enabled game consoles
How to Use Waveshare 5 Inch Resistive HDMI LCD Display (G) 800×480
Connect the HDMI port of the LCD to your HDMI output device and power the display via its 5 V USB input. On Linux boards such as Raspberry Pi or Jetson Nano, install Waveshare’s touch driver and update resolution settings in the configuration file. For Windows systems, simply plug in HDMI and USB for touch—no additional setup is needed.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Will this display work out of the box with Raspberry Pi?
Yes. Plug the HDMI cable into the Pi’s HDMI port and power the LCD via USB. Install the provided resistive touch driver and adjust resolution in /boot/config.txt if needed to match 800×480.
Does it require an external power supply?
Yes. The display draws power through its 5 V USB input. Use a stable 5 V/2 A USB adapter or a powered USB port on your host device.
Can I use this display as a secondary monitor on Windows 10?
Absolutely. Connect via HDMI for video and USB for touch. Windows 10 recognizes the display natively, and the touch panel works without manual driver installation.
ESP32 External Antenna: Improve WiFi Range and Reliability
Esp32 External Antenna Range — this detailed tutorial covers everything from hardware selection to complete working code, designed...
Read More →
Arduino Modbus RTU Tutorial: Industrial Sensor Communication with RS485
If you're working on an industrial automation project or building a data-acquisition system, mastering Arduino Modbus RTU communication...
Read More →
Arduino Real Time Clock DS3231: Accurate Timekeeping Projects
Table of ContentsWhat Is the DS3231 RTC Module?Wiring the DS3231 to ArduinoSetting the Time: First-Time ConfigurationReading Time and...
Read More →Technical Specifications
| Brand | WAVESHARE |
|---|---|
| Display Size | 5" |
| Interface / Protocol | HDMI |
| Resolution | 800x480 |
| Package Quantity | 480 pcs |
| SKU | AI0051 |
| Weight | 0.312 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Waveshare 5 Inch Resistive HDMI LCD Display (G) 800×480 is a versatile tft lcd displays used across a wide range of applications including embedded HMI interfaces, Raspberry Pi touchscreen projects, Arduino display projects, industrial control panels, and information kiosks.
Common use cases:
- Adding a touch display to a Raspberry Pi project
- Building a portable game console
- Creating a dashboard for sensor data
This product is ideal for embedded developers, IoT makers, and industrial engineers.
Technical Tip: Check interface type (SPI, I2C, HDMI, RGB) and driver IC compatibility with your development board. IPS panels offer better viewing angles than TN.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine WAVESHARE product sourced from authorized channels
