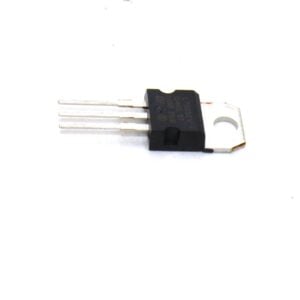

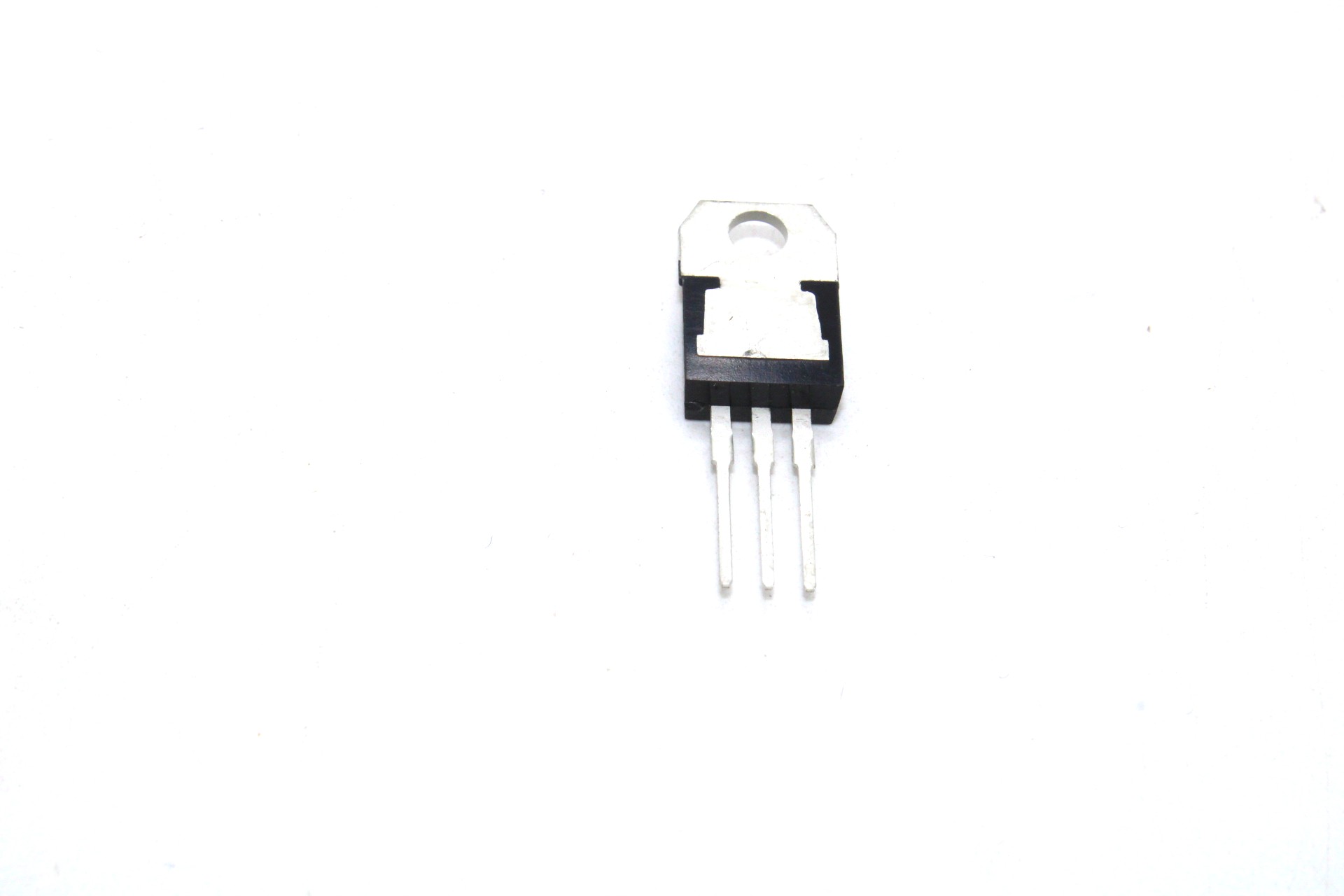

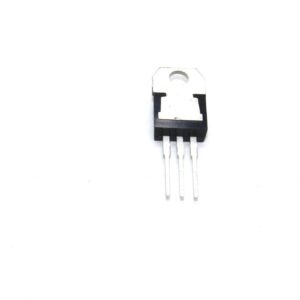

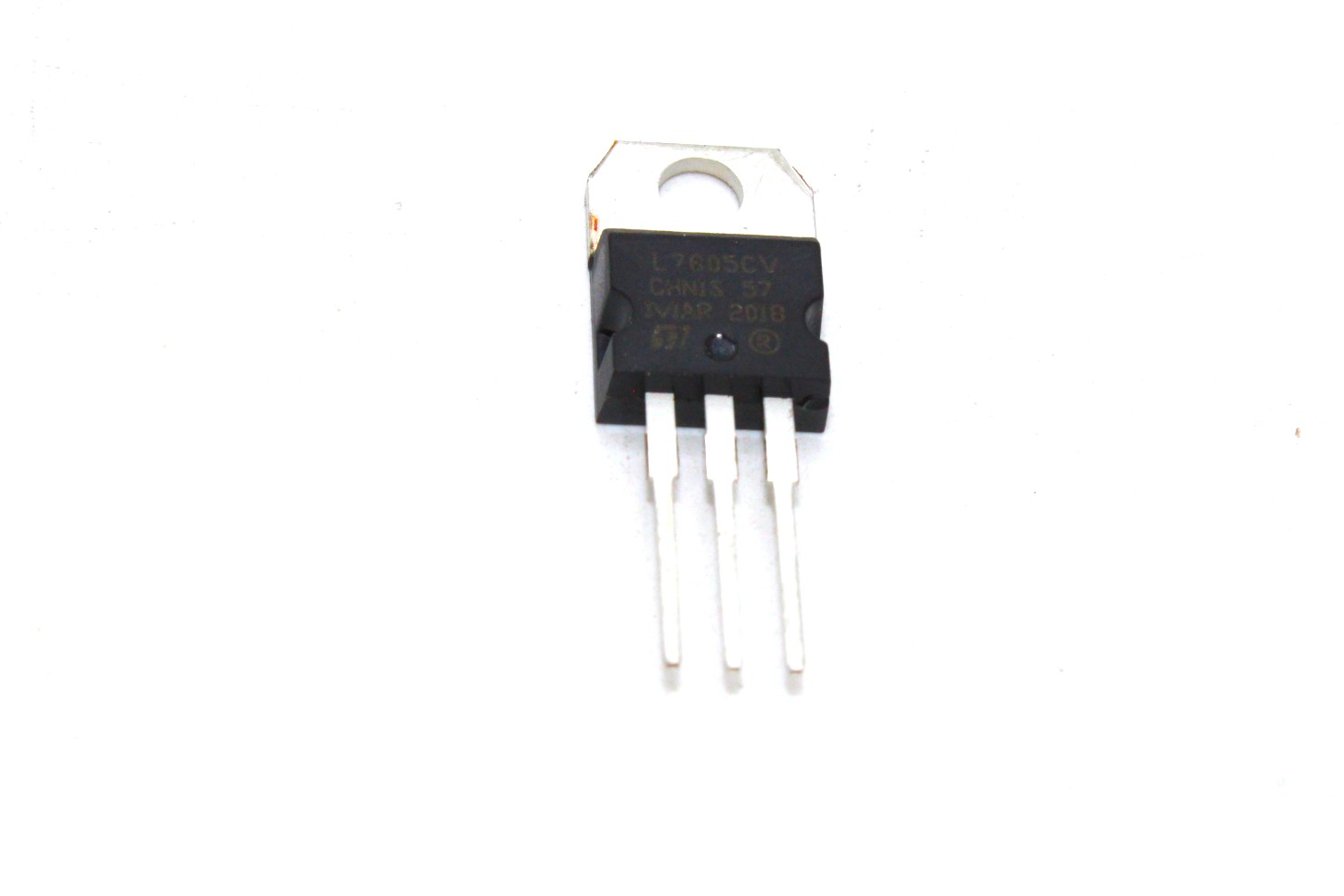

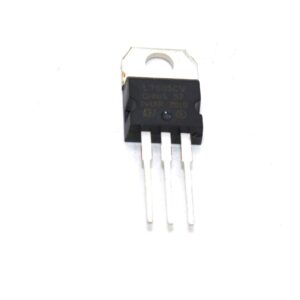

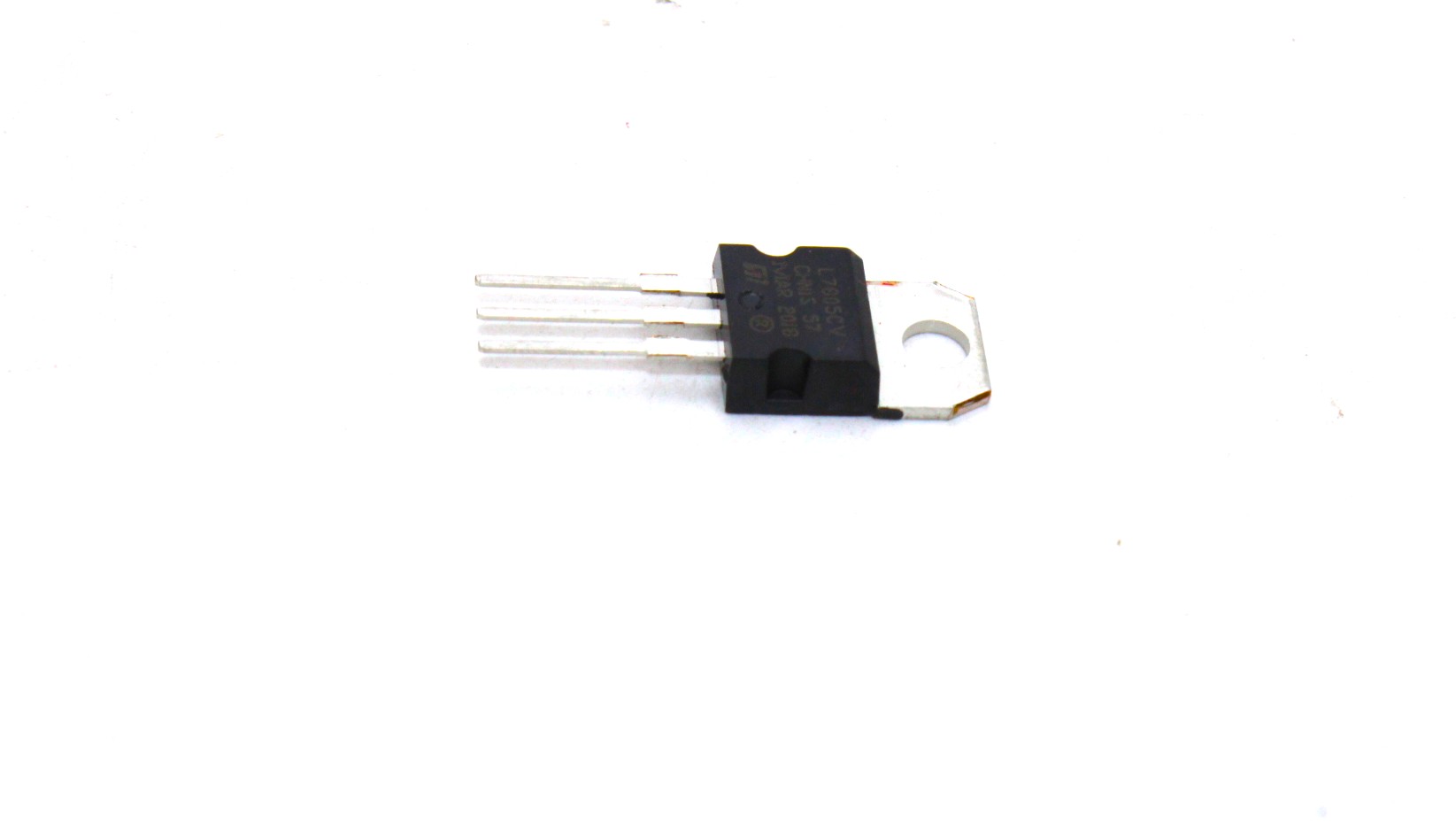

L7805 Voltage Regulator IC
The L78M05CV is a fixed output, three terminal precision positive voltage regulator in 3 pins TO-220 package. This regulator can provide local on-card regulation by eliminating distribution problems associated with single point regulation. The L78M05CV fixed voltage regulator is designed with thermal overload protection that shuts down the circuit when subjected to an excessive power overload condition, internal short circuit protection that limits maximum current the circuit will pass and output transistor safe area compensation that reduces the output short circuit as the voltage across the pass transistor is increased. If adequate heat sinking is provided then this positive voltage regulator can deliver over 0.5A output current.
Features
Fixed output voltage is 5V
Output current is 0.5A
Dropout voltage is 2V
Maximum DC input voltage is 35V
Output transition SOA protection
Output voltage tolerance is 4%.
Operating temperature range 0°C to 125°C
Package Includes

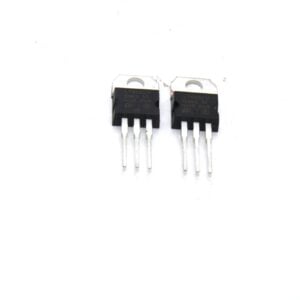

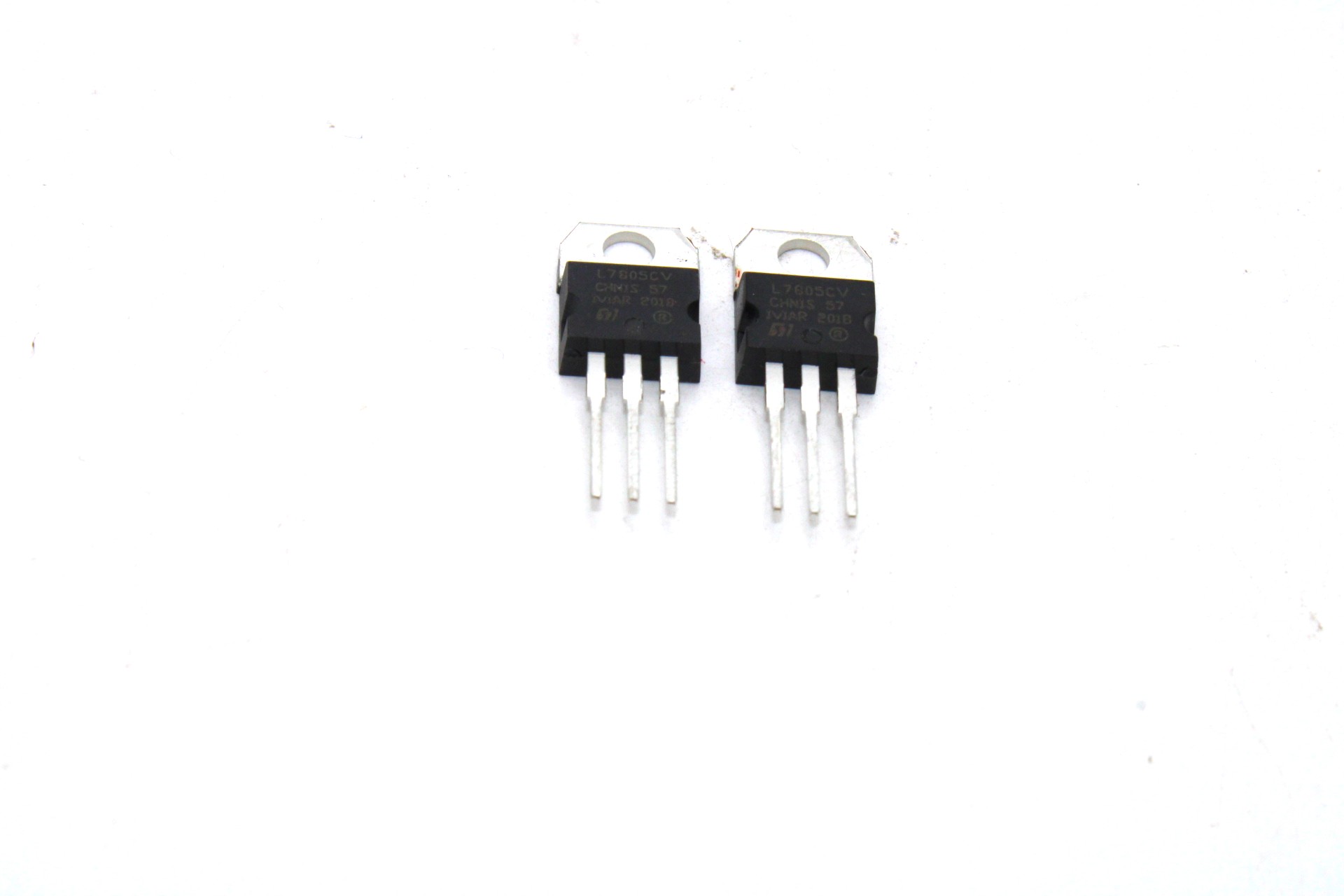

2 x L7805 Voltage Regulator IC
Technical Specifications
| Model | L7805 |
|---|---|
| Package Quantity | 2 pcs |
| SKU | AI0274 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The L7805 Voltage Regulator IC (Pack of 2) is a versatile voltage regulator ics used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
