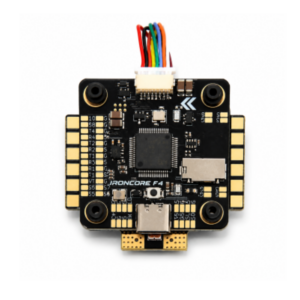

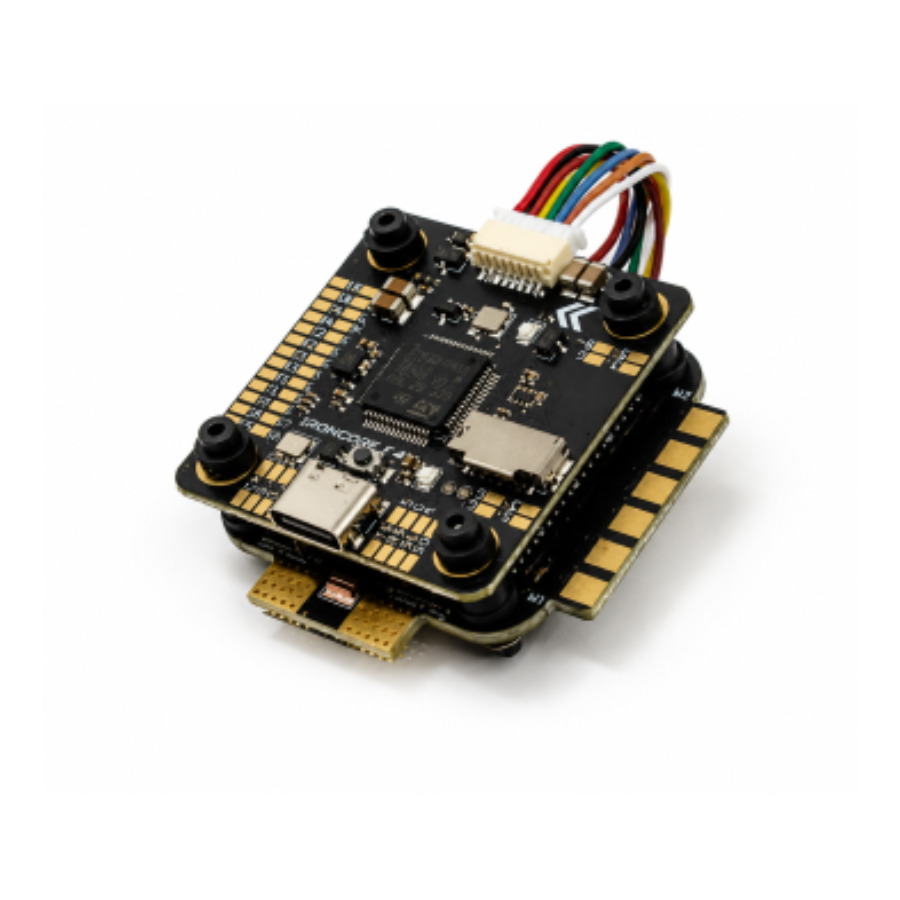

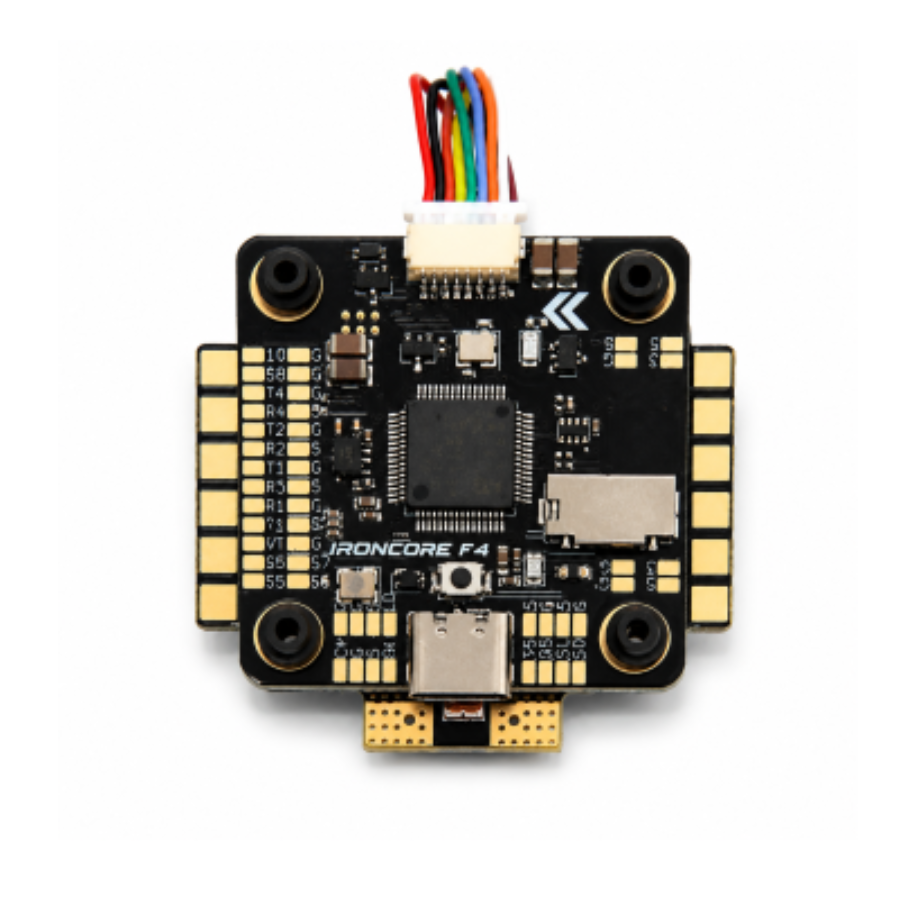

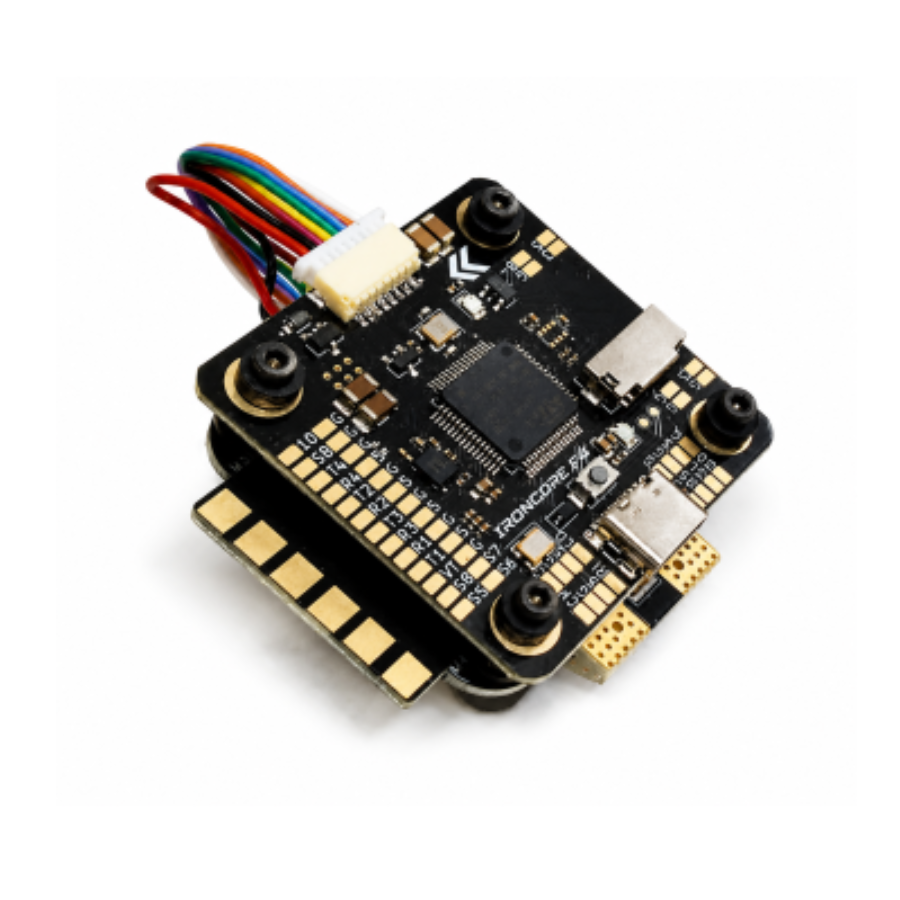

Ironstack F405 + 4-in-1 Ironflame 45A ESC (8Bit) for 5″ drone
Description:
The EDITHFPV IronStack F405 combines the IronCore F405 Flight Controller with the IronFlame 45A 4-in-1 ESC to deliver a dependable, high-performance flight control solution for FPV racing, freestyle, long-range, and autonomous UAV platforms.
Designed for seamless integration, the IronStack eliminates compatibility concerns between the flight controller and ESC, allowing pilots to focus on building and flying with confidence.
Supporting both Betaflight and ArduPilot, the IronStack is equally at home in high-speed FPV quads and advanced autonomous drone applications.
Key Features
- Complete Flight Controller + ESC stack
- STM32F405 Flight Controller
- IronFlame 45A 4-in-1 ESC
- Supports 2S–6S LiPo
- BLHeli_S (8-bit) ESC Firmware
- Supports Betaflight
- Supports ArduPilot
- Optimized for racing, freestyle, cinematic, and autonomous UAVs
- Compact stack design for easy installation
- High-current MOSFET design for smooth and reliable power delivery
Designed For
- FPV Racing
- Freestyle Drones
- Long Range Builds
- Cinematic FPV
- Research & Development Platforms
- Educational Projects
- Autonomous UAV Applications
- Recommended quad size is 5″, can be used on 7″ with good airflow only.
Specifications
Flight Controller
| Specification | Value |
|---|---|
| MCU | STM32F405 |
| Firmware Support | Betaflight, ArduPilot |
| Mounting Pattern | 30.5 × 30.5 mm |
| Input Voltage | 2S–6S LiPo |
Electronic Speed Controller
| Specification | Value |
|---|---|
| Model | IronFlame 45A 4-in-1 |
| Continuous Current | 45A |
| Firmware | BLHeli_S (8-bit) |
| Battery Support | 2S–6S LiPo |
| Mounting Pattern | 30.5 × 30.5 mm |
Package Includes
- 1 × IronCore F405 Flight Controller
- 1 × IronFlame 45A 4-in-1 ESC
- Stack Connection Cable
- Mounting Hardware
Drone GPS Follow-Me Mode: How to Track a Moving Subject Autonomously
Imagine sending your drone up before a cycling event, pressing a button, and having it autonomously follow the...
Read More →
4-in-1 ESC vs Separate ESCs: Which is Better for FPV Racing Drones?
4-in-1 ESC vs Separate ESCs: Which is Better for FPV Racing Drones? Every FPV pilot who has built...
Read More →
Drone RTK GPS: Centimeter-Accurate Navigation Explained
Table of Contents What Is RTK GPS and How Does It Work? RTK vs Standard GPS: The Numbers...
Read More →Technical Specifications
| Brand | EDITH |
|---|---|
| Model | F405 |
| Current Rating | 45A |
| SKU | AI5083 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Ironstack F405 + 4-in-1 Ironflame 45A ESC (8Bit) for 5" drone is a versatile flight controller & accessories used across a wide range of applications including autonomous drones, FPV racing quadcopters, agricultural drones, and surveying and mapping platforms.
Common use cases:
- Central brain for drone stabilization and navigation
- GPS waypoint missions for surveying
- Acro mode flying for FPV freestyle
This product is ideal for drone builders requiring precise flight control.
Technical Tip: F4 processors are good for basic builds; F7 or H7 recommended for advanced features. Ensure firmware compatibility (Betaflight, ArduPilot, iNAV).
