This is the 24V variant of the HONGFA 24V 16A DC HF115FK/024-2ZS4T 8-Pin SPDT Power Relay in Relay Modules. Available at ₹100.30 (₹85.00 + GST) with free shipping across India.
Looking for Hongfa Relay 24v? HONGFA 24V 16A DC HF115FK/024-2ZS4T 8-Pin SPDT Power Relay is available at Zbotic with fast shipping across India.
_____

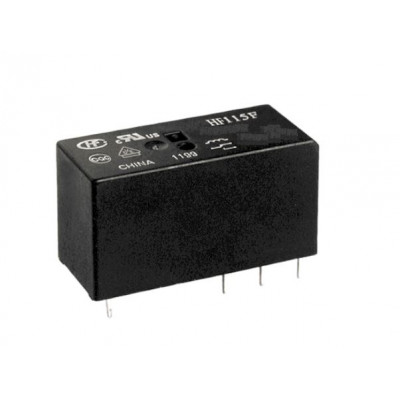

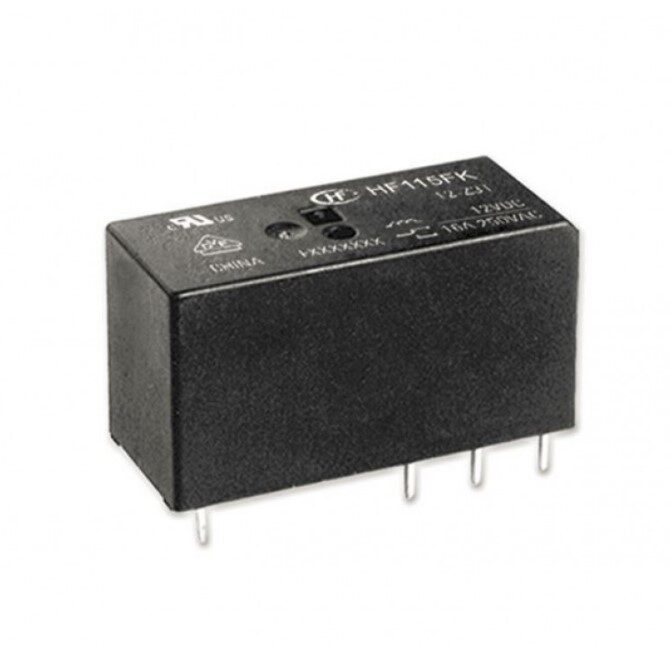

Hongfa 24V 16A DC HF115FK/024-2ZS4T 8-Pin SPDT Power Relay
Specifications
- Type : HF115FK/024-2ZS4T
- Switching Current (A,Res.load) : 16A
- Contact arrangement : 2 Form C
- Coil version : single contact
- Terminal Type : PCB
- Mounting : PCB-THT
- Construction : Flux proofed
- Terminals : 5.0mm 2 pole 16A
- Contact material : AgSnO2
- Sort : Standard
- Coil voltage : 24
- Coil power: Approx 0.4
- Insulation standard : Class F
- Coil voltage form : DC
- Rated voltage(V) : 250VAC
- Volume（mm³) : 29.0×12.7×15.7 (mm)
Package Includes
1 x Hongfa 24V 16A DC HF115FK/024-2ZS4T 8-Pin SPDT Power Relay
HONGFA 24V 16A DC HF115FK/024-2ZS4T 8-Pin SPDT Power Relay Overview
The HONGFA HF115FK/024-2ZS4T is an 8-pin SPDT power relay featuring a 24V DC coil and 16A resistive switching capability. Designed for PCB through-hole mounting, it delivers reinforced insulation (IEC 60335-1 compliant) and 5 kV dielectric strength between coil and contacts.
Key Features of HONGFA 24V 16A DC HF115FK/024-2ZS4T 8-Pin SPDT Power Relay
- 24V DC coil voltage with approx. 0.4 W coil power consumption
- 16A switching current at up to 250 VAC resistive load
- 2 Form C (SPDT) contact arrangement using AgSnO₂ material
- Flux-proofed construction, 10 mm creepage distance and 5 kV dielectric strength
- Compact PCB-THT package (29.0 × 12.7 × 15.7 mm) with 8-pin, 5.0 mm terminal pitch
- Reinforced insulation system (Class F) and IEC 60335-1 compliance
- Genuine HONGFA product with fast shipping across India from Zbotic
Applications and Use Cases
- Switching heating elements or motors in household appliances
- Control circuits in HVAC and refrigeration systems
- Industrial automation and control panel load switching
- Lighting and power distribution switching in commercial equipment
- UPS and power backup system changeover switching
How to Use HONGFA 24V 16A DC HF115FK/024-2ZS4T 8-Pin SPDT Power Relay
Solder the relay onto your PCB according to the 8-pin footprint, then apply 24 V DC across the coil pins to energize. Connect your load between the common (COM) and normally open (NO) or normally closed (NC) contacts, ensuring the current does not exceed 16 A resistive at 250 VAC. Use a suitable driver or transistor if your control circuit cannot supply the coil current directly.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the coil power consumption of this relay?
The HF115FK/024-2ZS4T coil draws approximately 0.4 W at 24 V DC, making it suitable for continuous operation with minimal heat generation.
Can it handle inductive loads like motors?
This relay is rated for 16 A resistive at 250 VAC. When switching inductive loads such as motors, it’s recommended to factor in inrush currents and use appropriate suppression or derating.
How is the relay mounted and connected?
The unit is designed for PCB-THT mounting on a 5.0 mm pitch 8-pin footprint. Simply solder the terminals into the PCB and wire your coil and load connections as per the pinout diagram.
