CUAV IC-HUB Pro Bus Expansion Module
Description:
The CUAV IC-HUB Pro is a general-purpose I2C/CAN bus expansion module designed for UAV and unmanned-system applications. It provides 8 independent expansion ports, each with regulated 5V output, allowing multiple I2C or CAN peripherals to be connected and powered from a single module. It supports a wide 8–70V (2S–16S) input range and features individual 2A self-resetting fuse protection for improved system safety and reliability.
Specifications:
| Specification | Value |
|---|---|
| Product Type | I2C/CAN Bus Expansion Module |
| Input Voltage | 8–70V (2S–16S) |
| Input Port | 1 × GH1.25 4P |
| Output Ports | 8 × GH1.25 4P |
| Output Voltage | 5V |
| Protocol Compatibility | I2C / CAN |
| Total Current Load | 7A |
| Single Port Current | 2A |
| Port Protection | 2A Self-Resetting Fuse |
| Operating Temperature | -20°C to +80°C |
| Dimensions | 34.50 × 34.50 × 15.40 mm |
| Weight | 16.5g |
| Shell Material | CNC Aluminum Alloy |
Key Features :
- 8-way I2C/CAN expansion for connecting multiple peripherals.
- Wide 8–70V input range, compatible with 2S–16S battery systems.
- 5V regulated output for connected devices.
- 2A self-resetting protection on each output port.
- 7A total current capacity.
- Compact CNC aluminum-alloy housing for effective heat dissipation.
- Suitable for UAV, drone, and other unmanned-system applications

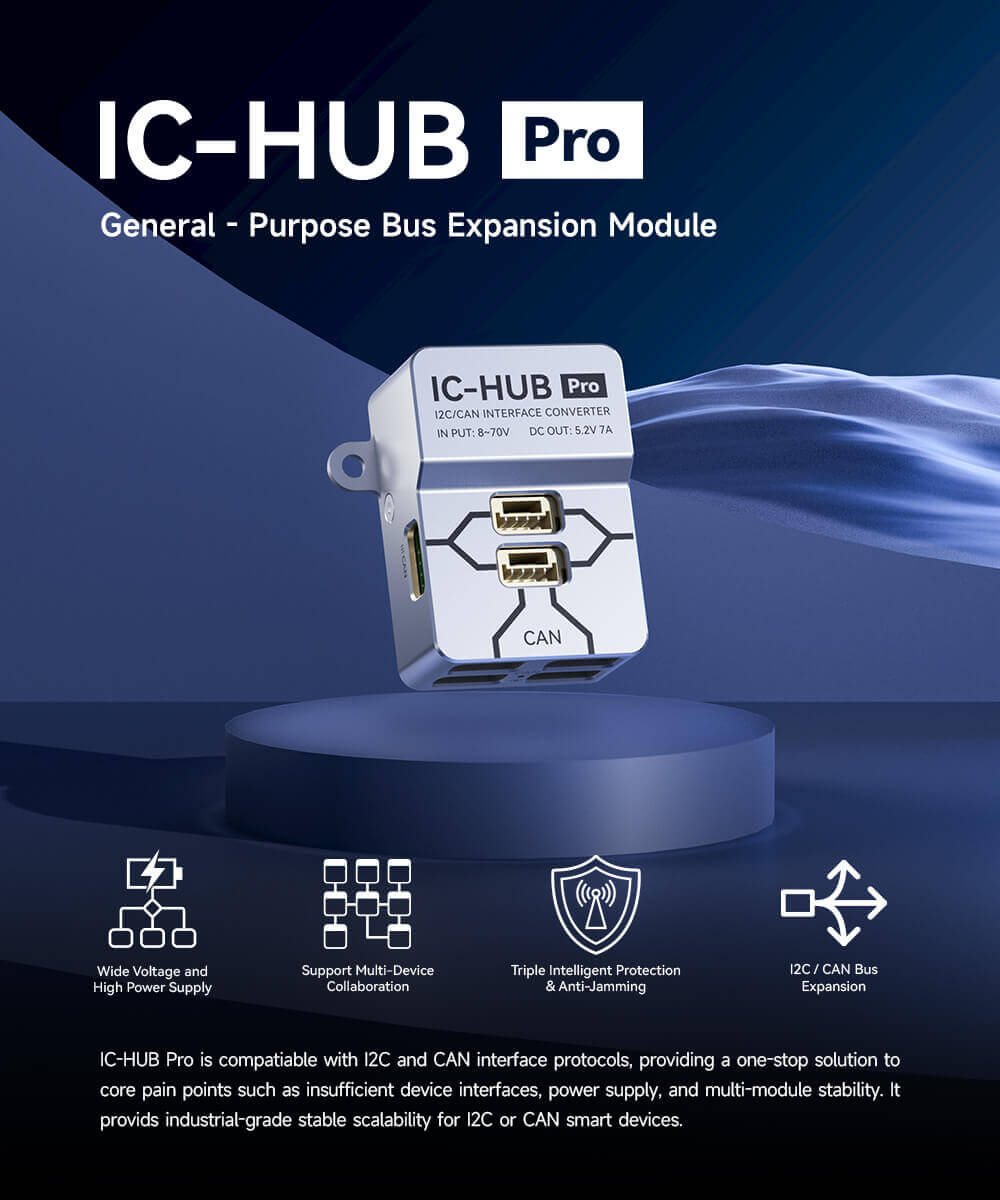

IC-HUB Pro is compatible with I2C and CAN interface protocols, providing a one-stop solution to core pain points such as insufficient device interfaces, power supply, and multi-module stability. It provides industrial-grade stable scalability for I2C or CAN smart devices.
IC-HUB Pro Bus Expansion Module Feature:
- Wide Voltage and High Power Supply
- Support Multi-Device Collaboration
- Triple Intelligent Protection & Anti-Jamming
- I2C/CAN Bus Expansion
IC-HUB Pro Bus Expansion Module Specification:
| Basic Parameters | |
| Input Voltage | 8~70V(2~16S) |
| Input Port | 1 (GH1.25 4P) |
| Output Port | 8 (GH1.25 4P) |
| Port Protection | Single‑Port Integrated 2 A Self‑Resetting Fuse |
| Protocol Compatibility | I2C/CAN |
| Operating Temperature | -20~80°C |
| Weight | 16.5g |

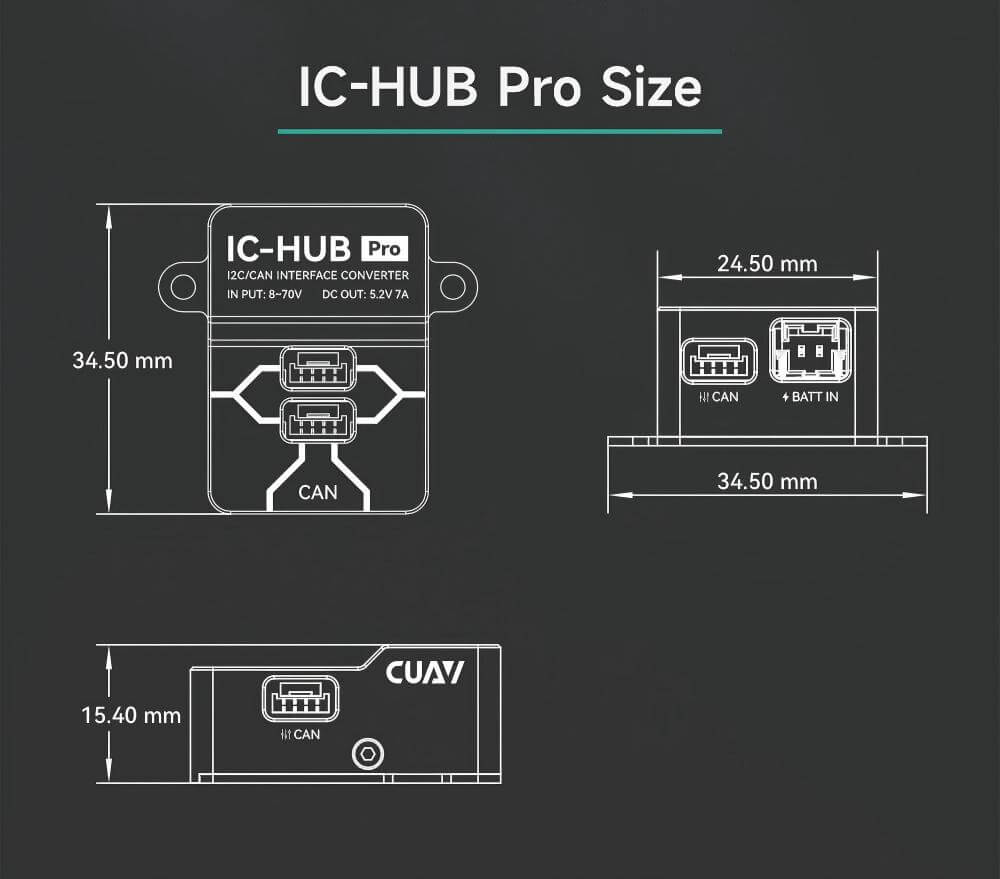

| Size | 34.50 x 34.50 x 15.40 mm (With Screw Holes) |
| Shell Material | CNC Aluminum Alloy |
IC-HUB Pro Bus Expansion Module Description:

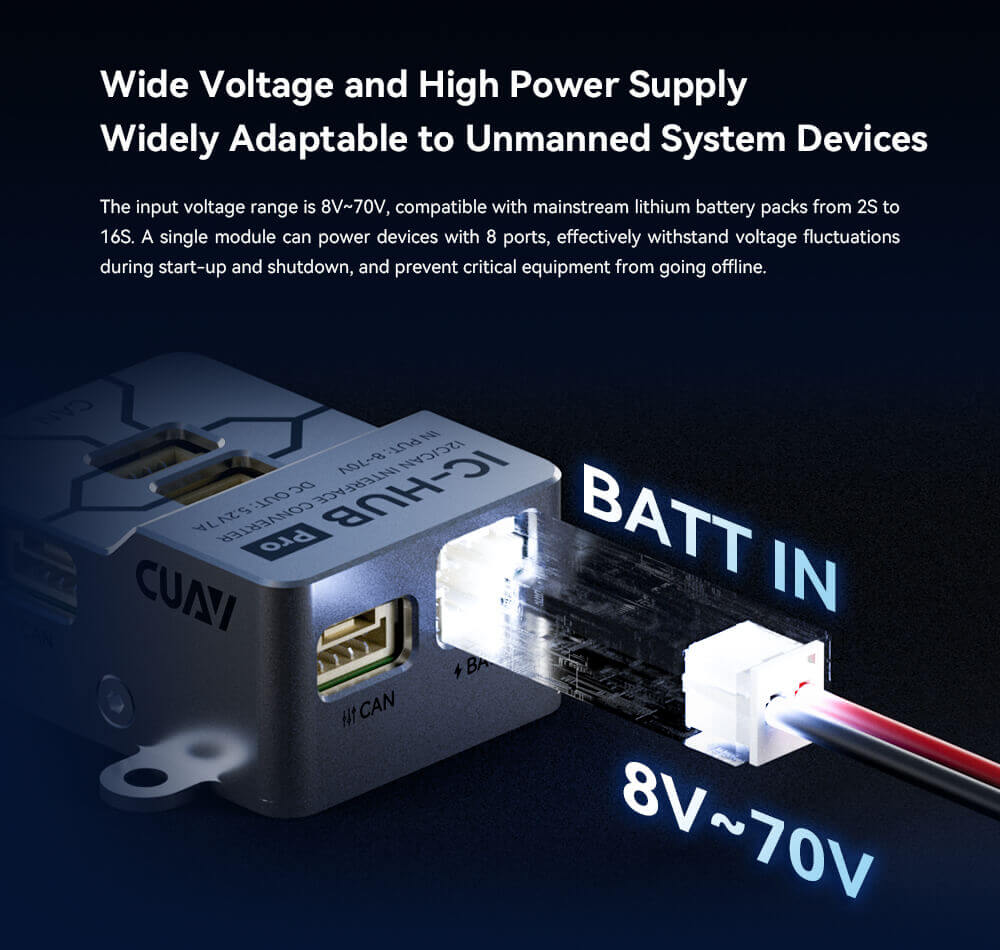

Wide Voltage and High Power Supply Widely Adaptable to Unmanned System Devices
The input voltage range is 8V~70V, compatible with mainstream lithium battery packs from 2S to 16S. A single module can power devices with 8 ports, effectively withstand voltage fluctuations during start-up and shutdown, and prevent critical equipment from going offline.

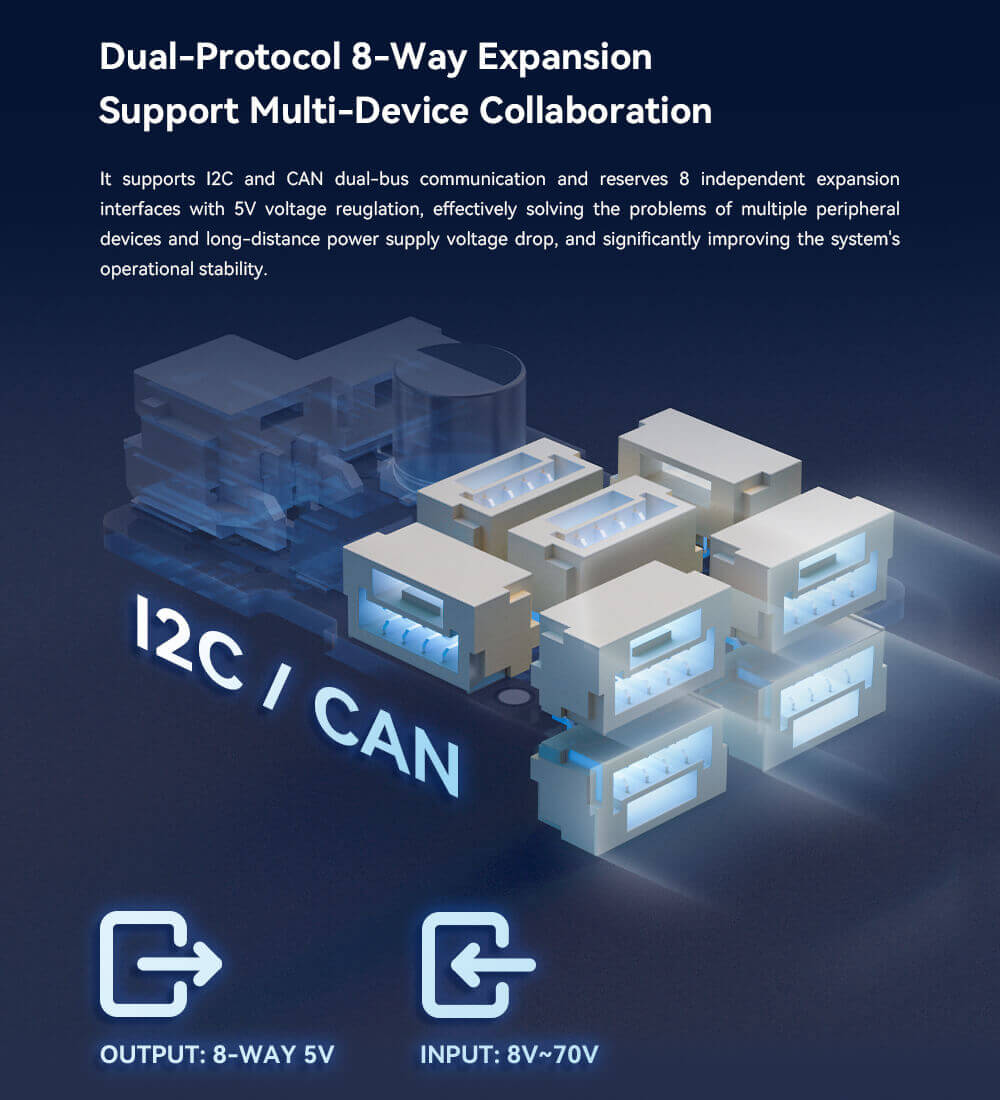

Dual-Protocol 8-Way Expansion Support Multi-Device Collaboration
It supports 12C and CAN dual-bus communication and reserves 8 independent expansion interfaces with 5V voltage regulation, effectively solving the problems of multiple peripheral devices and long-distance power supply voltage drop, and significantly improving the system’s operational stability.

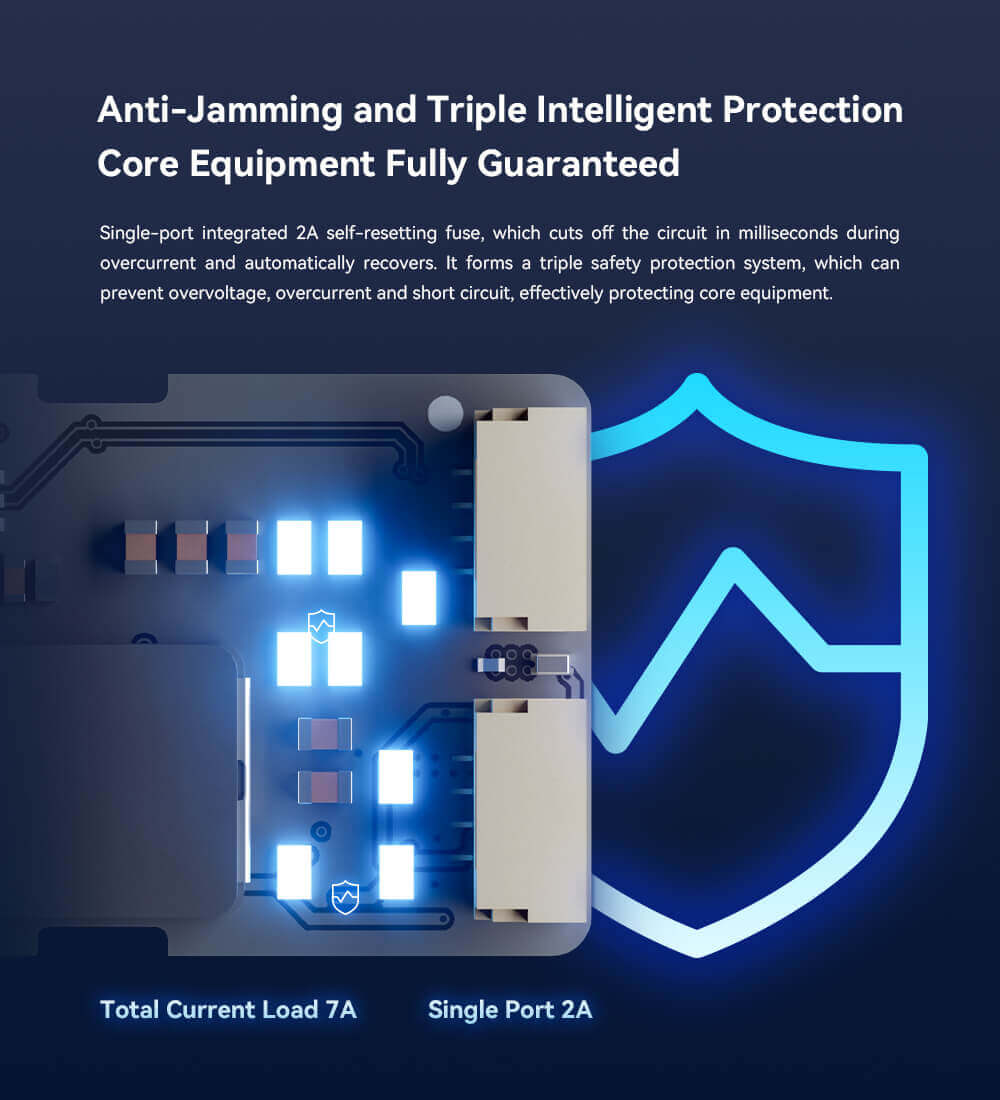

Anti-Jamming and Triple Intelligent ProtectionCore Equipment Fully Guaranteed
Single-port integrated 2A self-resetting fuse, which cuts off the circuit in milliseconds during overcurrent and automatically recovers. It forms a triple safety protection system that can prevent overvoltage, overcurrent, and short circuits, effectively protecting core equipment.

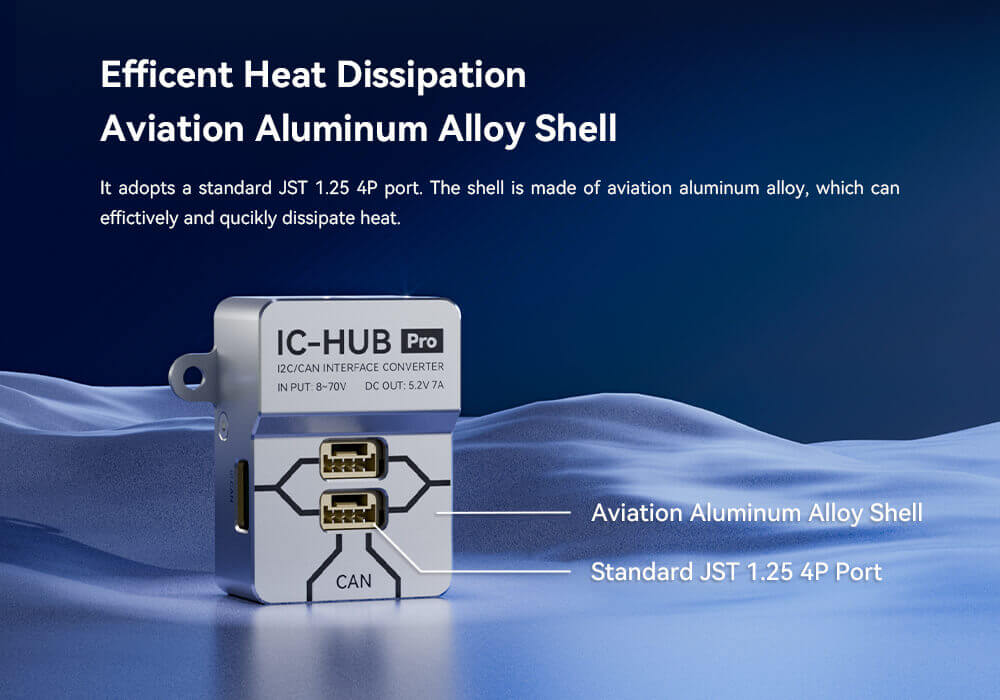

Efficient Heat Dissipation Aviation Aluminum Alloy Shell
It adopts a standard JST 1.25 4P port. The shell is made of aviation-grade aluminum alloy, which dissipates heat effectively and quickly.

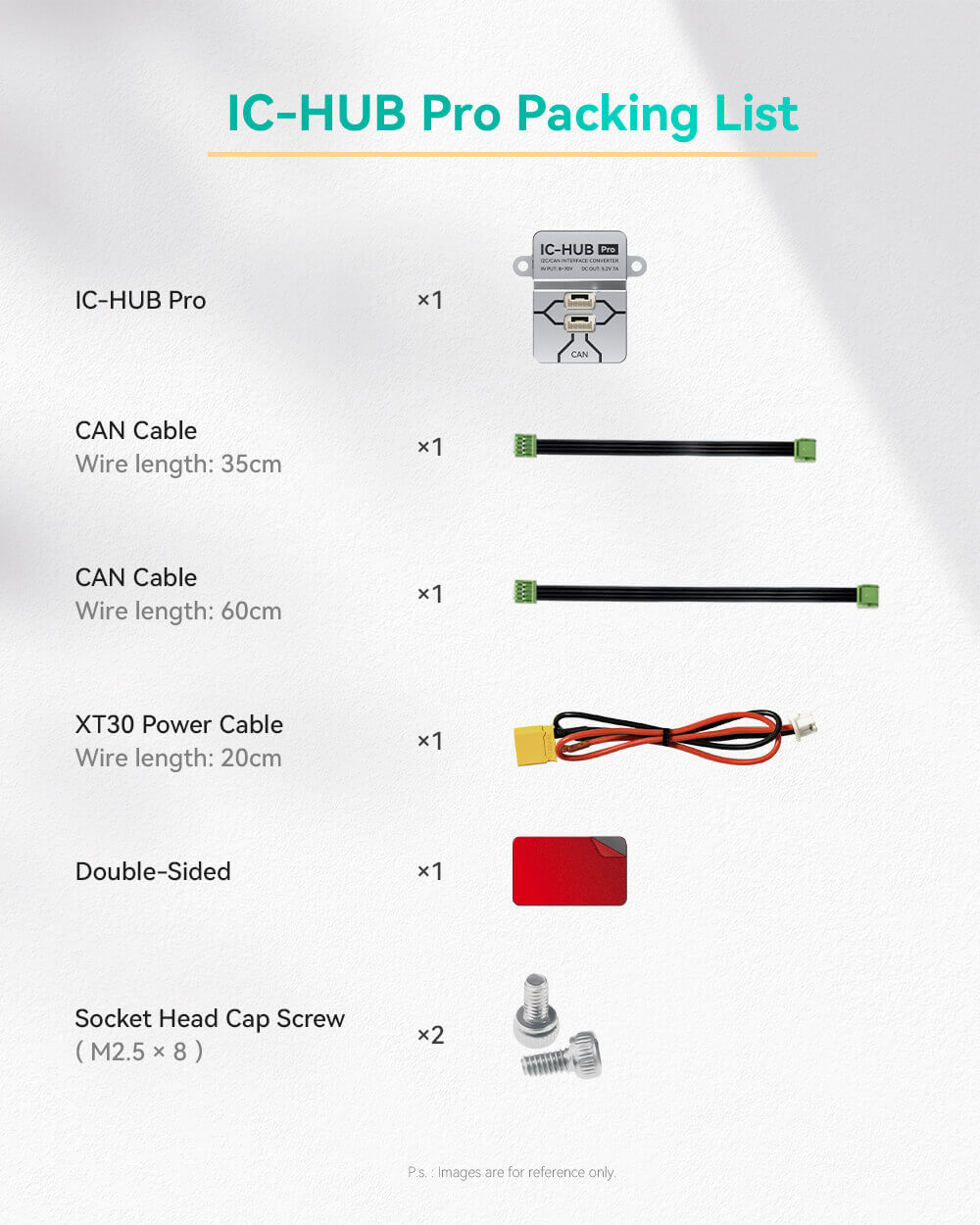

Package Include:
1x IC-HUB pro
1x CAN cable (35 cm)
1x CAN cable(60 cm)
1x XT 30 power cable
1x Double sided
2x Socket Head Cap Screw
