GEPRC MATEN 5.8G 5W VTX PRO

GEPRC MATEN 5.8G 5W VTX PRO

Description:

The MATEN 5.8G 5W VTX PRO is a high-performance VTX newly developed by the GEPRC team. With five adjustable power options, it delivers up to 5000mW of power, ensuring stable signal transmission and excellent penetration.

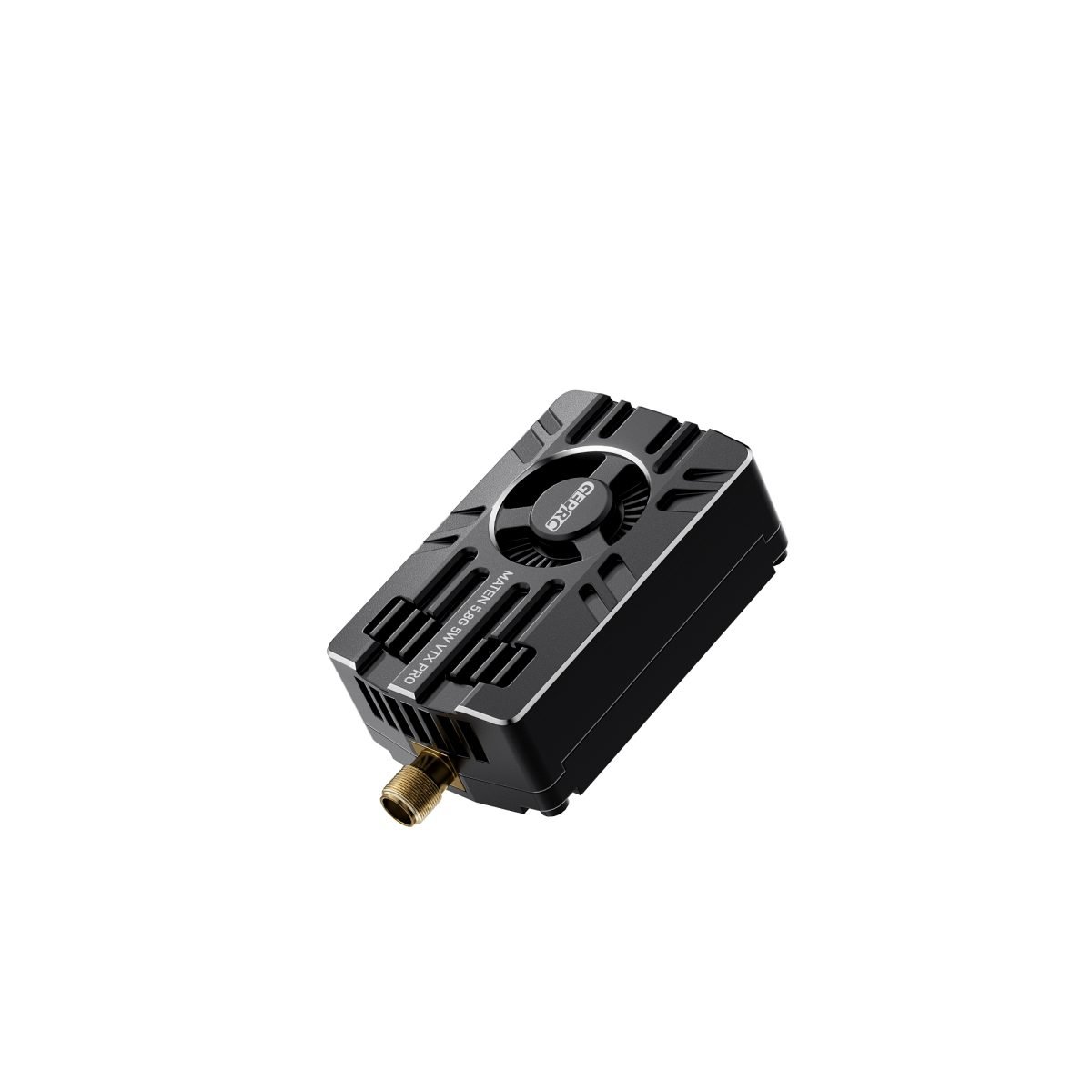

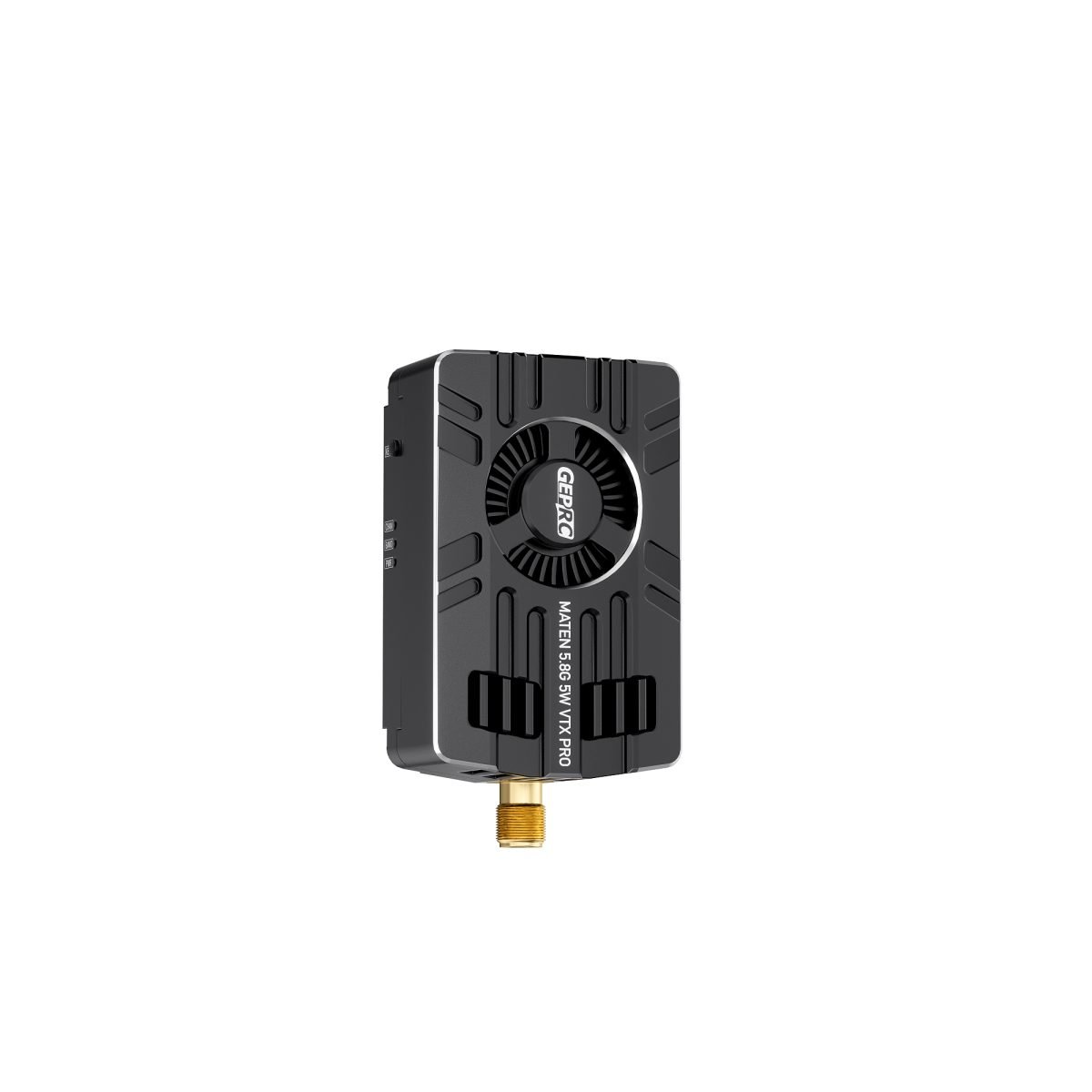

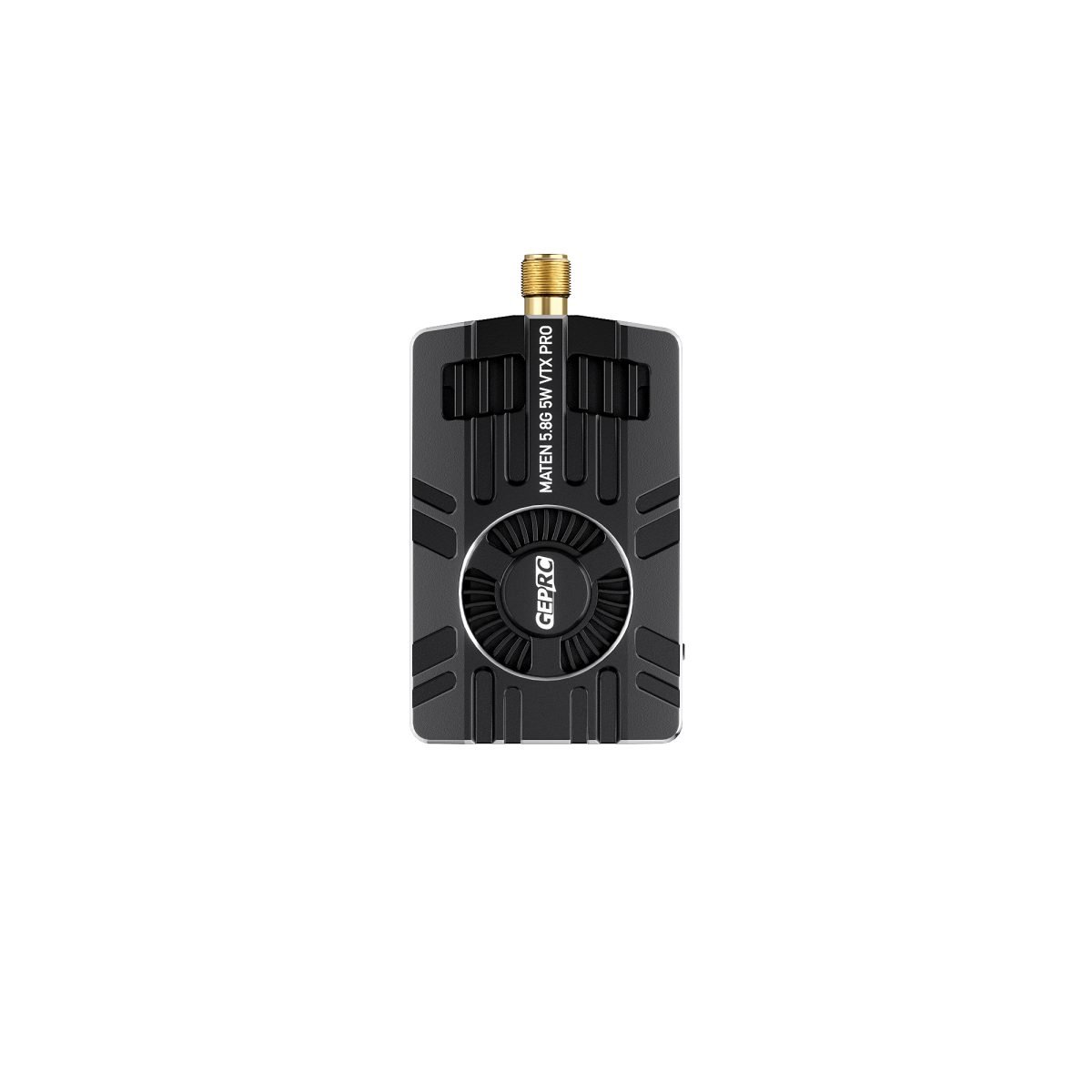

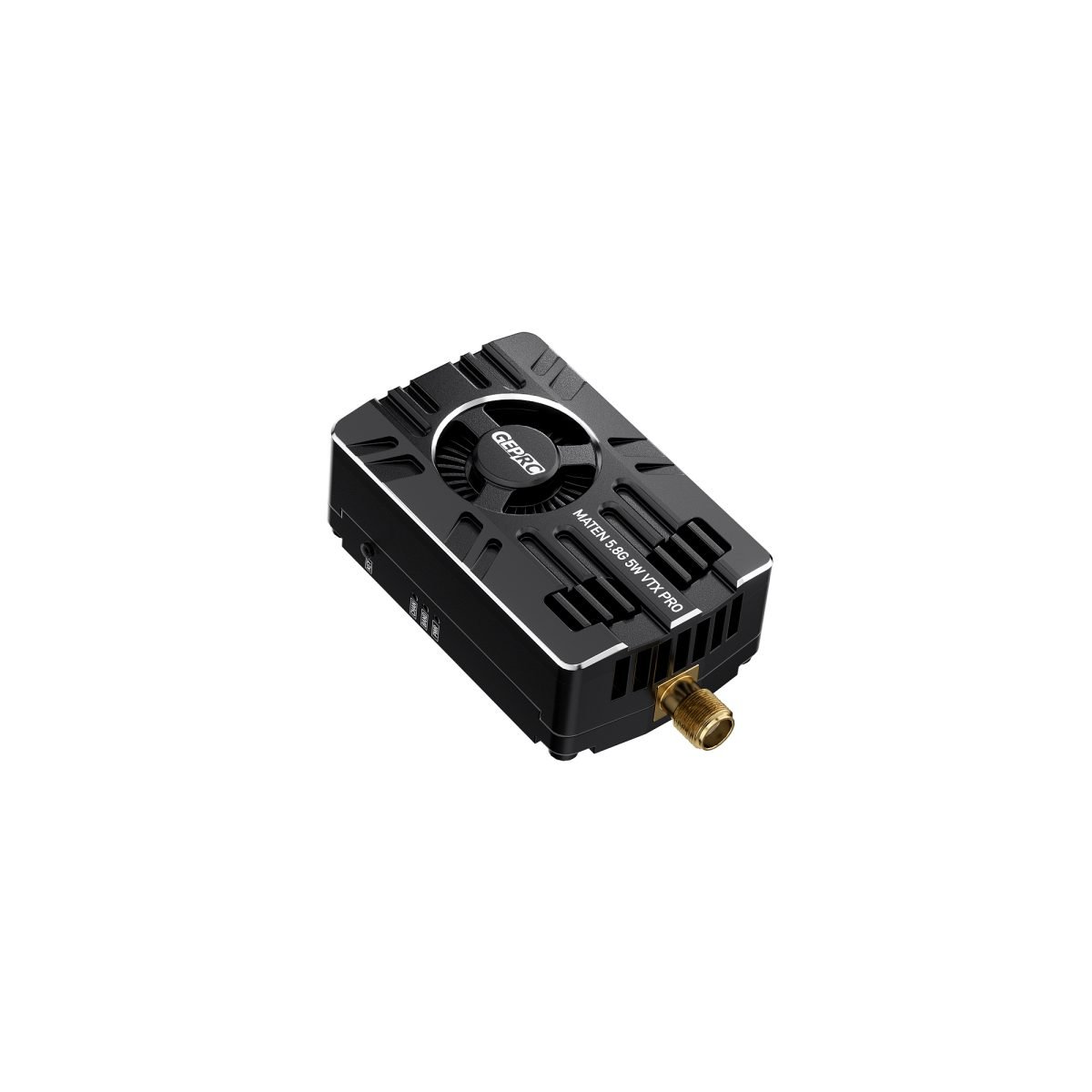

Built with a high-strength CNC aluminum alloy shell, the MATEN 5.8G 5W VTX PRO offers superior heat dissipation and impact resistance. Its sleek design features a fan cooling function for optimal performance, while the built-in microphone transmits real-time audio from the FPV drone.

Supporting the IRC Tramp protocol, it allows you to adjust parameters through OSD.  It operates within a voltage range of 7-36V and includes temperature protection to prevent overheating and damage. With 80 transmission channels and two mounting options, 20x20mm (M2) and 25.5×25.5mm (M2), it’s the perfect VTX for any build.

Feature:

1. Five adjustable power levels, up to 5000mW, ideal for long-range flights.
2.  The high-strength CNC aluminum alloy shell aids in heat dissipation.
3.  The built-in micro turbofan actively dissipates heat.
4.  Wide voltage input range, supporting 7V-36V.
5.  One function adjustment button and three indicator lights for easy operation.
6.  Supports the IRC Tramp VTX control protocol for OSD parameter adjustment.
7.  Temperature protection function prevents overheating.
8.  Built-in microphone for real-time audio transmission.
9.  Supports 80 transmission channels.
10.  Compatible with 20x20mm (M2) and 25.5×25.5mm (M2) mounting hole sizes.

Specifications:

• Model: GEPRC MATEN 5.8G 5W VTX PRO
• Dimension: 60×33.2×19.1mm
• Mounting Hole Size：20x20mm(M2),25.5×25.5mm(M2)
• Output Power: 300mW/600mW/1600mW/3000mW/5000mW/Pit mode
• Frequency：4.9-5.8GHz
• Channels: 80CH
• Input Voltage: DC7-36V（2-8S Battery）
• Output Voltage: 5V@600mA
• Protocol: IRC Tramp
• Antenna Connector: SMA
• Cable Connector: sh1.25 6pin
• Microphone: Built-in microphone
• Weight: 49.5g（VTX only）

Notes

1. Installing antenna before use.
2.  Flying with constant airflow and under a well-ventilated environment to prevent overheating. Install a cooling fan if operating in confined conditions.
3.  The 5V Output is for a Camera/Cooling Fan use only! Do not connect the battery input to the 5V Output, severe damage will occur to VTX.

Package Includes:

1 x MATEN 5.8G 5W VTX PRO VTX

1 x SMA(Internal needle) to SMA (Internal hole) connector

1 x sh1.25 6P connection cable

6 x M2*5 screw

6 x M2*6 screw

1 x Manual
