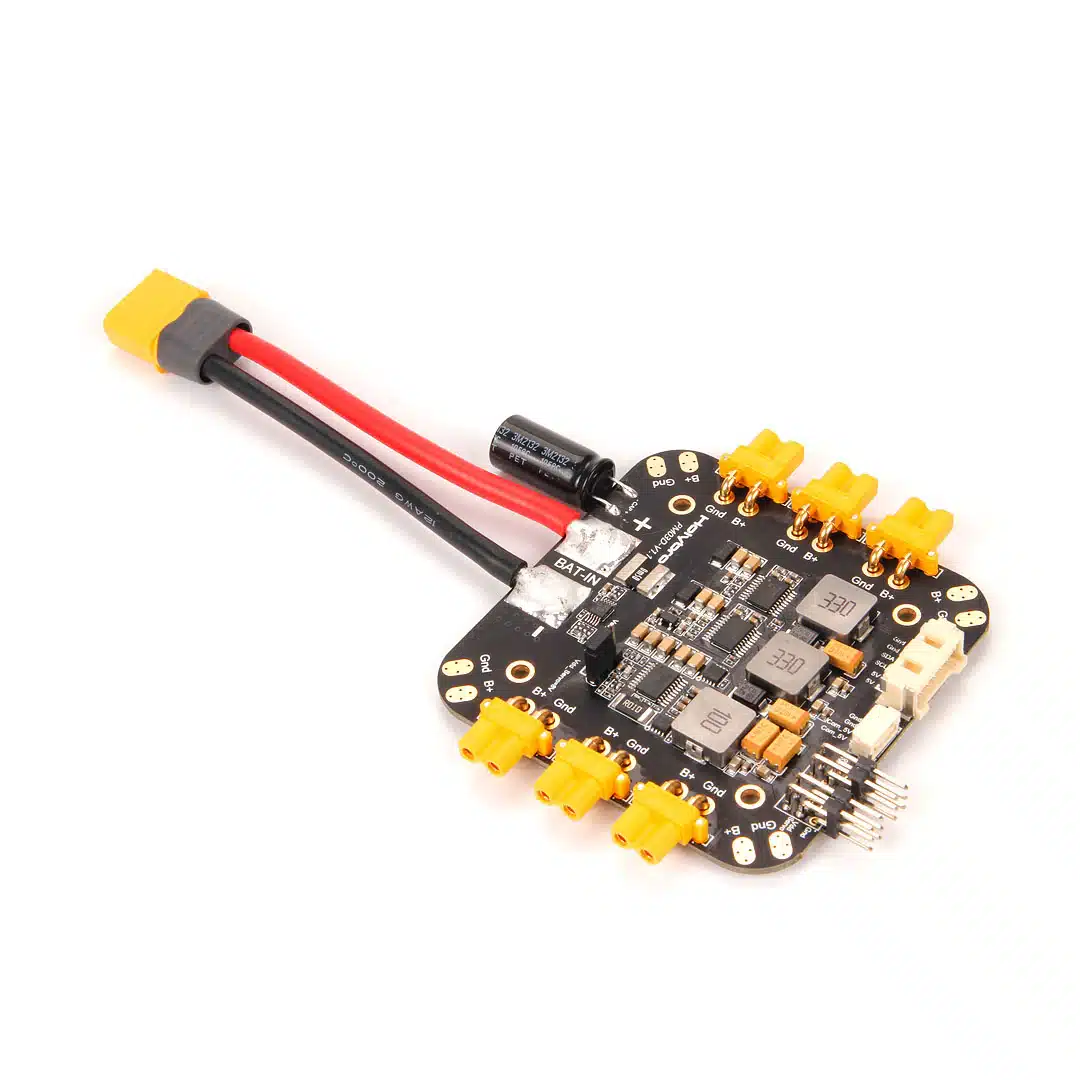

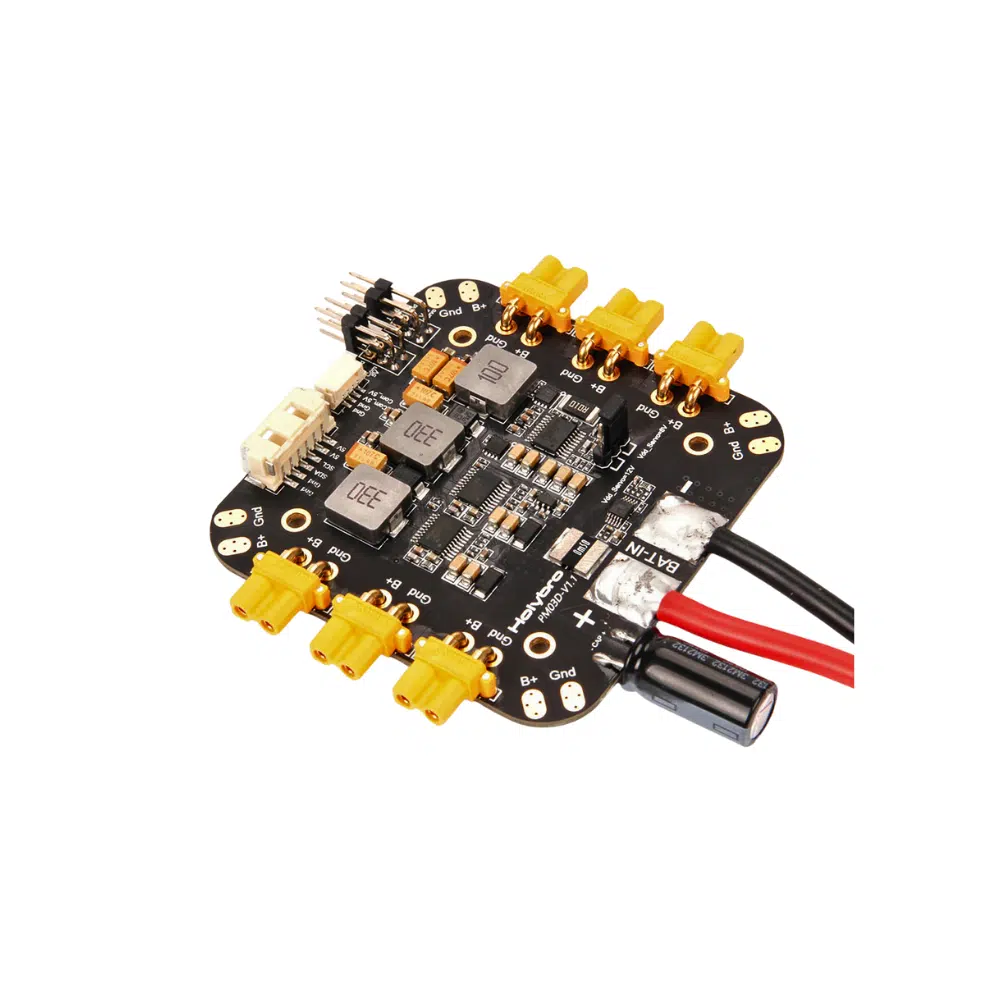

Holybro PM03D Power Module (Without XT30 Pre-soldered)

This is the Red variant of the Holybro PM03D Power Module (Without XT30 Pre-soldered) in Flight Controller & Accessories. Available at ₹6,250.65 (₹5,953.00 + GST) with free shipping across India.

Holybro PM03D Power Module (Without XT30 Pre-soldered)

Description:

The Holybro PM03D Power Module (Without XT30 Pre-soldered) provides regulated power supply as well as current consumption and battery voltage measurements via I2C digital protocol all through a 6pin 2.00mm CLIK-Mate cable. Compatible to flight controller that uses I2C power monitor such as the Pixhawk 5X and up.

It is design for multi-rotor like the X500 V2. It has both XT-30 connectors preinstalled for motor ESCs and Battery, as well as two 5V BEC and a selectable 8V/12V output different kinds of peripheral devices.

Note

Full setup guide can be found here.
This PM uses I2C digital signal data output, Compatible with Pixhawk 5X/6X Series.
NOT compatible with flight controller that uses analog PM such as the Pixhawk 6C & Mini, Pixhawk4 & Mini, pix32 v5, or Durandal flight controllers.
Power Module Comparison Table

Features:

• Plug & play, no additional setup required for QGroundcontrol & Mission Planner
• XT-30 connectors and solder pads for easy motor ESC connection
• Onboard voltage regulators: two 5.2V & one selectable 8V/12V
• 5V/A ports for powering companion computer or peripheral device
• Selectable 8V or 12V triple row pin header for powering peripheral device

Specifications:

Holybro PM03D Power Module Overview

The Holybro PM03D Power Module (Without XT30 Pre-soldered) is a digital power distribution and monitoring solution designed specifically for Pixhawk 5X and 6X series flight controllers. It provides regulated voltage outputs and real-time battery voltage/current data over an I2C interface, ensuring reliable telemetry and power delivery for multirotor UAVs.

Key Features of Holybro PM03D Power Module

• Integrated XT30 connectors for motor ESCs and battery hook-up, simplifying installation
• Dual 5.2 V BEC outputs for powering avionics, telemetry radios, GPS units and servos
• Selectable 8 V or 12 V output via a triple-row pin header for peripherals like video transmitters
• I2C digital power monitoring: battery voltage and current data streamed directly to Pixhawk 5X/6X
• 6-pin 2.00 mm CLIK-Mate cable for secure connection and quick detachment during maintenance
• Genuine product, fast shipping from Zbotic to your door within 24 hours

Applications and Use Cases

• Powering flight controllers and telemetry modules on X500 V2 and other heavy-lift multirotors
• Real-time monitoring of battery health and consumption for long-range drones
• Supplying stable 5 V and 8/12 V rails to video transmitters and onboard cameras
• Distributing power to servos and sensors in autonomous fixed-wing and VTOL aircraft
• Integrating into research UAV platforms that require precise current draw logging
• Upgrading existing power systems to digital telemetry on Pixhawk 5X/6X installations

How to Use Holybro PM03D Power Module

Install the PM03D by soldering the XT30 connectors (if not pre-soldered) to your ESC and battery leads, then plug the 6-pin CLIK-Mate cable into the POWER1/I2C port on your Pixhawk 5X/6X. Configure the onboard jumper to set an 8 V or 12 V peripheral output, connect devices to the BEC rails, and verify voltage readings in your ground station software.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Is the PM03D compatible with Pixhawk 6C or analog power modules?

No. The PM03D uses I2C digital data output and is only compatible with Pixhawk 5X and 6X series. It does not work with analog-type flight controllers like Pixhawk 6C, Pixhawk 4, Pixhawk 4 Mini, Pix32 v5, or Durandal.

How do I switch between 8 V and 12 V peripheral output?

Set the voltage selection jumper on the triple-row header to the desired position (8 V or 12 V) before powering up. Detailed instructions and jumper settings are provided in the official Holybro setup guide.

Can I power servos and sensors directly from the PM03D?

Yes. The module offers two 5.2 V BEC outputs with sufficient current capacity for most servos, GPS units, and sensors. Ensure your devices’ combined current draw does not exceed the BEC rating specified in the user manual.

Useful link:

For setting the module refer to the link.

Datasheet:

Package Includes:

1x PM06 board

1x 80mm XT30 connector wire (pre-soldered)

1x Electrolytic capacitor: 220uF 63V (pre-soldered)

1x 2.0mm pitch CLIK-Mate 6pin cable (To power flight controller)

1 x 4pin JST GH to USB Type C

1 x 4pin JST GH to barrel plug (2.1*5.5mm)

1 x 4pin JST GH to barrel plug (2.5*5.5mm)

1 x 3pin Pin Dupont Cable (2pc)

1x Nylon standoffs & nuts
