Holybro Kakute H743 Wing Flight Controller with Micro M10 GPS Module

Introducing the Holybro Kakute H743 Wing Flight Controller paired with the Micro M10 GPS Module. This comprehensive flight controller is designed for fixed-wing and VTOL applications, featuring an STM32 H743 processor that operates at 480 MHz, CAN Bus support, dual camera inputs with a switch, an ON/OFF Pit Switch, multiple BEC options (5V, 6V/8V, 9V/12V), and plug-and-play ports for GPS, CAN, and I2C.

Built to withstand the rigors of demanding flight conditions, this controller is robust and reliable. It offers multiple ports for easy connectivity to various peripherals and accessories, making it highly versatile.

Compatible with a wide range of UAV setups, the Holybro Kakute H743 Wing Flight Controller is a must-have for any UAV enthusiast or professional pilot seeking top-notch performance and control.

Note: For more technical details go through the Manual in the attachment section.

Features:

1. STM32H743 MCU running at 480 MHz
2. High-precision / low-noise ICM-42688-P IMU
3. CAN Bus Support
4. Dual Camera Input switch
5. 3 On-board BEC output 5V, 6V/8V and 9V/12V
6. 9V/12V ON/OFF Pit Switch
7. On-board voltage & current sensor
8. Integrated BMP280 barometer
9. Plug-and-play GPS, CAN, I2C ports
10. Small & low-profile design fits into compact frames
11. Supports INAV (6.1.1 & later), Ardupilot (4.4 & later)

Specification-

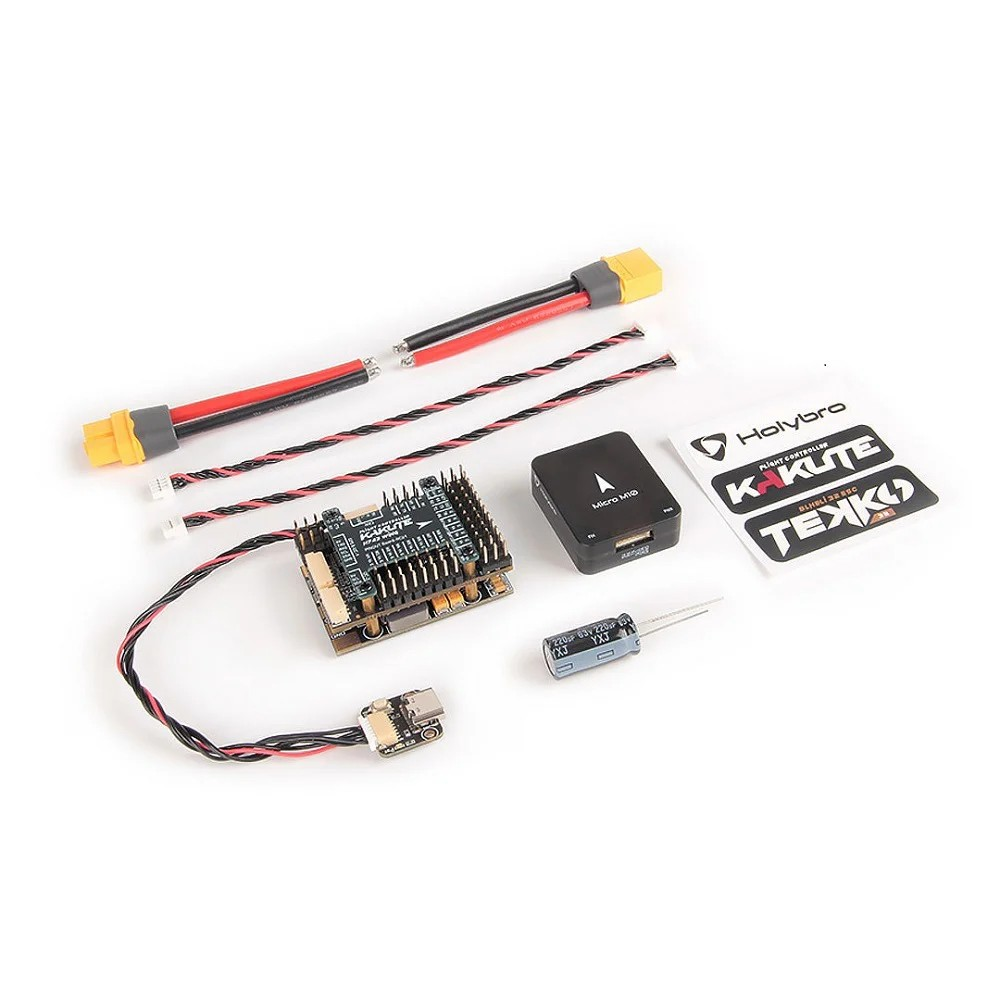

Package Includes:

1 x Kakute H743-Wing Flight Controller

1 x Power Board

1 x Top Board

1 x USB-EXT Board

1 x Micro M10 GPS Module

1 x Electrolytic capacitor: 220uF 62v

2 x XT60 60mm Power Cable

4 x Sets 2.54 DuPont Pin

2 x JST-GH 4Pin Cable

1 x 15cm JST-SH 6Pin Cable (For USB-EXT Board)

MANUAL

About H743 Wing Flight Controller

Holybro Kakute H743 Wing Flight Controller with Micro M10 GPS Module is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Holybro, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.

Product Details

• Brand: Holybro
• SKU: AI5736
• Category: Flight Controller & Accessories

Why Buy from Zbotic?

Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about H743 Wing Flight Controller and other products.

Applications

H743 Wing Flight Controller can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your H743 Wing Flight Controller today and start building.

About H743 Wing Flight Controller

Holybro Kakute H743 Wing Flight Controller with Micro M10 GPS Module is available at Zbotic, India’s trusted electronics and robotics store. Manufactured by Holybro, this product is designed for hobbyists, students, and professionals working on electronics, robotics, and DIY projects.

Product Details

• Brand: Holybro
• SKU: AI5736
• Category: Motors & Drivers & Pumps & Actuators

Why Buy from Zbotic?

Zbotic offers a wide range of electronics components, development boards, sensors, and robotics parts. All products are quality-checked and shipped within 24 hours. Free shipping on qualifying orders. We offer COD (Cash on Delivery) and secure online payment options. Our customer support team is available to help with technical queries about H743 Wing Flight Controller and other products.

Applications

H743 Wing Flight Controller can be used in a variety of projects including Arduino projects, Raspberry Pi builds, drone assembly, 3D printing, IoT applications, and educational experiments. Whether you are a beginner or an advanced user, this component provides the reliability and performance you need. Order your H743 Wing Flight Controller today and start building.

Holybro Kakute H743 Wing Flight Controller with Micro M10 Overview

The Holybro Kakute H743 Wing Flight Controller pairs a high-performance STM32H743 processor with an integrated Micro M10 GPS module, specifically tailored for fixed-wing and VTOL UAVs. It delivers robust navigation, dual camera switching, onboard logging and versatile power outputs to streamline your aerial platform.

Key Features of Holybro Kakute H743 Wing Flight Controller with Micro M10

• 480 MHz STM32H743 MCU: 1 MB RAM and 2 MB Flash for advanced flight algorithms.
• Integrated Sensors: ICM-42688P IMU, BMP280 barometer and AT7456E OSD for real-time telemetry overlay.
• MicroSD Blackbox: SDMMC2 slot for flight data logging and in-depth post-flight analysis.
• Multi-port Connectivity: 7 UARTs with built-in inversion, CAN Bus, I2C and plug-and-play GPS/CAN ports.
• Dual Camera Inputs & Pit Switch: Effortlessly switch between two FPV cameras and safely arm/disarm mid-flight.
• Selectable BEC Outputs: 5 V, 6 V/8 V and 9 V/12 V rails to power servos, receiver and peripherals.
• Fast Shipping from Zbotic: We dispatch genuine stock within 24 hours with full tracking.

Applications and Use Cases

• Autonomous fixed-wing mapping and photogrammetry missions.
• VTOL prototypes requiring smooth transition between hover and forward flight.
• FPV wing rigs with dual-camera switching and onboard OSD.
• Research UAVs for environmental monitoring and data logging.
• Long-range reconnaissance drones utilizing CAN-connected peripherals.
• Custom aerial platforms needing multiple BEC voltages and high-speed logging.

How to Use Holybro Kakute H743 Wing Flight Controller with Micro M10

Mount the flight controller on anti-vibration standoffs in your wing or VTOL frame, connect servos, ESCs and power to the BEC outputs, then plug the Micro M10 GPS into the dedicated GPS port. Hook up your receiver to a UART, insert a microSD card for blackbox logging, and configure your chosen firmware (e.g., ArduPilot or Betaflight) via USB.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

Which flight firmware does the Kakute H743 Wing support?

This controller is compatible with major open-source firmwares such as ArduPilot (ArduPlane/ArduCopter) and Betaflight, allowing you to choose the best flight stack for fixed-wing or VTOL setups.

How do I install and configure the Micro M10 GPS Module?

Simply plug the Micro M10 GPS into the labeled GPS port on the Kakute H743 Wing, secure the antenna away from motors, then enable GPS in your firmware’s hardware configuration to start receiving position and velocity data.

What voltage ranges are supported for power and BEC outputs?

The Kakute H743 Wing accepts 5 V–16 V input and offers selectable onboard BEC outputs at 5 V, 6 V/8 V or 9 V/12 V, ensuring compatibility with various servos, receivers and accessories.
