Holybro Kakute H7 V1.5 (ICM-42688-P):
Description:
The Holybro Kakute H7 Flight Controller is full of features, including integrated Bluetooth, dual plug-and-play 4in1 ESC ports, HD camera plug, barometer, OSD, 6x UARTs, full Blackbox MicroSD card slot, 5V and 9V/3A BEC, easy soldering layout, and much more.
The Kakute H7 builds upon the best features of its F7 predecessor and further improves on hardware components and layout. With the onboard Bluetooth chip (optional), you can perform Betaflight configuration and tune wirelessly on your phone with the SpeedyBee Android & IOS App. A version without Bluetooth is also available.
The Kakute H7 is DJI HD ready. It has an easy plug-and-play port with an onboard 9V regulator designed to power your HD video transmitter like DJI/Caddx FPV Air Unit & Caddx Vista while supporting analog VTX systems.
It has 6x dedicated UART ports with built-in inversion for peripherals (UART2 is used for Bluetooth telemetry), along with a full MicroSD Card slot for virtually unlimited Blackbox data logging. Dual plug-and-play 4in1 ESC connectors, allowing easy plug-and-play support for x8 Octocopter configuration and keeping it simple and clean. The integrated BetaFlight OSD makes it easy to display important information on your FPV display like battery voltage, flight time, warnings, RSSI, smart audio features, and more. It also has an onboard barometer. There are LED & buzzer pad, I2C pad (SDA & SCL) for external GPS/Magnetometers

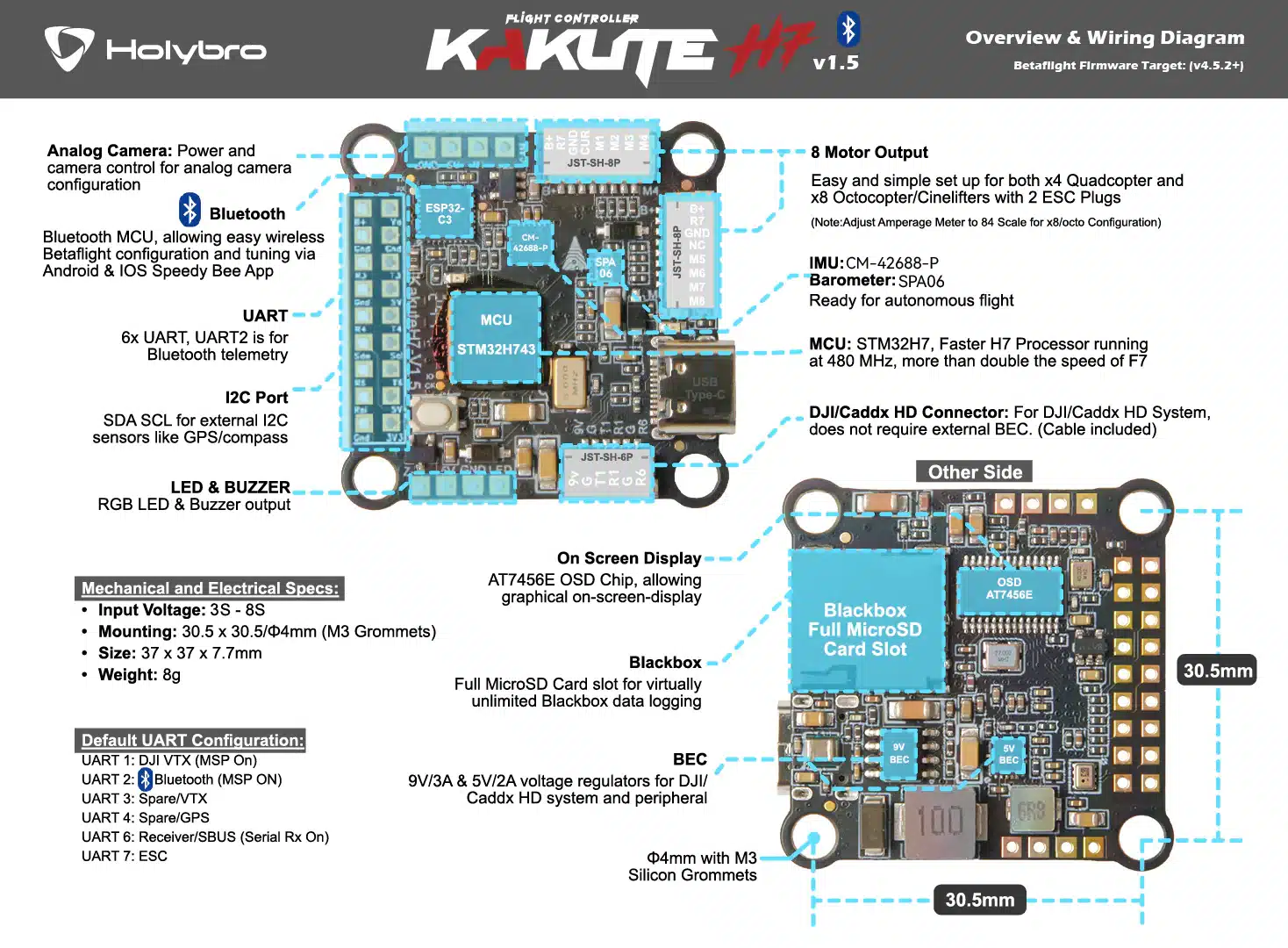

Specification :
- MCU – STM32H743 32-bit processor running at 480 MHz
- Professional underfill epoxy for mechanical reinforcement
- IMU – MPU6000 (V1.3), ICM-42688-P (V1.5)
- Barometer – SPA06 (BMP280 for previouse version)
- OSD – AT7456E
- Onboard Bluetooth chip – ESP32-C3
- SpeedyBee IOS & Android App Compatible
- Note: The Bluetooth onboard is set to automatically turn off when the flight controller is unlocked (armed) and turn on automatically when the flight controller is locked (disarmed) in Betaflight
- SKU:11091C does not come with Bluetooth
- 6x UARTs (1,2,3,4,6,7; UART2 is used for Bluetooth telemetry)
- 9x PWM Outputs (8 Motor Outputs, 1 LED)
- 2x JST-SH1.0 8-pin ESC port (4in1 ESCs, x8/Octocopter compatible)
- 1x JST-SH1.0 6-pin VTX port (For HD Systems like Caddx Vista & Air Unit)
- Battery input voltage: 3S – 8S
- BEC 5V 2A Cont.
- BEC 9V 3A Cont
- USB Type-C
- Mounting – 30.5 x 30.5mm/Φ4mm hole with Φ3mm Grommets

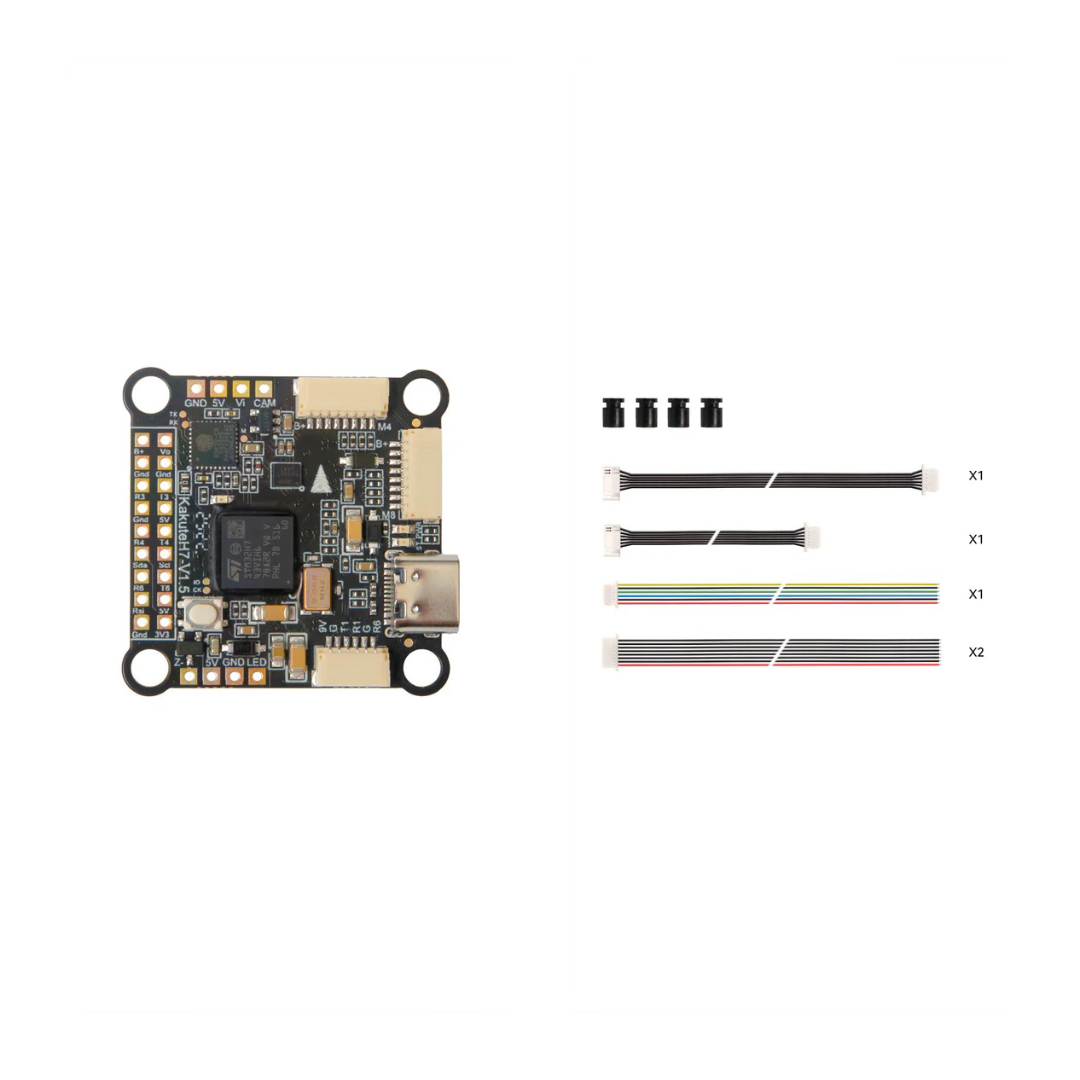

Package Includes:
- 1x Kakute H7 V1.5 Flight Controller
- 4x M3 Silicon Grommets
- 2x JST-SH1.0 8-pin 150mm Cable (For ESCs)
- 1x JST-SH1.0 6-pin to GHR 10-pin 80mm & 150mm Cable (For DJI Air Unit)
- 1x JST-SH1.0 6-pin Colored Silicon 150mm Cable (For Caddx HD System and other VTX)
