Looking for Tekko32 Esc 50a? Holybro Kakute H7 V1.3 FC & Tekko32 F4 4in1 50A ESC STACK is available at Zbotic with fast shipping across India.

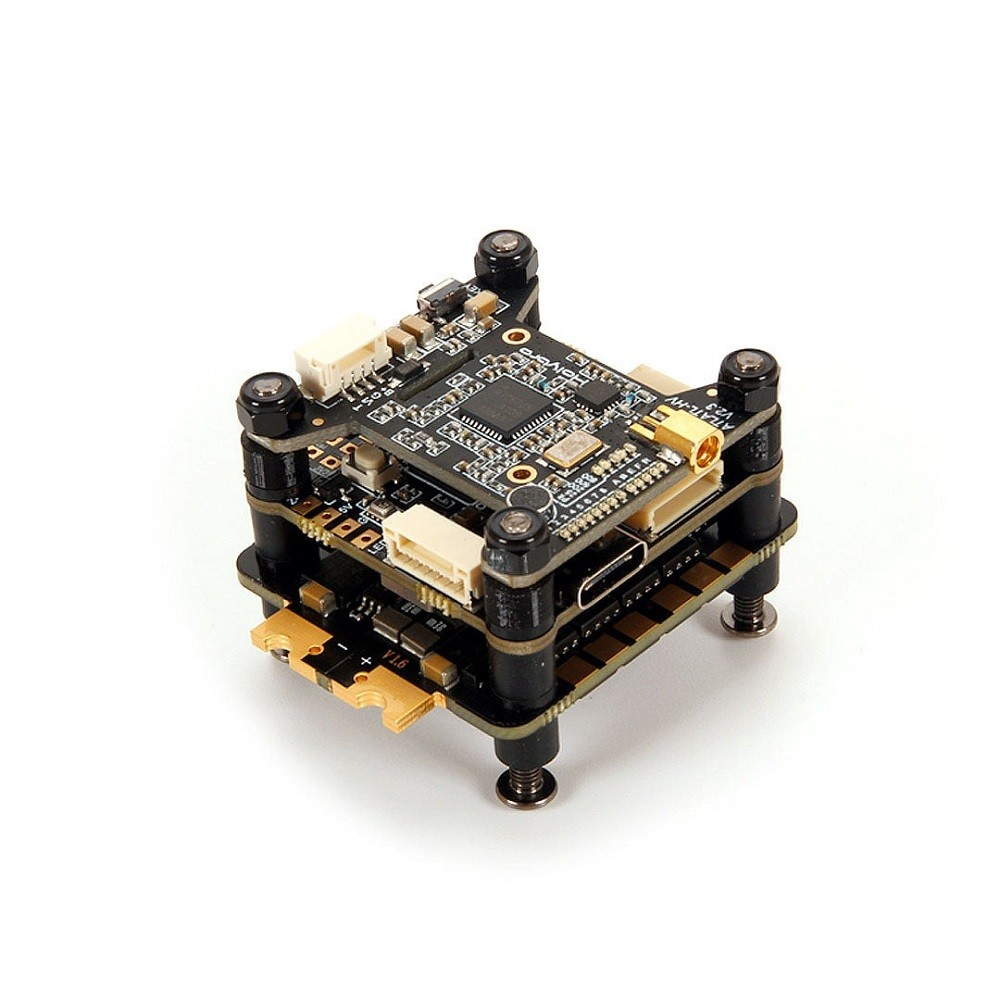

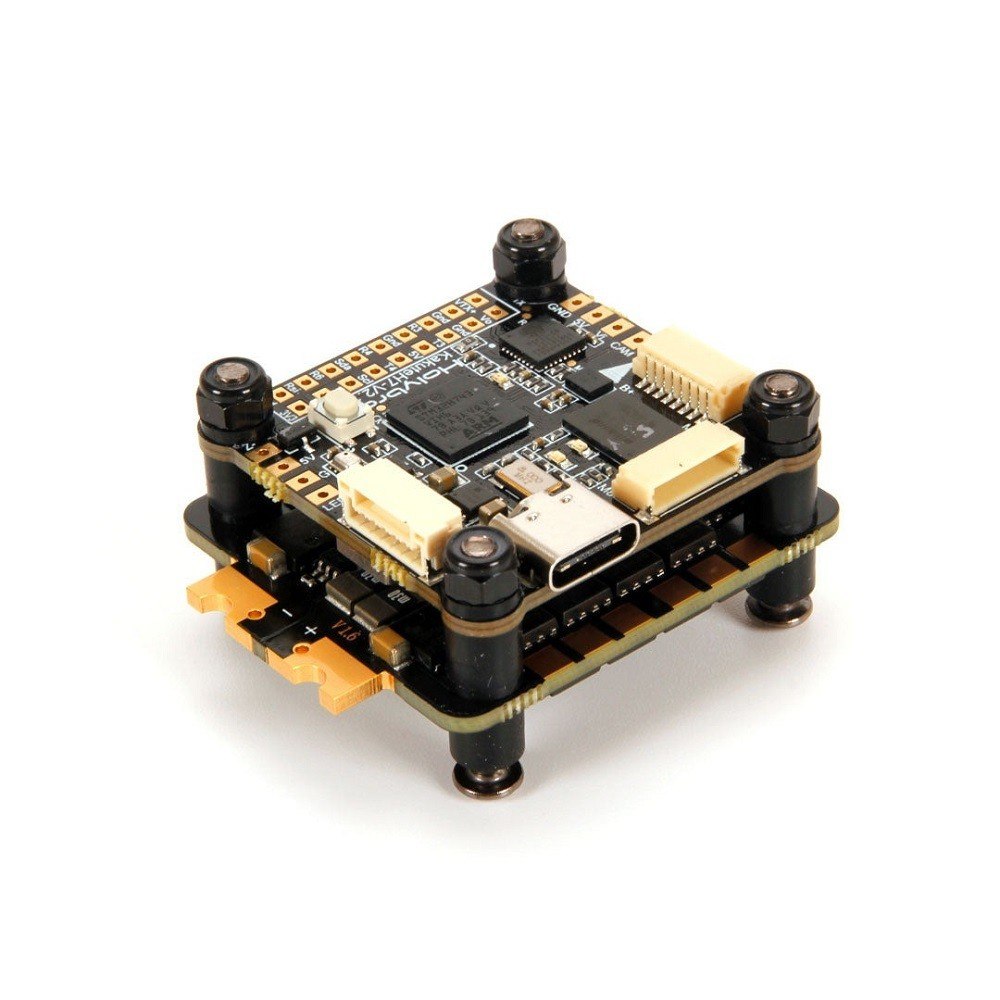

The Holybro Kakute H7 V1.3 FC & Tekko32 F4 4in1 ESC STACK is a feature-rich flight controller that includes integrated Bluetooth, dual 4in1 ESC plug-and-play ports, an HD camera connector, a barometer, OSD, six UARTs, a comprehensive Blackbox MicroSD card slot, 5V and 9V BEC, and an easy-to-solder layout, among other features.
Advancing from its F7 predecessor, the Kakute H7 improves upon hardware components and design. It features an integrated Bluetooth chip for wireless Betaflight configuration and tuning via the SpeedyBee Android & IOS App. The controller is DJI HD compatible, with a plug-and-play port and a 9V regulator for powering HD video transmitters such as the DJI/Caddx FPV Air Unit & Caddx Vista, and it supports an analog system as well.
The unit provides six dedicated UART ports with built-in inversion for peripherals (UART2 is reserved for Bluetooth telemetry), and a full MicroSD Card slot for extensive Blackbox data logging. Dual 4in1 ESC connectors offer easy plug-and-play support for x8 Octocopter configurations, promoting a clean setup. The integrated BetaFlight OSD displays essential FPV information like battery voltage, flight time, warnings, RSSI, smart audio features, and more. Equipped for autonomous flight with an onboard barometer, it also features LED & buzzer pads, and I2C pads (SDA & SCL) for connecting external GPS/Magnetometers.
Note: Atlatl HV V2 is not included.
Features:
New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
PWM Frequency: 16k to 96k
A separate drive & control circuit broadens the current capability of the drive circuit while reducing the electrical interference to the control circuit.
ESC’s Specification:
Continuous Current: 50A x4
Burst Current: 60A x4
Supports 4-6S battery
Supports DShot 150/300/600/1200 & MultiShot/OneShot/Proshot/PWM etc.
ESC telemetry Supported
Onboard analog current sensor
No output BEC
BLHeli_32 firmware

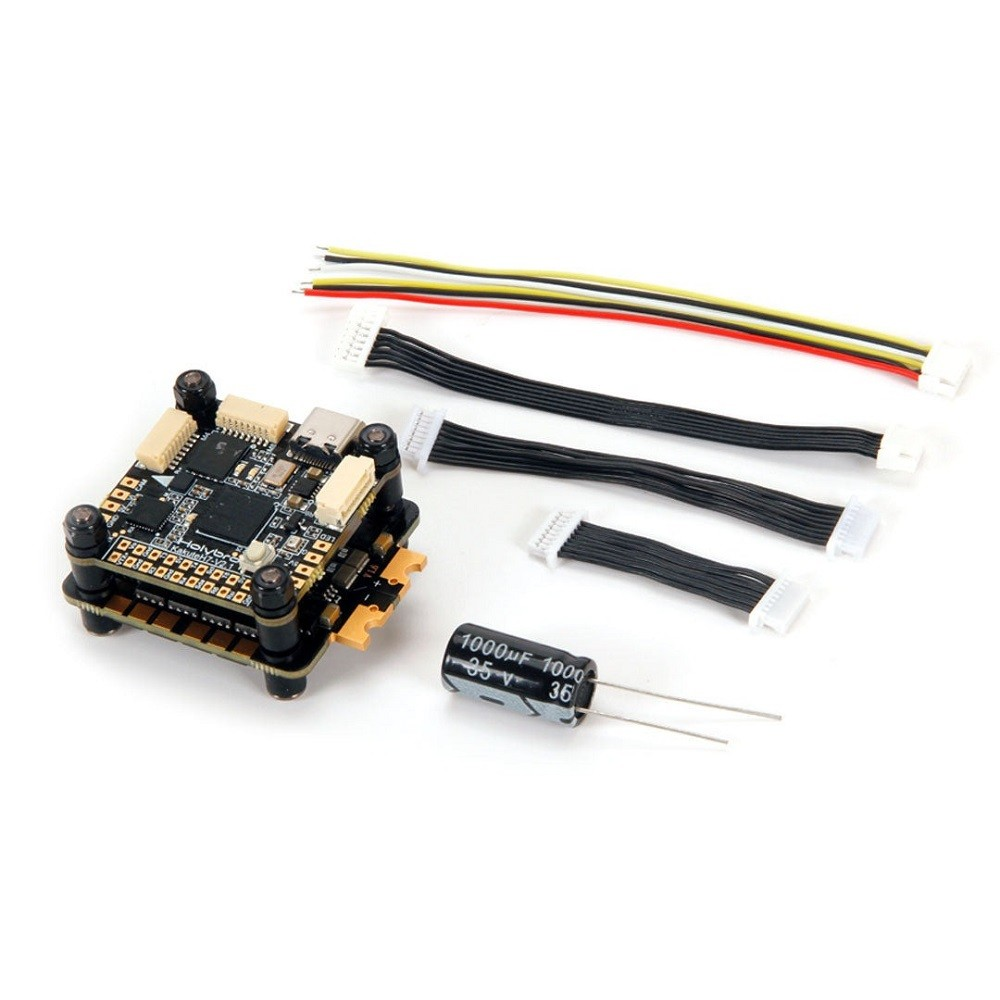

1000uf 35v capacitor included (highly recommended for 6s setup)
The Holybro Kakute H7 V1.3 FC & Tekko32 F4 4in1 50A ESC Stack is an integrated flight controller and electronic speed controller designed for FPV quadcopter builds. It combines a high-speed STM32H743 processor with a 4-in-1 ESC board capable of delivering up to 50 A continuous per motor, plus onboard OSD, barometer and Bluetooth tuning.
Key Features of Holybro Kakute H7 V1.3 FC & Tekko32 F4 4in1 50A ESC

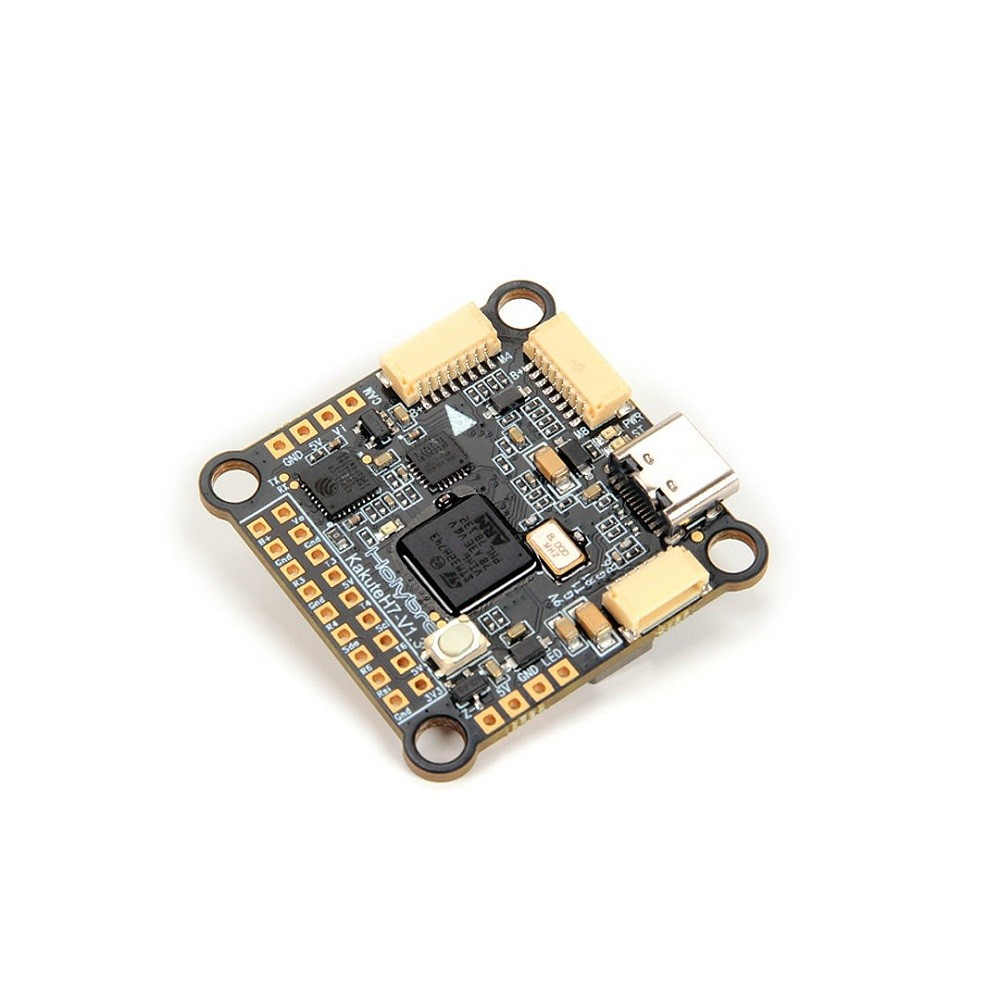

High-Performance MCU: STM32H743 32-bit processor running at 480 MHz with MPU6000 IMU and BMP280 barometer.
4in1 50 A ESC: Tekko32 F4 ESC board with 50 A continuous (60 A burst), integrated F4 MCU for BLHeli_32 firmware.
Integrated OSD & HD Port: AT7456E on-screen display plus dedicated DJI HD camera connector with 9 V regulator.
Wireless Tuning: Onboard ESP32-C3 Bluetooth chip for Betaflight configuration via SpeedyBee Android & iOS app.
Rich I/O & Power Rails: Six UARTs, Blackbox microSD slot, 5 V/9 V BEC outputs and dual plug-and-play ESC ports.
Genuine Product & Fast Shipping: Authentic Holybro stack with fast shipping from Zbotic across India.
Applications and Use Cases
FPV racing drones requiring high-frequency control and reliable ESC performance.
Freestyle quadcopters with onboard OSD and DVR capabilities.
Digital HD FPV setups using the DJI HD system for low-latency video.
Educational and research UAV platforms needing Blackbox logging.
Custom multirotor prototypes where compact integrated stacks save frame space.
How to Use Holybro Kakute H7 V1.3 FC & Tekko32 F4 4in1 50A ESC
Mount the stack on a 30.5 × 30.5 mm frame, solder motor cables to the Tekko32 pads, and connect battery leads to the power input pads. Attach your FPV camera to the HD connector and insert a microSD card for Blackbox logging. Use a USB-C cable or Bluetooth via the SpeedyBee app to access Betaflight Configurator, flash firmware, calibrate IMU/barometer, and tune PID settings before your first flight.
Why Buy from Zbotic?
Genuine Products: All items sourced from authorized distributors
Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
Free Shipping: Free delivery on qualifying orders
COD Available: Cash on Delivery, UPI, cards, net banking
Technical Support: Expert help for setup and troubleshooting
Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I configure the flight controller settings?
You can connect via USB to Betaflight Configurator or pair with the onboard ESP32-C3 using the SpeedyBee mobile app. Both methods let you adjust PID, rates, and receiver protocols wirelessly or on your PC.
What is the continuous current rating per ESC channel?
Each of the four ESC channels on the Tekko32 F4 board can handle 50 A continuous and up to 60 A burst, making it suitable for 5 – 7 inch propeller setups.
Can I power a DJI HD camera directly from this stack?
Yes, the stack includes a dedicated HD camera connector with a built-in 9 V regulator, providing stable power for DJI digital FPV systems without additional wiring.
The Holybro Kakute H7 V1.3 FC & Tekko32 F4 4in1 50A ESC STACK is a versatile flight controller & accessories used across a wide range of applications including autonomous drones, FPV racing quadcopters, agricultural drones, and surveying and mapping platforms.
Common use cases:
Central brain for drone stabilization and navigation
GPS waypoint missions for surveying
Acro mode flying for FPV freestyle
This product is ideal for drone builders requiring precise flight control.
Technical Tip: F4 processors are good for basic builds; F7 or H7 recommended for advanced features. Ensure firmware compatibility (Betaflight, ArduPilot, iNAV).
Shipping & Delivery
Free shipping on orders above ₹999 across India
Dispatched within 1-3 business days
Expected delivery: 3-7 business days depending on location
Secure packaging to ensure safe transit of electronic components
Genuine Holybro product sourced from authorized channels
Country Of Origin: China
