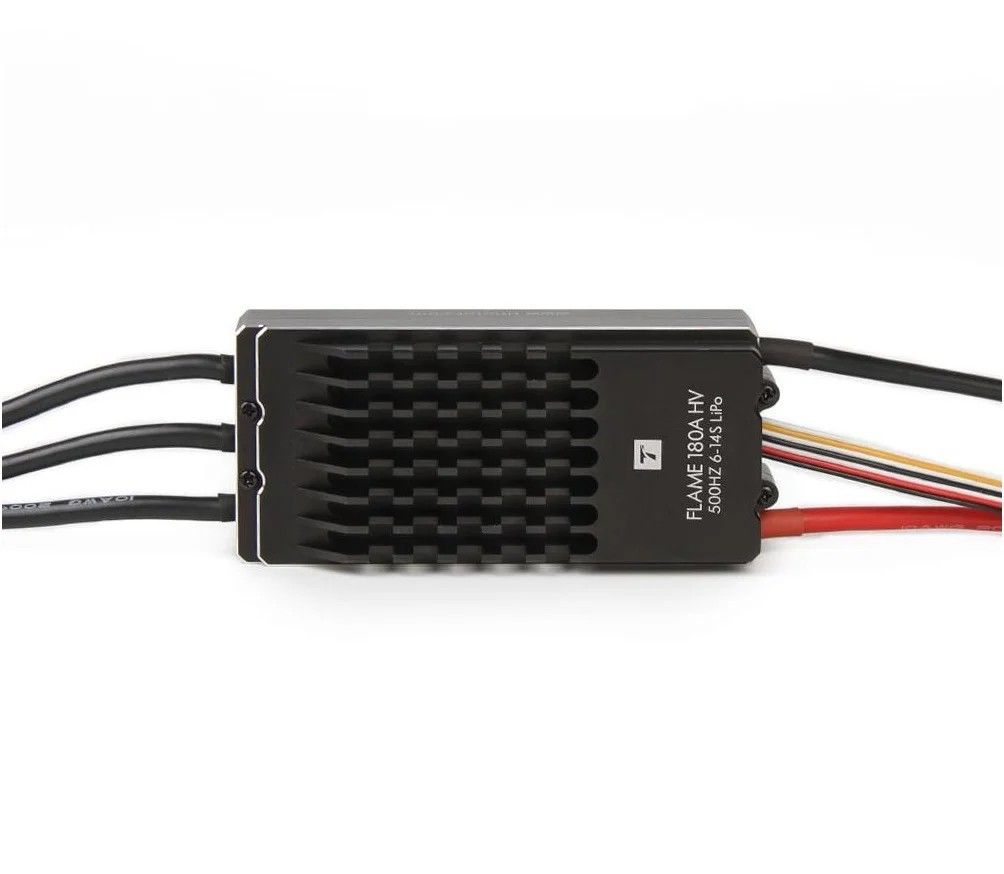

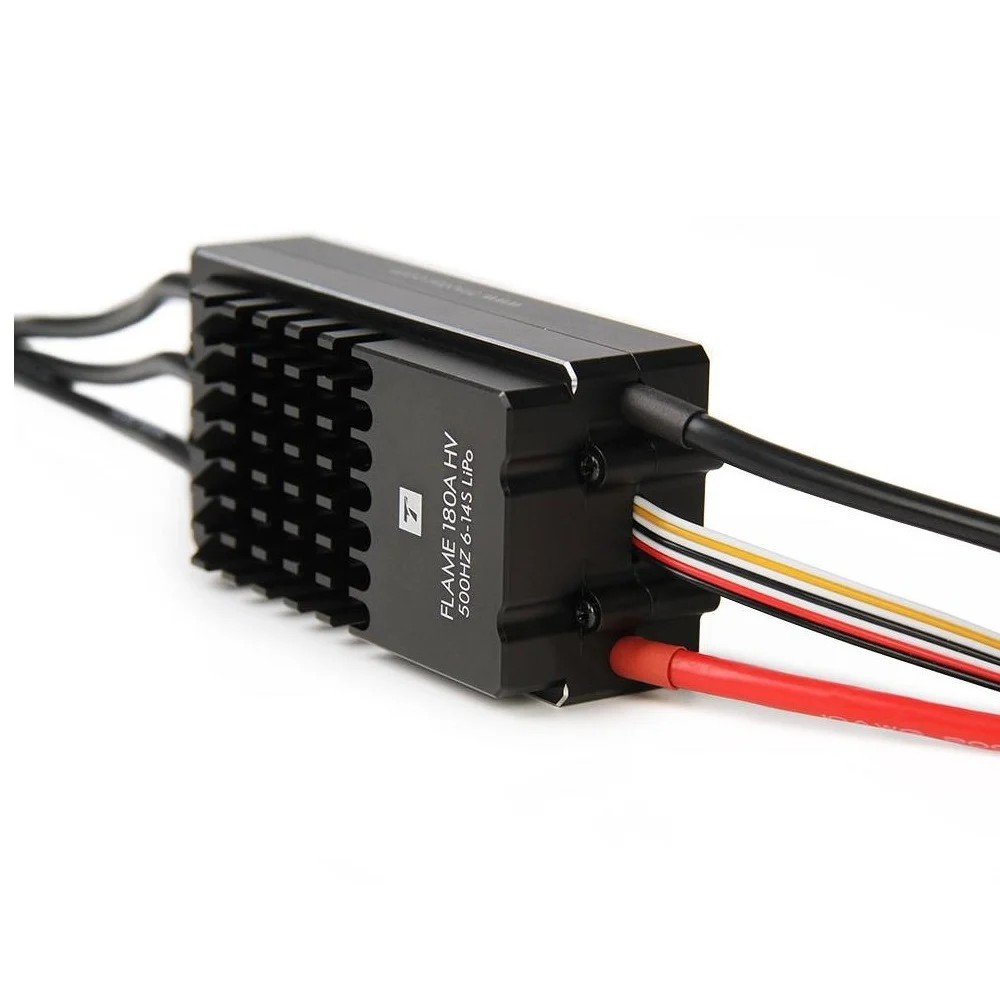

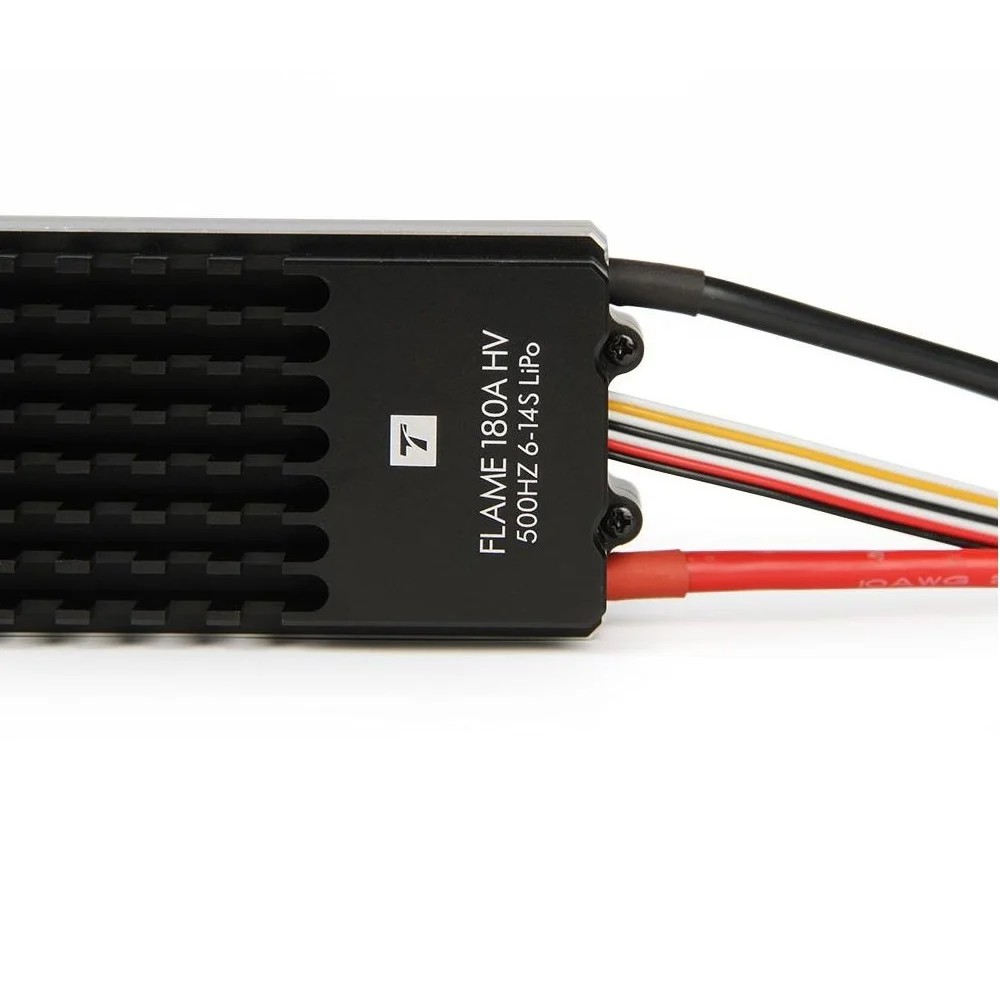

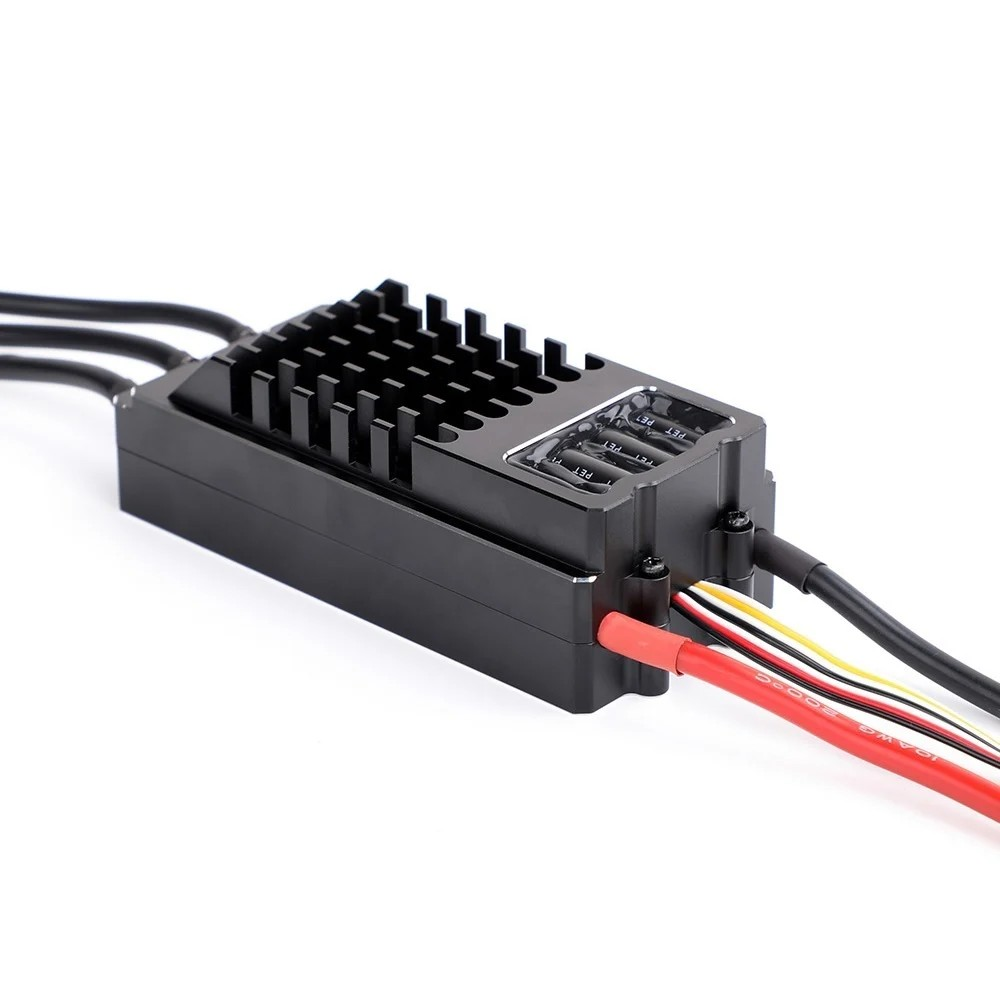

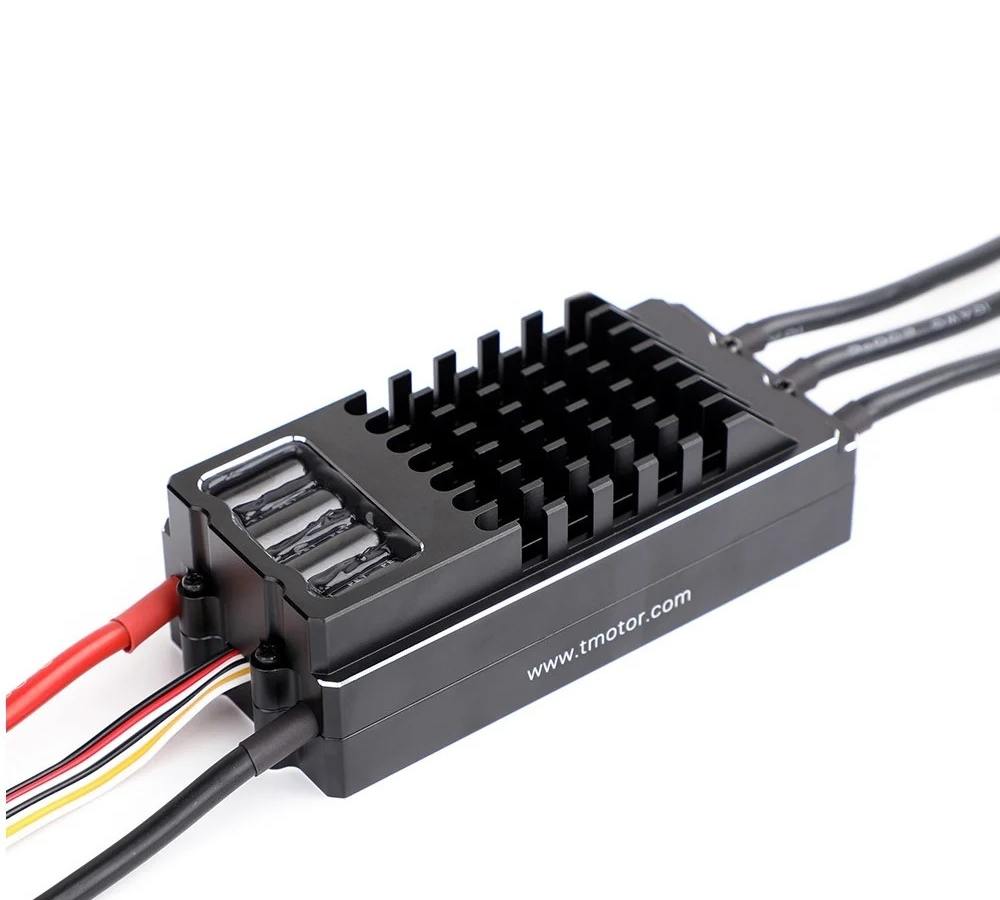

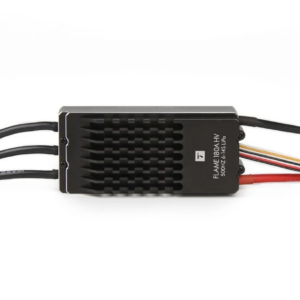

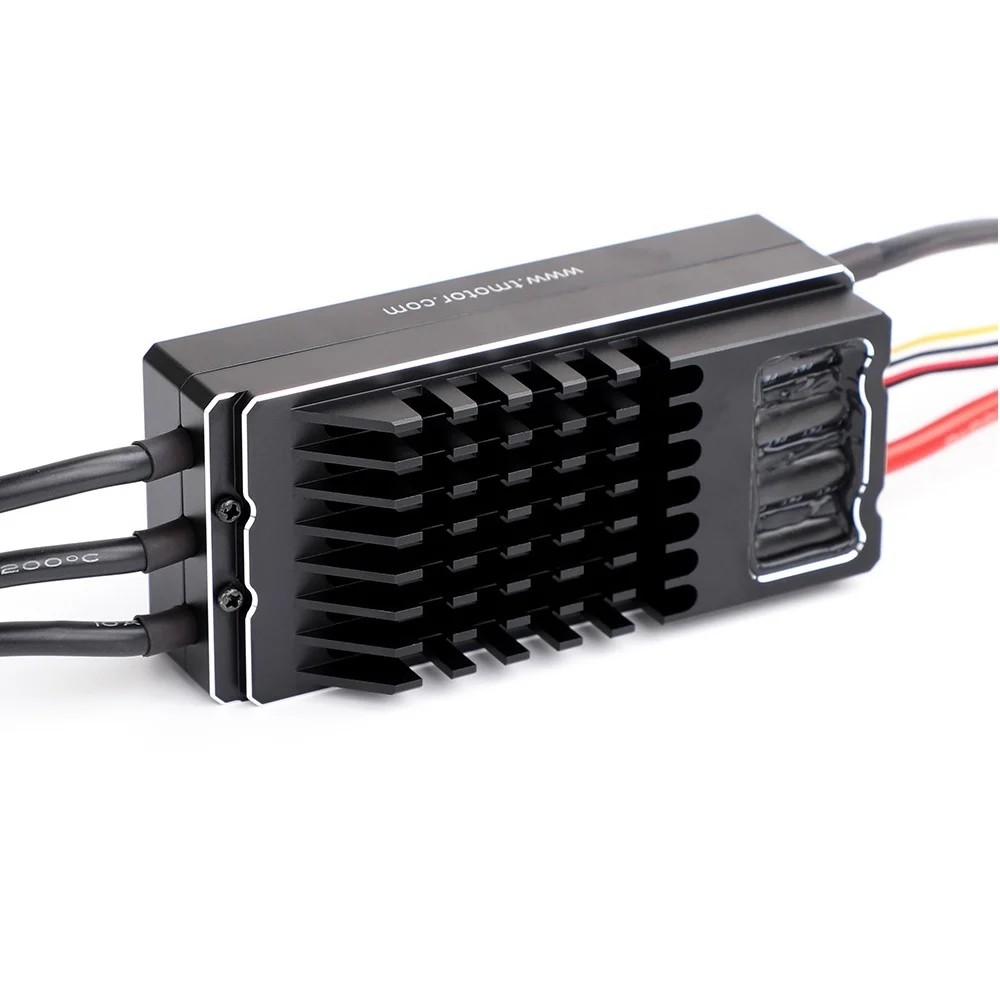

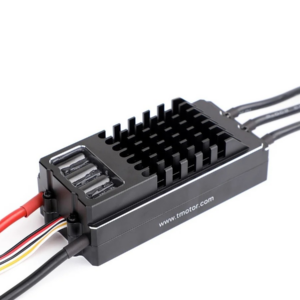

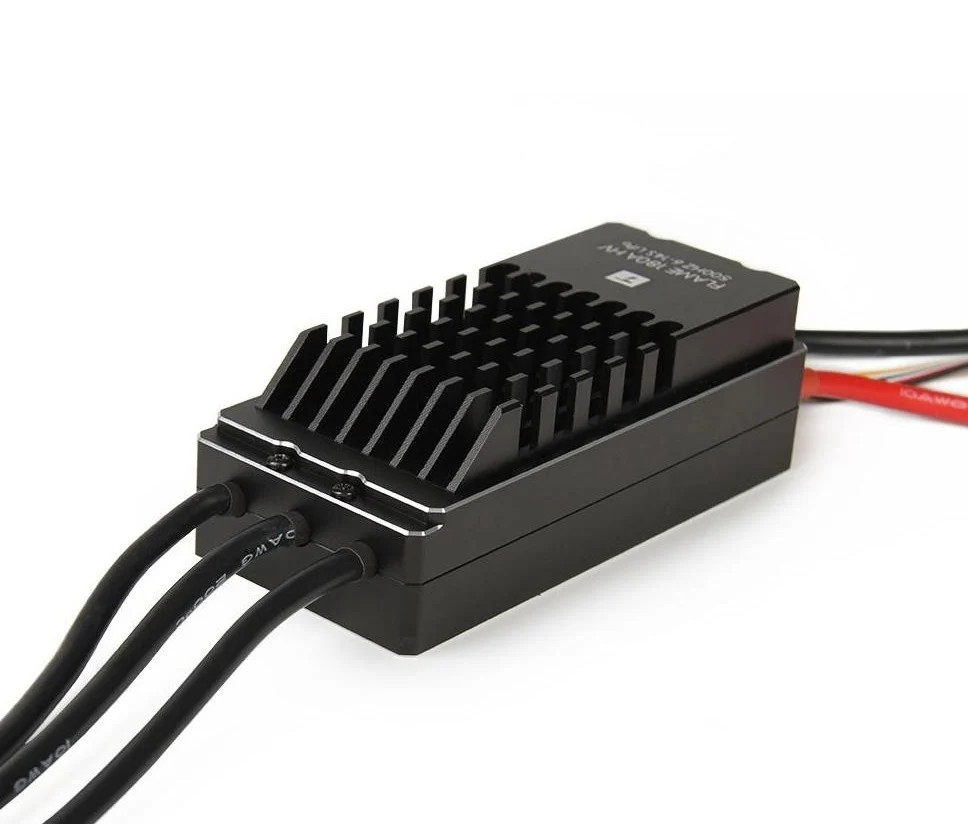

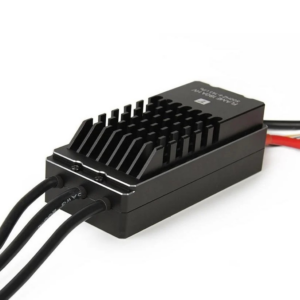

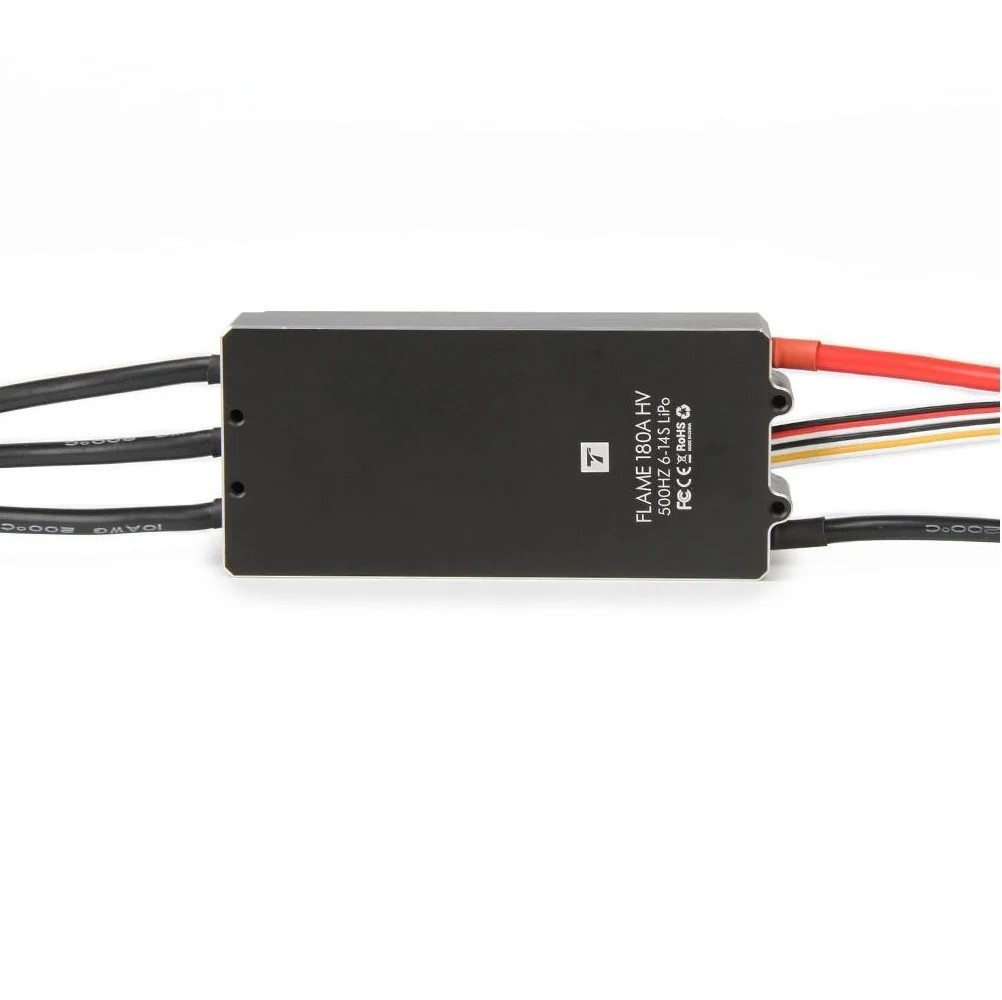

T Motor Flame 180A 12S V2.0 Esc
The T-Motor Flame 180A 12S V2.0 ESC is designed for optimal efficiency with an advanced layered structure for superior heat dissipation. Built for multi-rotors and fully compatible with U12 Motors, this ESC delivers a continuous current of 180A and can handle peak currents of up to 200A for 10 seconds, ensuring reliable power delivery during demanding flight conditions.
Features:
- High-performance microprocessor brings out the best compatibility with all kinds of motors and the highest driving efficiency.
- The throttle range can be configured to be compatible with all transmitters currently available on the market.
- Smooth, linear, quick, and precise throttle response.
- CNC Aluminum alloy enclosure, IP55 PCB with nanotechnology, widely used in UAV agriculture, search and rescue, etc.
- Separate voltage regulator IC for the microprocessor to get a better anti-jamming capability.
- Multiple protection features: Low-voltage cut-off protection / over-heat protection/throttle signal loss protection.
- USB supported. The firmware of the ESC can be updated by the USB adapter.
- Several kinds of Program Cards are supported. Very easy to program the ESC at home or at the field.
Specification:
| Continuous Current (A) | 180 |
|---|---|
| Peak Current (A) | 200 (10 sec) |
| BEC | NO |
| Cells (LiPo) | 6-12s |
| Weight (g): | 280 g |

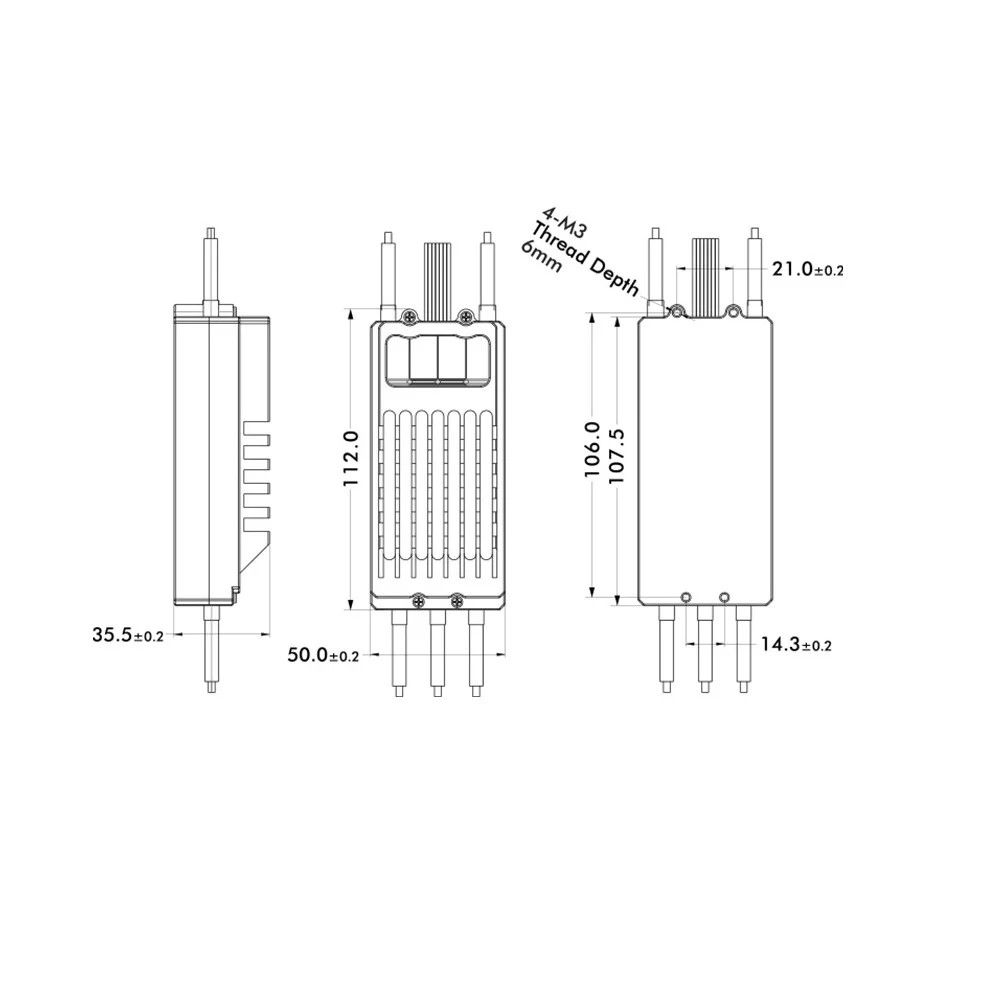

| Dimensions (mm) | 112 x 51 x 36 mm |
Package Includes:
1 x T motor Flame 180A 12S
