Looking for Pm07 M9n? Holybro Pixhawk 6C PM07 M9N is available at Zbotic with fast shipping across India.
The Pixhawk 6C’s H7 microcontroller combined with the PM07 Power Module + M9N GPS brings tons of power to the autopilot and makes it super easy to power and locate the multirotor.
Pixhawk 6C Flight Controller Module
The Pixhawk 6C represents the newest addition to the acclaimed Pixhawk flight controller series, adhering to the Pixhawk FMUv6C Open Standard and Connector Standard. It arrives with the PX4 Autopilot software already installed.
The core of the Pixhawk 6C is an STM32H743 from STMicroelectronics, combined with cutting-edge sensor technology from Bosch & InvenSense. This combination offers unparalleled flexibility and dependability for managing any autonomous vehicle, making it ideal for both academic research and commercial use.
The H7 microcontroller of the Pixhawk 6C boasts an Arm Cortex-M7 core capable of running up to 480 MHz, along with 2MB of flash memory and 1MB of RAM. The enhanced processing capabilities allow developers to work more efficiently and productively, enabling the use of complex algorithms and models.
The FMUv6C open standard features onboard high-performance, low-noise IMUs that are both cost-effective and provide IMU redundancy. Additionally, a vibration isolation system is in place to mitigate high-frequency vibrations and diminish noise, ensuring precise measurements and contributing to superior flight performance in vehicles.
Features:

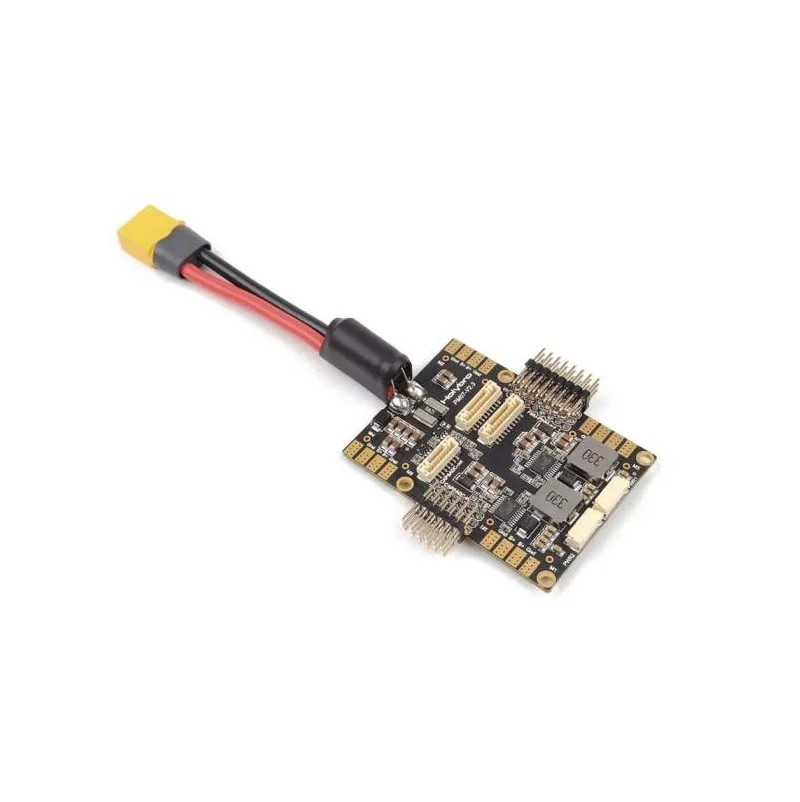

- The Power Module comes completely assembled with XT60 connectors
- New cost-effective design with low-profile form factor
- Redundant inertial measurement unit (IMU) from Bosch & InvenSense
- Newly designed integrated vibration isolation system to filter out high frequency vibration and reduce noise to ensure accurate readings
- IMUs are temperature-controlled by onboard heating resistors, allowing optimum working temperature of IMUs
- Lightweight & low power consumption
Specification-
| Product Name | Autopilot flight controller |
|---|---|
| Connectors | XT60 |
| Clock Speed | 480 MHz |
| RAM | 1MB |
| Flash Memory | 2mb |
| GPS | M9N |
| Processor | STM32H743 32-bit processor |
| Shipping Weight | 0.318 kg |
| Shipping Dimensions | 15 × 13 × 5 cm |
Packages Includes:

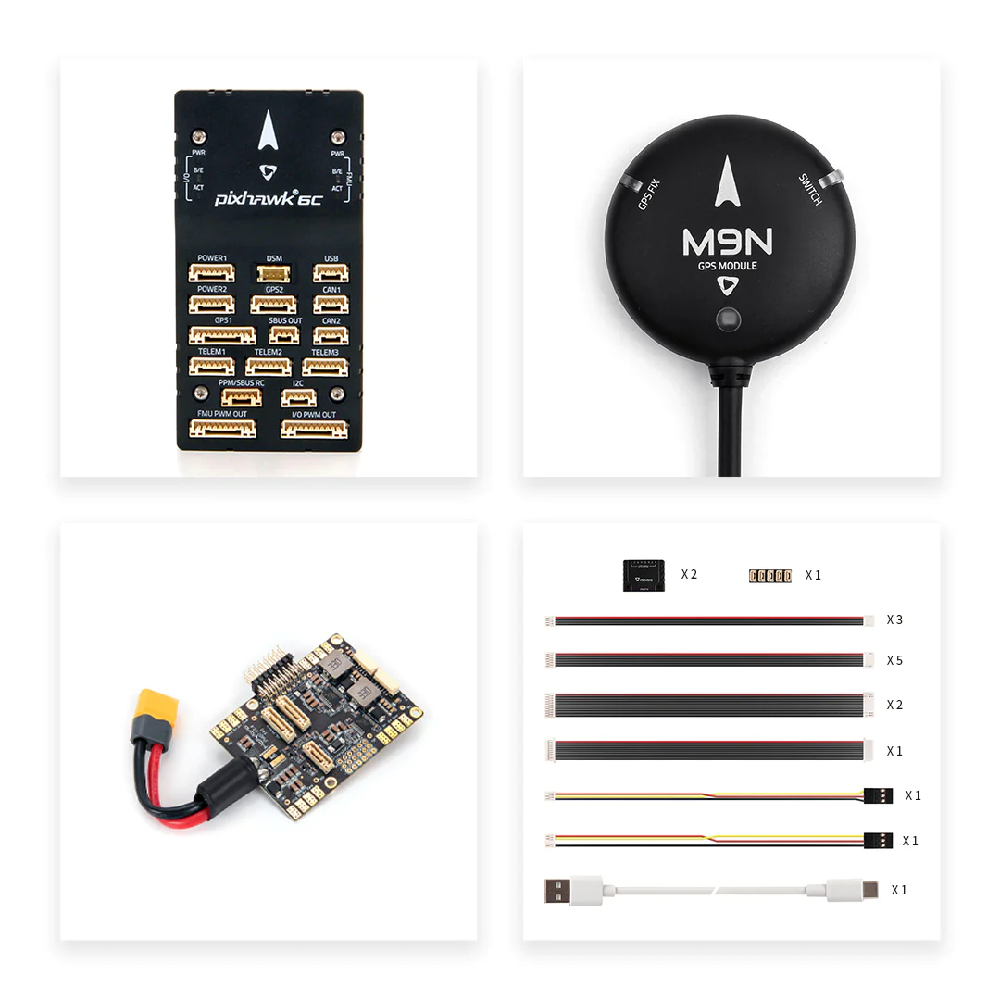

1 x Holybro Pixhawk 6C Flight Controller + PM07 Power Module +M9N GPS
Holybro Pixhawk 6C PM07 M9N Overview
The Holybro Pixhawk 6C PM07 M9N is an advanced flight controller bundle featuring the STM32H743 H7 microcontroller, PM07 power module and M9N GPS. Designed for autonomous multirotor and fixed-wing UAVs, it provides powerful onboard processing, reliable power delivery and precise satellite positioning out of the box.
Key Features of Holybro Pixhawk 6C PM07 M9N
- High-performance H7 microcontroller (STM32H743) for real-time flight tasks
- PM07 Power Module simplifies battery connection and ensures stable power input
- M9N GPS module offers fast satellite lock and dependable geolocation
- Pre-installed PX4 Autopilot firmware on FMUv6C-standard hardware
- Integrated sensors from Bosch & InvenSense for accurate attitude and position data
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- Professional aerial photography and videography multirotors
- VTOL and fixed-wing drones for land surveying and agricultural mapping
- R&D platforms for autonomous flight testing and algorithm development
- Prototype and pilot projects in drone delivery systems
- FPV racing drones requiring low-latency control and precise GPS hold
How to Use Holybro Pixhawk 6C PM07 M9N
Mount the Pixhawk 6C securely on your drone frame, connect the PM07 power module between your main battery and the flight controller’s power input port, then install the M9N GPS on a vibration-isolated mast. Power on the unit, run sensor and radio calibrations in QGroundControl or Mission Planner, configure flight parameters in the PX4 interface, and conduct pre-flight checks before your first mission.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Which microcontroller powers the Pixhawk 6C?
The Pixhawk 6C is driven by an STM32H743 microcontroller from STMicroelectronics, offering high performance for real-time flight control with advanced sensor integration from Bosch & InvenSense.
What GPS capabilities does the M9N module provide?
The included M9N GPS module delivers reliable satellite positioning and quick time-to-first-fix, enabling precise geolocation and robust navigation for multirotor UAVs.
How do I power the Pixhawk 6C using PM07?
Wire the PM07 power module between your main battery and the Pixhawk’s power input port; it provides a stable supply to the flight controller while simplifying battery connections.
Long-Range FPV: ExpressLRS Setup Guide India
Setting up ExpressLRS for long-range FPV in India gives you a high-performance, open-source radio link that outperforms proprietary...
Read More →
4S vs 6S LiPo for FPV Drones: Which Should You Choose?
4S vs 6S LiPo for FPV Drones: Which Should You Choose? One of the most debated topics in...
Read More →
Drone Parachute System: How It Works & When You Need One
Drone Parachute System: How It Works & When You Need One As drones grow heavier, fly higher, and...
Read More →Technical Specifications
| Brand | Holybro |
|---|---|
| Model | PM07 |
| Discharge Rate | 6C |
| SKU | AI5739 |
| Weight | 0.48503 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Holybro Pixhawk 6C Flight Controller + PM07 Power Module +M9N GPS is a versatile flight controller & accessories used across a wide range of applications including autonomous drones, FPV racing quadcopters, agricultural drones, and surveying and mapping platforms.
Common use cases:
- Central brain for drone stabilization and navigation
- GPS waypoint missions for surveying
- Acro mode flying for FPV freestyle
This product is ideal for drone builders requiring precise flight control.
Technical Tip: F4 processors are good for basic builds; F7 or H7 recommended for advanced features. Ensure firmware compatibility (Betaflight, ArduPilot, iNAV).
