This is the CCW rotation variant of the Hobbywing X8 -G2 Motor-CCW in Drone Motor, Drone Parts. Available at ₹20,876.56 (₹17,692.00 + GST) with free shipping across India.
Description:

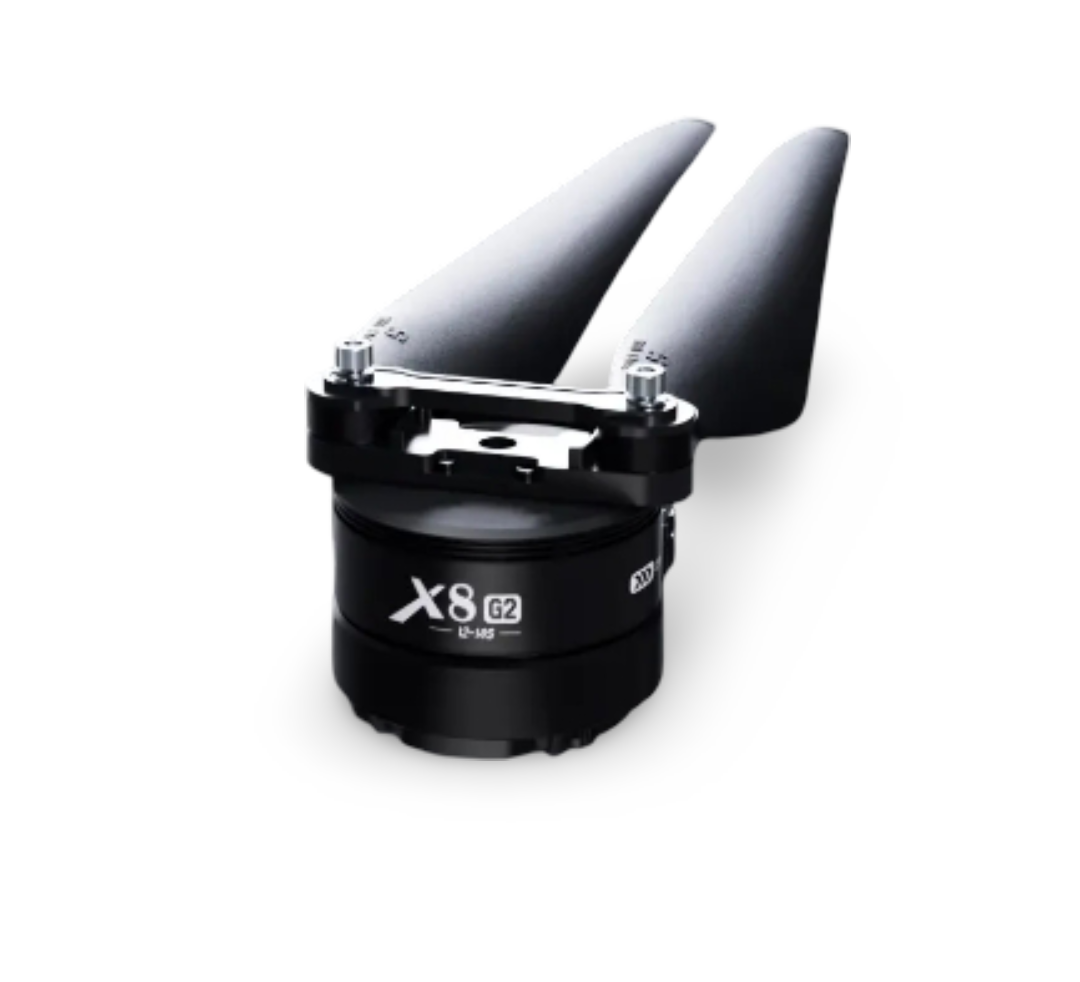

The Hobbywing X8 -G2 Motor-CCW is a professional-grade 8120-100KV brushless motor designed for high-performance multirotor drones. This next-generation motor is part of the XRotor X8-G2 series, engineered to work seamlessly with the 80A-FOC ESC and 3011S carbon fiber propeller.
Constructed with precision, the X8-G2 motor delivers exceptional torque, smooth operation, and a long service life. Its aluminum alloy casing ensures superior heat dissipation, while the reinforced internal structure minimizes vibration for stable flight performance.
With an IPX6 waterproof rating, the motor is resistant to dust, rain, and corrosion, making it suitable for demanding outdoor applications. Its Counter-Clockwise (CCW) rotation ensures proper pairing with CW motors, providing a perfectly balanced multirotor setup.
Perfect for aerial photography, mapping, surveying, or agricultural drones, the X8-G2 Motor – CCW ensures reliable, smooth, and powerful flight performance.
Features:
- High-efficiency 8120-100KV brushless motor for professional UAV applications.
- Designed for Counter-Clockwise (CCW) rotation to balance drone flight configuration.
- Lightweight and durable aluminum alloy housing for better cooling and strength.
- IPX6 waterproof rating protects against dust, water, and mist.
- High-temperature enamel wire rated up to 200°C for long-lasting performance.
- Low vibration and noise operation ensures smooth flight stability.
- Fully compatible with Hobbywing 80A-FOC ESC and 3011S propeller.
- Suitable for aerial photography, mapping, inspection, and industrial drones.
- Designed for 12S to 14S LiPo battery systems.
- Ideal for heavy-lift and long-endurance multirotor drones.
Specifications:
| Parameter | Details |
|---|---|
| Model | Hobbywing X8-G2 Motor – CCW |
| Motor Type | 8120-100KV Brushless Motor |
| KV Rating | 100 KV |
| Rotation Direction | Counter-Clockwise (CCW) |
| Input Voltage Range | 18 – 63 V (12S – 14S LiPo) |
| Max Continuous Current | 20 A |
| Max Peak Current (3s) | 80 A |
| Rated Power Input | 920 W |
| Rated Power Output | 810 W |
| Max Thrust (per axis) | 17.5 kg (with recommended propeller) |
| Recommended Propeller | Hobbywing X8-G2 3011S (30 × 11 inch) |
| ESC Compatibility | Hobbywing XRotor X8-G2 80A-FOC ESC |
| Motor Diameter | 88.6 mm |
| Stator Diameter | 81 mm |
| Configuration | 36N40P (36 stator slots, 40 poles) |
| Weight (with cables) | Approx. 1,095 g (with propeller & ESC) |
| Material | Aluminum Alloy Housing |
| Operating Temperature | –20 °C to 50 °C |
| Waterproof Rating | IPX6 |
| Mounting Tube Diameter | Ø35 mm / Ø40 mm |
| Application | Aerial Photography, Mapping, Industrial & Agricultural Drones |
Package Includes:
- 1 x Hobbywing X8 -G2 Motor-CCW
Attachments:
Manual
Datasheet
Motor Noise Filtering: Capacitor Placement on DC Motors
If you have ever noticed your Arduino resetting when a motor starts, your sensor readings jumping erratically while...
Read More →
FPV Receiver Binding: ELRS, SBUS and SmartPort Explained
Table of Contents Understanding FPV Receiver Protocols ELRS (ExpressLRS) Binding Guide SBUS: Wiring and Configuration SmartPort Telemetry: Setup...
Read More →
Drone Motor Testing: Thrust Stand Build and KV Measurement
If you are building a drone, selecting the right motor-propeller combination is critical for flight performance. A drone...
Read More →Technical Specifications
| Brand | Hobbywing |
|---|---|
| Package Quantity | 8 pcs |
| SKU | AI7329 |
| Weight | 1.18 kg |
| Availability | In Stock |
Applications & Use Cases
The Hobbywing X8 -G2 Motor-CCW is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
