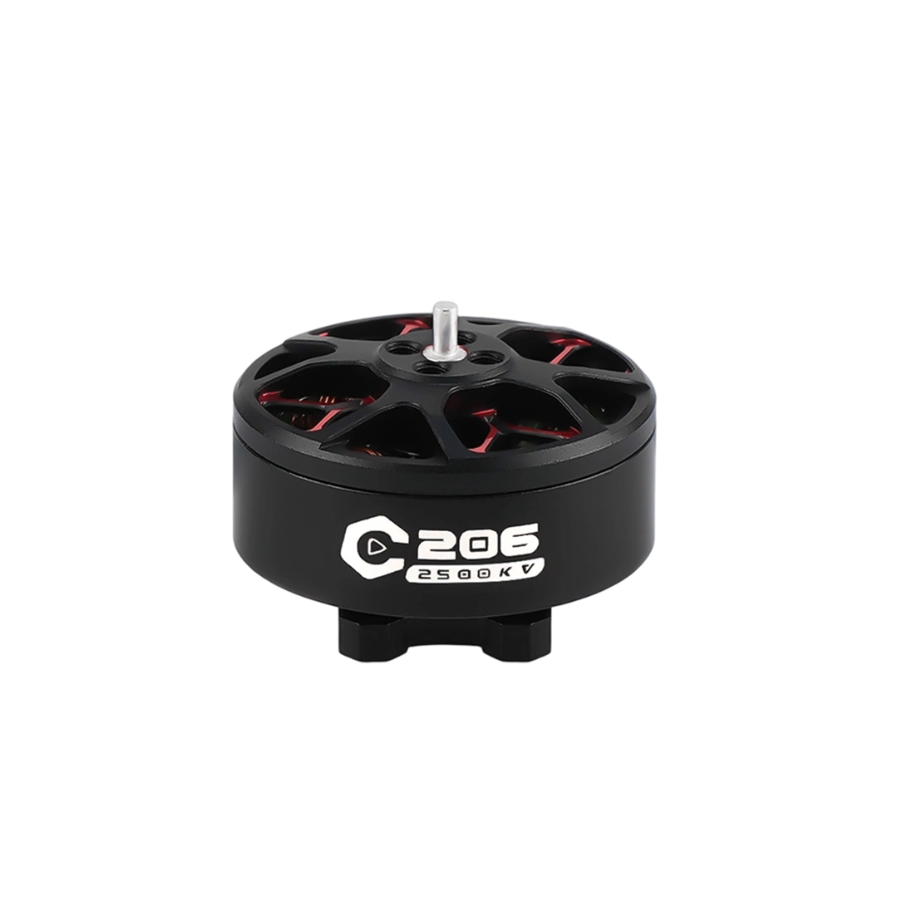

Axisflying C206 V1 6S 2500KV Brushless Motor
Description:
With FPV trending in cinematic and commercial filming, we – Axisflying – are very proud to present you our new C cinematic motor series.The C series motor has been developed for Cinematic FPV pilots who fly to create and have high-quality requirements.Cinematic pilots often only have one chance to capture their best shot so they work hard to fine-tune their flying abilities and master: control, anticipation and precision. We bring you today a new cinematic motor to help you enhance your cinematic flying skills.The C series motor features the perfect balance required for your cinematic flights: smoothness, reactivity and high torque for a delicate control feel along high efficiency to maximize your flight time.
Feature
- C206 V1 is specially designed for 3.5-inch C35 frame & Cinewhoop drones.
- 12N14P structure provides strong torque and delicate throttle control.
- Smooth linear power output for stable and professional cinematic shooting.
- Light weight and high efficiency, easy to carry GoPro cameras.
- IP53 bearing shield design for better durability and crash resistance.
- Compatible with 6S LiPo, matched with 3.5-inch cine propellers.
Recommended Configuration
- Motor: Axisflying C206 1960KV / 2500KV
- Voltage: 6S LiPo
- Props: GF D90-3P / HQ T90-4P / HQ D90MM×3
- Application: 3.5-inch Cinewhoop, C35 frame, cinematic FPV

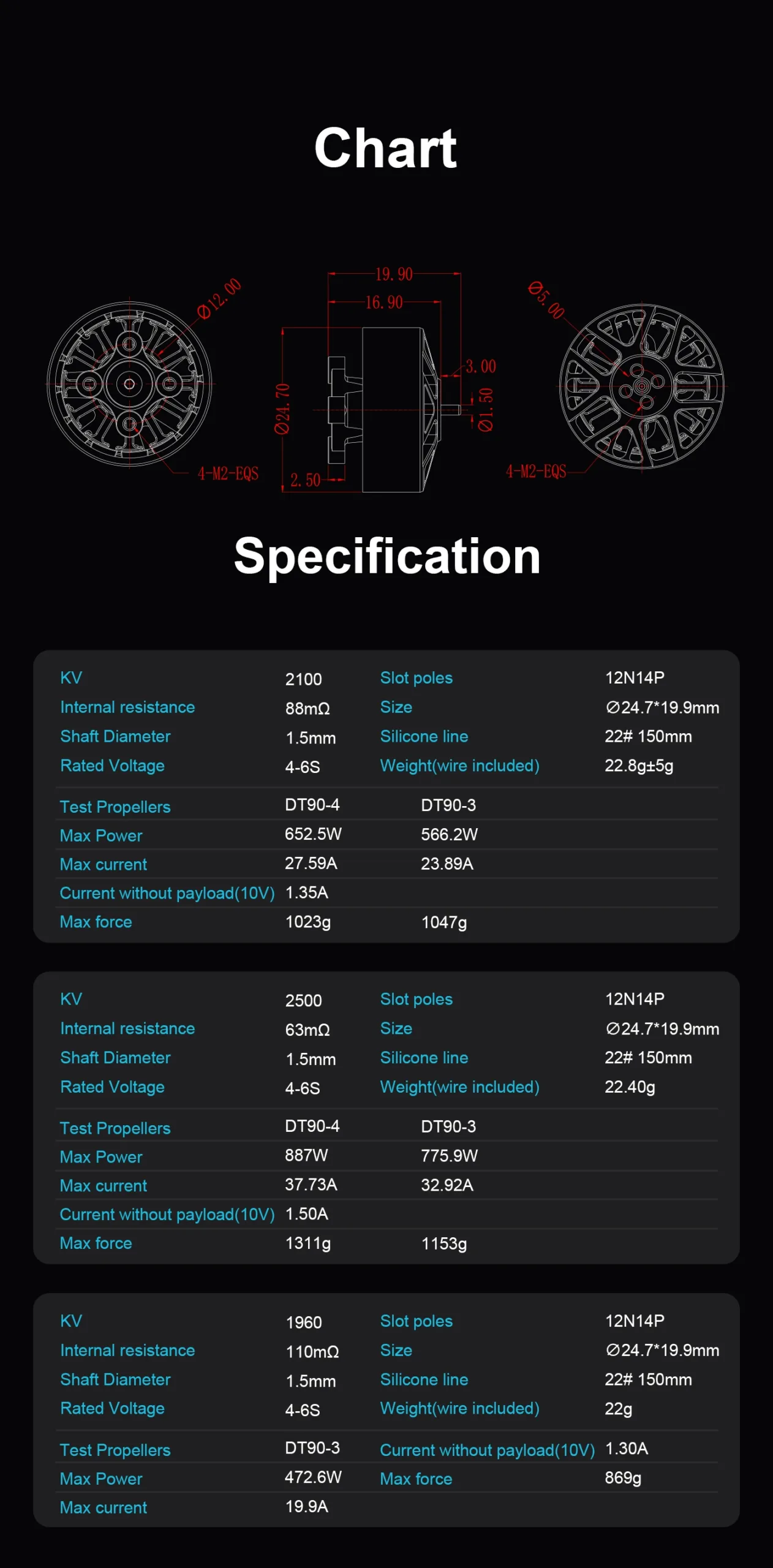

Specifications
C206 V1 1960KV
- Internal resistance: 110mΩ
- Net Weight(wire included): 22g
- Test Propeller: DT90-3
- Max Power: 472.6W
- Max Current: 19.9A
- No-load Current(10V):1.30A
- Max Thrust: 869g
C206 V1 2100KV
- Internal resistance: 88mΩ
- Net Weight(wire included): 22.8±0.5g
- Test Propellers: DT90-4 / DT90-3
- Max Power: 652.5W / 566.2W
- Max Current: 27.59A / 23.89A
- No-load Current(10V):1.35A
- Max Thrust: 1023g / 1047g
C206 2500KV(Old version)
- Internal resistance: 63mΩ
- Net Weight(wire included): 22.40g
- Test Propellers: DT90-4 / DT90-3
- Max Power: 887W / 775.9W
- Max Current: 37.73A / 32.92A
- No-load Current(10V):1.50A
- Max Thrust: 1311g / 1153g

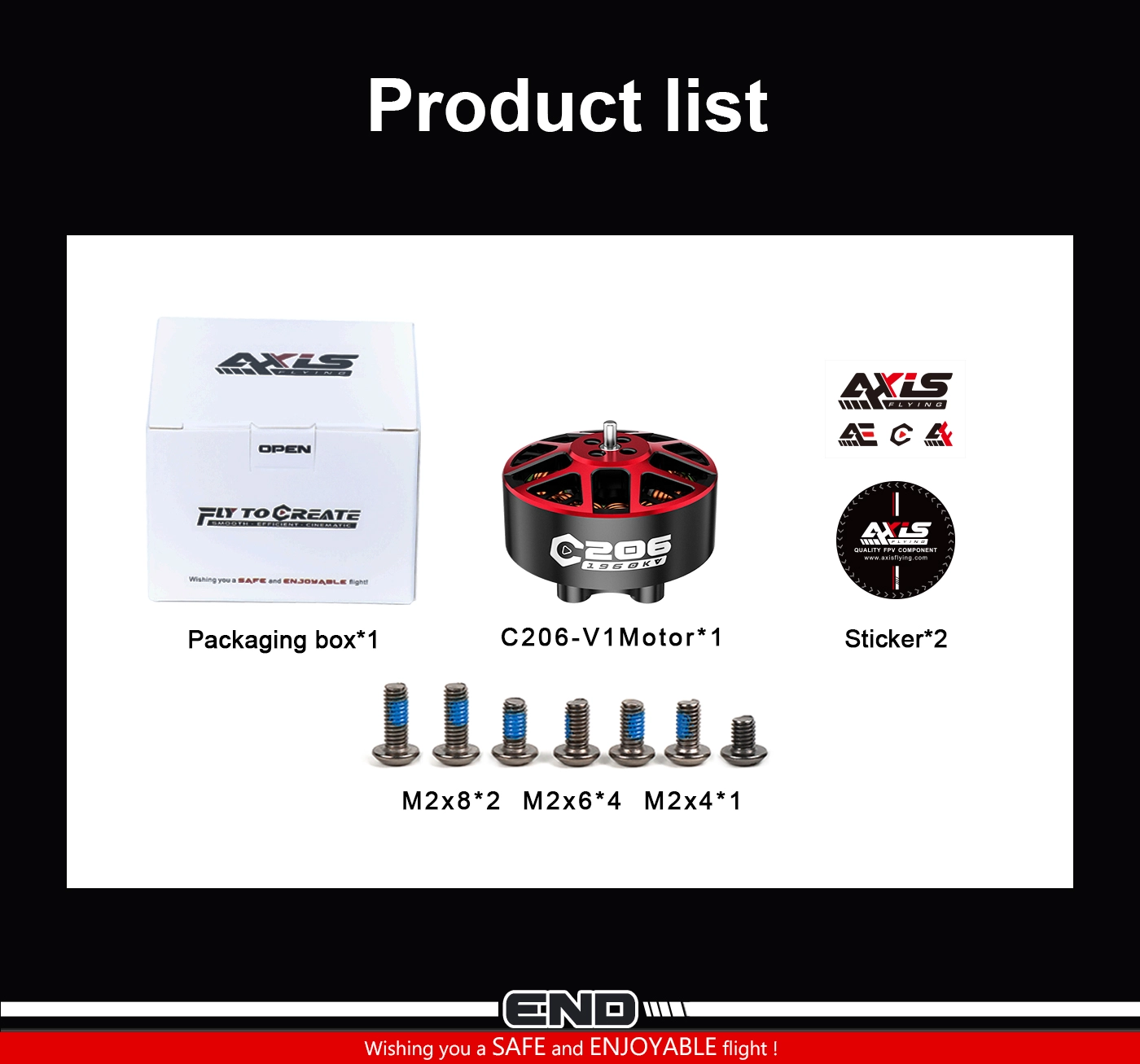

Package Contents
- 1 × C206-V1 Brushless Motor
- 2 × M2×8 Screws
- 4 × M2×6 Screws
- 1 × M2×4 Screw
- 2 × Axisflying Stickers
- 1 × Original Packaging Box
Drone Insurance Requirements in India 2026
Understanding drone insurance requirements in India for 2026 is essential for every commercial drone operator. With DGCA mandating...
Read More →
NEMA 23 Stepper Motor: Torque, Wiring & CNC Applications
The NEMA 23 stepper motor is the backbone of desktop CNC machines, laser cutters, plasma tables, and larger...
Read More →
Stepper Motor Power Supply: Choosing Voltage & Amperage
Table of ContentsIntroductionStepper Motor Electrical BasicsUnderstanding Rated Voltage vs Operating VoltageCurrent Rating and Why It MattersThe Driver's Role...
Read More →Technical Specifications
| Brand | Axis Flying |
|---|---|
| Model | C206 |
| Cell Configuration | 6S |
| KV Rating | 2500KV |
| SKU | AI4977 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The Axisflying C206 V1 6S 2500KV Brushless Motor is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
