Looking for Tl1616 Brushless Motor? Tarot Brushless Motor/Long Life High Efficiency/FPV Racing Motor/3115/900KV TL1616 is available at Zbotic with fast shipping across India.

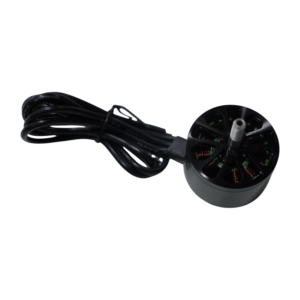

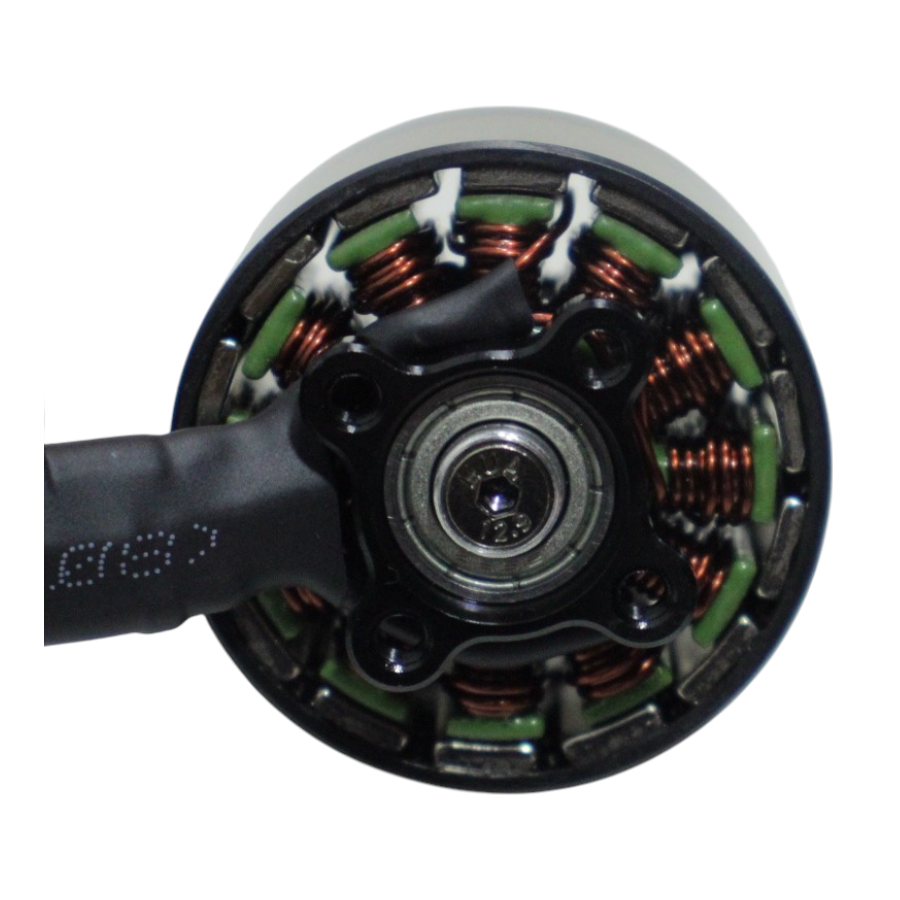

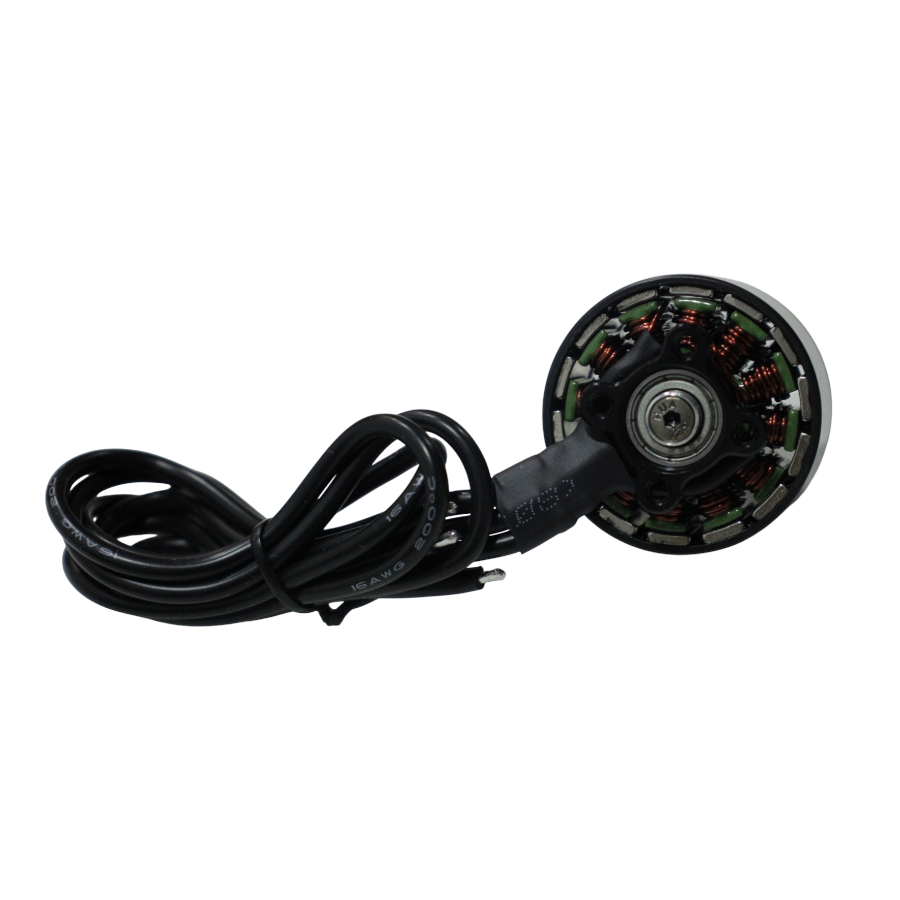

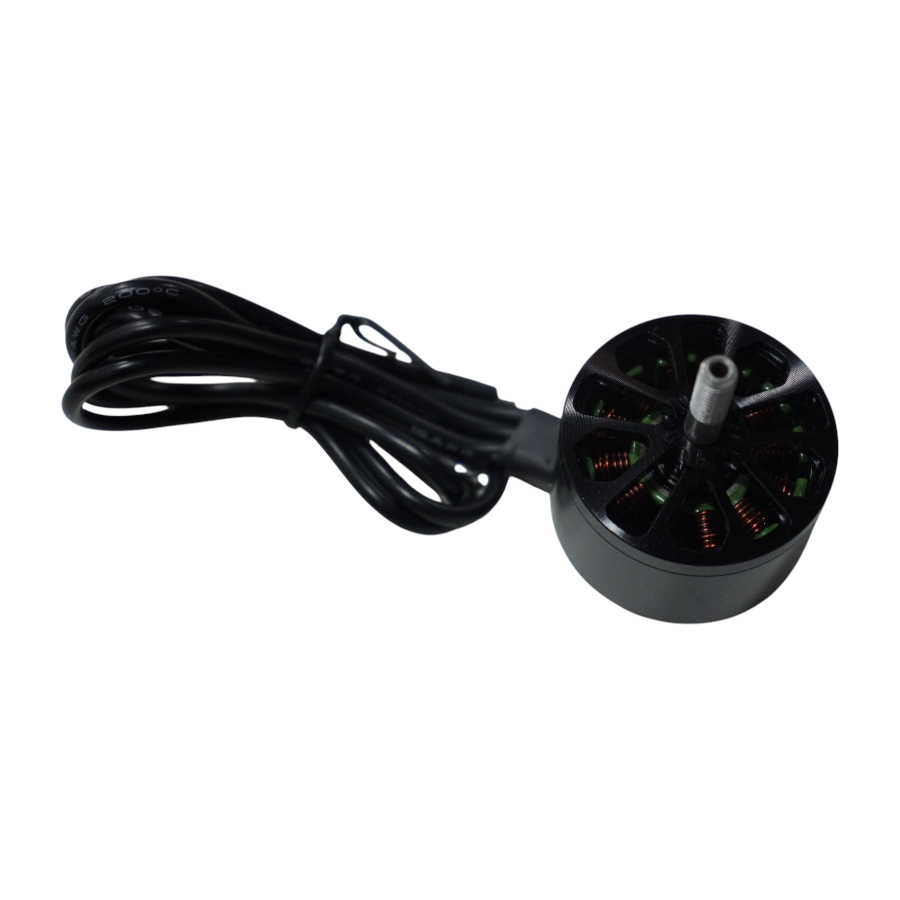

The Tarot 3115 900KV Brushless Motor (TL1616) is a high-efficiency motor built for RC racing and long-range drone applications. Continuing Tarot’s legacy of reliable and performance-driven motors, this model ensures extended lifespan, low power consumption, minimal noise, and smooth, stable control.
With a 19mm mounting hole pattern, it offers broad compatibility across many popular drone frames, making it a versatile choice for both hobbyists and professionals seeking dependable motor performance.
Tl1616 Brushless Motor – Features:
- 900KV Rating: Suitable for various RC and drone applications.
- Brushless Design: Ensures higher efficiency, less wear, and longer life.
- High Efficiency: Delivers maximum power output with minimal energy loss.
- Low Power Consumption: Helps extend flight or operating duration.
- Low Noise: Provides quieter operation with reduced vibration.
- Stable Control: Guarantees smooth, consistent performance in all conditions.
- 19mm Mounting Holes: Compatible with mainstream drone frames.
- Long Lifespan: Built for durability and extended service life.
Specifications:
| Model No. | TL1616 |
|---|---|
| Magnets | 12N14P |
| Motor Shaft (mm) | 5 |
| Pulling Force (g) | 4080 |
| Peak Current (A) | 60-80 |
| Max. Power | 1592 |
| Additional Specs. | Maximum pulling force:4080g, Recommended propeller:9-10 inch, Silicone wire:16 AWG 300mm, Support lithium battery knots:6S |

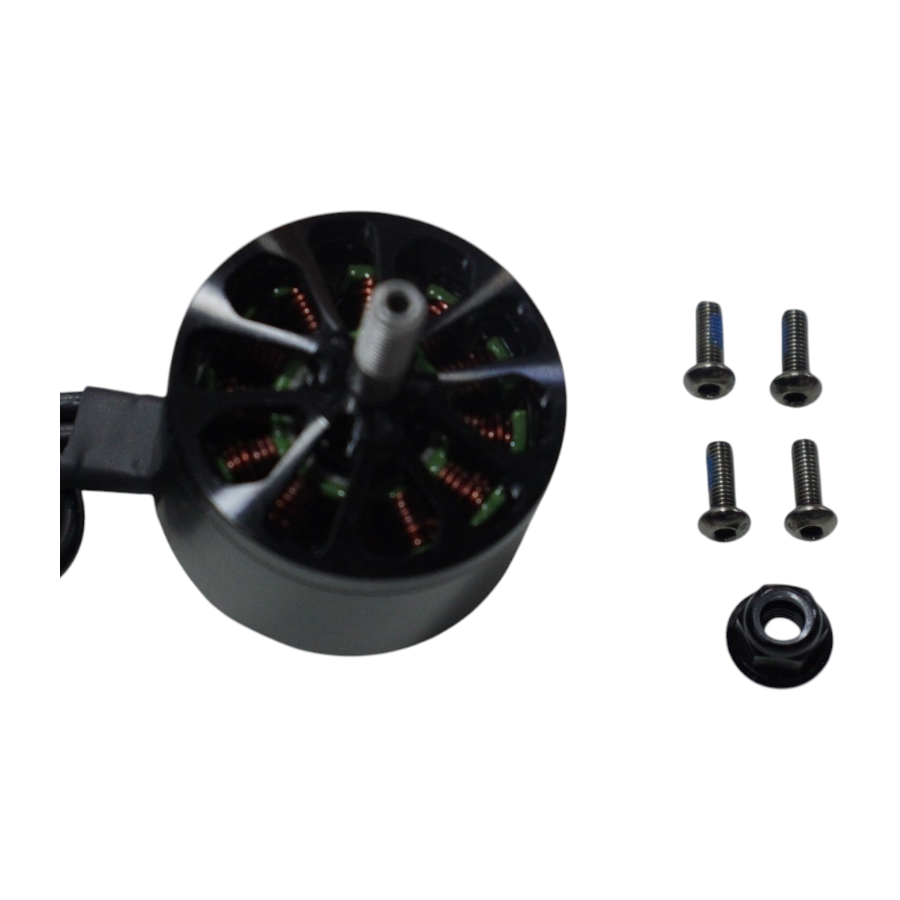

Package Includes(Tarot Brushless Motor/Long Life High Efficiency/FPV Racing Motor/3115/900KV TL1616):
- 1 x 3115 Brushless Motor / 900KV
- 4 x Cup Head Screws (M3×8mm)
- 1 x Aluminum Lock Nut (M5)
Tarot Brushless Motor/Long Life High Efficiency/FPV Racing Overview
The Tarot 3115/900KV TL1616 is a high-performance brushless motor designed specifically for FPV racing and long-range drone applications. With a focus on efficiency, low noise and long lifespan, it delivers smooth throttle response and reliable thrust for both hobbyists and professional pilots.
Key Features of Tarot Brushless Motor/Long Life High Efficiency/FPV Racing
- 900KV rating optimized for 4S–6S battery setups in racing and freestyle drones
- 3115 stator size providing a balance of torque and RPM for agile flight
- 19 mm mounting hole pattern compatible with most popular 5 inch and 6 inch frames
- High efficiency design minimizes current draw and extends flight time
- Low noise and vibration for stable video capture and comfortable flying
- Fast shipping from Zbotic – order ships within 24 hours with tracking
Applications and Use Cases
- 5 inch FPV racing quads requiring quick throttle response and top-end speed
- Long-range freestyle drones where efficiency and motor longevity matter
- Cinematic rigs needing low-vibration operation for smooth aerial footage
- Mini quads for indoor practice and tight-course flying
- Prototype platforms and custom builds seeking a reliable, versatile motor
How to Use Tarot Brushless Motor/Long Life High Efficiency/FPV Racing
To install the TL1616, secure the motor using M3 screws into the 19 mm holes on your frame, solder the three motor leads to your ESC matching phase colors, then perform ESC calibration. Balance your chosen propeller before flight, configure your flight controller’s motor direction, and you’re ready to enjoy smooth, responsive performance.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What propeller size works best with the TL1616 900KV motor?
The TL1616 pairs optimally with 5″ to 6″ tri-blade or bi-blade props when used on 4S–6S setups, balancing thrust and efficiency for racing and freestyle flight.
Which mounting hardware do I need for installation?
This motor uses a standard 19 mm hole spacing and is secured with M3 screws. Ensure your frame’s motor mount matches this pattern before installation.
Can I use the TL1616 for long-range endurance flights?
Yes. Its high-efficiency windings and low power consumption make it well-suited for long-range and cinematic builds, extending flight times while maintaining stable control.
DJI FPV System: Digital HD Video for Racing Drones
Table of Contents Overview of DJI FPV Video System DJI Air Unit and Vista Components DJI FPV Goggles...
Read More →
Worm Gear Motor Applications: Self-Locking Mechanism Guide
The worm gear motor's self-locking property is one of the most underappreciated features in the robotics and automation...
Read More →
Stepper Motor Max Speed: Calculation & Tuning for Best Performance
One of the most common questions from builders commissioning a new CNC machine, 3D printer, or robot is:...
Read More →Technical Specifications
| Brand | Tarot |
|---|---|
| KV Rating | 900KV |
| SKU | AI7347 |
| Weight | 0.169 kg |
| Availability | In Stock |
Applications & Use Cases
The Tarot Brushless Motor/Long Life High Efficiency/FPV Racing Motor/3115/900KV TL1616 is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
Shipping & Delivery
- Free shipping on orders above ₹999 across India
- Dispatched within 1-3 business days
- Expected delivery: 3-7 business days depending on location
- Secure packaging to ensure safe transit of electronic components
- Genuine Tarot product sourced from authorized channels
