This is the Blue variant of the HM-10 BLE Bluetooth 4.0 CC2541 Wireless Module in Bluetooth and NRF Modules. Available at ₹433.06 (₹367.00 + GST) with free shipping across India.
Product Description:

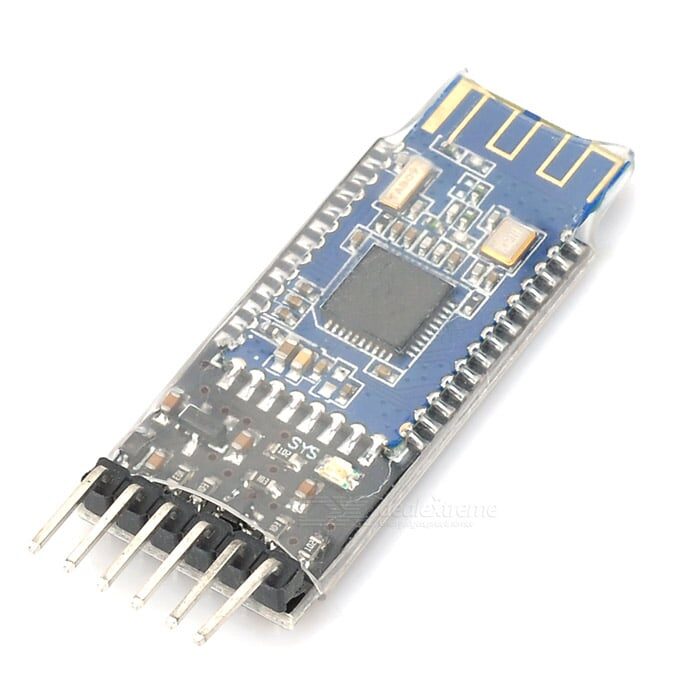

HM-10 BLE Bluetooth 4.0 CC2541 Wireless Module is a BLE module for an embedded system to get BLE wireless communication with BLE capable devices (e.g. Android, iPhone, and iPad).
It is fully configurable by a rich and well documented AT command-set and allows transparent data communication via serial UART (default baud rate 9600bps). The Bluetooth 4.0 HM-10 is basically a breakout board for cc2541, it broke out the LED pins, RX/TX and also adding the voltage regulator that regular 5v to 3.3 v.
HM-10 and HM-11 series Bluetooth module use TI CC2540 chip, configure 256KB space and support the AT command. Users can change the role (master, slave mode) and the serial port baud rate, equipment name, matching password and other parameters on-demand. It is very flexible to use.
Pin Description of HM-10 BLE Bluetooth 4.0 CC2541 Wireless Module
STATE: state test pins, connected to an internal LED, generally keep it unconnected.
BRK: break connect, it means breaking the Bluetooth connection, generally keep it unconnected.
VCC: positive pole of the power source.
GND: Ground.
TXD: serial interface, transmitting terminal.
RXD: serial interface, receiving terminal.
Features :
- It’s easy to use and completely encapsulated.
- You can set it as a slave or master.
- You can use the AT command set the baud rate.
- Coverage up to 60 meters.
- Built-in PCB antenna.
- UART design.
- Support bridge direct-driven mode simultaneously (no need for extra CPU).
- 20ms connection interval (default), quick to connect; Support AT instruction, to modify the baud rate of the serial port, gain MAC address and modify module name.
- Support AT instruction, to adjust the Bluetooth connection interval and control the forwarding rate (dynamic power consumption adjustment).
- Support APP; IO expansion.
- 2 channel ADC input (14 bit).
- 4 channel PWM (120Hz) output.
- The RSSI successive acquisition, auto read, and notification to APP (used in anti-lost alarm).
- Power indicator/alert.
- Support anti-hijack password setup, modification, and restoration.
- Ultra-low power consumption standby mode.
Package Includes :
1 x HM-10 BLE Bluetooth 4.0 CC2541 Wireless Module.
Arduino Sensor Shield: All-in-One Expansion Board Guide
Every Arduino beginner eventually faces the same frustration: you want to connect three sensors and an actuator, but...
Read More →
Arduino Batch Programming: Flash Multiple Boards Quickly
Table of ContentsIntroductionComponents and Hardware SetupWiring Diagram and ConnectionsComplete Code with ExplanationCustomization and ImprovementsTroubleshooting Common IssuesAdvanced Features and...
Read More →
WS2812B NeoPixel: 60+ LED Strip Projects with FastLED
The WS2812B — sold under the popular NeoPixel brand name — is the LED that changed maker culture...
Read More →Technical Specifications
| Model | HM-10 |
|---|---|
| Interface / Protocol | Bluetooth, BLE |
| Color | Blue |
| SKU | AI2488 |
| Weight | 0.00507 kg |
| Availability | Out of Stock |
Applications & Use Cases
The HM-10 BLE Bluetooth 4.0 CC2541 Wireless Module is a versatile bluetooth and nrf modules used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
