This is the Blue variant of the HC-02 6pin Bluetooth Module Compatible with HC-05 / HC- 06 in Bluetooth and NRF Modules. Available at ₹422.44 (₹358.00 + GST) with free shipping across India.
Looking for Hc-02 Module? HC-02 6pin Bluetooth Module Compatible with HC-05 / HC- 06 is available at Zbotic with fast shipping across India.

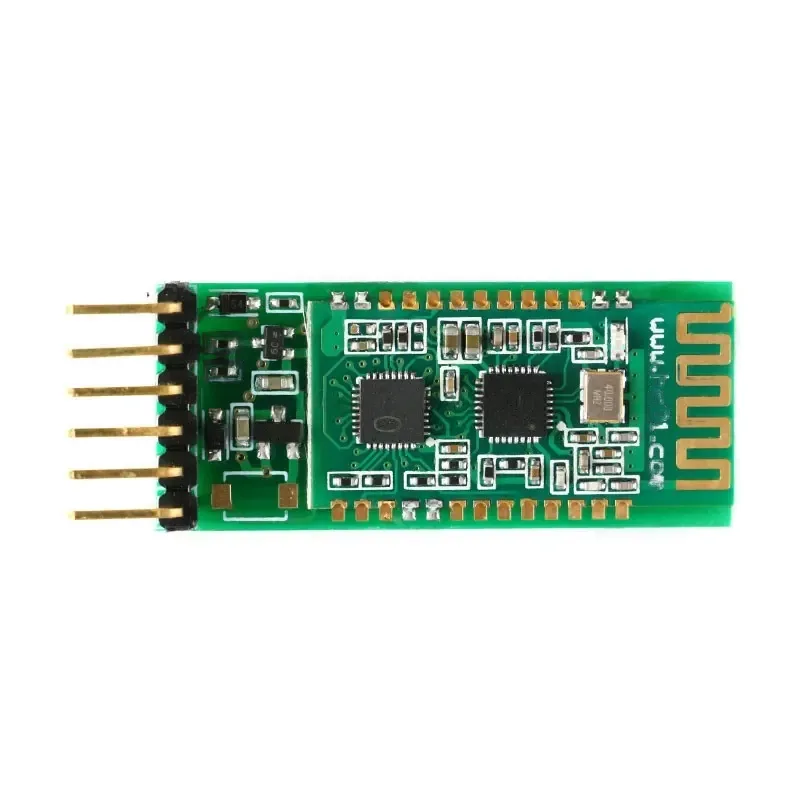

Product Description
HC-02 is a module that transmits data via Bluetooth v2.0 protocol. It offers high stability, ultra-low power consumption, and industrial-grade performance.
The module simplifies wireless communication and transmission algorithms for users. They only need to connect the module to devices using the TTL serial port. The HC-02 slave module can send data to the mobile phone as soon as it is powered on. It can also connect with HC-05 or HC-06 hosts (with a default matching code of 1234) and replace a traditional serial line, reducing wiring work and increasing flexibility.
.

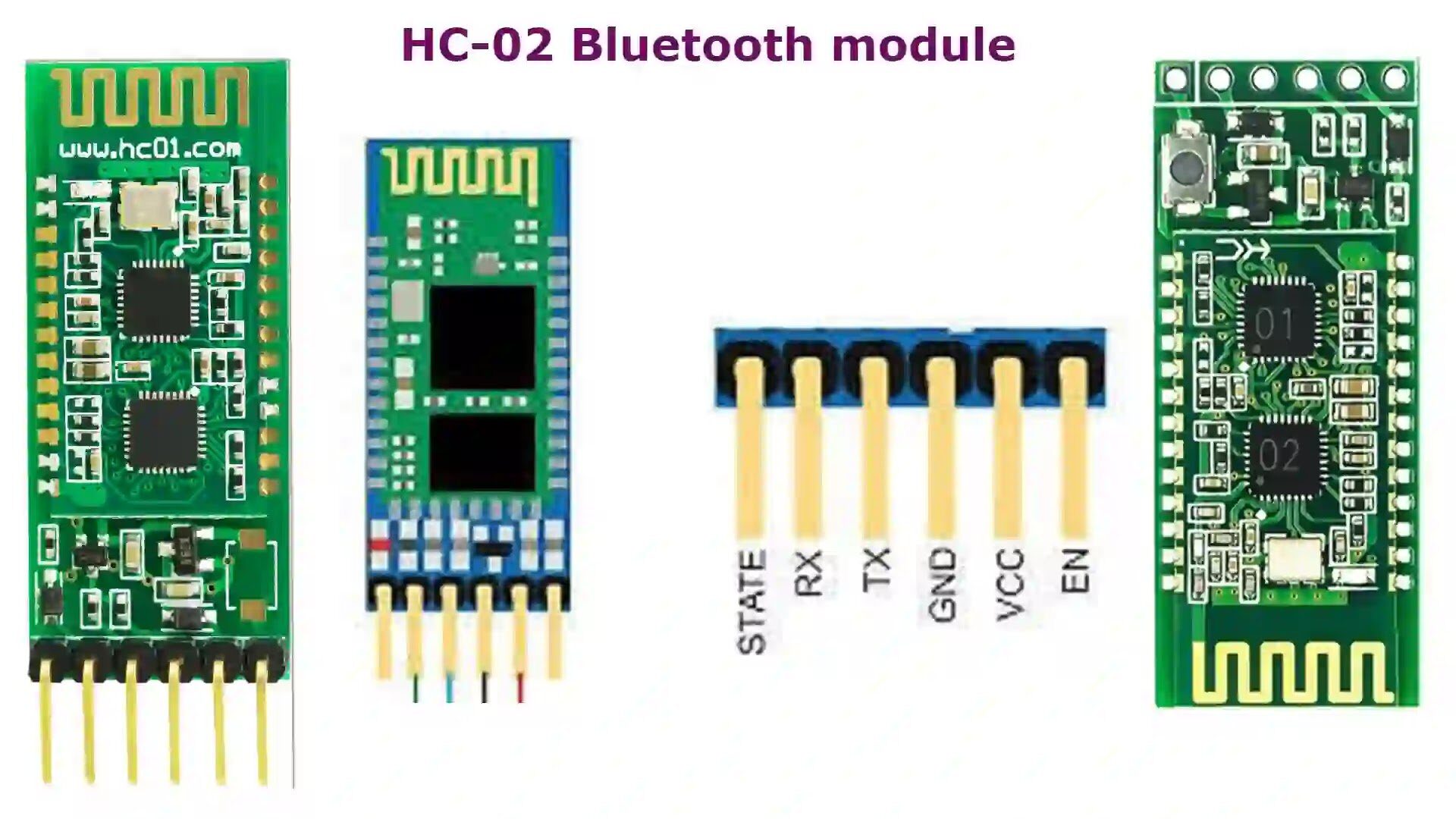

Pinout Diagram:
How to Use the HC-02 Bluetooth module:
The HC-02 has two operating modes, one is the Data mode in which it can send and receive data from other Bluetooth devices and the other is the AT Command mode where the default device settings can be changed. We can operate the device in either of these two modes by using the key pin as explained in the pin description.

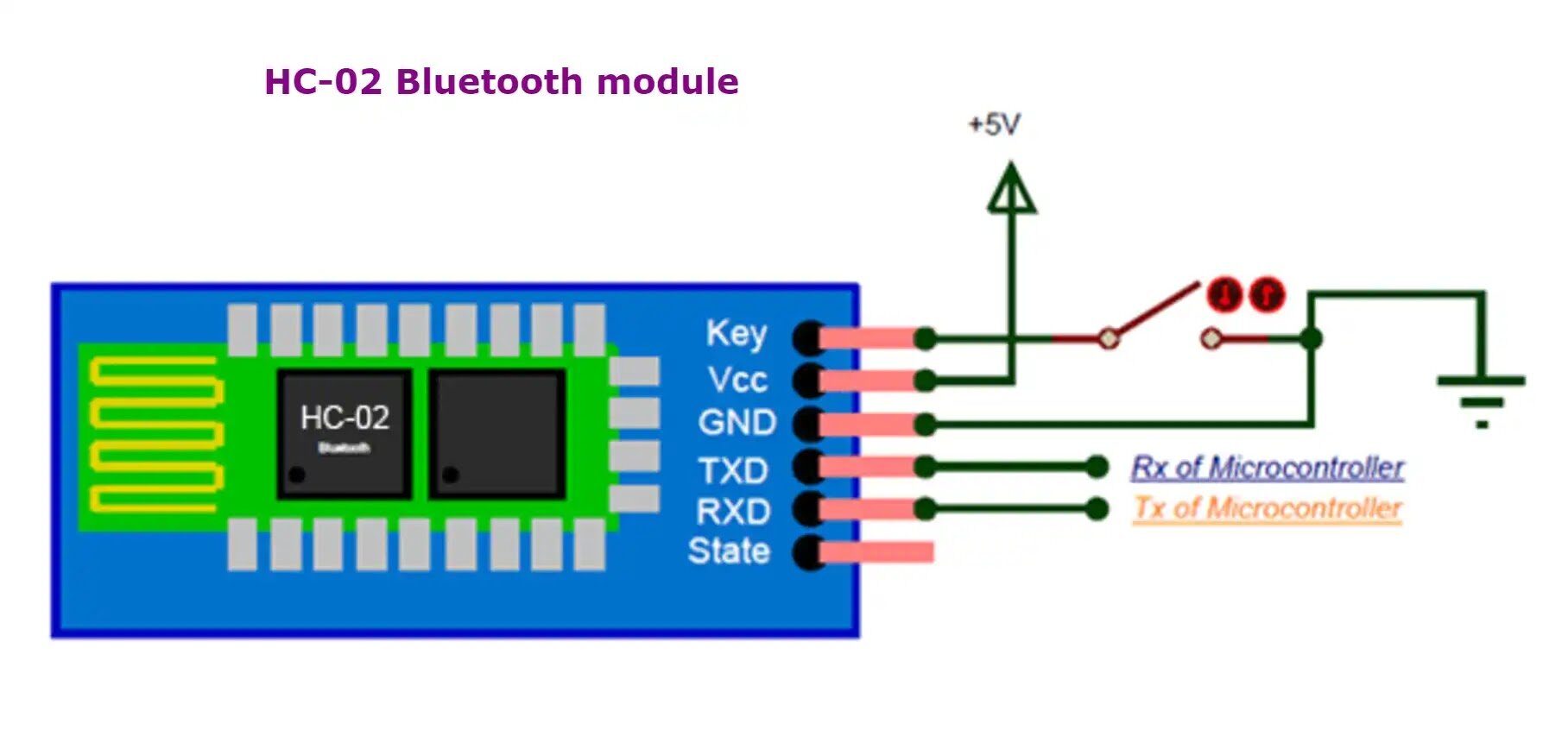

It is very easy to pair the HC-02 module with microcontrollers because it operates using the Serial Port Protocol (SPP). Simply power the module with 5V/ 3.3V and connect the Rx pin of the module to the Tx of MCU and Tx pin of module to Rx of MCU as shown in the figure below
Features
- Support transparent transmitted with iPhone, integrated with the advantage of Bluetooth 4.0 BLE (Support iPhone 4s version above, cannot connect with the phone’s Bluetooth directly, need a BLE Bluetooth serial port assistant)
- Compatible with HC-05 and HC-06 Bluetooth serial port module, Bluetooth 2.0 with EDR, 2 MBPS – 3 MBPS modulation
- Built-in 2.4 GHz antennas, users need to debug the antenna
- Support transparent transmitted with Android smartphone and notebook computer
- Support transparent transmitted with desktop computer via HC-06-USB
Specification-
| Model | HC-02 |
|---|---|
| Working Frequency | 2.4G |
| Communication Interface | UA pin 3.3V TTL level |
| Input Voltage | 3.2 ~ 6V |
| Operating Voltage | 3.0 ~ 3.6V |
| RSSI Support | not support |
| Communication Level | 3.3V |
| Transmitted Power | 6dBm (max) |
| Reference Distance | 10m |
| Air Data Rate | 2Mbps |
| Antenna Interface | Internal PCB antenna |
| Communication Current | 30mA |
| Receiving Sensitivity | -85dBm @ 2Mbps |
| Work Humidity | 10% ~ 90% |
| Work Temperature | -25°C ~ 75°C |
| Storage Temperature | -40°C ~ + 85°C |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 6 × 5 × 1 cm |
Package Includes:
1 x HC-02 6pin Bluetooth Module Compatible with HC-05 / HC- 06

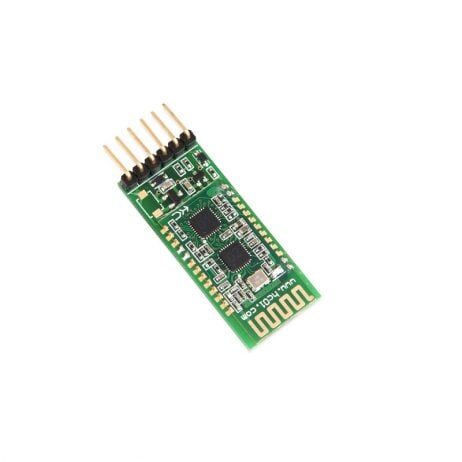

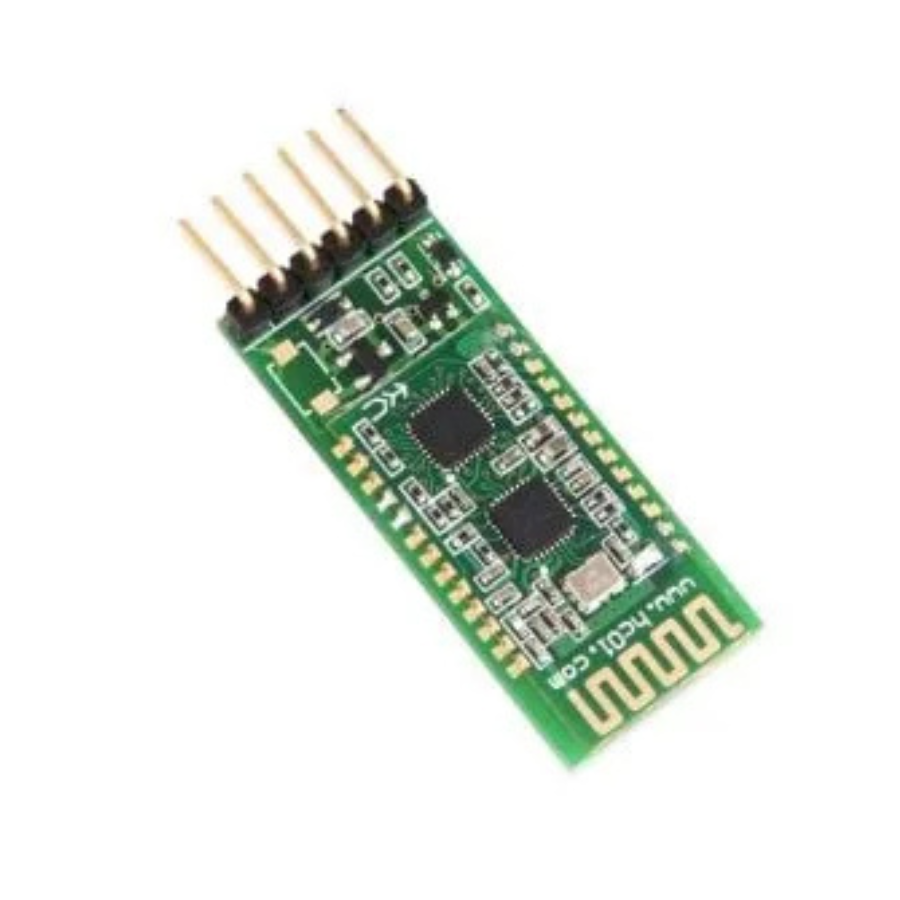

HC-02 6pin Bluetooth Module Compatible with HC-05 / HC- 06 Overview
The HC-02 6pin Bluetooth Module is a Bluetooth v2.0 slave device designed to replace traditional serial cables with a wireless link. It offers plug-and-play TTL-level communication, enabling data transmission over up to 10 meters and seamless pairing with HC-05 or HC-06 hosts using the default code “1234.”
Key Features of HC-02 6pin Bluetooth Module Compatible with HC-05 / HC- 06
- Working Frequency: 2.4 GHz Bluetooth v2.0 protocol for stable connections
- 3.3 V TTL Serial Interface: Direct UART communication at 3.3 V logic level
- Wide Input Range: Operates from 3.2 V to 6 V, with a regulated 3.0 V–3.6 V core voltage
- High Data Rate: Up to 2 Mbps air data throughput
- Max Transmit Power: 6 dBm for reliable links over 10 m in open space
- Ultra-Low Power & Industrial Grade: Optimized for battery-powered and embedded applications
- Genuine Product & Fast Shipping from Zbotic across India
Applications and Use Cases
- Wireless serial communication between Arduino, Raspberry Pi, ESP8266 and PCs
- Replacing RS232/TTL cables in industrial control systems and PLCs
- Remote data logging for environmental sensors and telemetry devices
- Home automation interfaces—smart lighting, security panels, HVAC control
- Robotics telemetry link for motor controllers and sensor arrays
- Wearable and battery-powered gadgets requiring low-power wireless links
How to Use HC-02 6pin Bluetooth Module Compatible with HC-05 / HC- 06
Connect VCC to your 3.3 V–6 V supply and GND to ground, then wire TX of the module to the RX pin of your host controller and RX to TX. Power on the module—it will auto-enter pairing mode with passcode “1234.” After pairing with an HC-05/HC-06 host or smartphone, simply send and receive data over the UART serial link at 3.3 V logic.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How do I pair the HC-02 module with an HC-05 or smartphone?
Power on the HC-02; it enters pairing mode automatically. On your HC-05 host or phone Bluetooth settings, search for “HC02,” enter the default PIN “1234,” and confirm. Once paired, you can exchange data over UART.
What voltage levels are required for TX/RX pins?
The HC-02 uses 3.3 V TTL logic on its TX/RX pins. Ensure your microcontroller’s UART pins are 3.3 V–compatible or use a level shifter if operating at 5 V.
Can the module auto-reconnect after power cycles?
Yes, after the initial pairing with a host device, the HC-02 will automatically reconnect on power-up as long as the host’s Bluetooth is on and within range.
