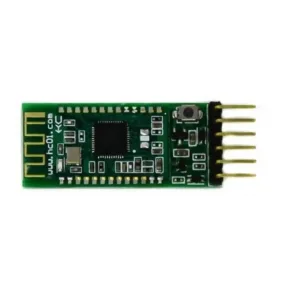

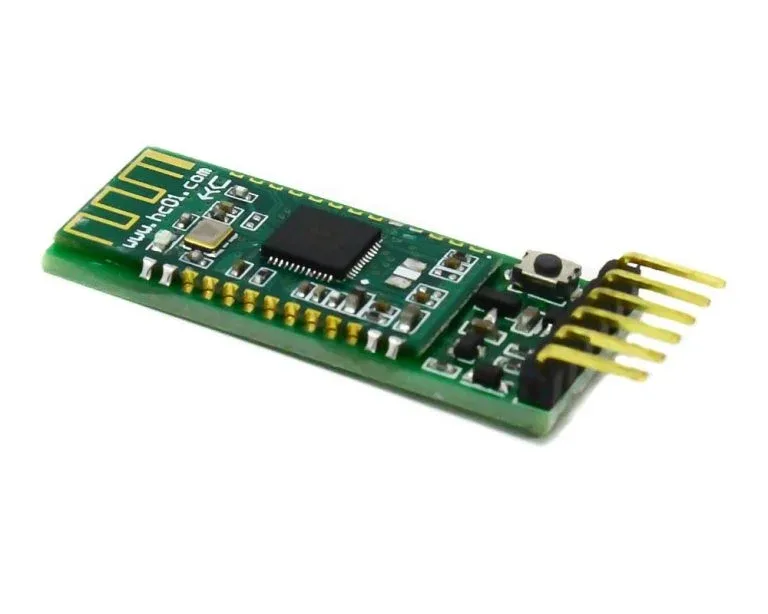

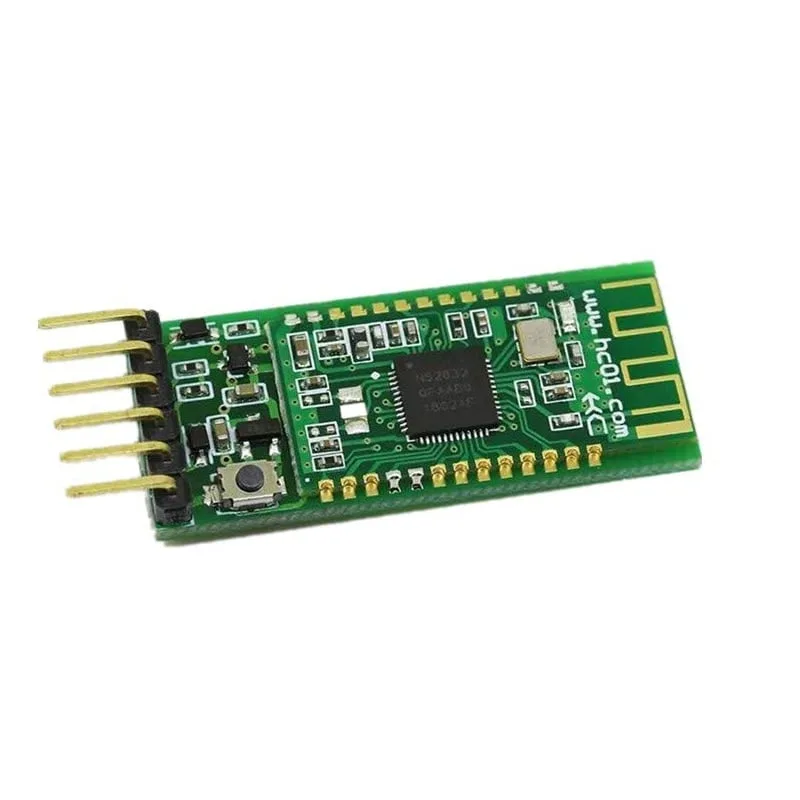

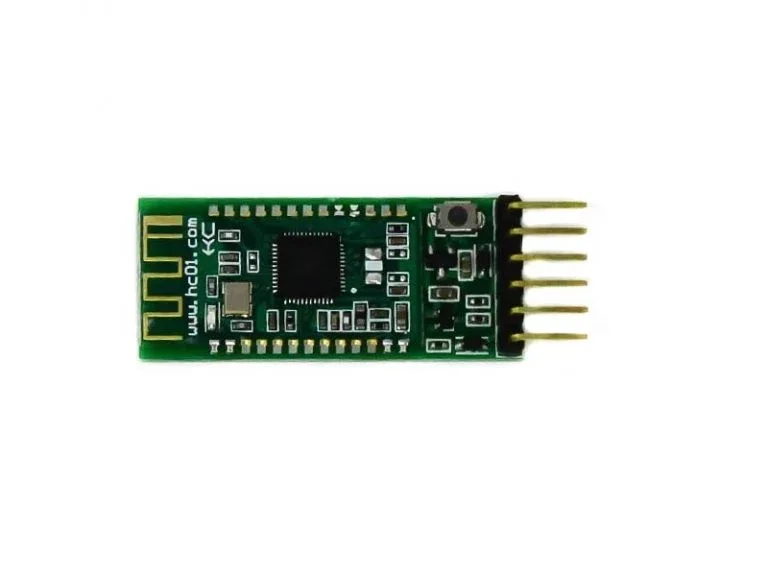

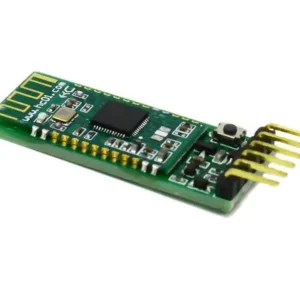

HC-42 6pin Bluetooth 5.0BLE Serial Port Module
Description
The HC-42 6pin Bluetooth 5.0BLE Serial Port Module is a digital transmission module that operates on the Bluetooth BLE V5.0 protocol. It works on the 2.4GHz ISM frequency band and uses GFSK modulation. The module can transmit up to 4dBm and receive signals as low as -96dBm.
The module supports BLE (Bluetooth Low Energy) protocol, which is different from Bluetooth in terms of power consumption and data transfer. Bluetooth uses more power and can handle large amounts of data, while BLE is suitable for transferring small amounts of data quickly between nearby devices. BLE devices can run for years on a small battery, making them ideal for IoT applications.
Note: The product dimensions may have ±2% error. Color also may vary due to light effect.
Specifications :
- Part Number: HC-42D
- Version: BLE 5.0
- Module Size: 37mm *15.6 mm
- Frequency Band: 2.4G
- Air Rate: 1Mbps/2Mbps
- Working Voltage: 1.8~3.6V
- Antenna: PCB internal antenna
- Shutdown Current: 0.3μA
- Communication Interface: UART
- Sensitivity: -96dBm@1Mbps
- Level: 1.8~3.6V，Same to Working Voltage
- Working Humidity: 10％~90％
- Transmit Power: -40~4dBm
- Storage Temperature: -40℃~ 85℃
- Reference Distance: 40m/2Mbps（BLE 5.0）
- Working Temperature: -25℃~ 75℃
User Manual:
Package Includes :
1 x HC-42 6pin Bluetooth 5.0BLE Serial Port Module.
HC-42 6pin Bluetooth 5.0BLE Serial Port Module Overview
The HC-42 6pin Bluetooth 5.0BLE Serial Port Module is a compact wireless transceiver designed for low-power serial data communication over the BLE V5.0 protocol. It provides a simple UART interface for microcontrollers and embedded devices to exchange data with smartphones, tablets or gateways in the 2.4 GHz ISM band.
Key Features of HC-42 6pin Bluetooth 5.0BLE Serial Port Module
- Bluetooth Low Energy V5.0 protocol with GFSK modulation for efficient, low-latency links
- Air data rates of 1 Mbps and 2 Mbps, reference range up to 40 m at 2 Mbps
- Transmit power up to +4 dBm and receive sensitivity down to –96 dBm
- Wide operating voltage: 1.8 V to 3.6 V and ultra-low shutdown current of 0.3 µA
- Built-in PCB antenna and industrial temperature range (–25 °C to +75 °C)
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- Wireless data link for Arduino, ESP32 or STM32 projects via UART serial port
- Remote sensor monitoring in home automation and environmental sensing
- Telemetry and control for robotics, drones or RC vehicles
- Wearable devices communicating real-time data to mobile apps
- Industrial data loggers and portable measurement instruments
- Prototyping BLE-based serial interfaces for proof-of-concept designs
How to Use HC-42 6pin Bluetooth 5.0BLE Serial Port Module
Begin by wiring the six pins: connect VCC (1.8–3.6 V) and GND to your power source, then link TXD and RXD to your microcontroller’s RX and TX pins (use matching voltage levels). Power on the module, pair it with a BLE host, and send or receive data transparently over UART at the selected air rate. For configuration, issue AT commands over the serial link or adjust parameters via your BLE master device.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
Can the HC-42 module work with 3.3V microcontrollers?
Yes. The HC-42 operates between 1.8 V and 3.6 V, making it directly compatible with 3.3 V logic levels used by most modern microcontrollers like Arduino Pro, ESP32 and STM32 boards.
What is the maximum reliable communication distance?
Under open-field conditions at 2 Mbps, you can expect up to 40 m of range. Indoors or with obstacles, actual reliable distance may vary but typically remains suitable for room-to-room links.
Does the HC-42 support transparent UART communication?
Yes. Once paired, the HC-42 operates as a transparent serial bridge: any bytes sent to its TXD pin are transmitted over BLE and delivered to the remote RXD pin, with no additional framing required.
