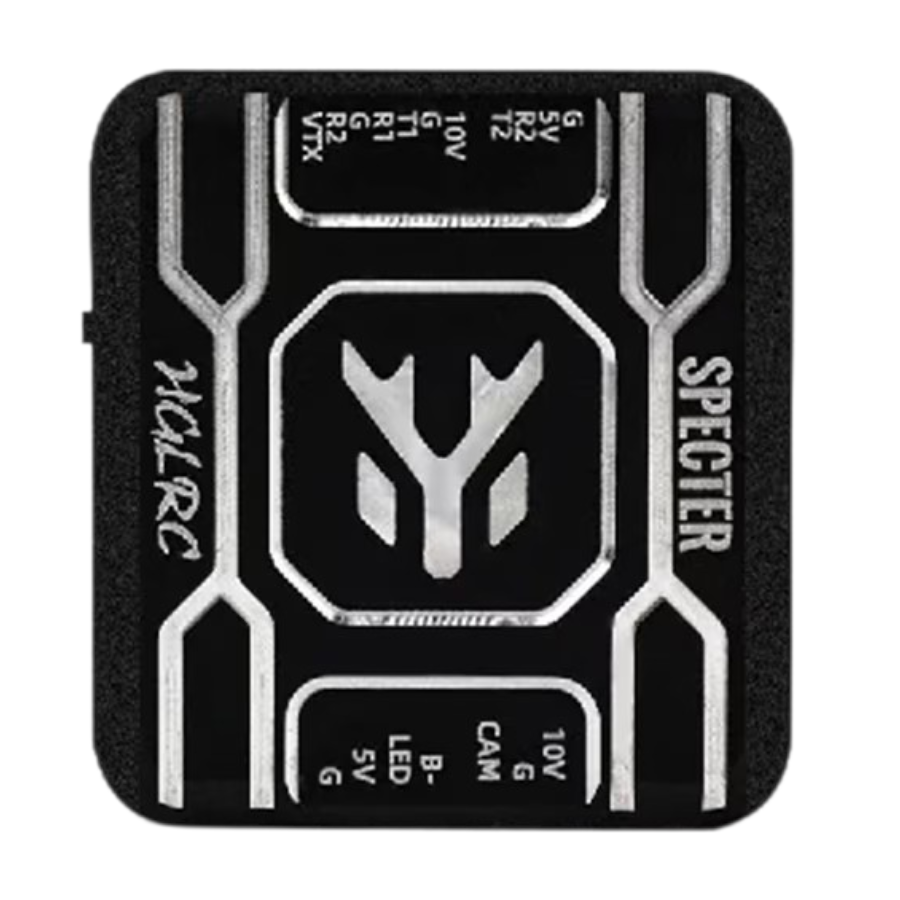

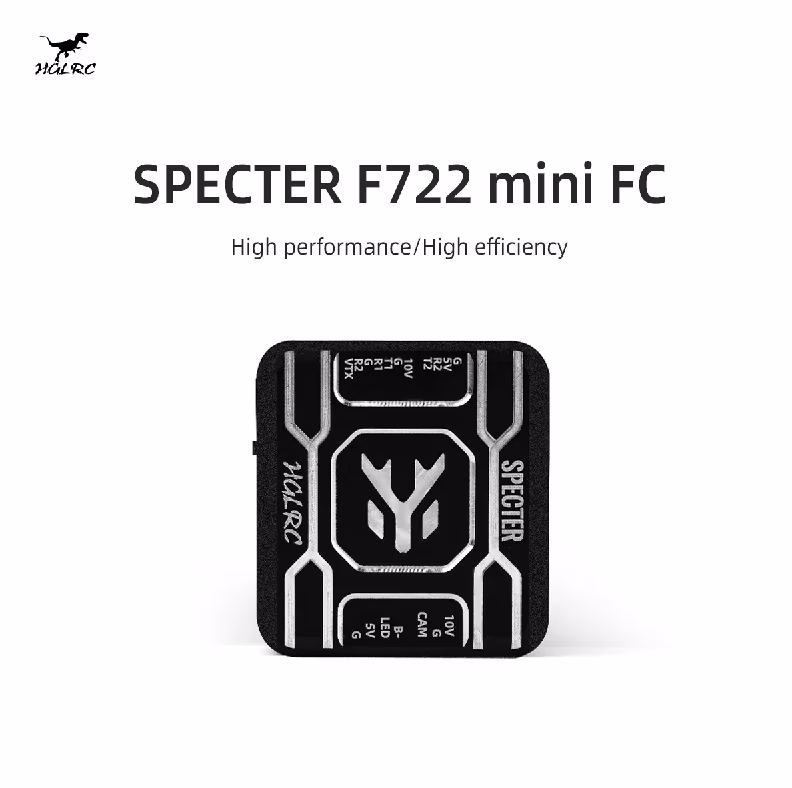

HGLRC SPECTER F722 Mini Flight Controller
Description:
Features:
- The main control adopts STM32F722 high-performance processor, with a computing speed of up to 216 MHz, providing smoother control, better hand feel, and faster response speed.
- The flight control gyroscope uses high-performance MPU6000 to improve the stability of use and reserves 42688 gyroscope pads.
- Full module direct plug-in connection, plug and play, no soldering pads required, achieving modularity.
- Personalized CNC heat sink shell prevents debris from entering the interior of the flight control and improves usage efficiency.
- 16MB large-capacity black box to ensure adequate recording of flight data.
- Integrated BF wireless Bluetooth parameter adjustment, connect to SPeedyBee APP to adjust serial port, PID and other flight control parameters anytime and anywhere.
- Equipped with a 10V electronic switch, the on/off mode can be set through BF, which is convenient for solving the heating problem of long-term power-on
- Nano-scale coating is added to both sides of the board, and its main functions are waterproof, moisture-proof and corrosion-proof.

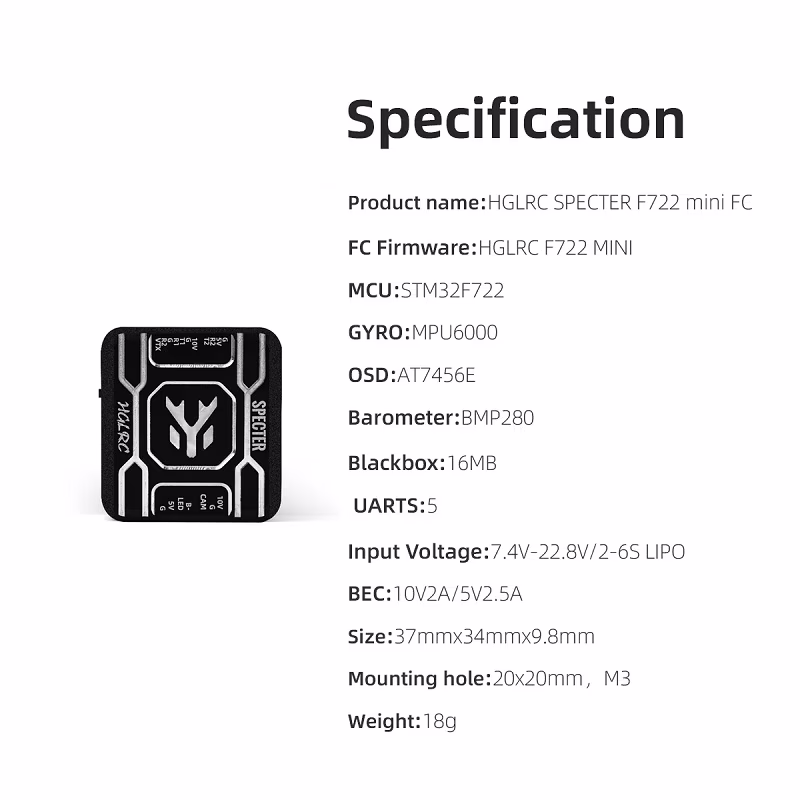

Specifications:
- Flight controller : HGLRC-SPECTER F722 mini flight controller
- Flight control firmware: HGLRCF722 MINI
- MCU: STM32F722
- GYRO：MPU6000
- OSD:AT7456E
- Barometer: BMP280
- Black box: 16MB
- UARTS: 5 groups
- BEC: 10V2A/5V2.5A
- Flight control size: 37mmx34mmx9.8mm
- Installation hole position: 20x20mm, M3
- Weight:18g
Package Includes:
1 x HGLRC SPECTER F722 mini flight controller 1 x 30AWG 25mm double-ended SH1.0-8P cable 1 x 30AWG 70mm single-head SH1.0-7P/single-head SH1.0-6P DJI cable 1 x 30AWG 70mm single-head SH1.0-7P/single-head GH1.25-6P VTX cable 1 x 30AWG 60mm single-head SH1.0-3P/single-head 1.25-3P camera cable 1 x 30AWG 100mm single-head SH1.0-4P receiver cable 4 x M3*20 hexagon socket screws
Drone Photogrammetry: 3D Model from Aerial Photos
Table of Contents Understanding Drone Photogrammetry Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical Tips...
Read More →
PX4 Autopilot: Open-Source Drone Software Guide
Table of Contents What is PX4 Autopilot PX4 vs ArduPilot Comparison Setting Up QGroundControl Supported Flight Controllers Airframe...
Read More →
How to Build a Long Range FPV Wing (DIY Guide India)
How to Build a Long Range FPV Wing (DIY Guide India) Long range FPV fixed wing flying is...
Read More →Technical Specifications
| Brand | HGLRC |
|---|---|
| SKU | AI8181 |
| Weight | 0.065 kg |
| Availability | Out of Stock |
Applications & Use Cases
The HGLRC SPECTER F722 Mini Flight Controller is a versatile flight controller & accessories used across a wide range of applications including autonomous drones, FPV racing quadcopters, agricultural drones, and surveying and mapping platforms.
Common use cases:
- Central brain for drone stabilization and navigation
- GPS waypoint missions for surveying
- Acro mode flying for FPV freestyle
This product is ideal for drone builders requiring precise flight control.
Technical Tip: F4 processors are good for basic builds; F7 or H7 recommended for advanced features. Ensure firmware compatibility (Betaflight, ArduPilot, iNAV).
