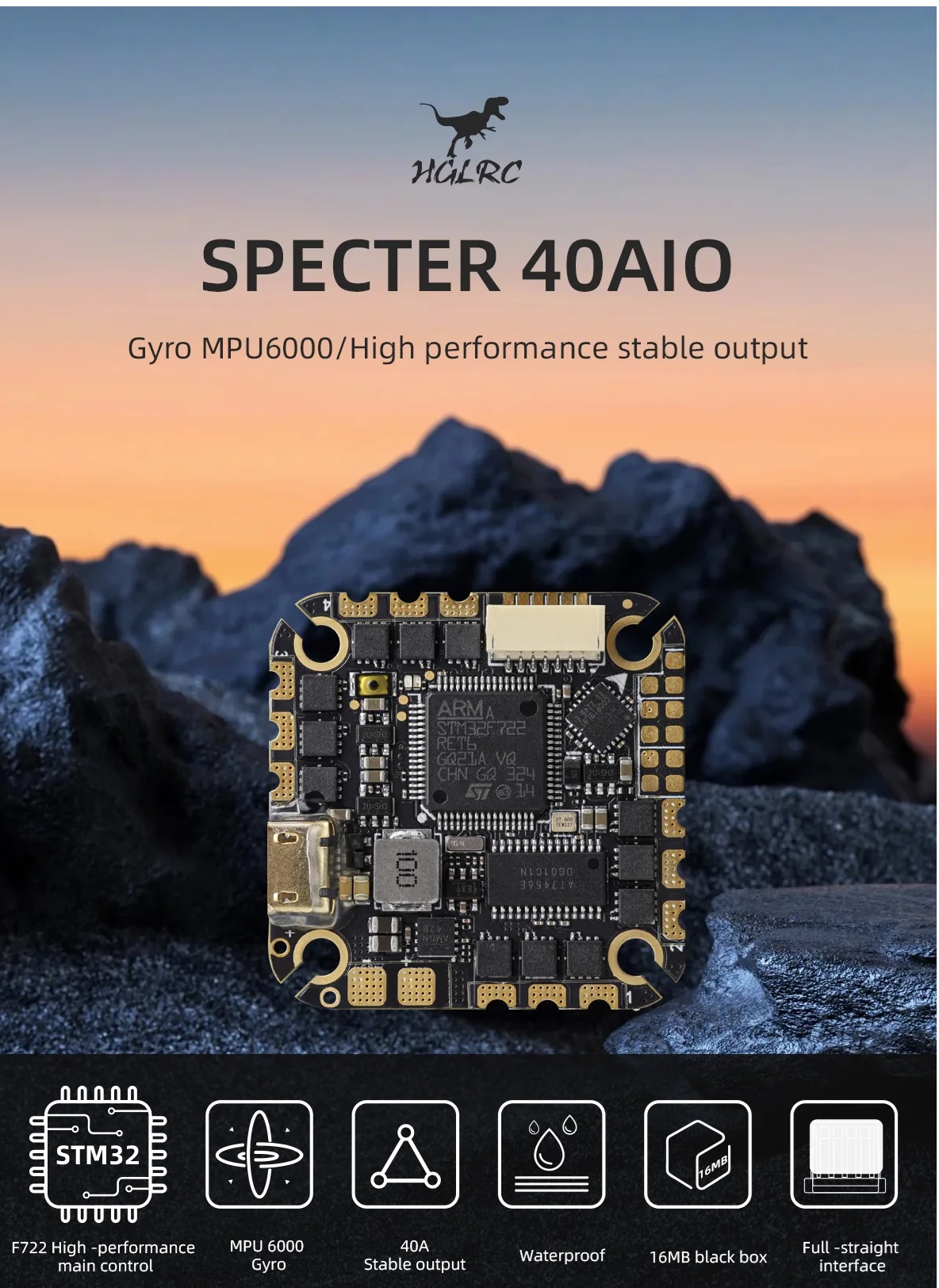

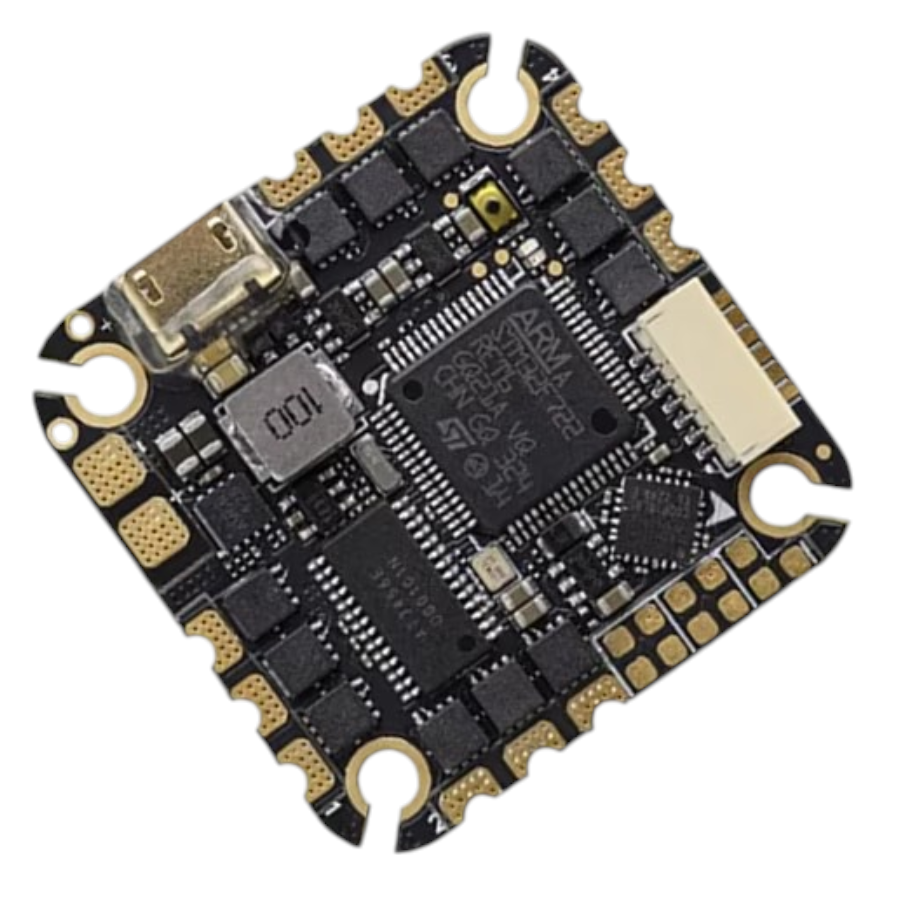

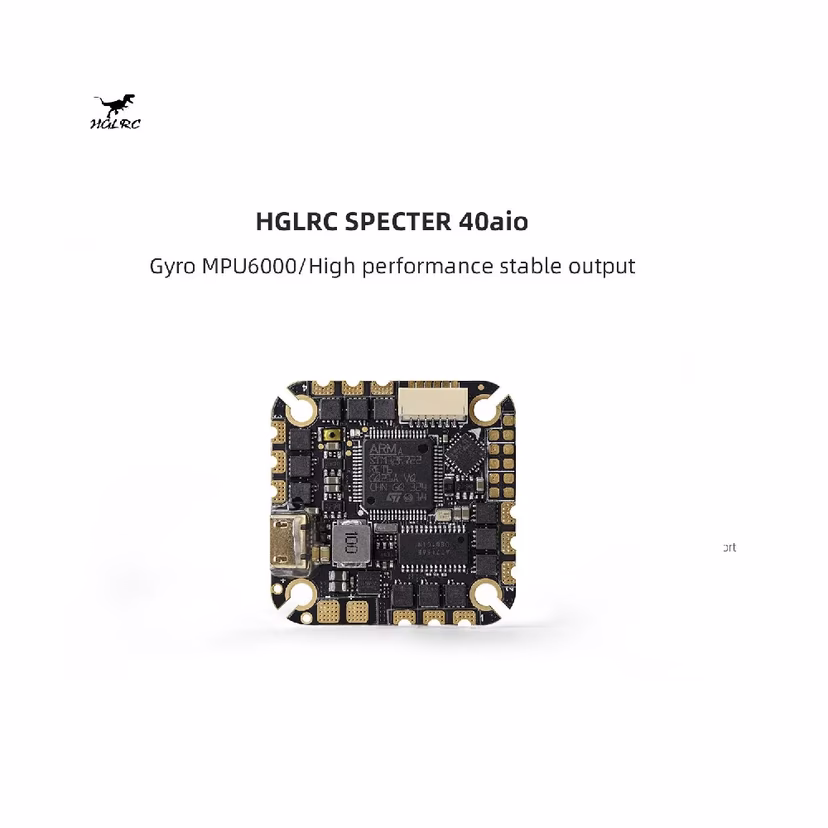

HGLRC SPECTER 40A 4-6s AIO
The flight controller is equipped with STM32 F722 main control and MPU6000 gyroscope, camera, receiver, HD/analog two-in-one direct plug-in interface
Features:
- Equipped with MPU6000 gyroscope
- Camera, receiver, HD/ analog two-in-one direct plug interface
- Support GPS
- Bl firmware is flashed by default, you can flash bluejay by yourself to improve flight efficiency
- Suitable for mainstream 2-4 inch ring machines and toothpick frames
- Supports input voltage up to 4-6s

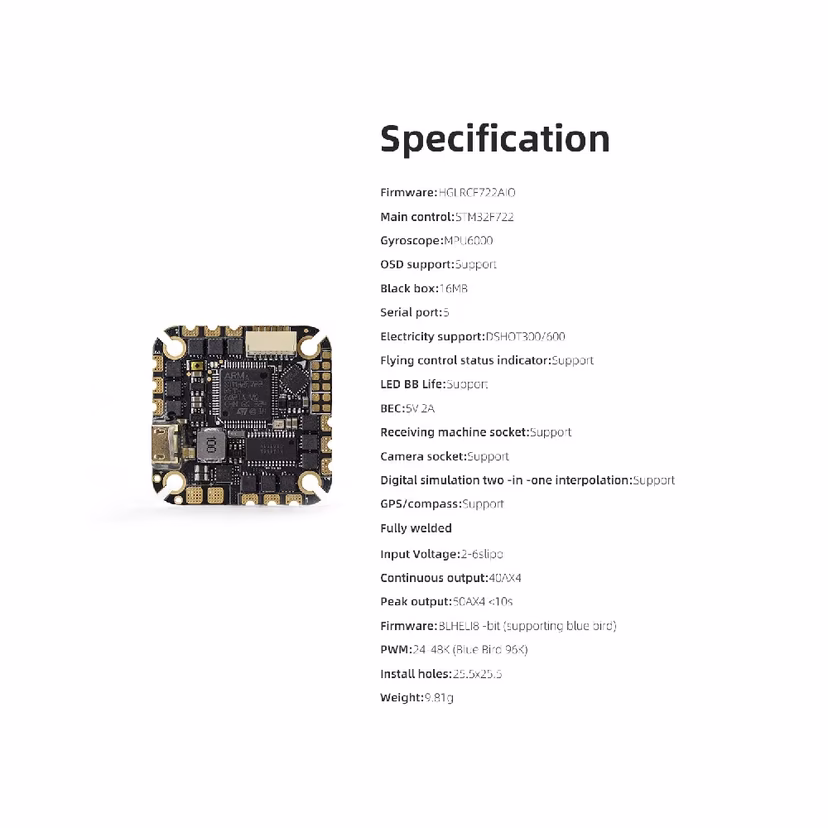

Specifications:
- Product name: SPECTER 40A 4-6S AIO
- MCU: STM32F722
- MPU: MPU6000
- BEC: 5V2A
- OSD: Support
- LED: Support
- Bee Narrator: Support
- Continuous current: 40A
- Peak current: 50A (10S)
- Electrochemical protocol: DSHOT600, Oneshot, Multishot
- Flying control firmware: HGLRCF722AIO
- Electrochemical firmware: BLS (brushing Bluejay 96K)
- Electric: 8 -bit electrical
- Input voltage: 4-6S 14.8V-22.2V (lipo)
- Size: 34x34mm
- Install holes: 25.5×25.5mm.m2
- Weight: 9.8g

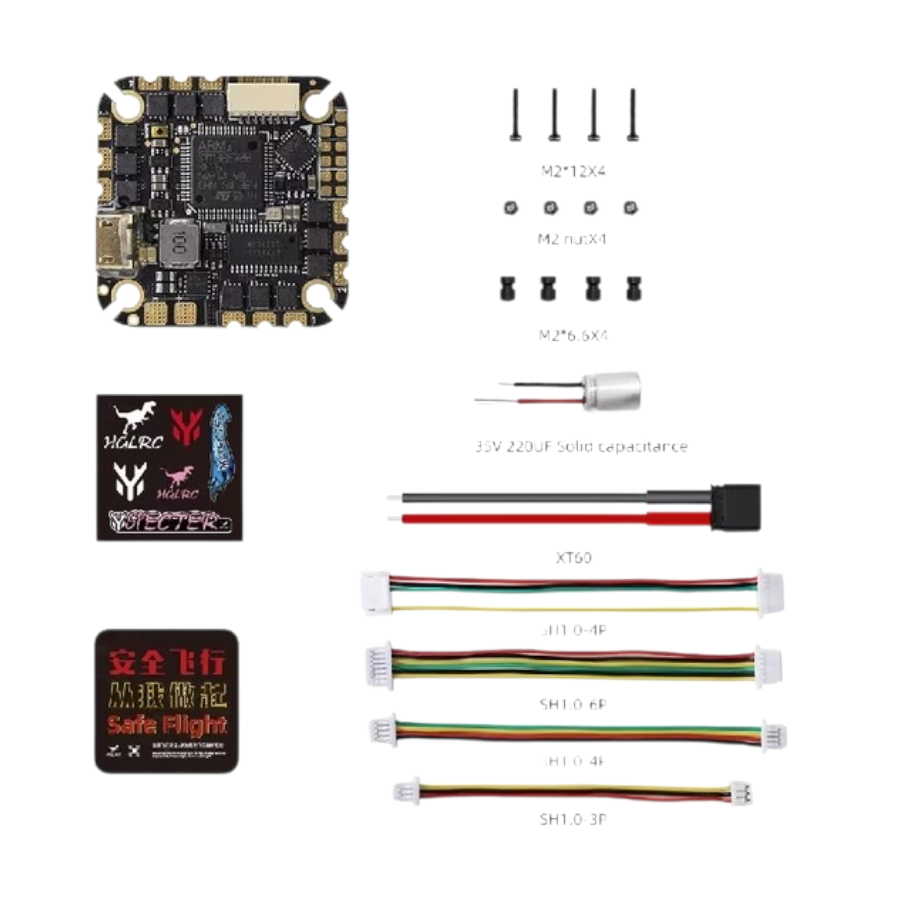

Package Includes:
1 x Specter 40A 4-6S AIO 1 x XT60 16AWG 100MM Gongtou Power Cable 1 x #30AWG, line length 60mm, single head SH1.0-3P/single head SH1.25-3P camera head line 1 x 30AWG, line length 70mm, double head SH1.0-4P receiving machine line 1 x 30AWG line length 70mm, single head SH1.0-7P/single head SH1.0-6p HD map passing line 1 x 30AWG line length 70mm, single head GH1.25-6P/single SH1.0-7P simulation map passing line 4 x m2*6.6 shock reduction column 4 x m2*12 black nickel screws 4 x self -lock M2 nut
How to Build an Agriculture Spray Drone (DIY Guide)
An agriculture spray drone can cover one acre in under 10 minutes, reduce chemical usage by 30–40% through...
Read More →
Drone Blackbox Analysis: Debug Crashes and Tune PIDs
Table of Contents Understanding Drone Blackbox Analysis Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical...
Read More →
ExpressLRS 3.0: New Features and Upgrade Guide
Table of Contents Understanding ExpressLRS 3.0 Key Components and Requirements Step-by-Step Setup Guide Configuration and Optimisation Practical Tips...
Read More →Technical Specifications
| Brand | HGLRC |
|---|---|
| Current Rating | 40A |
| SKU | AI8185 |
| Weight | 0.05 kg |
| Availability | Out of Stock |
Applications & Use Cases
The HGLRC SPECTER 40A 4-6s AIO is a versatile flight controller & accessories used across a wide range of applications including autonomous drones, FPV racing quadcopters, agricultural drones, and surveying and mapping platforms.
Common use cases:
- Central brain for drone stabilization and navigation
- GPS waypoint missions for surveying
- Acro mode flying for FPV freestyle
This product is ideal for drone builders requiring precise flight control.
Technical Tip: F4 processors are good for basic builds; F7 or H7 recommended for advanced features. Ensure firmware compatibility (Betaflight, ArduPilot, iNAV).
