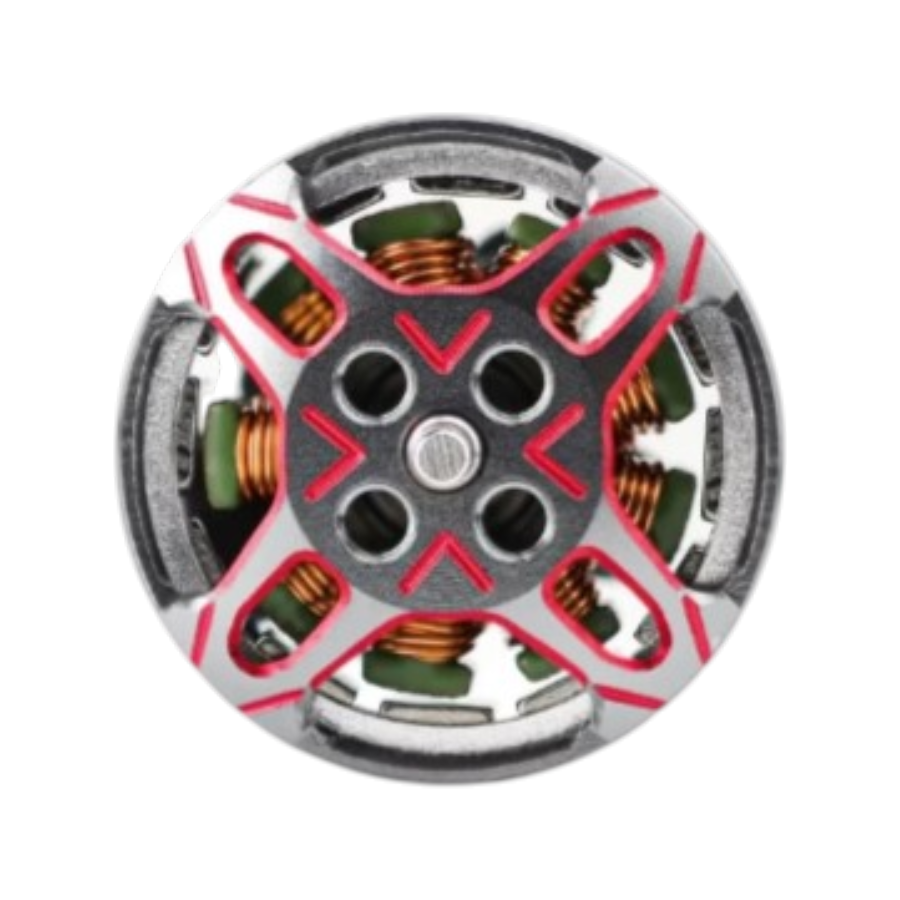

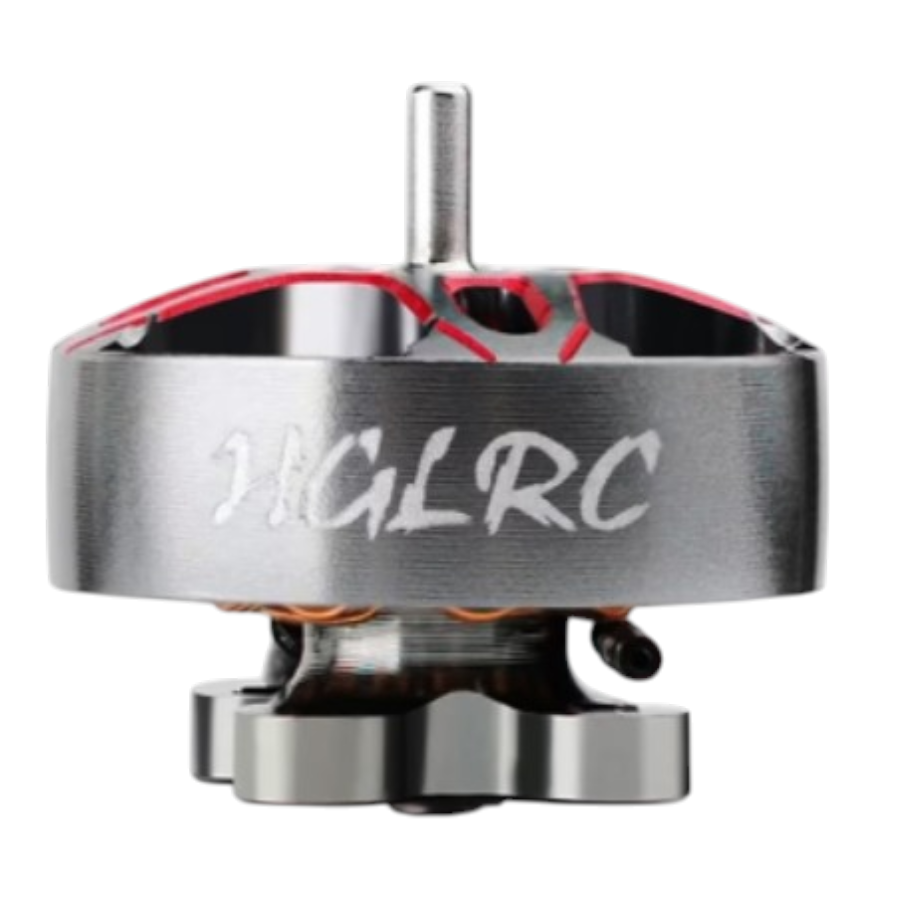

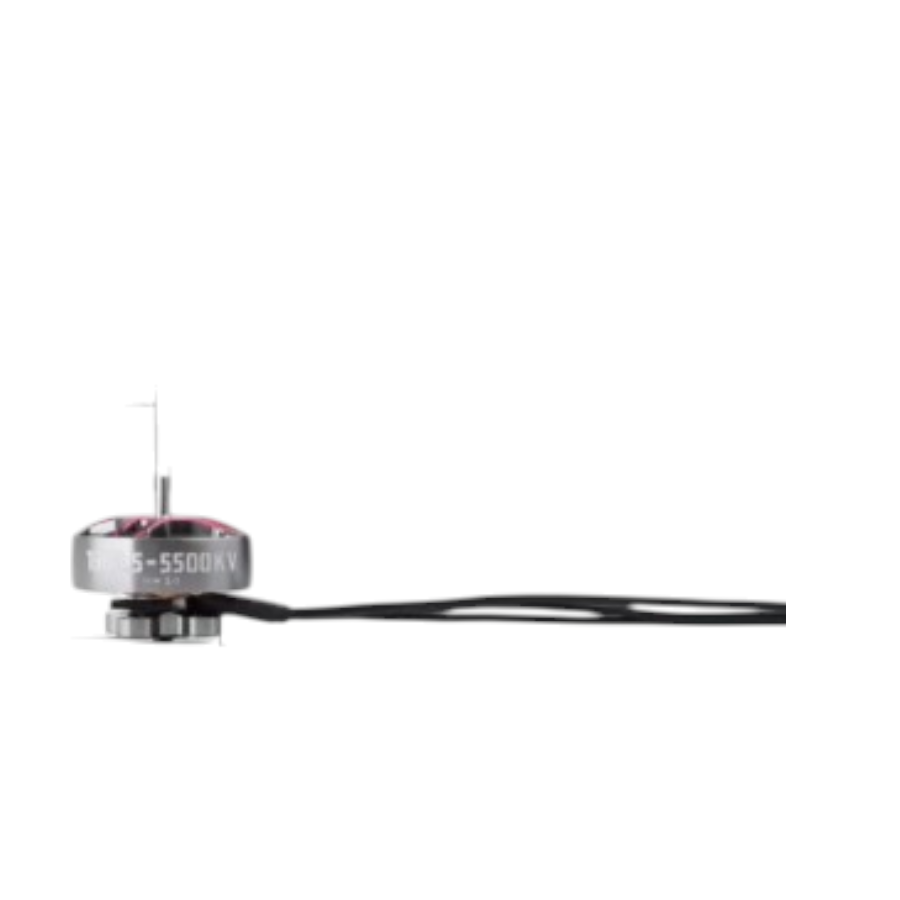

HGLRC SPECTER 1303.5 5500KV brushless motor
Description:
Introducing the SPECTER 1303.5 5500KV Brushless Motor, a powerhouse for micro drones. Its brand-new rotor design, crafted from high-strength 7075 aviation aluminum, features customized N52H magnetic steel for exceptional torque. The 200°C copper wire winding and Kawasaki silicon steel sheets ensure stability and efficiency, while new tuning provides high torque at low speed and precise responses. With an alloy steel outlet shaft, this motor is robust yet lightweight, ideal for 2-2.5 Tiny drones or 2-3 toothpick drones. Weighing 7.15g, it’s a compact solution for dynamic flight experiences
Features:
- Brand new rotor appearance design, anodized two-color process.
- 7075 aviation aluminum material, high-strength one-piece rotor.
- Customized N52H curved magnetic steel, strong magnetism, high torque.
- Super high temperature resistant 200° copper wire winding, the motor runs more stably.
- Imported Kawasaki silicon steel sheets, low loss stator, reduce heat generation and improve efficiency.
- New and optimized tuning, maintain high torque at low speed, linear power output when the throttle changes rapidly, and precise and fast response when turning.
- Alloy Steel Outlet Shaft, high strength and reduce the weight of the fuselage.
- Suitable for 2-2.5 Tiny drone or 2-3 toothpick drone.
Specification:
| Motor KV (RPM/V): | 5500 |
| Motor Type: | Brushless Motor |
| Maximum current(A) | 8.9 |
| Max. Power (W) | 130 |
| Input Voltage (V): | 2-4s |
| Compatible Prop (inch): | 02-04″ |
| Motor Body Diameter (mm) | 17.53 x 11.7 |
| Motor Mount Hole Dia. (mm) | 4*M2-∅9 |
Package Includes:
1 x HGLRC SPECTER 1303.5 5500KV brushless motor 4 x M2x5mm screws 2 x M2x7mm screws
Drone Propeller Guard Design: 3D Print Safety Frames
Table of ContentsWhy Propeller Guards Matter for Indian Drone BuildersPropeller Guard Design BasicsBest 3D Printing Materials for Propeller...
Read More →
DRV8825 vs A4988: Which Stepper Driver Should You Buy?
Table of Contents Quick Overview: DRV8825 vs A4988 Detailed Specifications Comparison Microstepping: 1/32 vs 1/16 Current Rating &...
Read More →
Drone Return to Home (RTH): Setup, Modes & Troubleshooting
Drone Return to Home (RTH): Setup, Modes & Troubleshooting Return to Home (RTH) is arguably the most important...
Read More →Technical Specifications
| Brand | HGLRC |
|---|---|
| KV Rating | 5500KV |
| SKU | AI8238 |
| Weight | 0.0156 kg |
| Availability | In Stock |
Applications & Use Cases
The HGLRC SPECTER 1303.5 5500KV brushless motor is a versatile drone motor used across a wide range of applications including FPV racing drones, agricultural spray drones, aerial photography platforms, and custom multirotor builds.
Common use cases:
- Replacement motor for crashed or worn-out drone
- Building a custom quadcopter or hexacopter from scratch
- Upgrading to a more efficient motor for longer flight times
This product is ideal for drone builders, FPV pilots, and agricultural drone operators.
Technical Tip: When selecting a drone motor, match the KV rating to your propeller size and battery voltage. Lower KV = larger props + more efficiency; higher KV = smaller props + more speed.
