HENGE 8A UBEC
When using a lithium battery pack of more than 3S, a switch‐mode BEC has much higher efficiency with lower heat. For a traditional linear BEC, For example, a 4S lithium battery pack has a typical voltage of 14.8V, in order to let BEC output 5V/1A, the current flow into the BEC is at least 1A, so the power on BEC is 14.8V* 1A=14.8W. But useful output power is only 5V*1A=5W, so the efficiency of the linear mode BEC is
just 5W/14.8W=33.8%, the redundant power 14.8W‐5W=9.8W changes to heat, which makes the BEC very hot, and makes it enter a protection state, thus unable to work
Features:
- Provide large output current
- Overcurrent and overheat protection function
- The max efficiency of the chip is up to 93%
- The small size and the light weight make it very convenient to use
- Shows the working status with an indicator(LED)
Specification:
| Input Voltage (V) | 7‐25.5V |
|---|---|
| Output Voltage (VDC) | 5V |
| Max. Output Current (A) | 8 |
| Burst output current | 12A (≤15 Sec) |
| Ripples | ＜35mVp‐p(@8A/12V) |
Package Includes:
1 x HENGE 8A UBEC

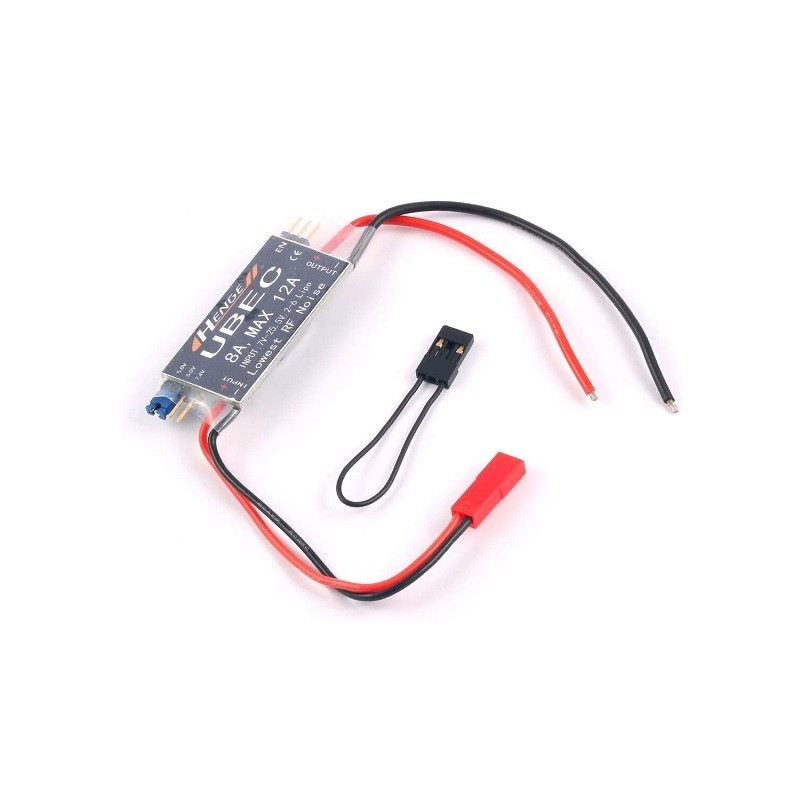

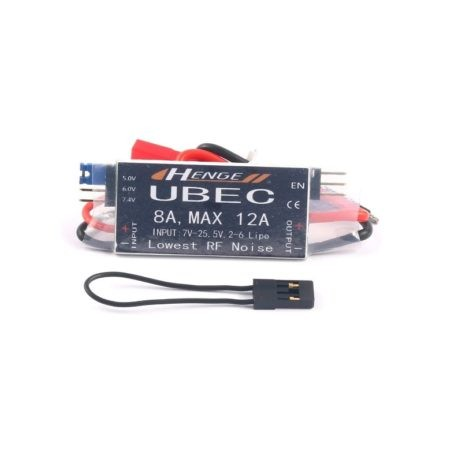

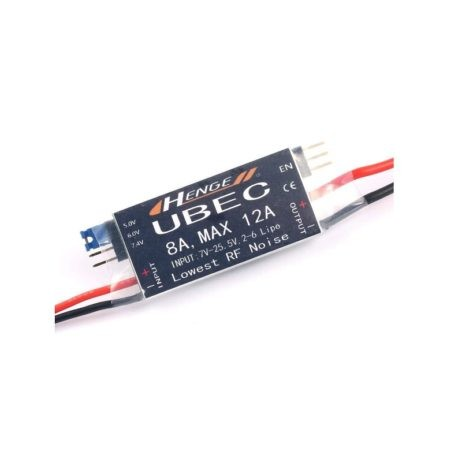

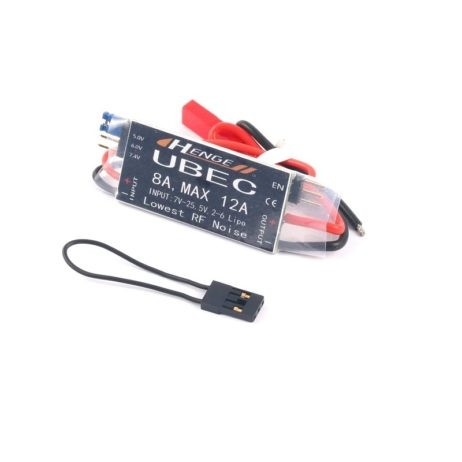

HENGE 8A UBEC Overview
The HENGE 8A UBEC is a switch-mode battery eliminator circuit designed to provide a stable low-voltage supply from high-voltage lithium battery packs above 3S. It delivers up to 8 A of clean power for flight controllers, servos and on-board electronics while minimizing heat and maximizing efficiency.
Key Features of HENGE 8A UBEC
- High output current: delivers up to 8 A continuous for demanding servos and electronics
- Overcurrent & overheat protection: automatically shuts down on overload or excessive temperature
- Up to 93% efficiency: switch-mode design greatly reduces heat compared to linear BECs
- Wide input range: compatible with 3S–6S lithium battery packs
- Compact & lightweight: easy integration into tight drone or RC layouts
- Fast shipping from Zbotic: dispatched within 24 hours for in-stock items
Applications and Use Cases
- Multirotor drones requiring stable 5 V or 6 V rail for flight controllers and telemetry radios
- Fixed-wing RC aircraft powering servos and on-board cameras
- High-torque servo setups in RC cars and boats
- Robotics projects where lightweight, efficient power regulation is critical
- FPV rigs needing reliable voltage for video transmitters and goggles
How to Use HENGE 8A UBEC
Connect the input leads of the HENGE 8A UBEC to your lithium battery pack (3S–6S) observing correct polarity. Route the output leads to your receiver, flight controller or servos. Secure the UBEC in a location with adequate airflow, and verify output voltage with a multimeter before powering sensitive electronics.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the maximum continuous current output of the HENGE 8A UBEC?
The HENGE 8A UBEC provides up to 8 A of continuous current, making it suitable for high-power servos and multiple onboard devices.
What input voltage range does this UBEC support?
This switch-mode UBEC accepts lithium battery packs from 3S (11.1 V) up to 6S (25.2 V), ensuring broad compatibility with common RC power systems.
How do the overcurrent and overheat protections work?
If the load exceeds 8 A or the internal temperature rises too high, the UBEC will automatically shut down output. It will resume normal operation once the excess current is removed or the temperature returns to safe levels.
Drone Build Troubleshooting: Common First-Build Mistakes
Every drone builder faces setbacks during their first build, and effective drone build troubleshooting is a skill that...
Read More →
Racing vs Freestyle vs Photography Drone: Which to Build
Understanding the different types of FPV drones helps you build the right machine for your flying style. Racing,...
Read More →
Drone Gimbal Guide: 2-Axis vs 3-Axis for Aerial Photography
Drone Gimbal Guide: 2-Axis vs 3-Axis for Aerial Photography If you have ever watched buttery-smooth aerial footage from...
Read More →Technical Specifications
| Current Rating | 8A |
|---|---|
| SKU | AI5822 |
| Weight | 0.02781 kg |
| Availability | Out of Stock |
Applications & Use Cases
The HENGE 8A UBEC (ESC) Drone Speed Controller is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
