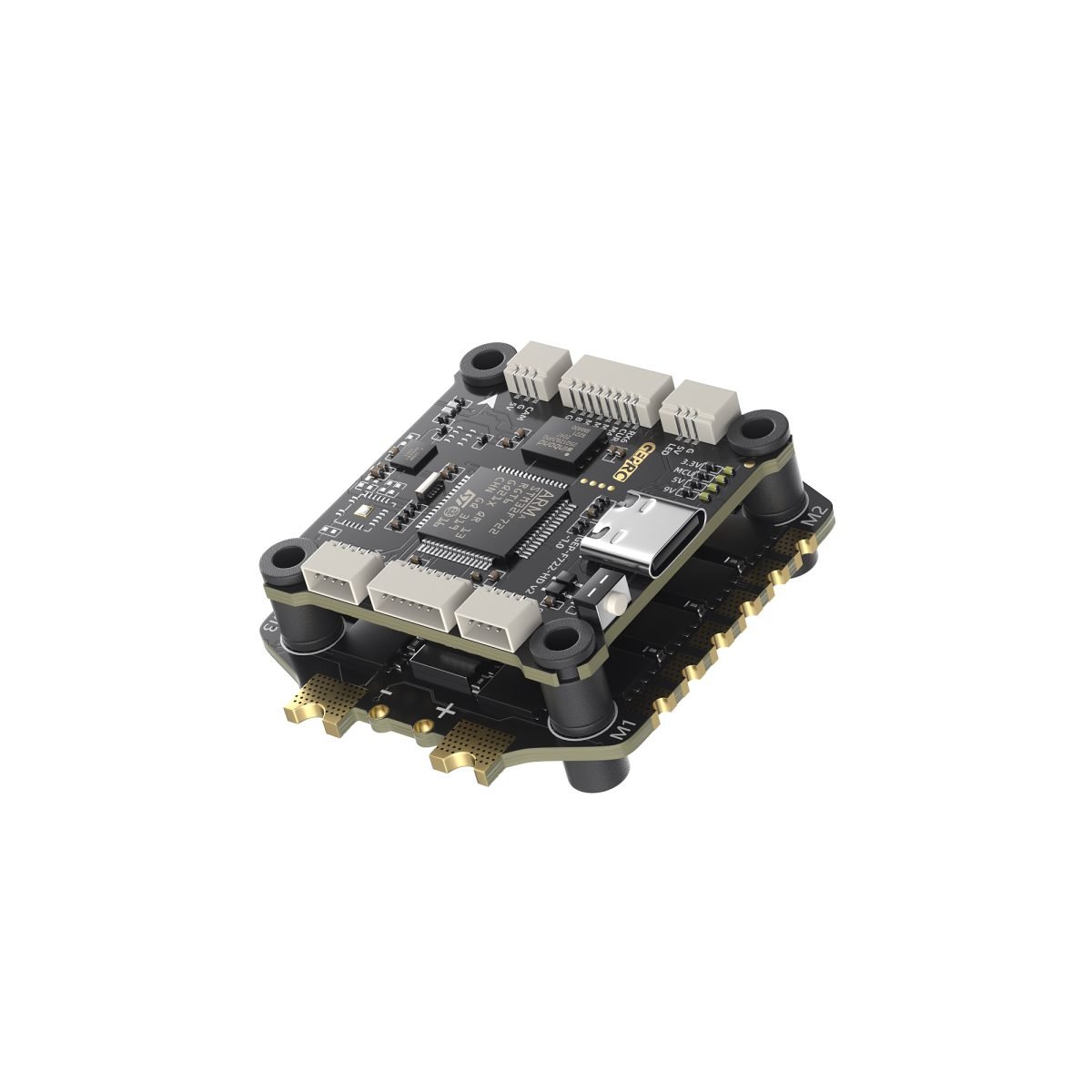

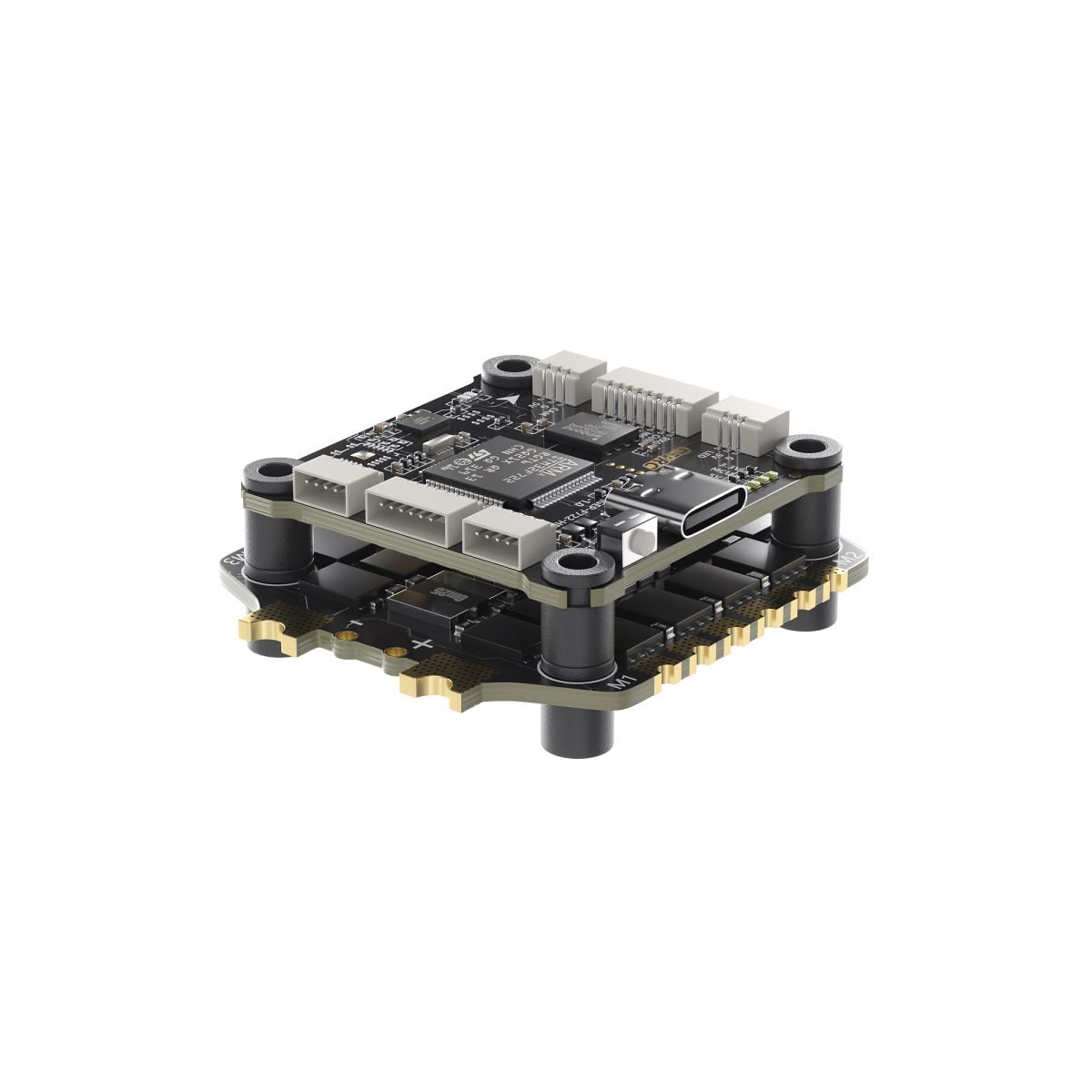

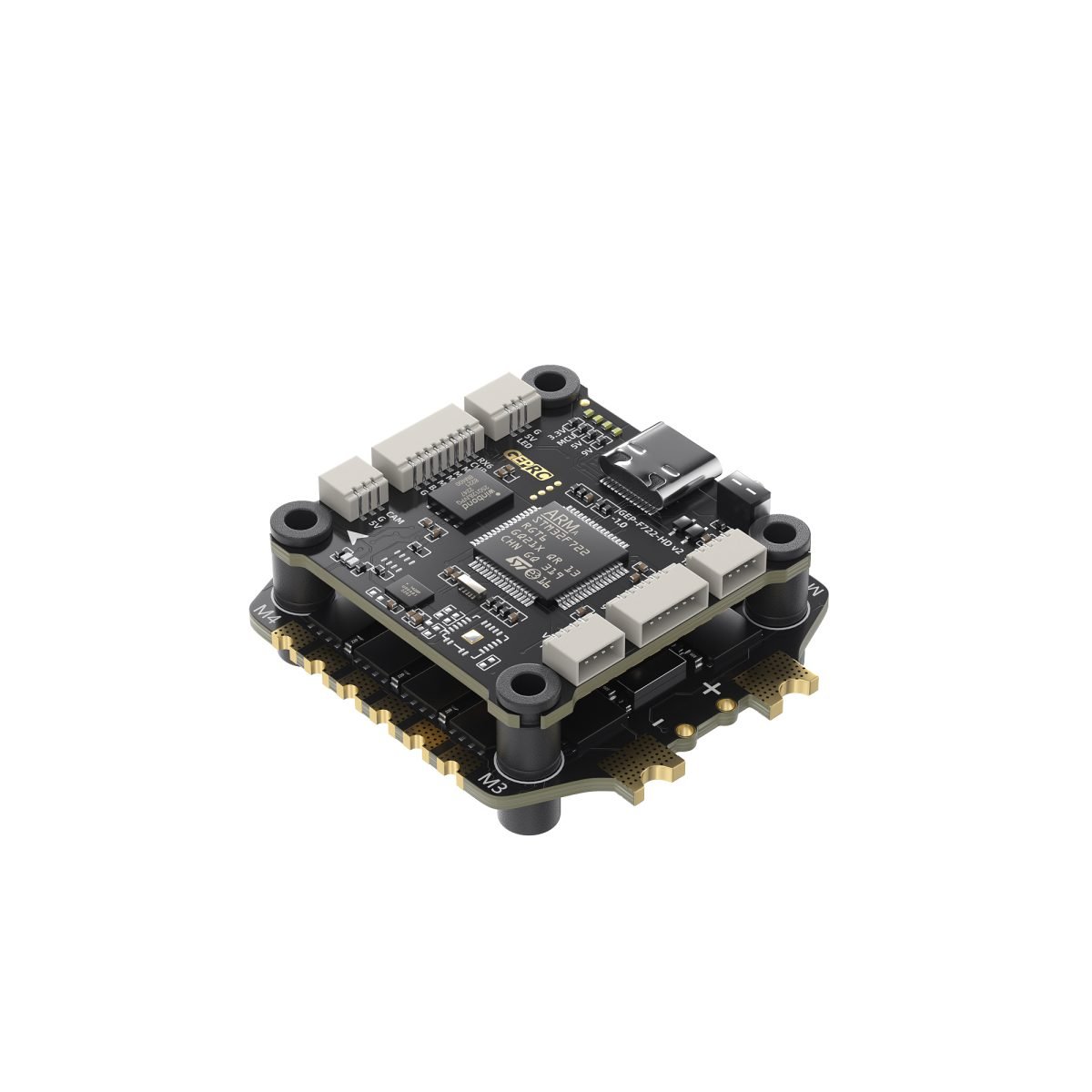

GEPRC TAKER F722 BLS 60A V2 STACK
Description:
The GEPRC TAKER F722 BLS 60A V2 Stack is a high-performance flight controller and ESC stack designed for FPV racing and freestyle drones. It combines an F722 32-bit flight controller with a 60A BLS ESC, providing fast flight-control processing and reliable motor performance.
Its compact integrated design helps simplify installation and keeps the drone electronics organized. The stack is suitable for performance-focused FPV builds that require responsive control and dependable ESC operation.
Features
- Use mainstream STM32F722 chip
- Equipped with the latest 42688-P gyroscope
- 16M black box storage
- Integrated LC filter
- Upgrade type-C USB interface
- Directly plugged into the DJI Air Unit
- With TAKER H60_BLS 60A 4IN1 ESC, the flying feel is silky
- Simple and reasonable installation method, the shock absorber can make the gyroscope work very stably
- [email protected] + 5V@3A dual independent BEC
Specifications

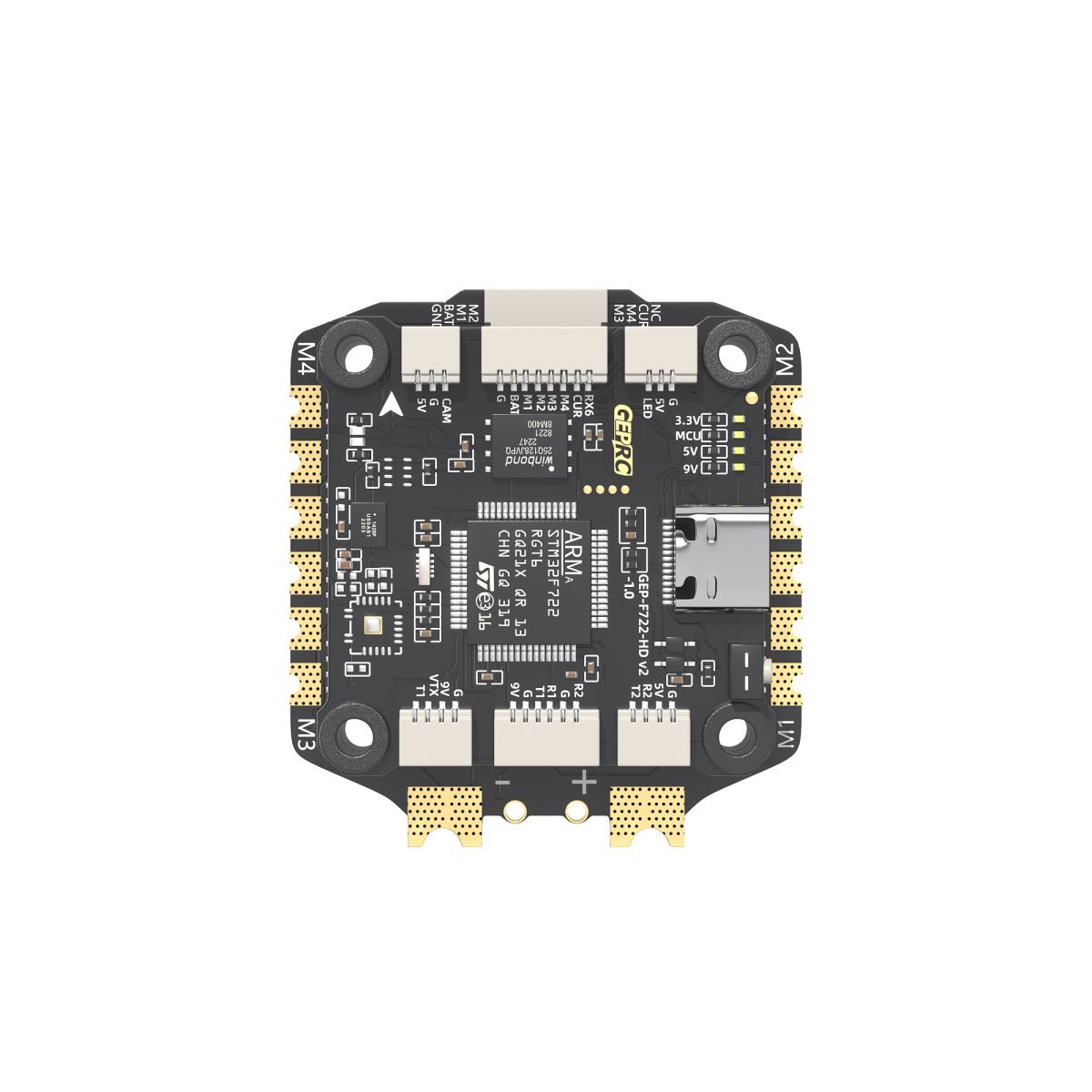

GEP-F722-HD v2 Flight Controller
- MCU：STM32F722
- IMU：ICM42688-P(SPI)
- Air Unit Connection：Direct plugging into DJI Air Unit
- Black Box：16M onboard
- USB Interface：Type-C
- OSD：BetaFlight OSD w/ AT7456E chip
- BEC：5V@3A,[email protected] dual BEC
- Firmware Target：GEPRCF722
- Size：36.85×36.85mm, hole 30.5×30.5mm，φ4mm hole becomes φ3mm after using a silicone shock-absorbing circle.
- Input Voltage：3-6S LiPo
- UART：5
- Power Filter：Integrated LC filter
- Weight：8.1g

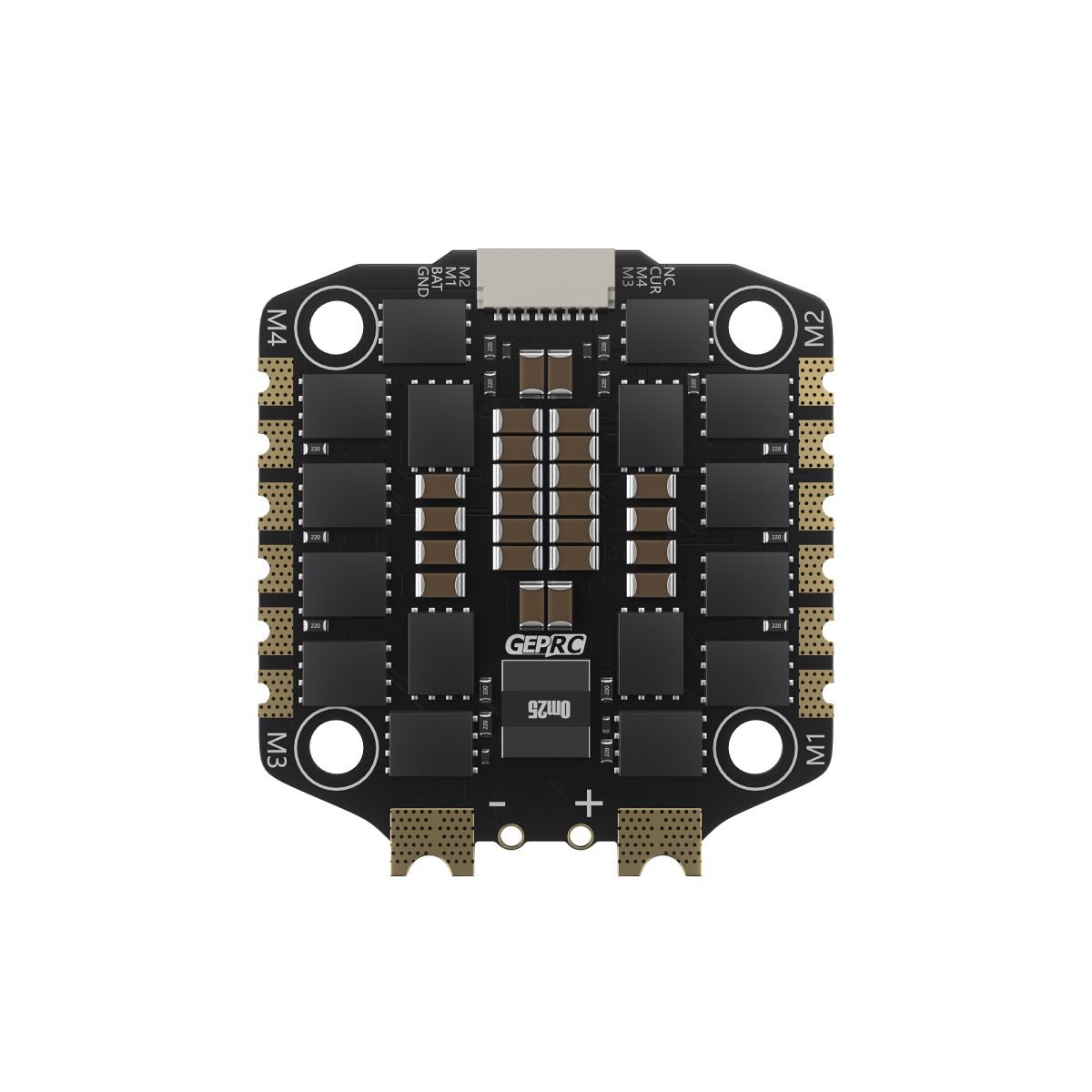

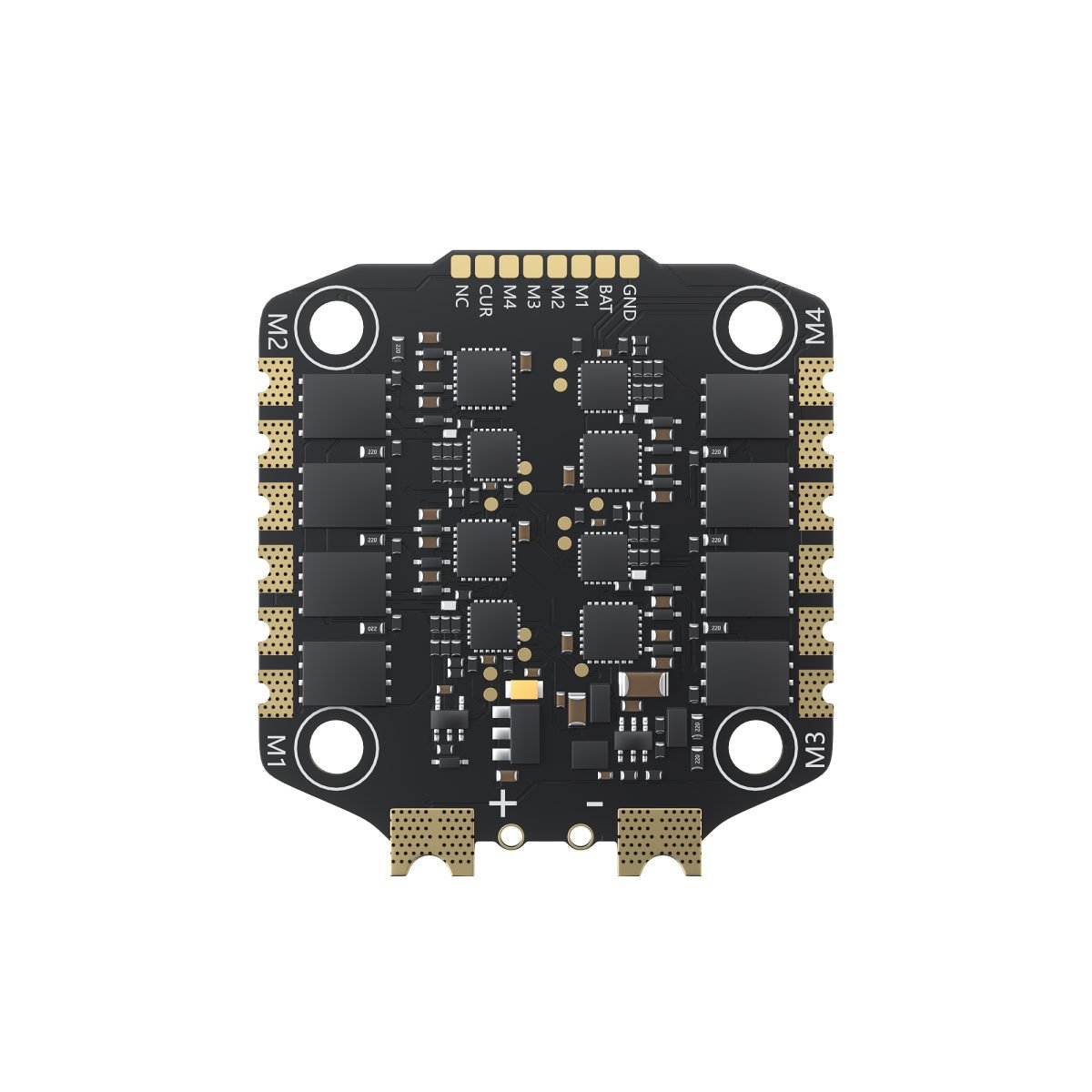

TAKER H60_BLS 60A 4IN1 ESC
- Input Voltage: 3-6S Lipo
- Ammeter: Support
- Continue Current：60A
- Burst Current：65A（5 second）
- Support Protocol: Dshot 150/300/600
- Size：42×45.7mm，hole30.5×30.5mm，φ4mm hole becomes φ3mm after using the silicone shock-absorbing ring.
- Weight: 14.9g
- Target: B_X_30
Package Include :
1 x Flight Controller
1 x ESC
1 x Capacitor
1 x DJI Air Unit Adapter Cable
1 x Flight Controller Adapter Cable
1 x XT60 Power cable
4 x M3*30 Screws
4 x M3*25 Screws
8 x Nylon nuts
8 x Silicone grommets
2 x sh1.0 4pinsilicone cable
1 x Camera connection cable
PM-KISAN Drone Subsidy Guide 2026: Government Support for Agricultural Drones
The Indian government's drone subsidy programmes have made agricultural drones significantly more accessible for farmers, FPOs, and agri-tech...
Read More →
Flywoo vs Geprc vs iFlight: Best FPV Drone Frame Brands Compared
Flywoo vs Geprc vs iFlight: Best FPV Drone Frame Brands Compared (2026) Choosing an FPV frame brand is...
Read More →
Best FPV Cameras 2026: Analog vs Digital Compared
Best FPV Cameras 2026: Analog vs Digital Compared The FPV camera market has undergone a dramatic transformation over...
Read More →Technical Specifications
| Brand | GEPRC |
|---|---|
| Current Rating | 60A |
| SKU | AI5020 |
| Weight | 0.0 kg |
| Availability | Out of Stock |
Applications & Use Cases
The GEPRC TAKER F722 BLS 60A V2 STACK is a versatile (esc) drone speed controller used across a wide range of applications including brushless motor speed control, FPV drone builds, multirotor platforms, and RC aircraft.
Common use cases:
- Controlling motor speed in a quadcopter
- Replacing a burnt ESC after a short
- Upgrading to BLHeli_32 for smoother throttle response
This product is ideal for drone builders and RC enthusiasts.
Technical Tip: Choose ESC amperage 20% above your motor's max draw. DShot600 protocol recommended for modern builds.
