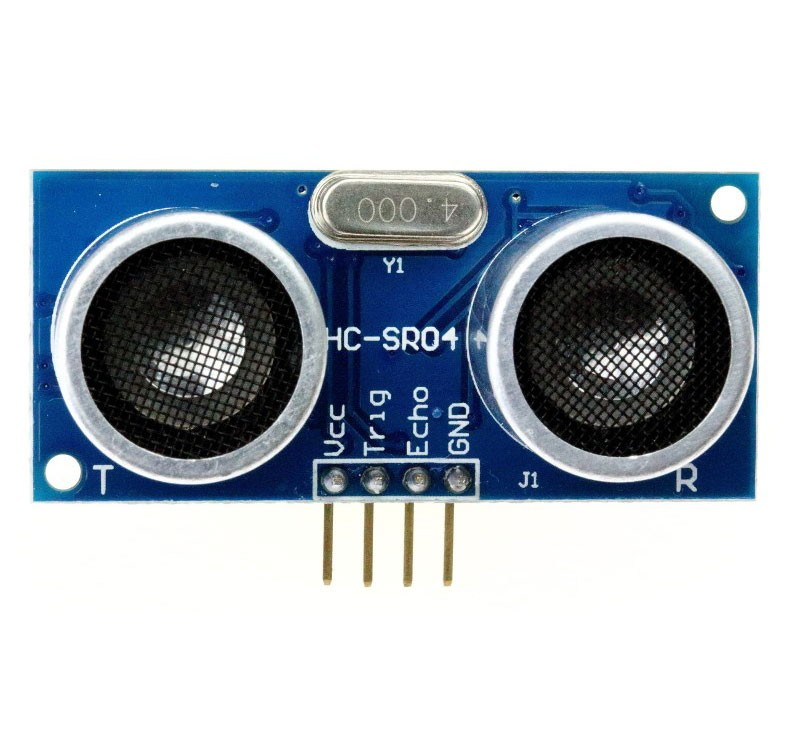

The HC-SR04 Ultrasonic Range Finder is a widely used sensor designed for measuring distances and detecting objects. This module features two front-facing components, serving as an ultrasonic transmitter and receiver. It operates using sonar technology, similar to how bats and dolphins detect objects.
This sensor combines a transmitter, receiver, and control circuit in one compact module. It offers excellent range accuracy and stable readings, making it easy to use in various applications. Unlike some rangefinders, the HC-SR04 is unaffected by sunlight or dark materials, although soft acoustic materials like cloth may be harder to detect.
The Trigger and Echo pins serve as the module’s I/O pins, allowing connection to a microcontroller or Arduino. When the receiver detects the returning sound wave, the Echo pin goes high for a duration corresponding to the time it took for the wave to return.

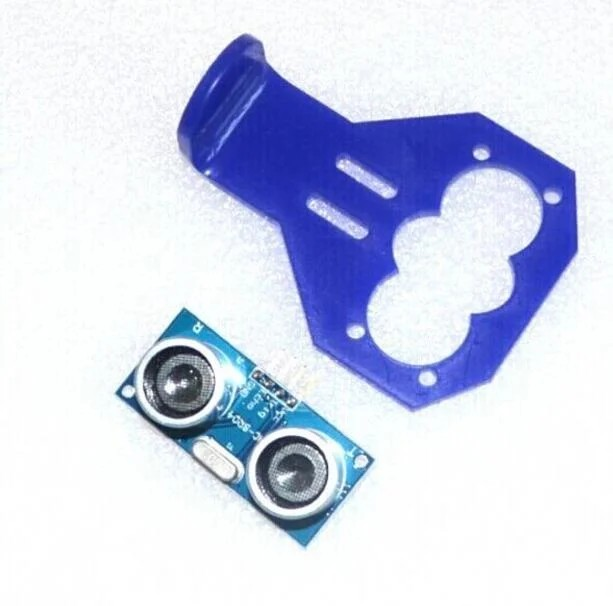

The HC-SR04 Ultrasonic Module provides non-contact distance sensing with a range of 2cm to 400cm and an accuracy of up to 3mm. This package includes the HC-SR04 sensor and an acrylic mounting bracket for easy installation and assembly.
HC-SR04 Ultrasonic range finder with cartoon Ultrasonic Overview

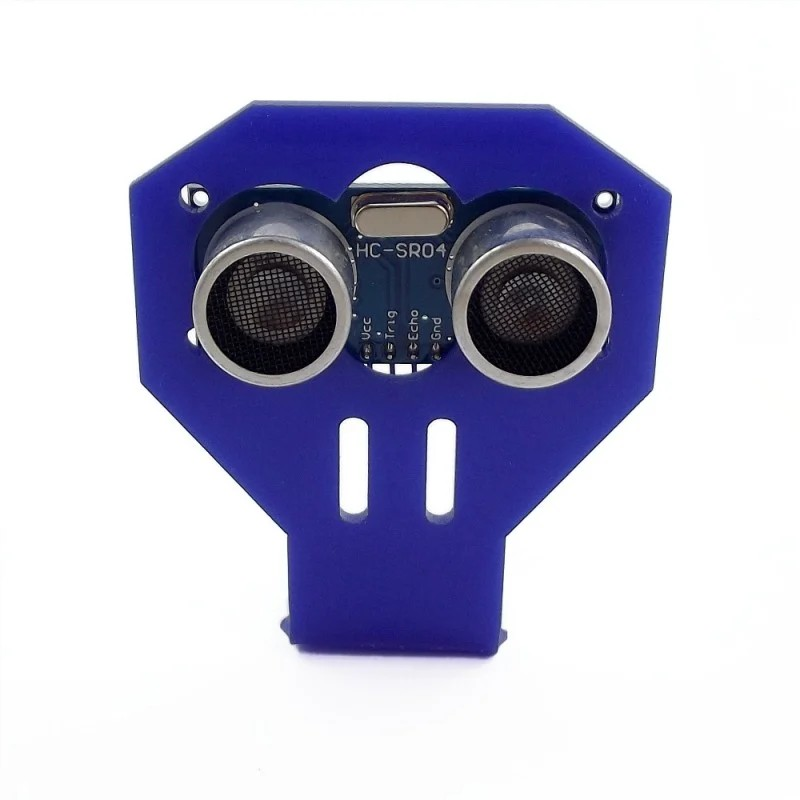

The HC-SR04 Ultrasonic range finder with cartoon Ultrasonic Sensor mounting bracket is a compact module that measures distance using sonar echo timing. Designed for educational and DIY electronics projects, it delivers stable readings from 2 cm up to 400 cm and includes a decorative acrylic bracket for easy installation.
Key Features of HC-SR04 Ultrasonic range finder with cartoon Ultrasonic
Operating voltage: 5 V DC for compatibility with Arduino and other microcontrollers
Sonar sensing range: 2–400 cm with a maximum detectable distance of 4500 cm
40 kHz ultrasonic frequency for reliable object detection

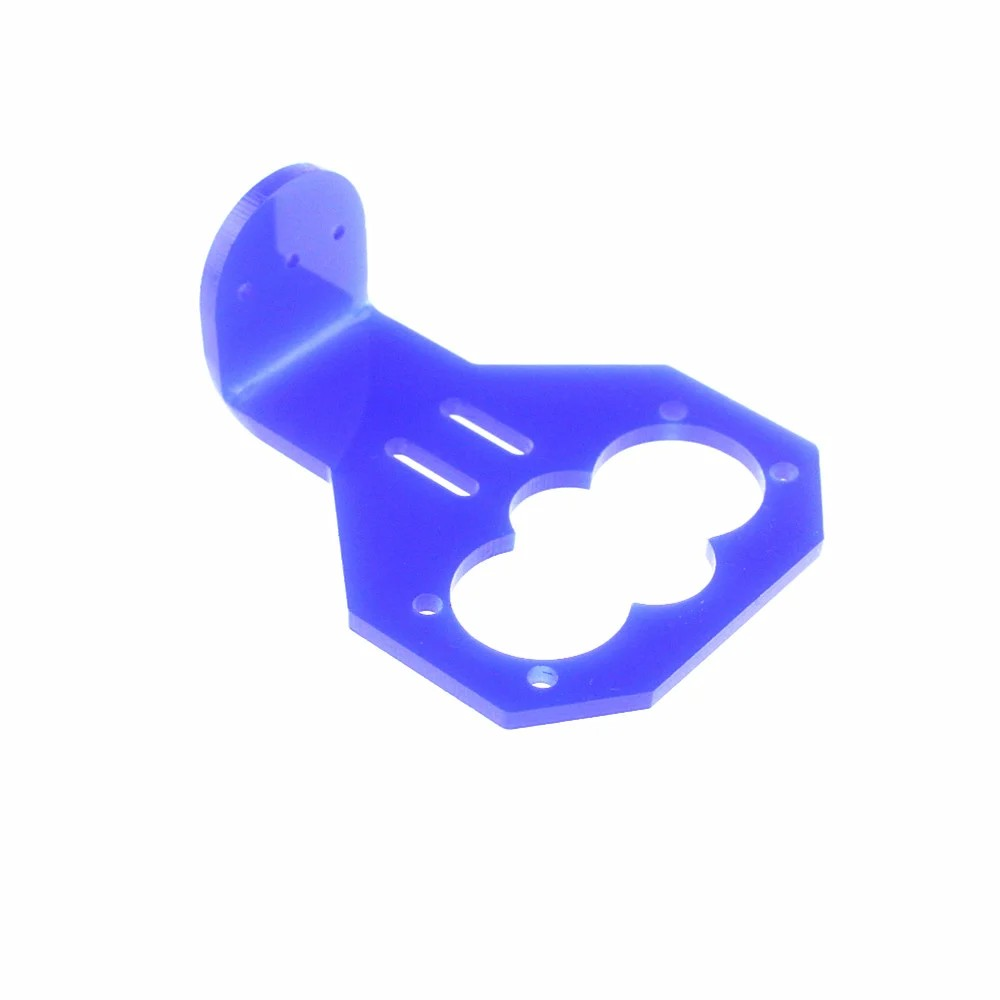

Includes a 2.8–3.1 mm thick acrylic bracket featuring cartoon-style cutouts
Mounting hole diameter: 3.8 mm for secure attachment
Fast shipping from Zbotic across India, ready to dispatch within 24 hours
Applications and Use Cases
Obstacle avoidance sensors on educational robotics platforms
Level measurement in water tanks or bins
Distance-triggered lighting or alarm systems
Parking assist modules for small-scale RC vehicles
Interactive art installations that respond to visitor proximity
Hands-on learning in electronics and programming workshops
How to Use HC-SR04 Ultrasonic range finder with cartoon Ultrasonic
Mount the HC-SR04 sensor onto its acrylic bracket using the 3.8 mm holes, then wire Vcc to 5 V, GND to ground, Trigger to a digital output pin, and Echo to a digital input pin on your microcontroller. Upload code that sends a 10 µs pulse on Trigger, measures the Echo pulse width, and calculates distance. The included bracket simplifies alignment and ensures stable readings.
Why Buy from Zbotic?
Genuine Products: All items sourced from authorized distributors
Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
Free Shipping: Free delivery on qualifying orders
COD Available: Cash on Delivery, UPI, cards, net banking
Technical Support: Expert help for setup and troubleshooting
Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What distance range can this sensor reliably measure?
This HC-SR04 module accurately measures distances from 2 cm up to 400 cm in typical use, with a maximum echo detection capability of around 4500 cm under ideal conditions.
Will it work outdoors in bright sunlight?
Yes, the HC-SR04 uses ultrasonic pulses, so ambient light doesn’t affect its performance. However, extremely soft surfaces like fabric may absorb sound and reduce accuracy.
How do I secure the sensor using the cartoon bracket?
The acrylic bracket has 3.8 mm diameter holes matching the sensor’s mounting posts. Attach the sensor with small screws or nylon spacers (not included) to hold it firmly in place and maintain correct alignment.
The HC-SR04 Ultrasonic range finder with cartoon Ultrasonic Sensor mounting Bracket is a versatile ultrasonic sensors used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
Integrating into a custom electronics project
Learning and experimenting with circuits
Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
Shipping & Delivery
Free shipping on orders above ₹999 across India
Dispatched within 1-3 business days
Expected delivery: 3-7 business days depending on location
Secure packaging to ensure safe transit of electronic components
Country Of Origin: China
