Looking for Jiyi Front? Jiyi Front Obstacle Avoidance Radar is available at Zbotic with fast shipping across India.
Obstacle avoidance radar module is mainly used to measure the relative distance between the drone and the obstacle in front of the flight, so as to avoid the obstacle effectively. Obstacle avoidance radar adopts 24GHz radar technology, which can work in all-weather under strong light, high temperature, fog, dust, wind and night. Its sensitivity is high, the detection distance is long, the signal transmission is fast and stable. Electric wires, small trees with a trunk of 10 cm, people with a height of 1.7 m, and telephone poles with a height of 15 cm play an excellent obstacle avoidance function for high-speed drones, which is very suitable for plant protection drones to work in complex outdoor environments.
Features:
- High sensitivity
- Long detection distance
- Fast signal transmission
- Stable signal transmission
- All-weather work
- Strong environmental adaptability.
Specification-
| Product Weight | 80g |
|---|---|
| Modulation Mode | FMCW |
| Centre Frequency | 24.125GHz |
| Detection range | 1~25m |
| Accuracy | 0.1m |
| Power Waste | 3.0W at 25 degree C |
| Resolution | 0.6m |
| Shipping Weight | 0.142 kg |
| Shipping Dimensions | 12 × 11 × 6 cm |
Package Includes:
1 x Jiyi Front Obstacle Avoidance Radar
Mannual:
https://support.jiyiuav.com/docs/skning/skning-1c8ju7uov1gv7

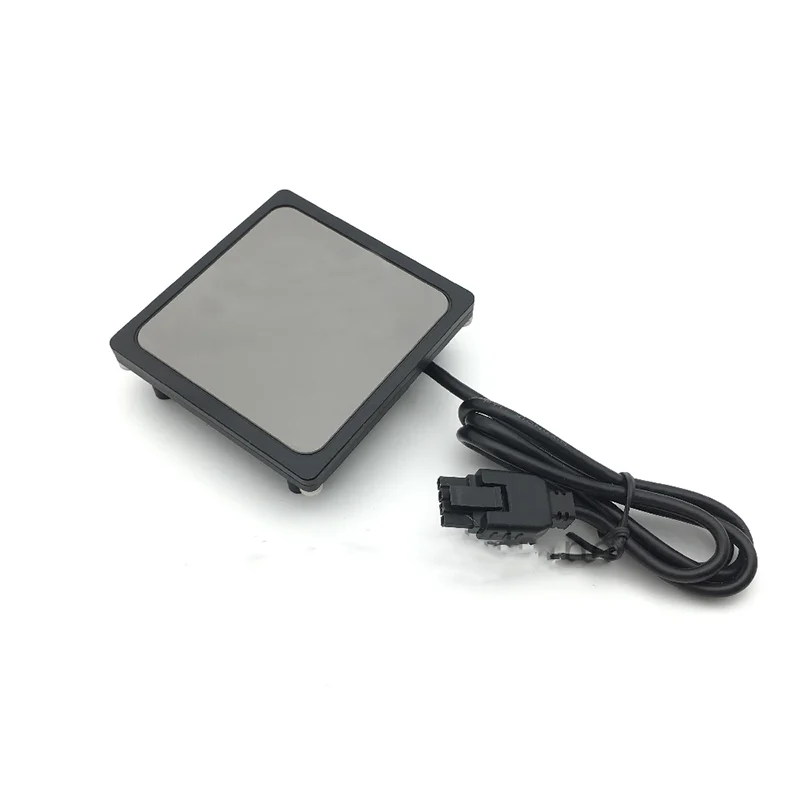

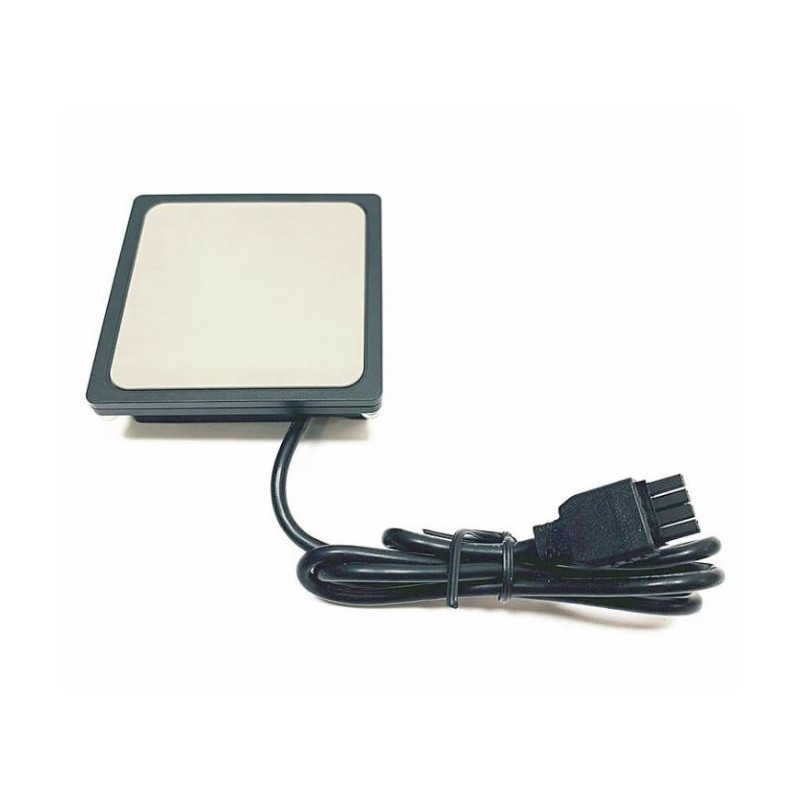

Jiyi Front Obstacle Avoidance Radar Overview
Jiyi Front Obstacle Avoidance Radar is a compact FMCW radar module designed for front-facing obstacle detection on drones. With a centre frequency of 24.125 GHz and a detection range of 1 to 25 meters, it ensures reliable distance measurement under various weather conditions.
Key Features of Jiyi Front Obstacle Avoidance Radar
- FMCW modulation mode at 24.125 GHz for precise distance sensing
- Detection range from 1 to 25 meters for early obstacle alerts
- Sturdy, compact form factor (66×66×19.5 mm) for easy drone integration
- All-weather performance: operates in strong light, fog, dust and low-light conditions
- High sensitivity to detect wires, small trees (≥10 cm trunk), people (1.7 m tall) and poles (≥15 cm)
- Genuine product with fast shipping from Zbotic
Applications and Use Cases
- Front obstacle avoidance on high-speed racing drones
- Collision prevention for agricultural plant protection UAVs
- Industrial inspection drones operating in dusty or low-visibility sites
- Security and surveillance drones patrolling at night or in fog
- Roof and infrastructure inspection requiring precise distance measurement
- General purpose drone navigation in complex environments
How to Use Jiyi Front Obstacle Avoidance Radar
Mount the radar module securely at the drone’s nose using a suitable bracket or screws, ensuring an unobstructed frontal view. Connect the power and data interfaces to your flight controller or companion computer, configure the detection parameters in your autopilot firmware, and perform a bench test to verify obstacle readings before flight.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
What is the operating frequency of the Jiyi Front Obstacle Avoidance Radar?
The module operates at a centre frequency of 24.125 GHz using FMCW modulation to provide precise distance measurements up to 25 meters.
Can this radar module detect small obstacles like wires or poles?
Yes, its high sensitivity allows detection of thin wires and poles down to 15 cm diameter, as well as tree trunks of at least 10 cm and human targets up to 1.7 m tall.
Is the Jiyi Front Radar compatible with plant protection drones?
Absolutely. It’s designed for high-speed agricultural UAVs to perform reliable front obstacle avoidance in all-weather conditions, including dust, fog and low-light environments.
