This is the 24V variant of the DC 24V 36mm Super Ultrasonic Mist Maker Humidifier Atomizer in Ultrasonic Humidifier Module. Available at ₹329.22 (₹279.00 + GST) with free shipping across India.
PRODUCT DESCRIPTION
If you want to create a device that automatically increases the humidity levels in a room by adding water vapor to the air, you will need this DC 24V 36mm Super Ultrasonic Mist Maker Humidifier Atomizer sensor. This sensor works by converting high-frequency sound waves into mechanical energy that is transferred to a liquid, creating standing waves.
This powerful DC 24V Ultrasonic Humidifier device is suitable for atomization and has a plate diameter of 10 mm. It is popular for fish pot and decoration purposes in households. It is a simple plug-and-play module that requires you to submerge the module in water and supply 24 volt DC power directly from the battery or power adapter and it will start working.

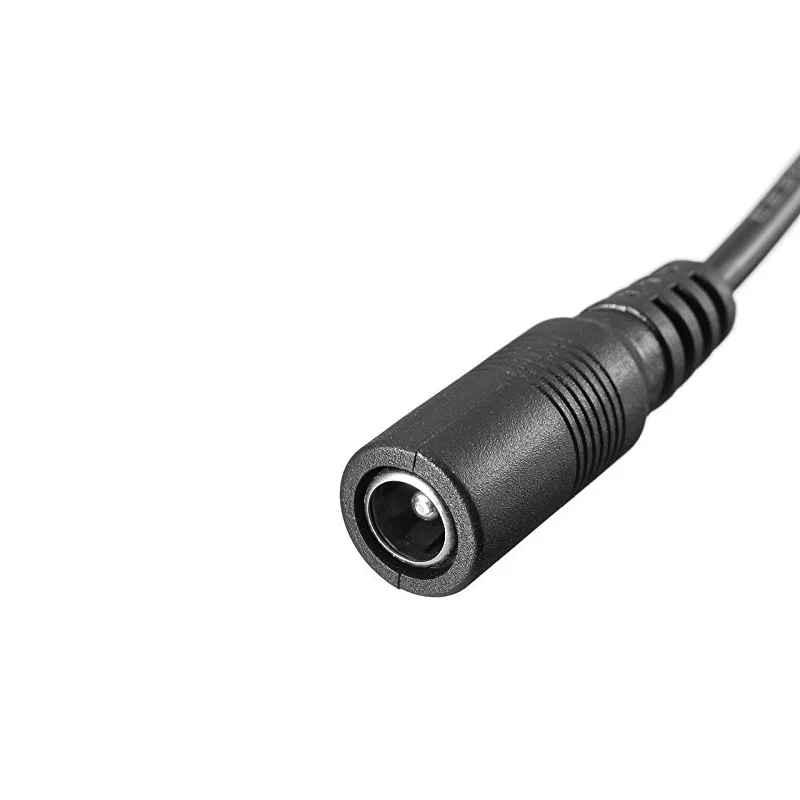

The fully waterproof module has a 5mm DC female jack to connect the input power source with a 1-meter long cable.
Instruction to use:
- Deep the module in the water keeping 4 to 5 cm water level above the device
- Connect the power supply of 24V DC 1AMP and enjoy the fog.
- Use power supply at least with 1AMP output for best performance
- Do not deep it in water more than 5cm for maximum fog output.
How does it work?
Ultrasonic Humidifier Piezoelectric Transmitter module works on the principle of cavitation produced by sound waves. Just provide the power supply it will turn into a mini ultrasonic atomizer.
Features:
- Plug and Play Device
- Fully waterproof and Shockproof
- 1-meter long cable provides ease for connections
- Universal 5 mm DC Female jack
- Low noise operation.
- Small fog particles.
- Long operation life.
- High stability.
- High Conversion Efficiency.
- Low Impedance Stable Waveform.
- Low Dielectric Loss.
- Strong Corrosion Resistance.

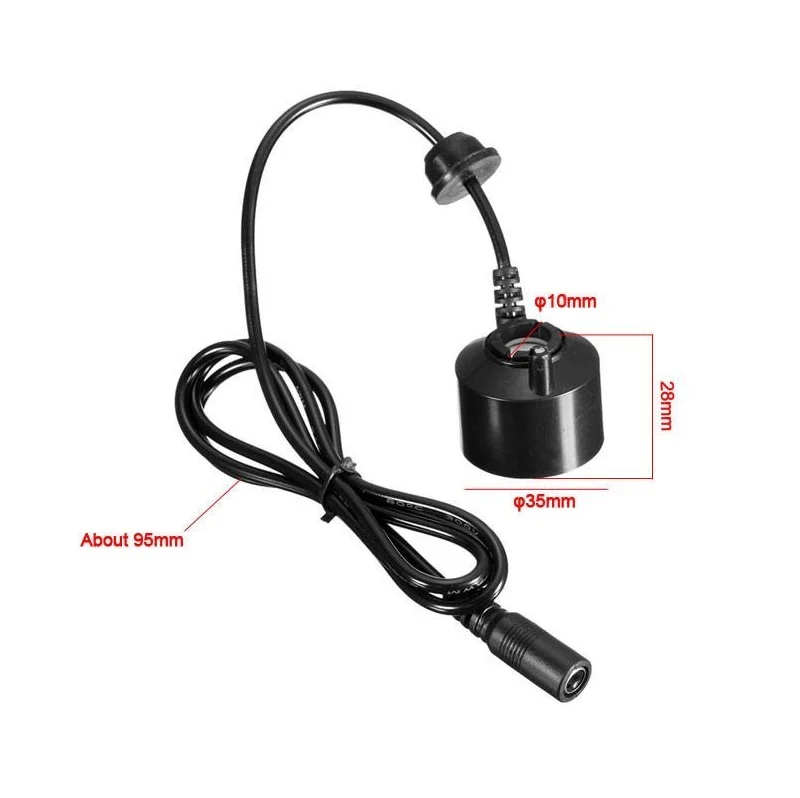

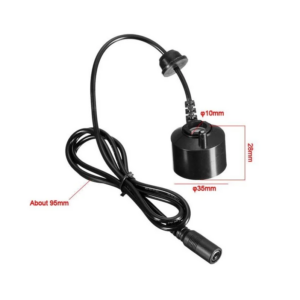

Specification:
| Mist Diameter | Approx. 4.5cm / 1.8inch |
|---|---|
| Mist Height | Approx. 4cm / 1.6inch |
| Connector Type | 5 mm DC female (for Input) |
| Cable length | 1 Meter |
| Colour | Black |
| Width (mm) | 35 |
| Height (mm) | 28 |
| Weight (gm) | 58 |
| Shipping Weight | 0.059 kg |
| Shipping Dimensions | 5 × 5 × 4 cm |
Package Includes:
1 x DC 24V 36mm Super Ultrasonic Mist Maker Humidifier Atomizer
Technical Specifications
| Operating Voltage | 24V |
|---|---|
| Size | 36mm |
| SKU | AI2928 |
| Weight | 0.09 kg |
| Availability | Out of Stock |
Applications & Use Cases
The DC 24V 36mm Super Ultrasonic Mist Maker Humidifier Atomizer is a versatile ultrasonic humidifier module used across a wide range of applications including electronics projects, DIY builds, prototyping, and educational experiments.
Common use cases:
- Integrating into a custom electronics project
- Learning and experimenting with circuits
- Replacing or upgrading components in existing setups
This product is ideal for electronics enthusiasts, engineers, and students.
Technical Tip: Always verify voltage and current requirements before connecting to your circuit. Check datasheets for detailed specifications and pin configurations.
