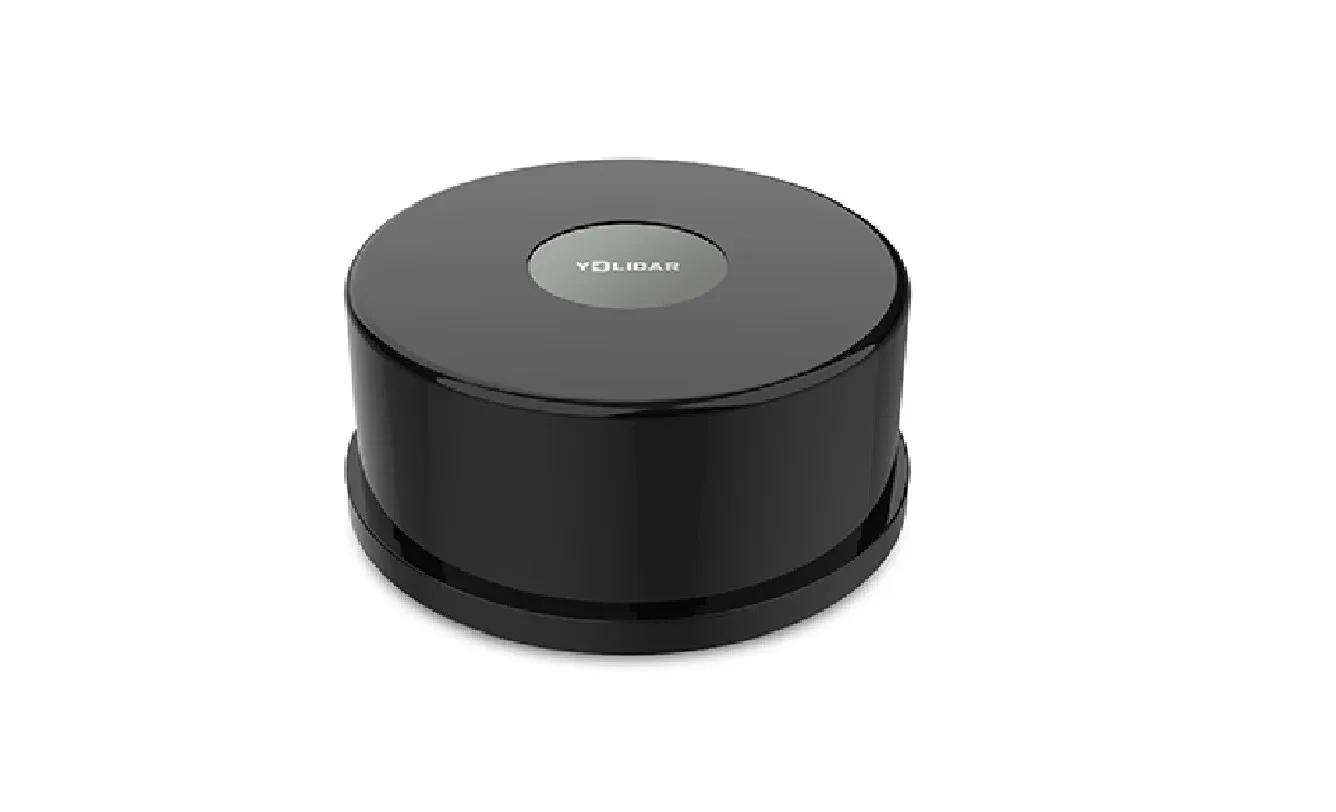

YDLIDAR TG30 Lidar – 360-degree Laser Range Scanner (30m)

Looking for Tg30 Lidar –? YDLIDAR TG30 Lidar – 360-degree Laser Range Scanner (30m) is available at Zbotic with fast shipping across India.

The YDLIDAR TG30 LiDAR is a 360-degree laser range scanner with a 30-meter detection range. It offers omnidirectional 360-degree scanning and features a compact design that makes it ideal for integration into various systems. The LiDAR utilizes Time of Flight (TOF) ranging technology and is housed in an enclosure with an IP65 protection level, ensuring durability in challenging environments.

Developed by the YDLIDAR team, the TG series is based on the TOF principle and is equipped with advanced optics, electrical components, and algorithms to achieve high-frequency, high-precision distance measurements. Its rotating mechanical structure provides continuous 360-degree scanning, delivering both angle data and point cloud information of the surrounding environment during the measurement process.

The mechanical structure rotates 360 degrees, continuously providing angle data and point cloud information of the surrounding environment during the ranging process.

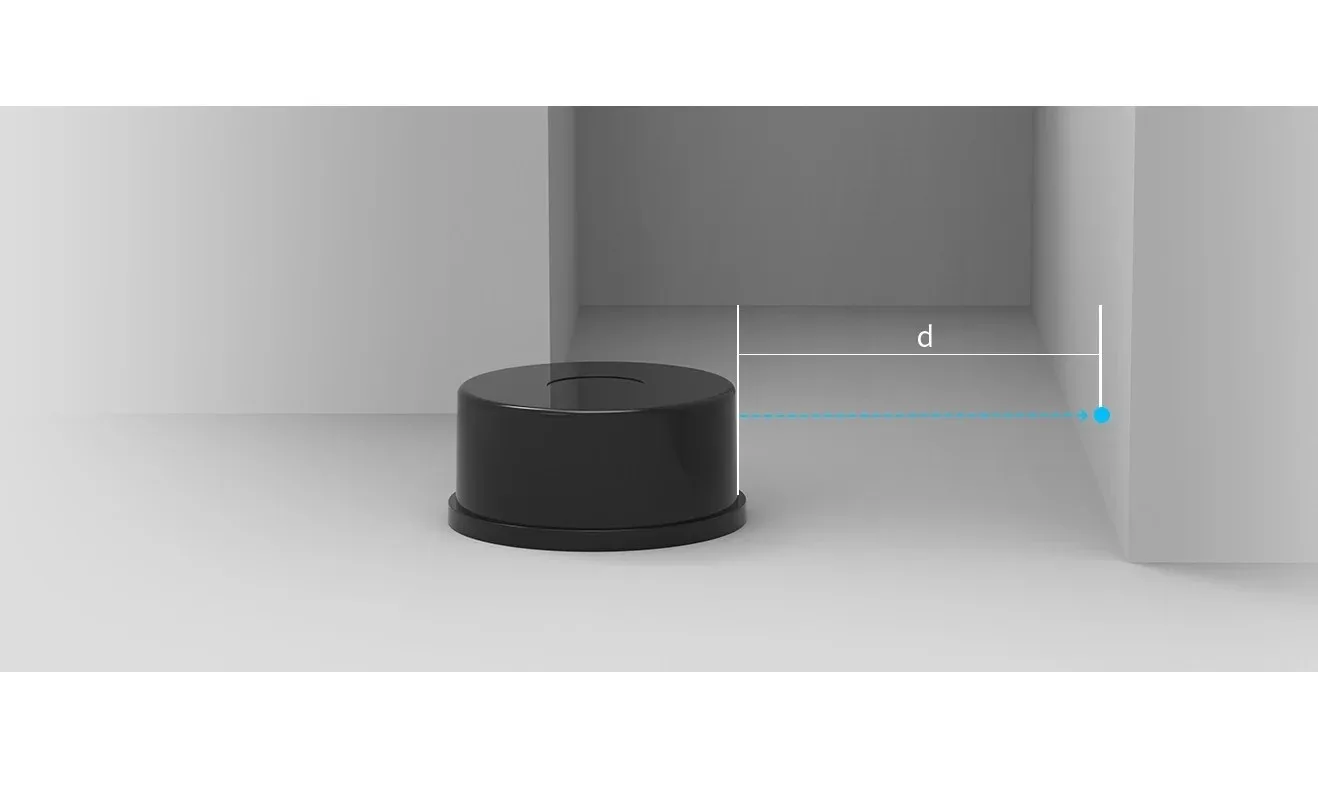

TOF (Time of Flight) ranging technology measures distance by calculating the time difference between the emission and reception of a laser. The ranging precision of TOF LiDAR remains consistent regardless of distance, offering even higher accuracy for objects at greater ranges.

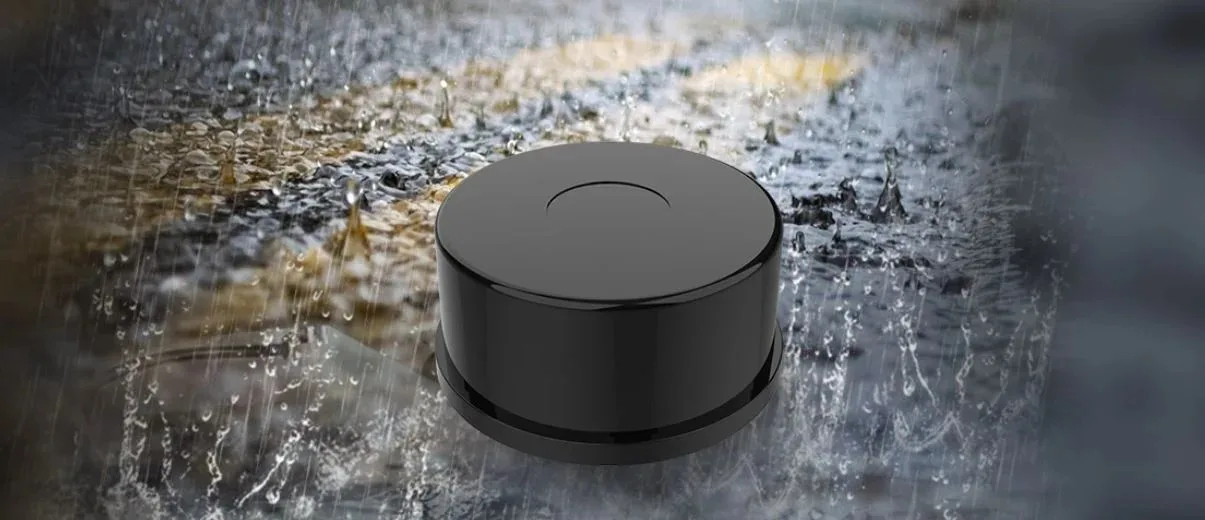

360-degree omnidirectional scanning: The internal range module rotates 360 degrees to capture data from the entire surrounding environment. Compact design, ideal for integration: With a slim profile of just 3.5 cm in height, it significantly optimizes the integration of products. Enclosed housing with IP65 protection: The enclosed design safeguards the core range module, ensuring reliable performance in complex outdoor applications.

Applications:

1. Robot navigation and obstacle avoidance
2. Industrial automation
3. Robot ROS teaching and research
4. Regional security
5. Smart transportation
6. Environmental scanning and 3D reconstruction
7. Commercial robot /Robot vacuum cleaner

 Features:

1. 360-degree omnidirectional scanning ranging distance measurement
2. Small distance error, stable performance and high accuracy
3. IP65 protection level
4. Strong resistance to ambient light interference
5. Industrial grade brush-less motor drive for stable performance
6. Laser power meets Class I laser safety standards
7. 5-12Hz adaptive scanning frequency (support customization)
8. Photomagnetic fusion technology to achieve wireless communication, wireless power supply
9. Ranging frequency up to 20kHz (support customization)

Specification

Package Includes :

• 1 x YDLIDAR TG30 360° Laser Scanner (30 m)
• 1 x USB adapter board
• 1 x Cable

DIAGRAM

DATASHEET

USER MANUAL

Video

YDLIDAR TG30 Lidar – 360-degree Laser Range Scanner Overview

The YDLIDAR TG30 is a 360-degree laser range scanner designed for precise distance measurement up to 30 meters. Utilizing Time of Flight (TOF) technology in a compact, IP65-rated enclosure, it’s ideal for integration into robotics, automation, and mapping systems.

Key Features of YDLIDAR TG30 Lidar – 360-degree Laser Range Scanner

• 360° omnidirectional scanning for complete environment coverage
• Ranging capability from 0.05 m to 30 m with high precision
• Variable scan frequency of 5–15 Hz and ranging frequency of 4–20 kHz
• Angle resolution between 0.09° and 0.22° for detailed point clouds
• IP65-rated housing ensures reliable operation in dusty or damp conditions
• Compact, lightweight design for easy integration and fast shipping from Zbotic

Applications and Use Cases

• Autonomous robot navigation and obstacle avoidance
• Indoor and outdoor mapping with SLAM algorithms
• Warehouse automation for shelf and aisle scanning
• Security perimeter monitoring and intrusion detection
• Agricultural machinery guidance in open fields
• Drone-based surveying and environmental scanning

How to Use YDLIDAR TG30 Lidar – 360-degree Laser Range Scanner

Mount the TG30 securely on your platform, connect its power and communication cables to your controller or PC, and install the YDLIDAR SDK. Configure the scan frequency (5–15 Hz) and start data streaming. Use calibration routines to align the point cloud, then integrate the distance data into your navigation or mapping software.

Why Buy from Zbotic?

• Genuine Products: All items sourced from authorized distributors
• Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
• Free Shipping: Free delivery on qualifying orders
• COD Available: Cash on Delivery, UPI, cards, net banking
• Technical Support: Expert help for setup and troubleshooting
• Easy Returns: Hassle-free replacement for defective products

Frequently Asked Questions

What is the maximum detection range of the TG30?

The TG30 can accurately measure distances from 0.05 m up to 30 m using its TOF laser technology.

Can the TG30 operate in outdoor or dusty environments?

Yes, the TG30 features an IP65-rated enclosure, providing protection against dust ingress and low-pressure water jets.

What are the scan frequency and angle resolution specifications?

The scanner supports a scan frequency of 5–15 Hz and an angle resolution ranging from 0.09° to 0.22°, enabling detailed and rapid point-cloud generation.
