Looking for Jiyi Terrain? Jiyi Terrain Simulating Radar is available at Zbotic with fast shipping across India.
The ground-like radar module uses millimeter-wave radar technology. Through continuous scanning of the radar, the aircraft can sense the terrain change in the flight direction, and adjust the flying height in time according to the terrain and crop height to achieve ground-like flight and ensure uniform spraying in flight. The ground-like radar module has stable detection performance and good environmental applicability, strong anti-interference ability, is not affected by light, long detection distance, and has the characteristics of all weather and all day.
Features:
- Easy to use
- Easy to connect
- Good quality product
Specification-
| Product Size | 82*72*200mm |
|---|---|
| Product Weight | <50g |
| Modulation Mode | FMCW |
| Centre Frequency | 24.125GHz |
| Altimetry accuracy | 0.05m |
| Altimetry Range | (0.3 – 15m) relative to the ground |
| Output Frequency | 50hz |
| Power Waste | 1.5w a 25 degree C |
| Working Voltage | 6 – 28 V |
| Operating Temperature (°C): | -20 to 80 |
Package Includes:

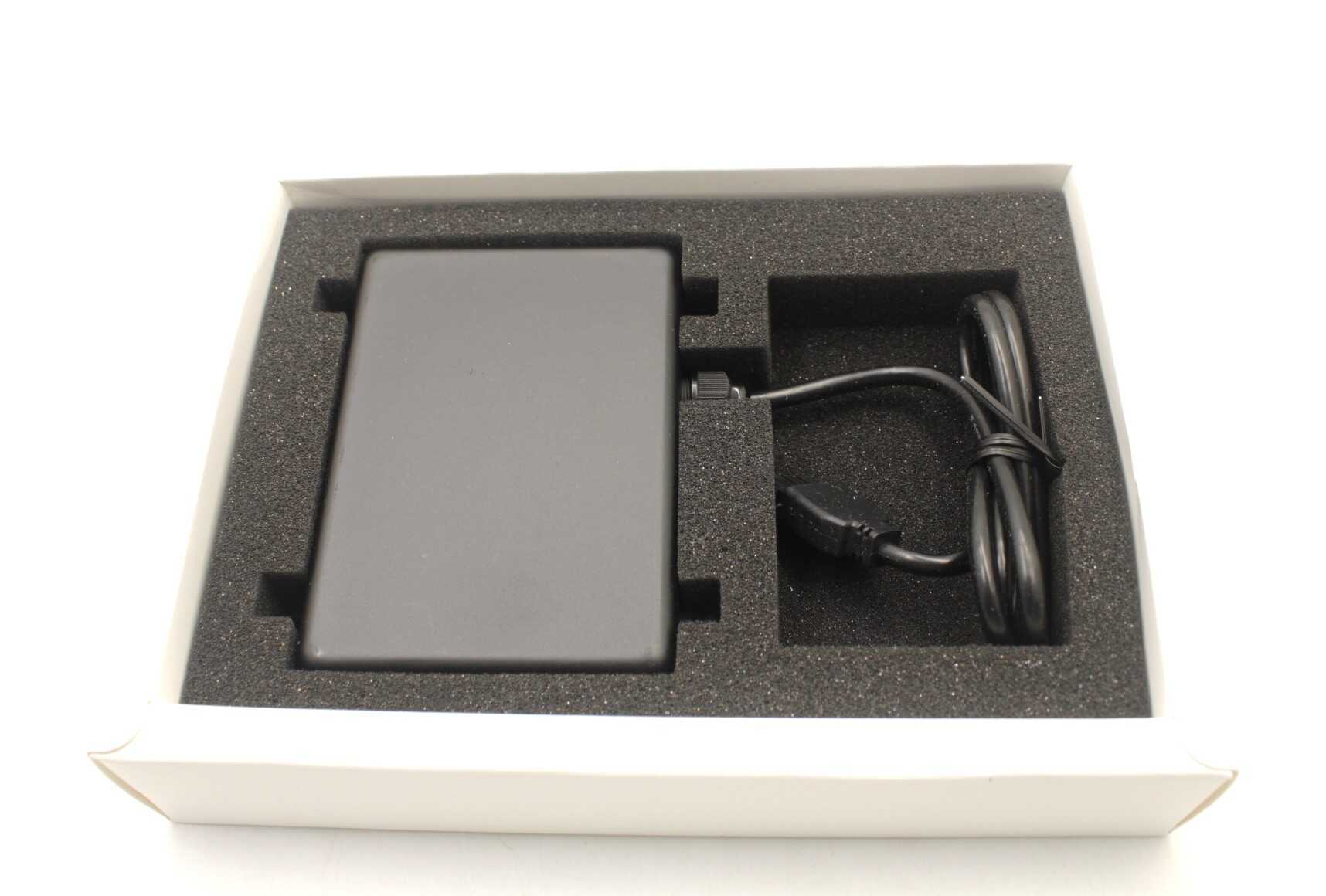

1 x Jiyi Terrain simulating radar

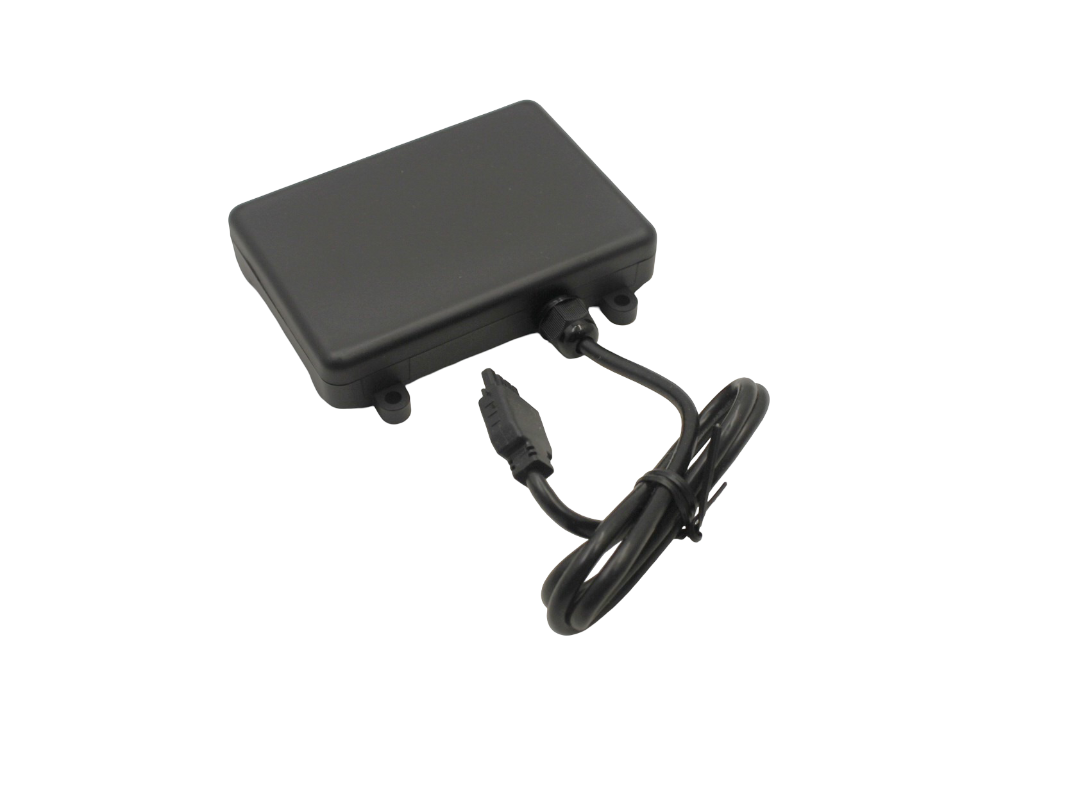

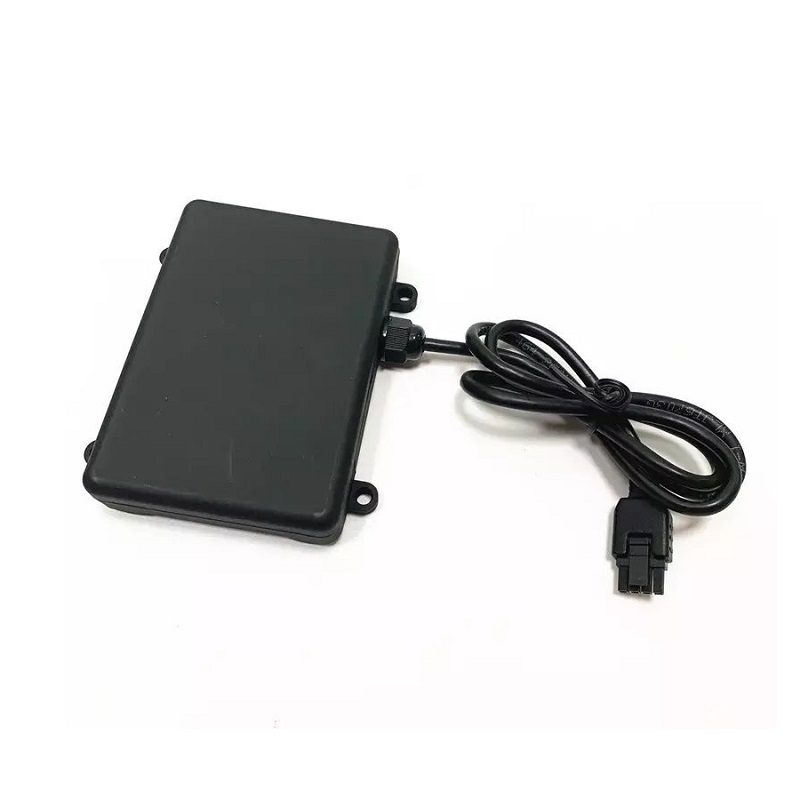

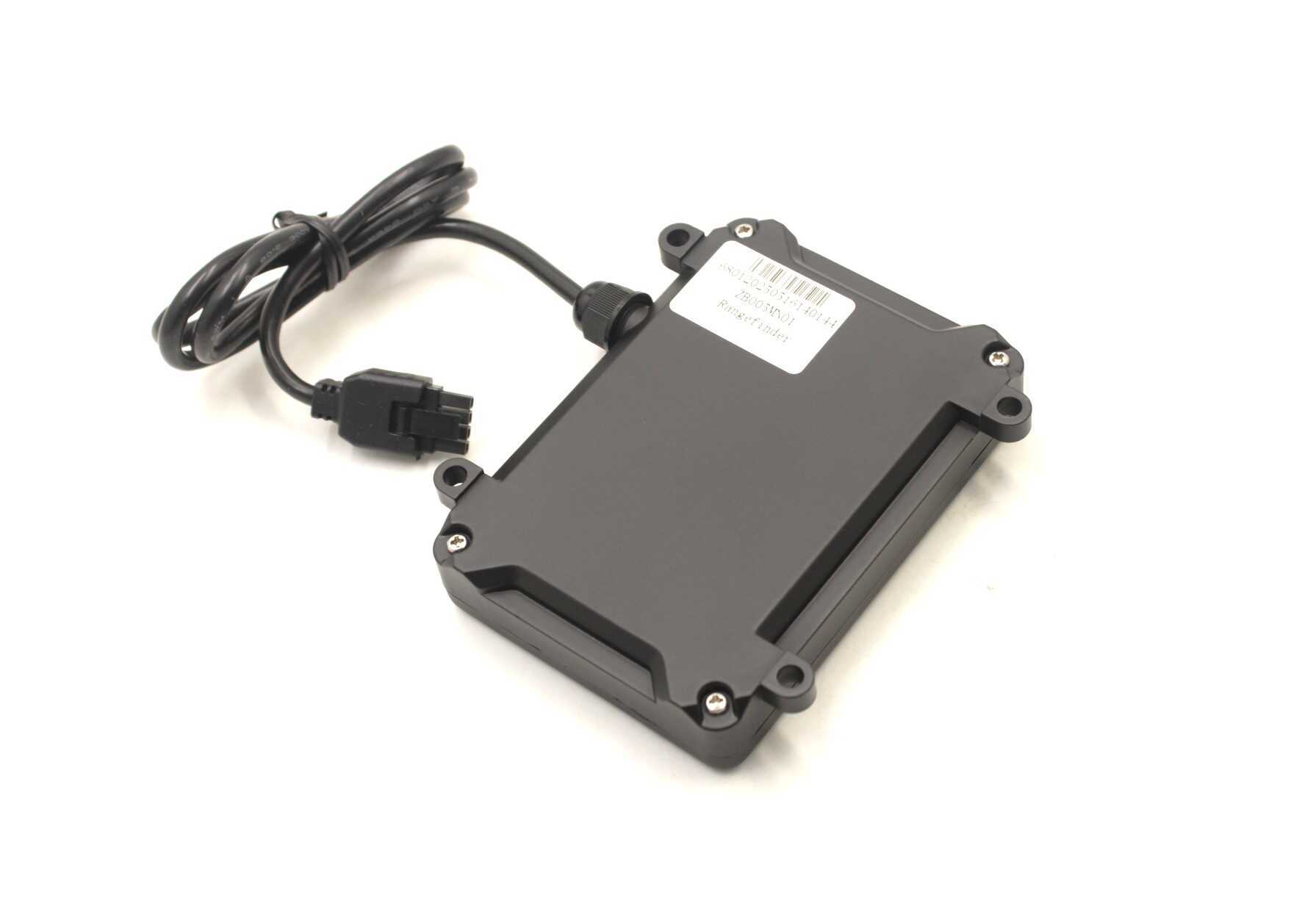

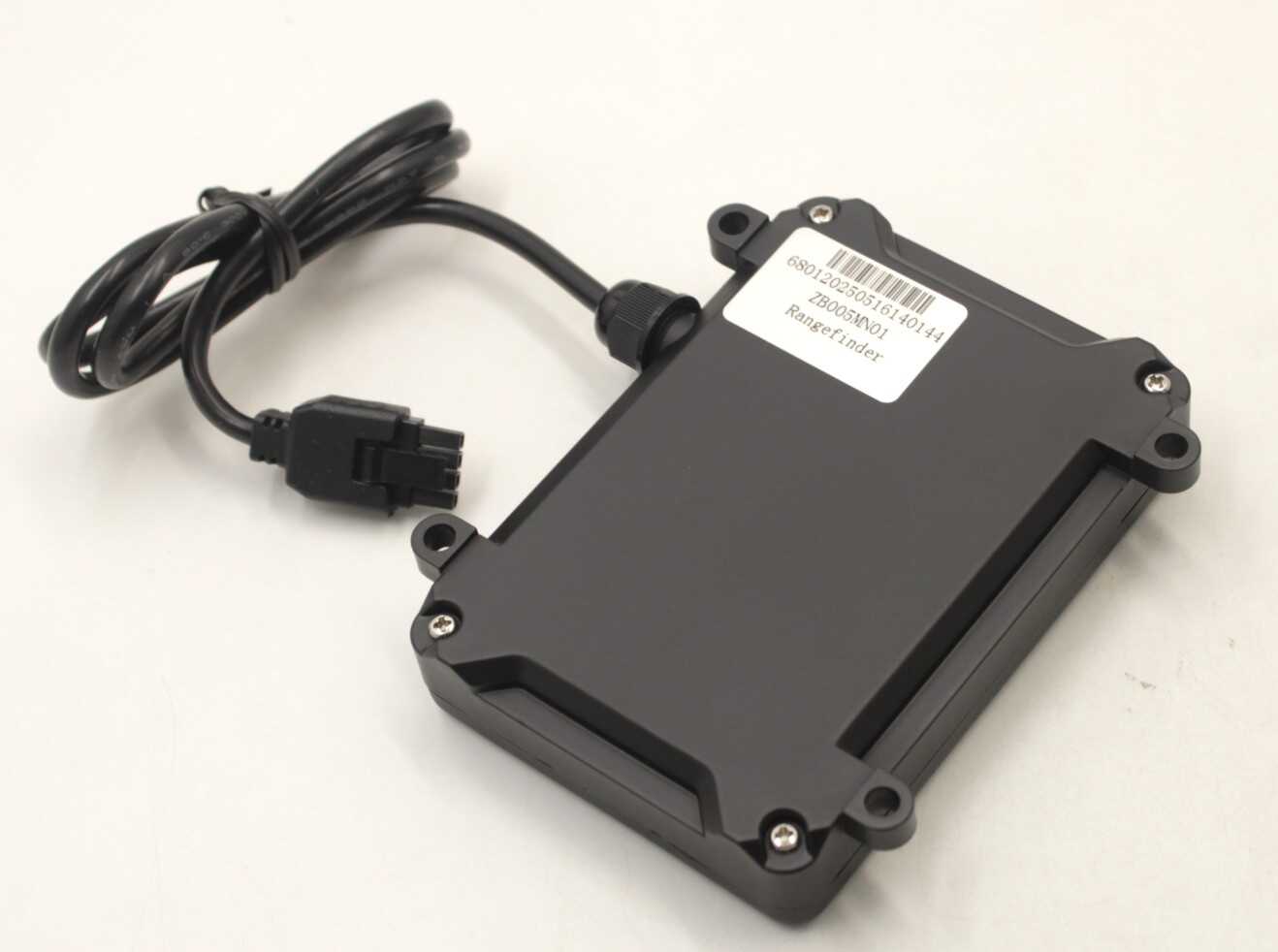

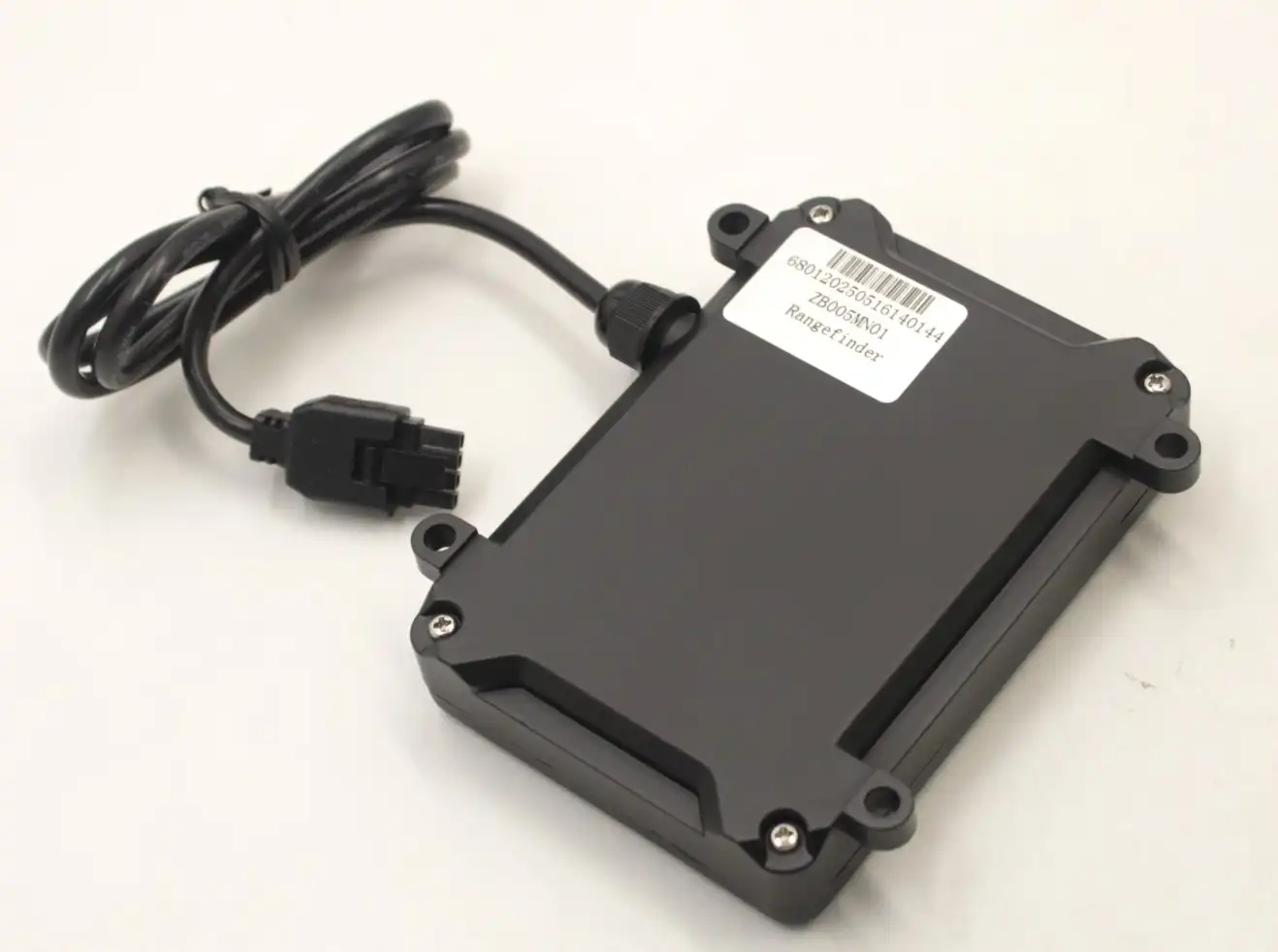

Jiyi Terrain Simulating Radar Overview
The Jiyi Terrain Simulating Radar is a millimeter-wave FMCW radar module designed to continuously scan the ground ahead and detect terrain variations. It enables agricultural and surveying drones to adjust flight height in real time, ensuring uniform spraying and precise altitude control.
Key Features of Jiyi Terrain Simulating Radar
- Millimeter-wave FMCW technology for high-precision distance measurement
- Continuous scanning at 50 Hz for real-time terrain following
- Robust anti-interference performance unaffected by ambient light
- All-weather, day-and-night operation for reliable field use
- Easy integration with common UAV flight controllers
- Genuine product with fast shipping from Zbotic across India
Applications and Use Cases
- Altitude maintenance on crop-spraying drones for uniform pesticide application
- Terrain-following in fixed-wing agricultural UAVs over uneven fields
- Precision altitude control in surveying and mapping missions
- Obstacle avoidance and low-altitude navigation for land-based robots
- Height regulation in forestry monitoring and environmental surveys
How to Use Jiyi Terrain Simulating Radar
Mount the radar module securely on your UAV so that the antenna has a clear view of the ground. Connect the power leads to a 6–28 V DC source and link the signal output to your flight controller’s rangefinder input. Calibrate the module by setting a known reference height in your controller’s sensor menu, then conduct a short hover test to verify accurate terrain-following before full operation.
Why Buy from Zbotic?
- Genuine Products: All items sourced from authorized distributors
- Fast Shipping: Orders ship within 24 hours with tracking (non backordered products)
- Free Shipping: Free delivery on qualifying orders
- COD Available: Cash on Delivery, UPI, cards, net banking
- Technical Support: Expert help for setup and troubleshooting
- Easy Returns: Hassle-free replacement for defective products
Frequently Asked Questions
How does FMCW modulation improve terrain detection?
FMCW sends continuous frequency-modulated signals and measures the shift in return frequency to calculate accurate distances, offering low noise and high-resolution altitude data in real time.
Can the Jiyi Terrain Simulating Radar operate in low-light or dusty conditions?
Yes. The millimeter-wave radar penetrates dust, fog, and darkness, providing reliable distance measurements regardless of lighting or airborne particles.
What mounting considerations ensure optimal performance?
Install the module on a vibration-damped bracket with an unobstructed view of the ground or scan direction. Avoid mounting near high-power RF sources and secure the housing to prevent motion during flight.
